Yamaha TT-N503 Music Cast VINYL 500 - RockOnAV

Yamaha

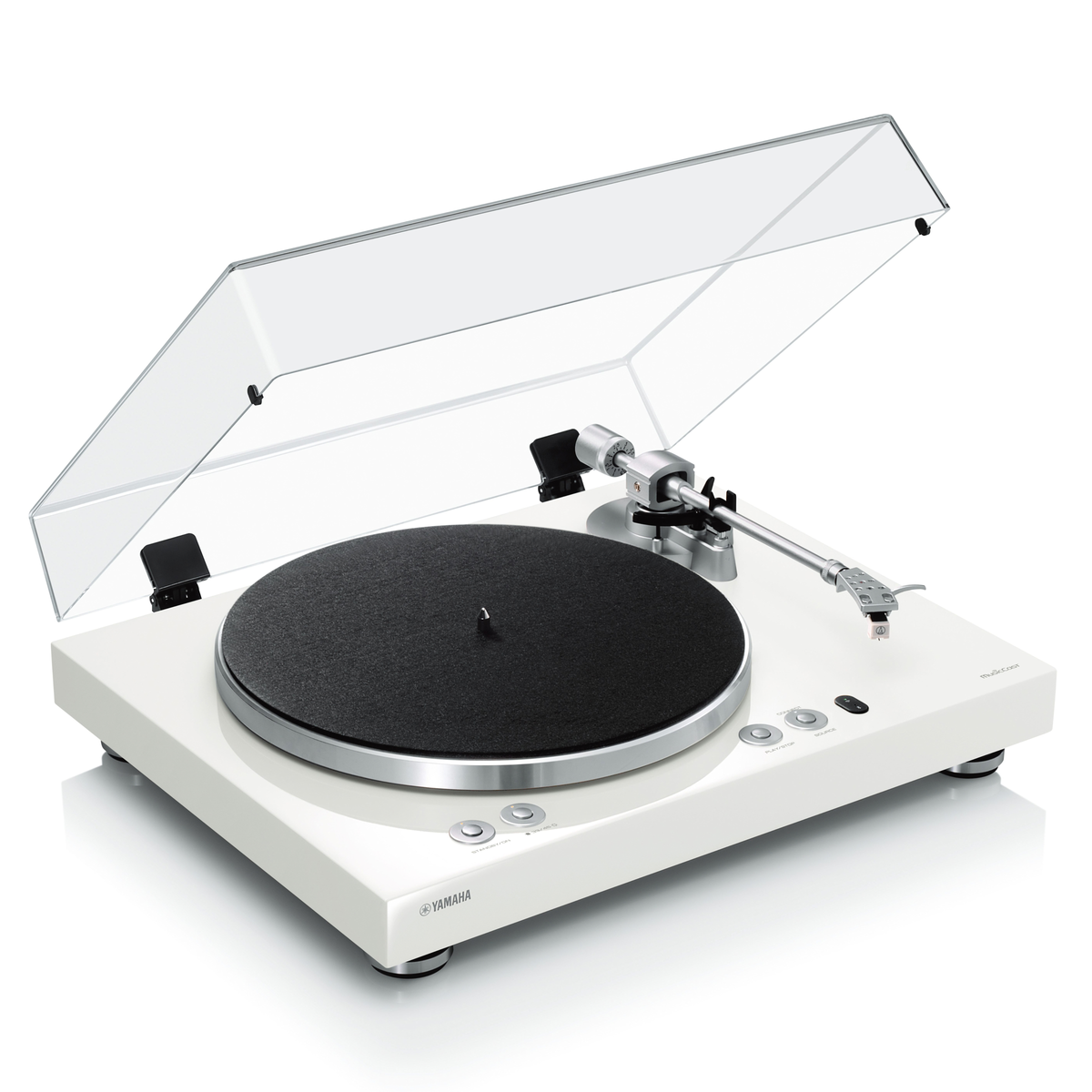

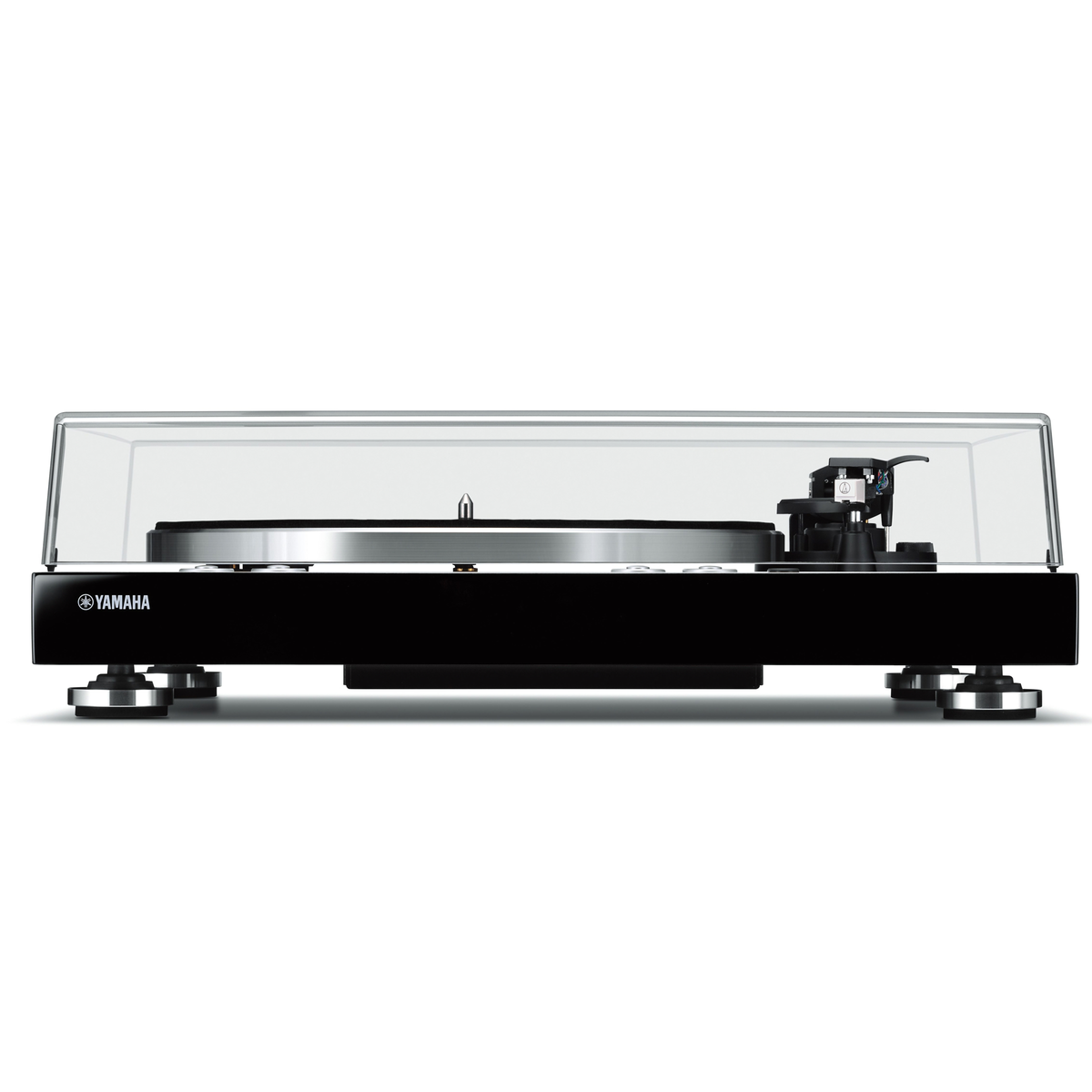

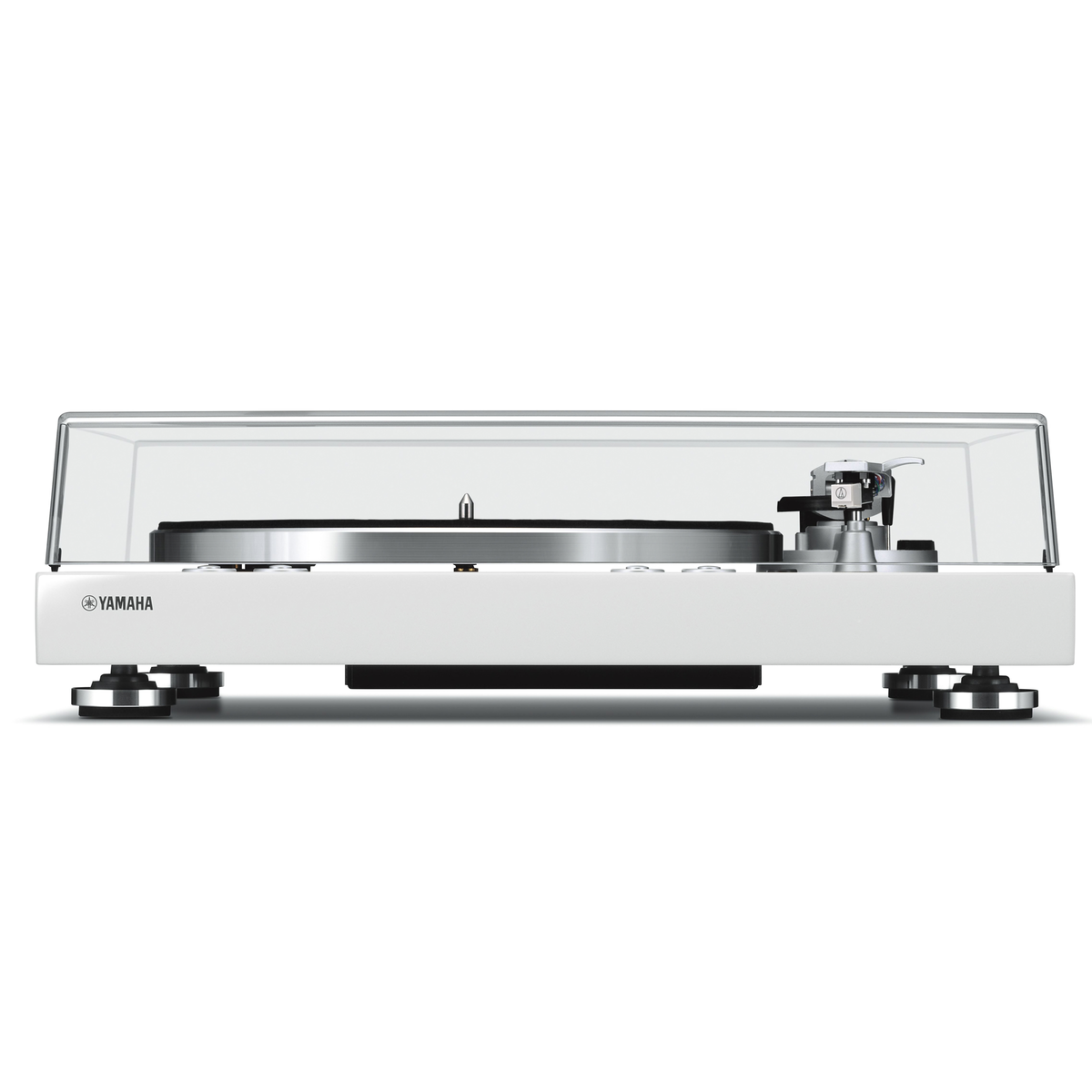

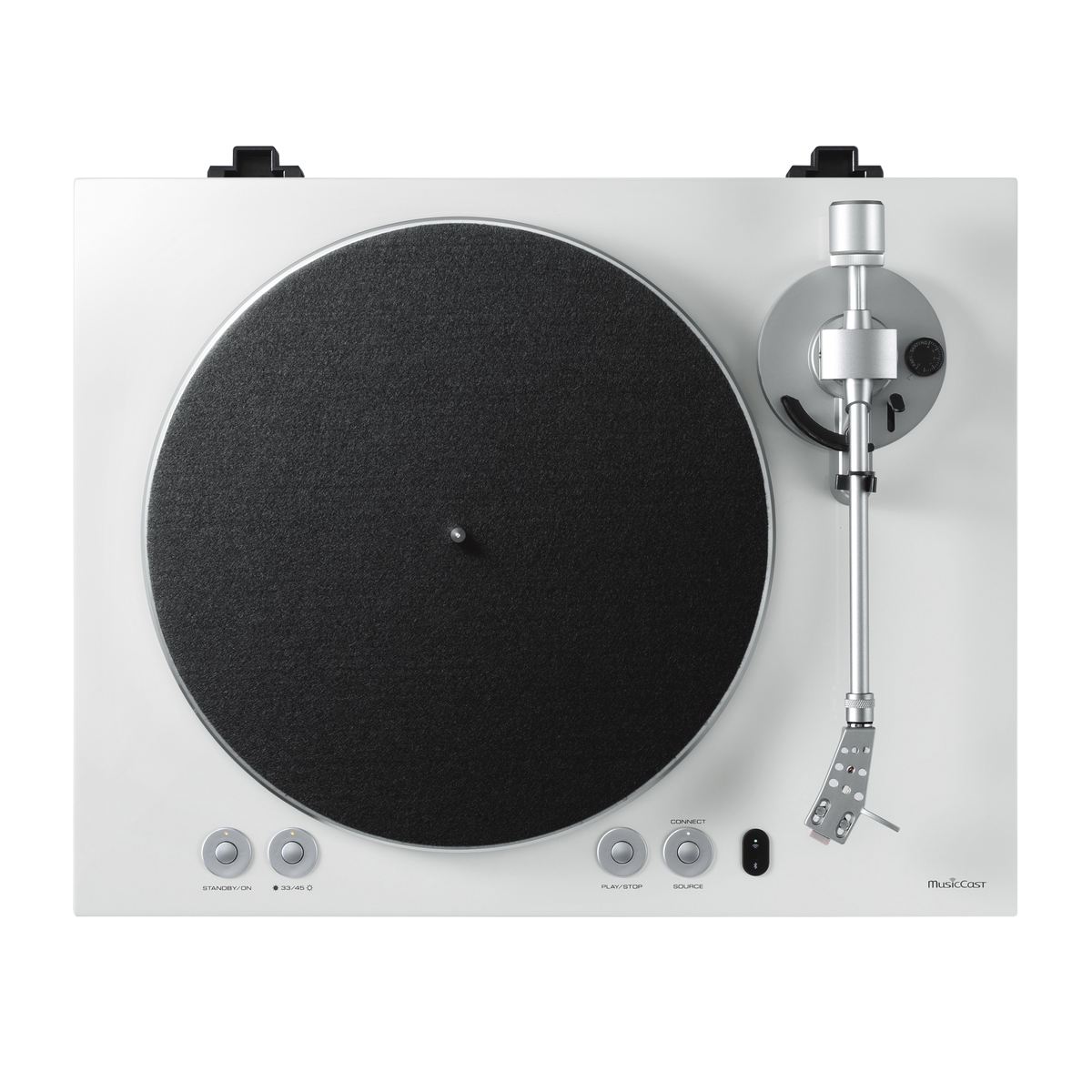

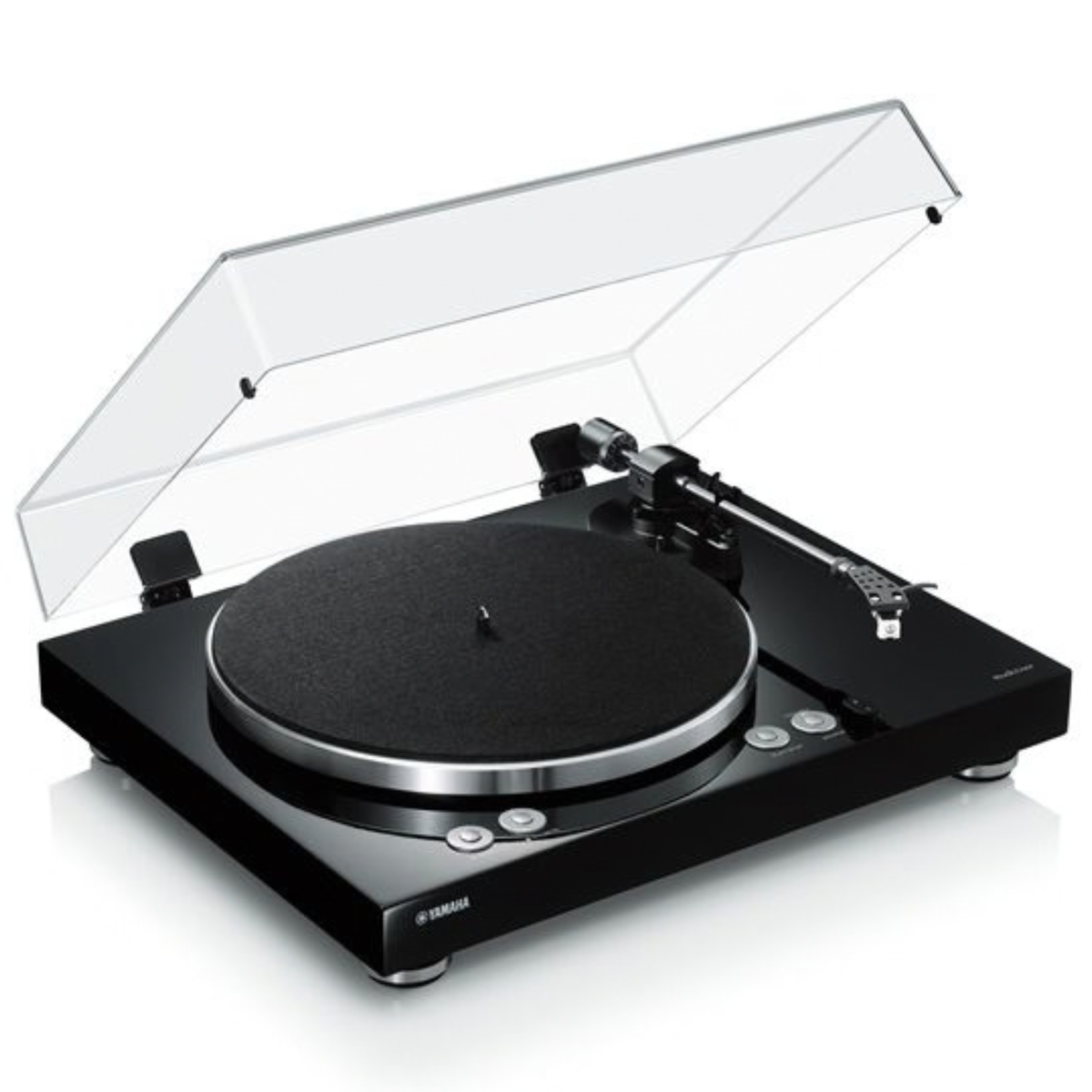

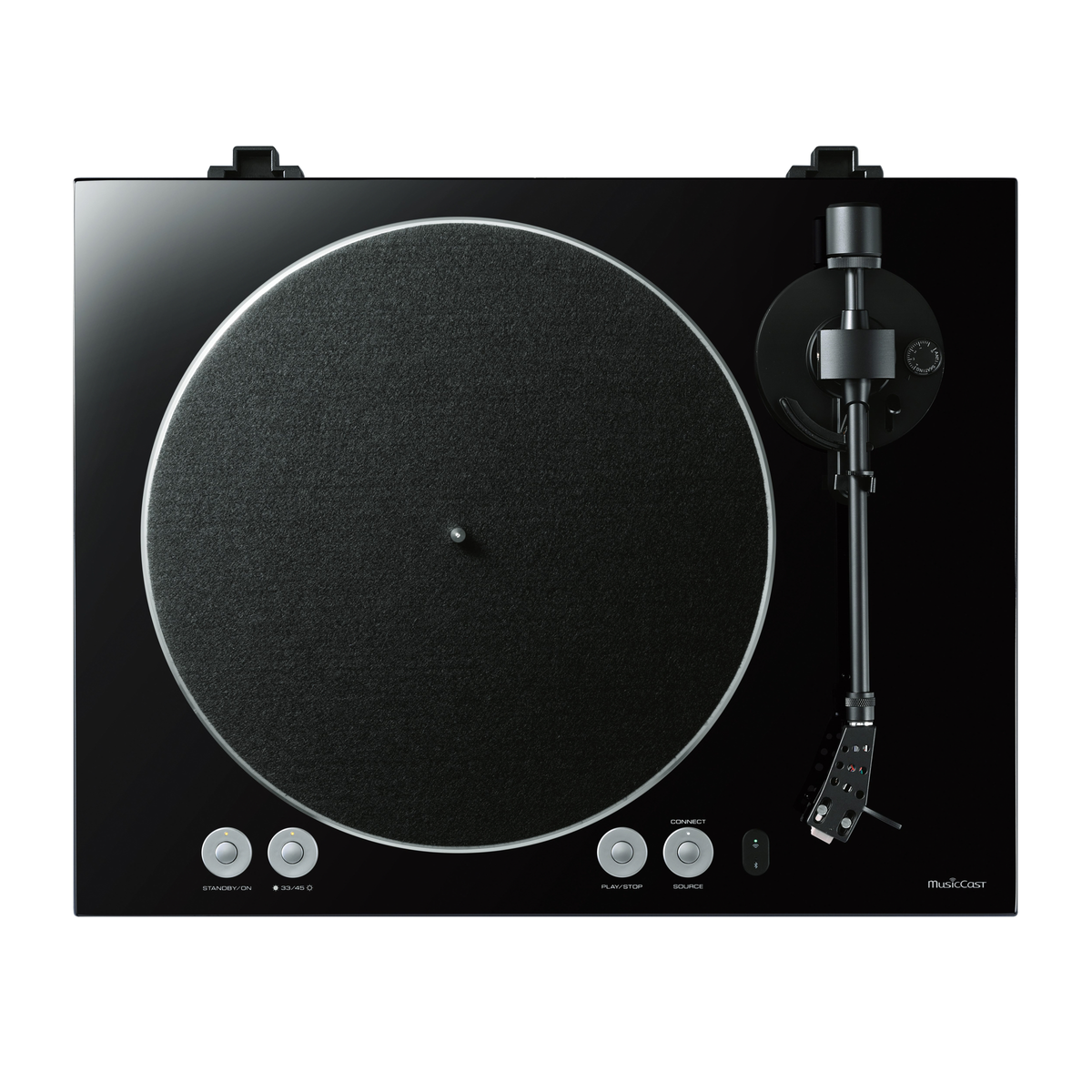

Yamaha TT-N503 MusicCast VINYL 500

Wireless Streaming Turntable with MusicCast, Wi-Fi, Bluetooth & Built-In Phono Preamp

$999.95

Color: Black

Quantity:

Description

Vinyl Meets MusicCast

The Yamaha TT-N503 MusicCast VINYL 500 combines the experience of vinyl playback with modern wireless streaming and multi-room audio. Its built-in MusicCast technology lets you enjoy records through compatible MusicCast speakers and components while also providing access to digital music streaming from the same system.

Built for Accurate Vinyl Playback

A belt-drive DC motor helps minimize unwanted vibration, while the straight static-balance tonearm is designed for accurate tracking and natural sound reproduction. The aluminum die-cast platter provides a stable platform for your records, and the included MM cartridge makes the turntable ready for playback.

The TT-N503 supports both 33⅓ and 45 rpm records.

Built-In Phono Preamp

A built-in phono preamp provides flexible system integration. Use the LINE output to connect directly to an amplifier, receiver or powered speaker system without a dedicated phono input, or use the PHONO output with compatible equipment that has its own phono stage.

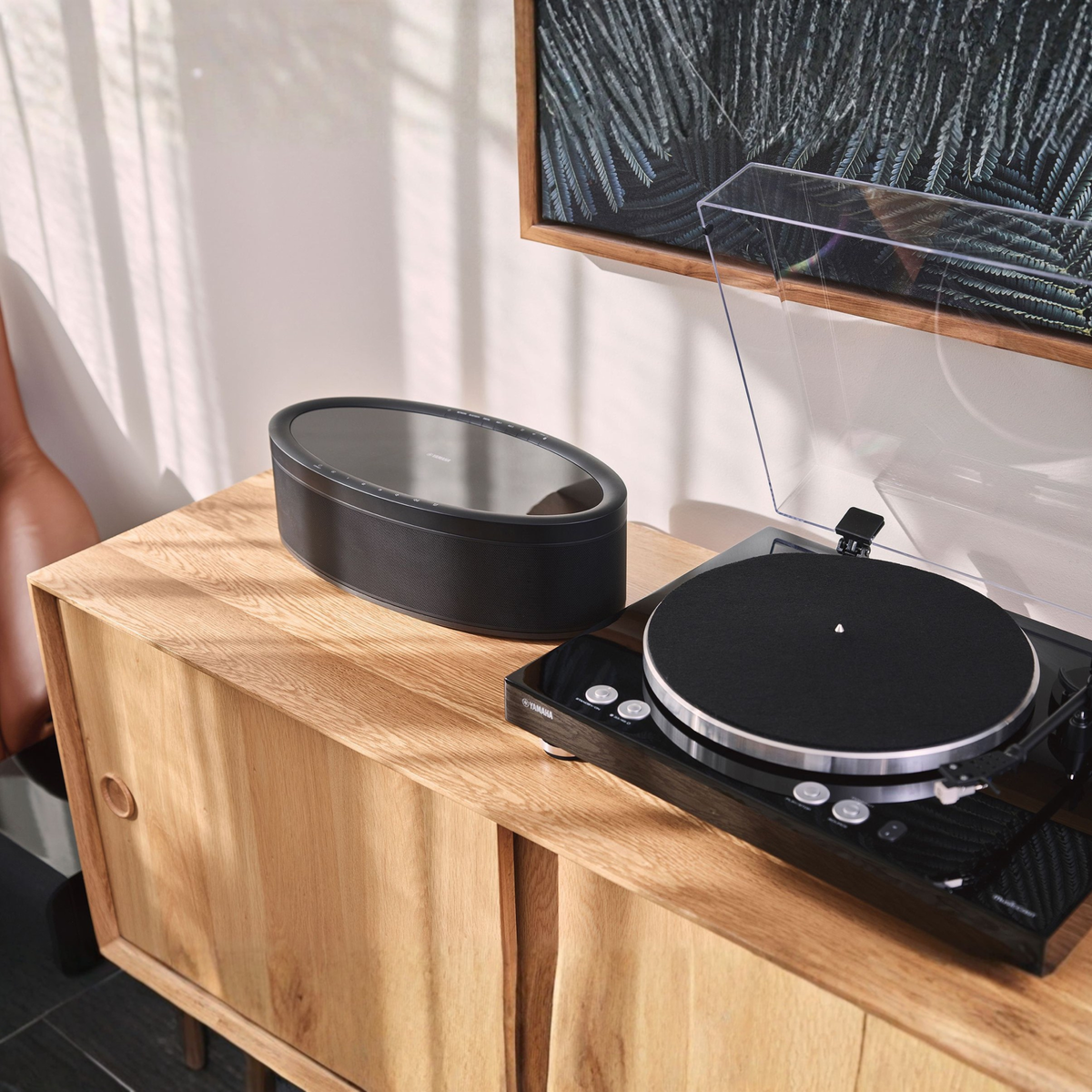

Wireless & Multi-Room Listening

Built-in dual-band Wi-Fi, Bluetooth, AirPlay and MusicCast give the VINYL 500 capabilities far beyond a traditional turntable. Vinyl can become part of a compatible MusicCast multi-room system, allowing your record collection to be enjoyed throughout the home.

Bluetooth output also provides the flexibility to listen through compatible Bluetooth headphones or speakers.

High-Resolution Network Streaming

Beyond vinyl, the TT-N503 functions as a network audio player. It supports high-resolution formats including FLAC, WAV and AIFF up to 192kHz/24-bit, ALAC up to 96kHz/24-bit and DSD up to 11.2MHz.

This combination of analog playback and network streaming makes the MusicCast VINYL 500 a versatile centerpiece for both traditional Hi-Fi and modern wireless audio systems.

Frequently Asked Questions

What is the Yamaha TT-N503?

TT-N503 is the model designation for Yamaha's MusicCast VINYL 500 Wi-Fi turntable.

Does the MusicCast VINYL 500 have a built-in phono preamp?

Yes. It includes a built-in phono preamp and provides both PHONO and LINE outputs, giving you flexibility when connecting it to different audio systems.

Can the TT-N503 play both 33⅓ and 45 rpm records?

Yes. The turntable supports both 33⅓ rpm and 45 rpm playback.

Does the TT-N503 include a cartridge?

Yes. Yamaha supplies the turntable with an MM cartridge.

Can I listen to records wirelessly?

Yes. MusicCast allows vinyl playback through compatible MusicCast products, and Bluetooth output can be used with compatible Bluetooth headphones or speakers.

Does the MusicCast VINYL 500 support Wi-Fi?

Yes. It supports both 2.4GHz and 5GHz Wi-Fi, along with wired Ethernet connectivity.

Can it stream digital music as well as play records?

Yes. In addition to vinyl playback, the TT-N503 functions as a network audio player and supports compatible streaming services and high-resolution digital audio formats.

Does it require a receiver?

Not necessarily. Its built-in phono preamp and MusicCast capabilities provide several connection options, including integration with compatible wireless MusicCast products or a traditional audio system.

Specifications

NETWORK SECTION
File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-Bit, ALAC: up to 96 kHz / 24-Bit, FLAC / WAV / AIFF: up to 192 kHz / 24-Bit, DSD: up to 11.2 MHz
Ethernet	Yes
Wi-Fi	Yes (2.4 / 5 GHz)
AirPlay	Yes
BLUETOOTH SECTION
Version/Profile	Ver. 4.2 / A2DP, AVRCP (Bluetooth is Compatible with SCMS-T)
Audio Codec	SBC, AAC
Maximum Communication Range	32 ft. 10 in. (Without Interference)
TURNTABLE
Drive Method	Belt Drive
Motor	DC Motor
Rotation Speed	33-1/3 rpm, 45 rpm
Rotation Speed Variation	±2%
Wow and Flutter	0.2%
Platter	Aluminium Die-Cast (Diameter 30 cm)
Output Level	450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm/sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm/sec)
Signal to Noise Ratio	67 dB or Higher (A-Weighted, 20 kHz, LPF)
TONEARM
Tonearm	Static Balance Straight Tonearm
Effective Arm Length	223.5 mm
Overhang	19 mm
Stylus Pressure Adjustment Range	0-4 g
Acceptable Cartridge Weight	15.5-19 g (Including Headshell)
ATTACHED CARTRIDGE
Cartridge Type	MM Type
Output Voltage	2.5 mV (1 kHz, 3.54 cm/sec)
Stylus Pressure	3.5 ± 0.5 g
Cartridge Weight	5.0 ± 0.3 g
Cartridge Height	17.0 ± 0.7 mm
Headshell Weight	10 g (Including Screws, Nuts and Wires)
AUDIO SPECIFICATIONS

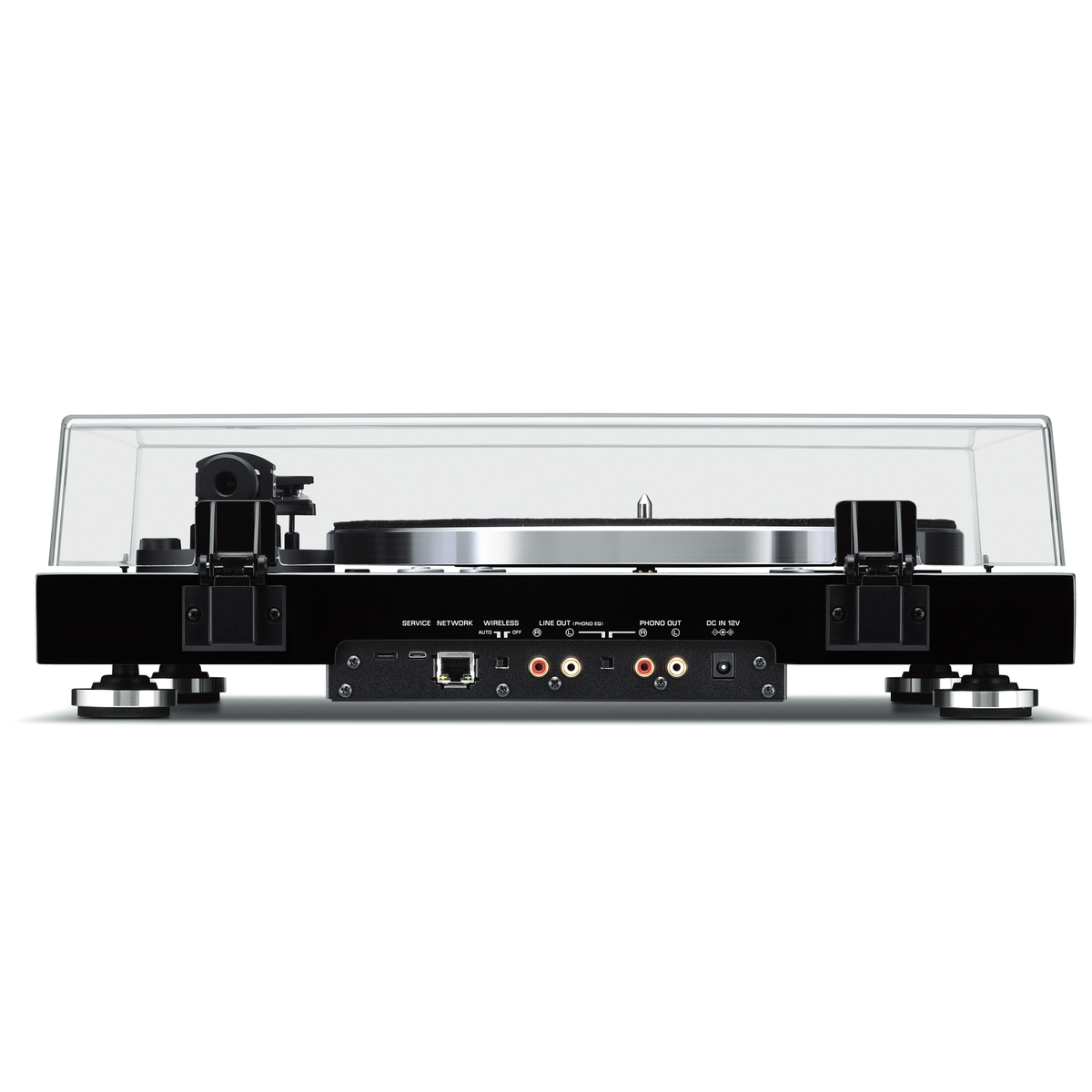

Output Terminal	RCA: 2 (PHONO, LINE)
Output Level	2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio	[IHF-A Network] 110 dB or Higher (Infinity Zero, Fs 44.1 kHz)
Dynamic Range	100 dB or Higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion	0.003% or Lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response	Fs 44.1 kHz; 2 Hz to 20 kHz (+0/-3 dB) Fs 48 kHz; 2 Hz to 24 kHz (+0/-3 dB) Fs 96 kHz; 2 Hz to 48 kHz (+0/-3 dB) Fs 192 kHz; 2 Hz to 96 kHz (+0/-6 dB)
GENERAL
Power Consumption	6 W
Eco-Standby (Reference Date)	0.3 W
Standby Power Consumption	1.4 W (Network Standby ON, Bluetooth® Standby OFF, Wired), 1.8 W (Network Standby ON, Bluetooth Standby ON/OFF, Wi-Fi), 1.6 W (Network Standby ON, Bluetooth Standby ON, Wired)
Dimension (W×H×D)	17-3/4" x 5-3/8" x 14-1/2"
Weight	12.6 lbs.
WHAT'S IN THE BOX
In the Box	Yamaha TT-N503 MusicCast VINYL 500 Turntable Platter Turntable Mat Drive Belt Counterweight Headshell with Cartridge Dust Cover Dust Cover Hinges 45 RPM Adapter AC Adapter
