Description
Immersive Dolby Atmos Sound
The Yamaha SR-B30A delivers immersive Dolby Atmos sound from a sleek, all-in-one design. With 120 watts of total output power, it brings spacious, detailed audio to movies, TV, games and music without requiring a separate subwoofer.
Dual Built-In Subwoofers
Two 3-inch built-in subwoofers with a bass-reflex design deliver rich, powerful low frequencies while keeping your setup simple and compact. Yamaha Bass Extension can add even more low-end impact when desired.
Clear Dialogue & Customized Sound
Yamaha Clear Voice technology enhances dialogue for easier listening, while four sound modes—Stereo, Standard, Movie and Game—let you tailor the sound to different entertainment. Additional tone adjustments are available through the Yamaha Sound Bar Remote app.
Easy TV & Bluetooth Connectivity

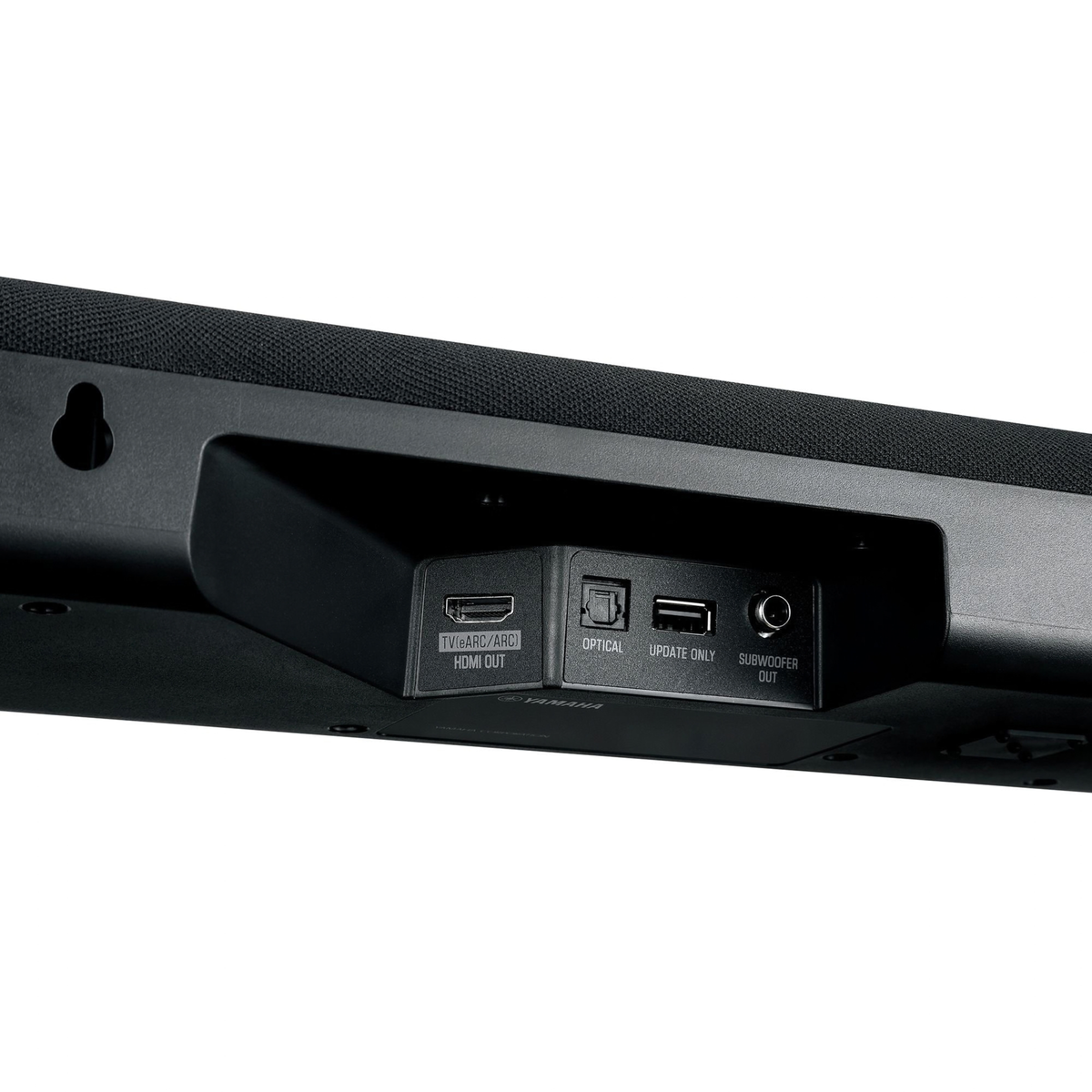

Connect to a compatible TV using HDMI eARC/ARC or optical digital, while HDMI-CEC allows basic control through a compatible TV remote. Bluetooth 5.1 provides convenient wireless streaming from compatible devices, and a dedicated subwoofer output lets you add an external powered subwoofer if desired.
Frequently Asked Questions
Does the Yamaha SR-B30A support Dolby Atmos?
Does the SR-B30A need a separate subwoofer?
How much power does the SR-B30A provide?
Does the SR-B30A have Bluetooth?
Can the SR-B30A be wall mounted?
Specifications
| GENERAL | |
| Drivers | Front L/R: 1.8" Cone x 4, Tweeter: 1" Dome x 2, Built-in Subwoofer: 3" Cone x 2 |
| Output Power | 120 W (Front L/R: 30 W x 2-ch, Built-in Subwoofer: 60 W) |
| Power Consumption | 23 W |
| Standby Power Consumption | 0.3 W (HDMI Control Off, Bluetooth Standby Off), 0.6 W (HDMI Control On, Bluetooth Standby On) |
| Dimensions (W x H x D) | Installing the Unit in Front of a TV: 35-7/8" x 2-5/8" x 5-1/4"; Mounting the Unit on a Wall with Spacers: 35-7/8" x 2-5/8" x 5-1/2" |
| Weight | 8.6 lbs |
| INPUT / OUTPUT | |
| HDMI | 1 Out (eARC) |
| Digital Optical | Yes |
| Subwoofer Output | Yes |
| Analog Audio | No |
| HDMI | |
| eARC/ARC | eARC/ARC |
| CEC | Yes |
| Auto Lip-Sync | No |
| SOUND TECHNOLOGY | |
| Virtual Surround Technology | Dolby Atmos |
| Surround Mode | Stereo, Standard, Movie, Game |
| Compressed Music Enhancer | No |
| Bass Extended | Yes |
| AUDIO FORMATS | |
| Dolby TrueHD | Yes |
| Dolby Digital Plus | Yes |
| Dolby Digital | Yes |
| Dolby Pro Logic II | No |
| DTS Digital Surround | No |
| CONNECTIVITY | |
| Built-In Music Streaming Services | Bluetooth |
| Wi-Fi | No |
| MusicCast Surround | No |
| AirPlay | No |
| Bluetooth Version/Profile | Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC |
| Bluetooth Maximum Communication Range | Approx. 33ft (Without Obstructions) |
| Wireless Subwoofer | No |
| OTHER FEATURES | |
| App Control | Yes (Sound Bar Remote) |
| Learning Function | No |
| WHAT'S IN THE BOX | |
| In the Box |
Yamaha SR-B30A Sound Bar Remote Control Power Cord Optical Digital Audio Cable Wall-Mounting Spacers Mounting Template Quick Guide Safety Guide |
