Description

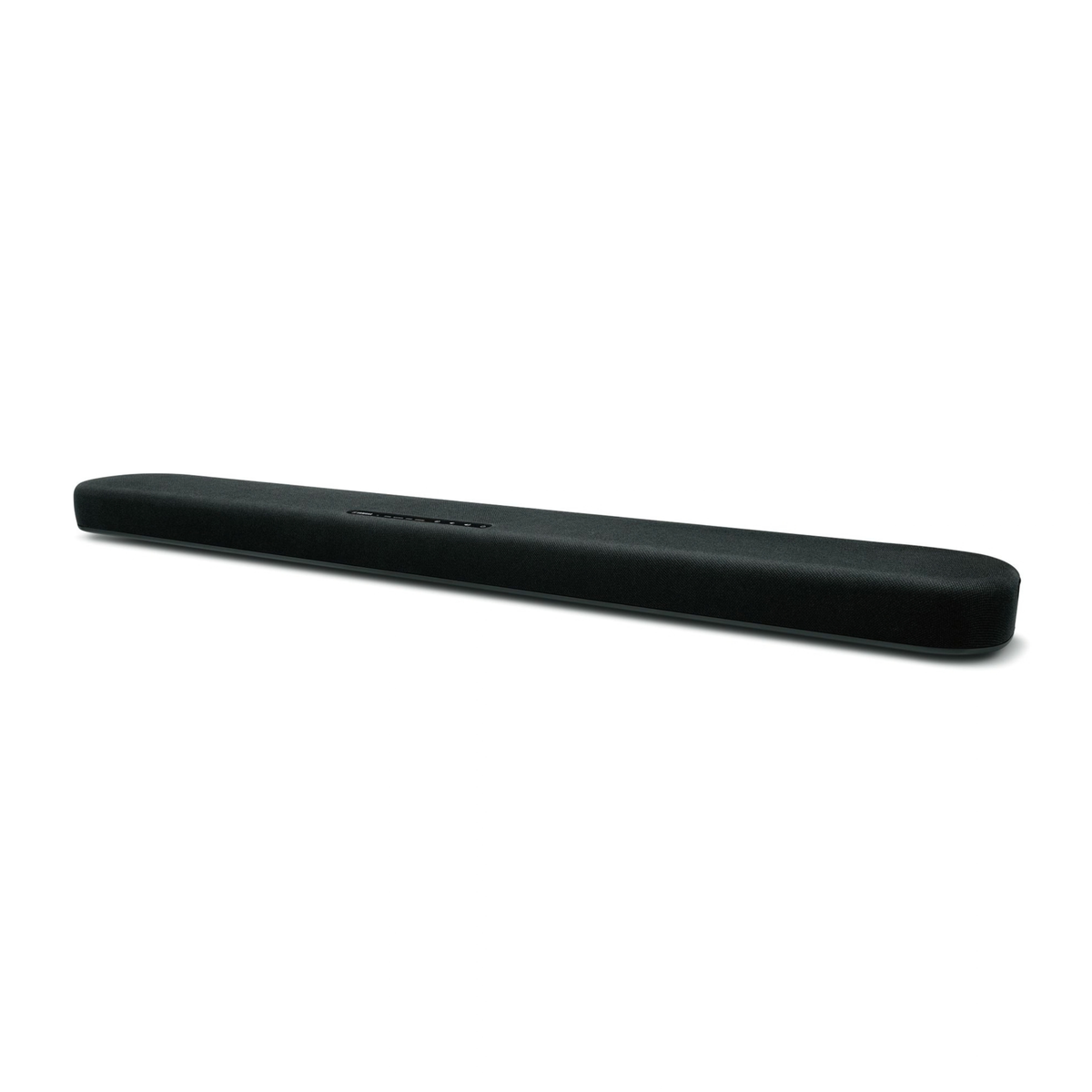

Immersive Sound in an All-in-One Design
The Yamaha SR-B20A delivers spacious home entertainment sound from a slim, easy-to-use design. DTS Virtual creates immersive virtual 3D surround sound, while 120 watts of total power brings greater impact to movies, TV, games and music.
Dual Built-In Subwoofers
Two 3-inch built-in subwoofers and dual bass-reflex ports deliver rich, powerful bass without requiring a separate subwoofer. For even deeper bass, a dedicated subwoofer output lets you add a compatible powered subwoofer.
Clear Dialogue & Customized Sound
Yamaha Clear Voice technology makes dialogue easier to hear, while four sound modes—Stereo, Standard, Movie and Game—let you tailor the listening experience to your content. Bass Extension provides additional low-frequency impact when desired.
Simple TV & Bluetooth Connectivity

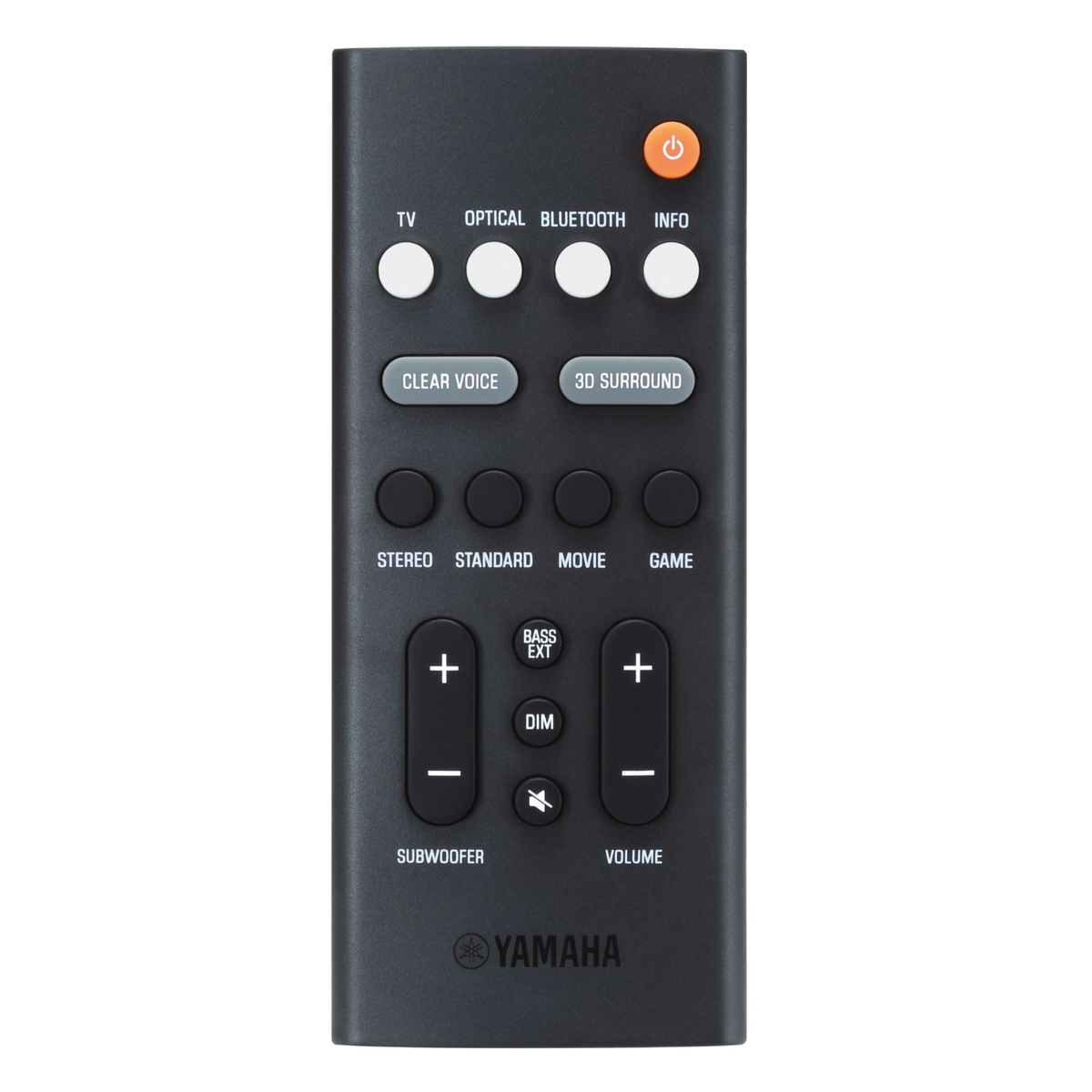

Connect your TV using HDMI ARC or optical digital, and stream music wirelessly from compatible devices with Bluetooth 5.0. The Yamaha Sound Bar Remote app provides convenient control from a compatible smartphone or tablet, and the sound bar can also be wall mounted for a clean installation.
Frequently Asked Questions
Does the Yamaha SR-B20A support Dolby Atmos?
Does the SR-B20A have built-in subwoofers?
How much power does the SR-B20A provide?
Can I add a separate subwoofer?
Does the SR-B20A have Bluetooth?
Specifications
| GENERAL | |
| Drivers | Front L/R: 2-1/8" Cone × 2, Tweeter: 1" Dome × 2, Built-in Subwoofer: 3" Cone × 2 |
| Output Power | 120 W (Front L/R: 30 W × 2-ch, Built-in Subwoofer: 60 W) |
| Power Consumption | 25 W (Rated) |
| Standby Power Consumption | 0.2 W (HDMI Control Off, Bluetooth Standby Off), 0.5 W (HDMI Control On, Bluetooth Standby On) |
| Dimensions (W x H x D) | Installing the Unit in Front of a TV: 35-7/8" × 2-1/8" × 5-1/8"; Mounting the Unit on a Wall with Spacers: 35-7/8" × 5-1/8" × 2-1/2" |
| Weight | 7.1 lbs |

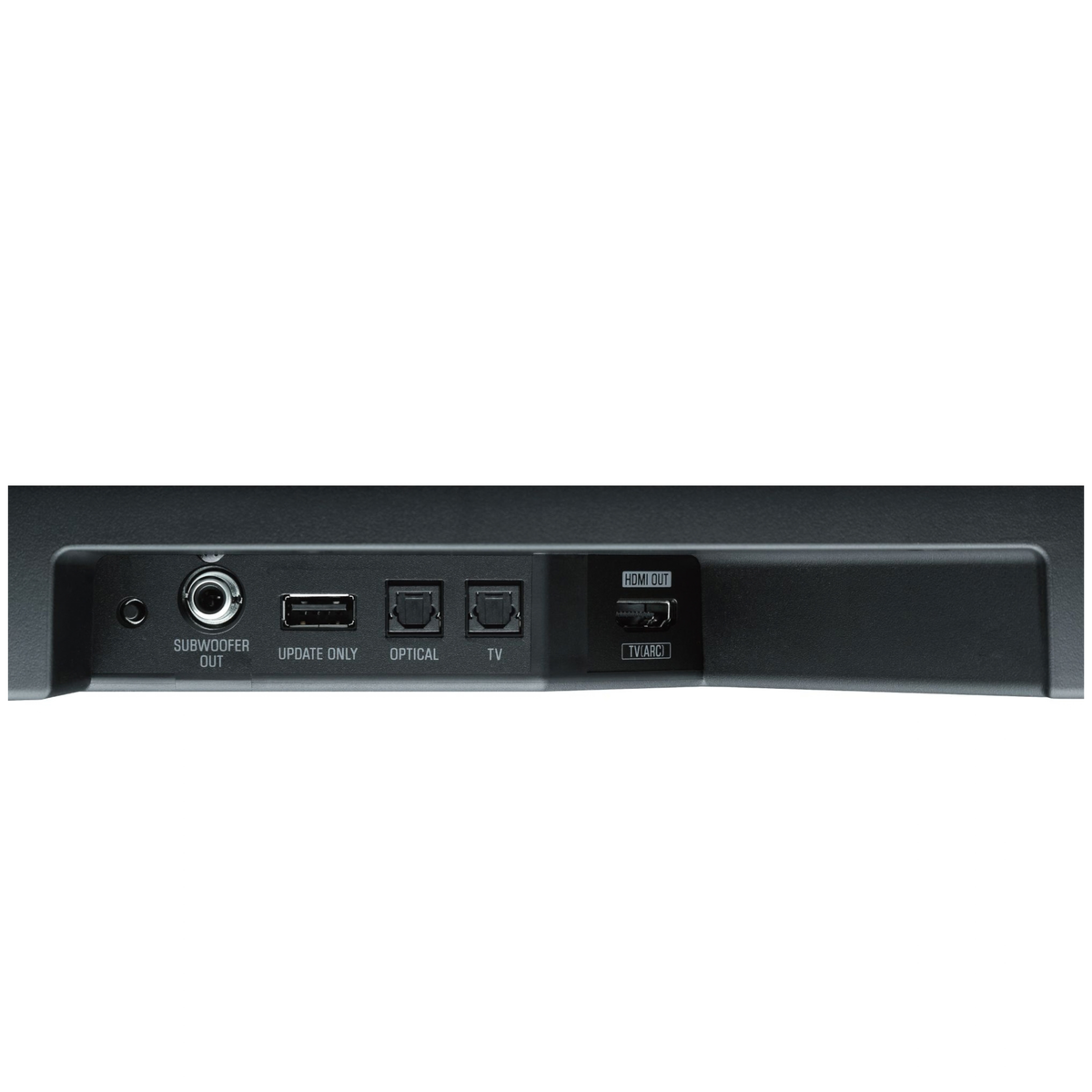

| INPUT / OUTPUT | |
| HDMI | 1 Out (TV ARC) |
| Digital Optical | 2 In |
| Subwoofer Output | Yes |
| Analog Audio | No |
| HDMI | |
| 4K Pass-Through | No |
| 3D Pass-Through | — |
| ARC | — |
| CEC | Yes |
| Auto Lip-Sync | No |
| SOUND TECHNOLOGY | |
| Virtual Surround Technology | DTS® Virtual:X™ |
| Surround Mode | Stereo, Standard, Movie, Game |
| Compressed Music Enhancer | Yes (for Bluetooth) |
| Bass Extended | Yes |
| AUDIO FORMATS | |
| Dolby Digital | Yes |
| Dolby Pro Logic II | Yes |
| DTS Digital Surround | Yes |
| File Format | No |
| CONNECTIVITY | |
| Built-In Music Streaming Services | Bluetooth |
| Wi-Fi | No |
| AirPlay | No |
| Bluetooth Version/Profile | Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC |
| Bluetooth Maximum Communication Range | 33 ft (Without Obstructions) |
| Wireless Subwoofer | No |
| MusicCast Surround | No |
| OTHER FEATURES | |
| App Control | Yes (Sound Bar Remote) |
| Learning Function | No |
| FRONT SURROUND SYSTEM | |
| MusicCast Surround | — |
| WHAT'S IN THE BOX | |
| In the Box |
Yamaha SR-B20A Sound Bar Remote Control Power Cord Optical Digital Audio Cable Wall-Mounting Spacers Mounting Template Quick Start Guide Safety Guide |
