Yamaha RX-A8A AVENTAGE 11.2-Channel Home Theater Receiver
Yamaha RX-A8A AVENTAGE 11.2-Channel Home Theater Receiver
Flagship-Quality Parts
The A8A incorporates the CX/MX-A5200’s concept, architecture, and materials for elevated performance. Double bottom plate ensures stability for unnecessary vibrations, while the thick copper foil for the circuit board achieves lower impedance. This AV receiver also comes equipped with a customized capacitor and 11ch capability.
High-Quality Digital Components
Qualcomm QCS407 takes your AV receiver’s audio performance to the next level with support for Dolby Atmos and DTS:X. Dual SABRE ES9026 PROs minimize noise to make even the most delicate sounds rich and provides superior signal-to-noise ratio and high dynamic range for professional quality audio.
Surround:ai
Analyses the scene of the entertainment content and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. It’s like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407.
Auro-3d
Bring your entertainment experience to the next level with immersive audio that accurately reproduces 3D sound with superior effect across any content. Gain entry into a world where every breath-taking moment is not only heard but also felt.
8K/60Hz, 4K/120Hz
Enables a higher resolution and refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+
Provides deeper contrast and more realistic images that stay true to the creators’ intent.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)
Ensures seamless motion and transitions to enhance your performance.
HDMI Multiple Input with latest Technology
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles to be connected at the same time.
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings.
YPAO™-R.S.C. with multi-point measurement and precision EQ
Calibrates sound to your room by analyzing room acoustics and measuring speaker characteristics. This feature also optimizes sound parameters for maximum performance from SURROUND:AI, Dolby Atmos and DTS:X.
Compatible with Wireless Rear Speaker
Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor by adding Yamaha wireless speaker MusicCast 20 or MusicCast 50.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
Key Info
This AV receiver incorporates cutting-edge components and technology for home cinema unlike anything you’ve ever experienced. Lose yourself in room-filling sound and crystal clear picture.
Specifications
AV Receiver RX-A4A
Amplifier Section
| Channels | 11.2 |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 150 W (8 ohms, 0.06% THD) |
| High Slew Rate Amplifier | Yes |
Surround Sound Processing
| Surround:AI | Yes |
| Cinema DSP | Yes (HD3) |
| DSP Programs | 24 |
| Dialog Level Adjustment | Yes |
| Virtual Presence Speaker | Yes |
| Virtual Surround Back Speaker | Yes |
| Dialogue Lift | Yes |
| SILENT Cinema / Virtual Cinema DSP | Yes |
| Dolby Atmos | Yes |
| Dolby Atmos Height Virtualization | Yes |
| Dolby TrueHD | Yes |
| Dolby Digital Plus | Yes |
| Dolby Surround | Yes |
| DTS:X | Yes |
| DTS-HD Master Audio | Yes |
| Auro 3D | Yes |
Audio Features
| File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes |
| Compressed Music Enhancer | Yes |
| High-resolution Music Enhancer | Yes |
| YPAO Multipoint Measurement | Yes with R.S.C. (Reflected Sound Control), 3D, 64-bit High Precision EQ Calculation, Low Frequency mode and Angle Measurement |
| YPAO Volume | Yes |
| Adaptive DRC (Dynamic Range Control) | Yes |
| Initial Volume and Maximum Volume Setting | Yes |
| A.R.T. Wedge | Yes |
| Bi-amp Capability | Yes |
| Audio Delay | Yes (0-500 ms) |
| DA Converter | 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x2 |
Video Features
| HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes |
| HDMI Pass-through | 4K120AB, 8K60AB, 4K60 and 40GBPS |
| HDMI Upscaling | Yes, up to 8K |
| HDMI Up-conversion | Yes (Analog to HDMI) |
| Dolby Vision | Yes |
| HDR 10+ | Yes |
| VRR & ALLM | Yes |
| Video Adjustment | Yes |
Connectivity
| MusicCast Surround | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) |
| AirPlay 2 | Yes |
| Bluetooth | Yes (SBC / AAC) |
| Phono Input | Yes |
| XLR Terminal | Yes |
| Component Video Input/Output | 1 / 0 |

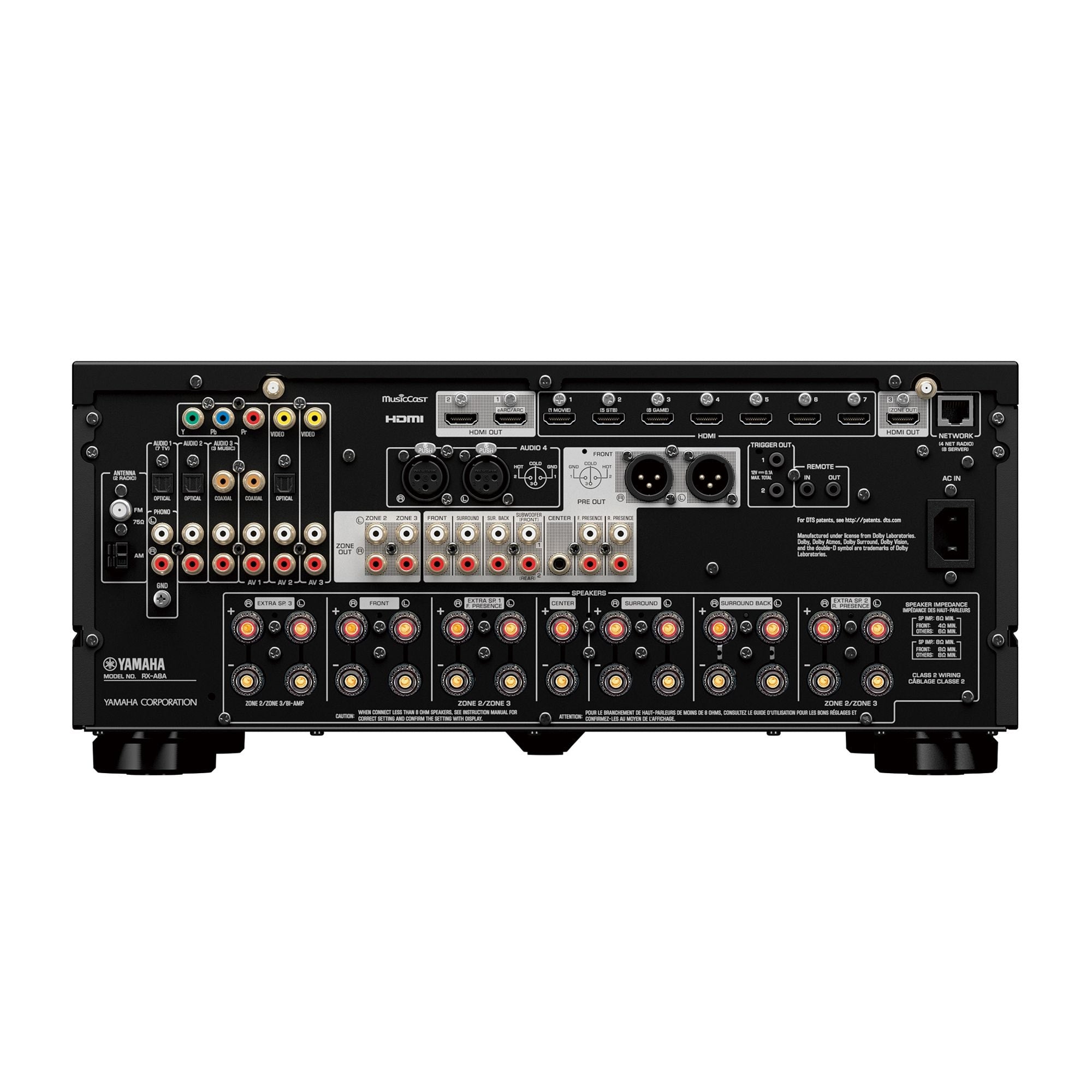

Extensive Connections
| HDMI Input/Output | 7 / 3 (HDMI 2.1 / HDCP 2.3) |
| HDMI CEC | Yes |
| USB Input | Yes |
| Network Port | Yes |
| Front AV Input | USB |
| Digital Audio Input / Output: Optical | 3 / 0 |
| Digital Audio Input / Output: Coaxial | 2 / 0 |
| Analog Audio Input / Output | 6 / 0 |
| Composite Video Input / Output | 2 / 0 |
| Preout | 11.2-ch |
| Headphone Output | 1 |
Tuner Section
| FM / AM Tuner | Yes |
User Interface
| On-Screen Display | Graphical User Interface |
| SCENE | SCENE PLUS (8 sets) |
| App Control | Yes (iPhone / iPad / Android phone / tablet) |
| Web Browser Control | Yes |
| Remote Control Unit | Yes |
Zone Control
| Zone 2 Audio Output | Preout / HDMI |
| Zone 3 Audio Output | Preout |
| Zone 4 Audio Output | HDMI |
| Powered Zone | Zone 2 / 3 |
| Zone Video Output | HDMI |
| Zone B Output | HDMI |
| Zone GUI | Yes |
| RS-232C Interface | N/A |
| +12V Trigger Output | 2 |
| Remote (IR) Input/Output | 1 / 1 |
| Party Mode | Yes |
General
| Standby Power Consumption (IR only) | <0.4 W |
| Auto Power Standby | Yes |
| ECO Mode | Yes |
| Dimensions (W x H x D) | 17-1/8" x 7-1/2" x 18-3/4" (with antenna up:17-1/8" x 10-5/8" x 18-3/4") |
| Weight | 47.2 lbs. |
