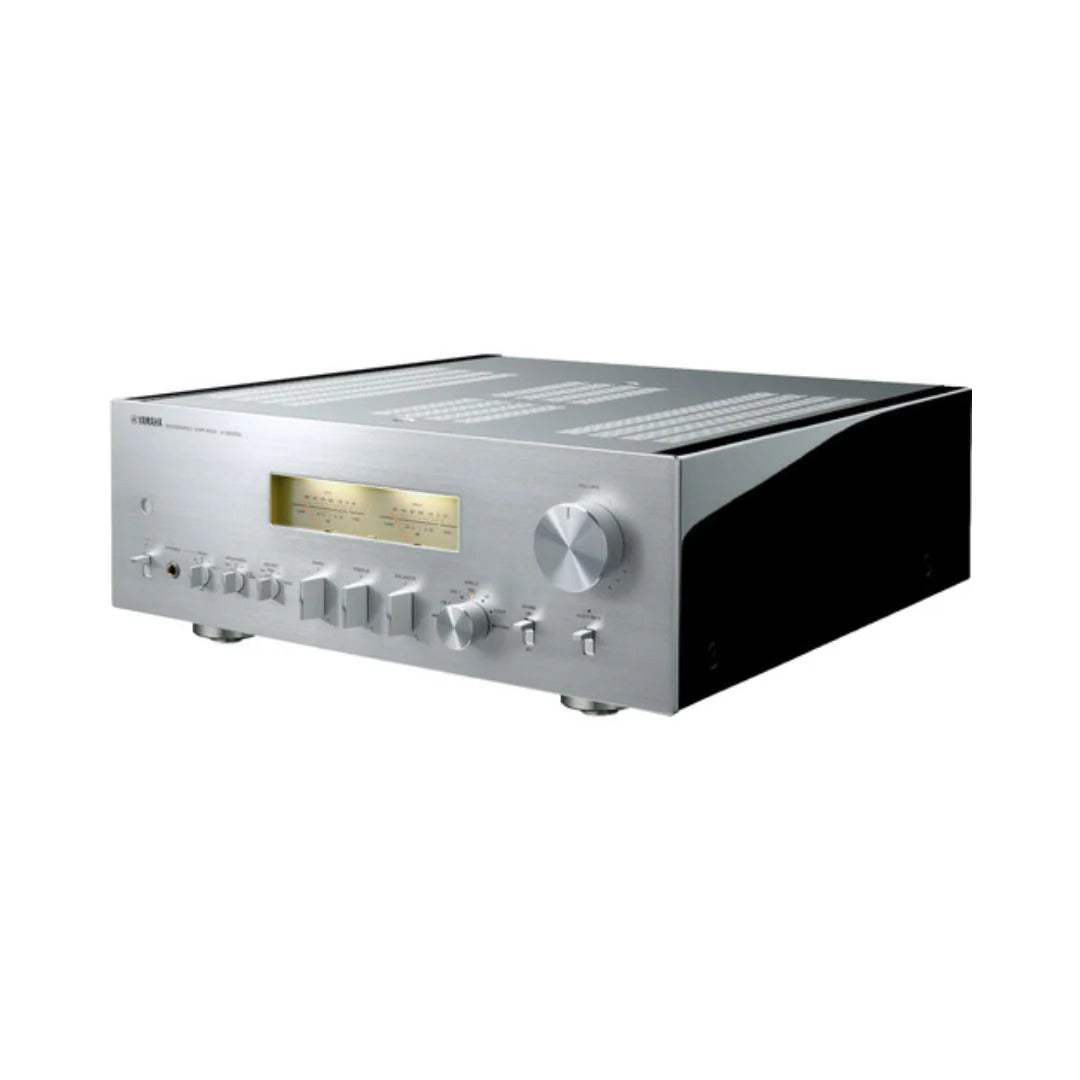

Yamaha A-S2200 Stereo 180W Integrated Amplifier
Yamaha A-S2200 Integrated Amplifier: Pure High-Fidelity Sound
Discover unparalleled sound quality with the Yamaha A-S2200 Integrated Amplifier—a perfect blend of timeless design and cutting-edge technology. Designed for audiophiles, this amplifier delivers exceptional performance, detailed audio, and versatility to elevate any Hi-Fi system.
Key Features
1. Powerful Performance
- 90W per channel at 8Ω and 150W per channel at 4Ω for dynamic, distortion-free sound.
2. Fully Balanced Circuit Design
- Minimizes noise and distortion for crystal-clear audio reproduction, staying true to the original recording.

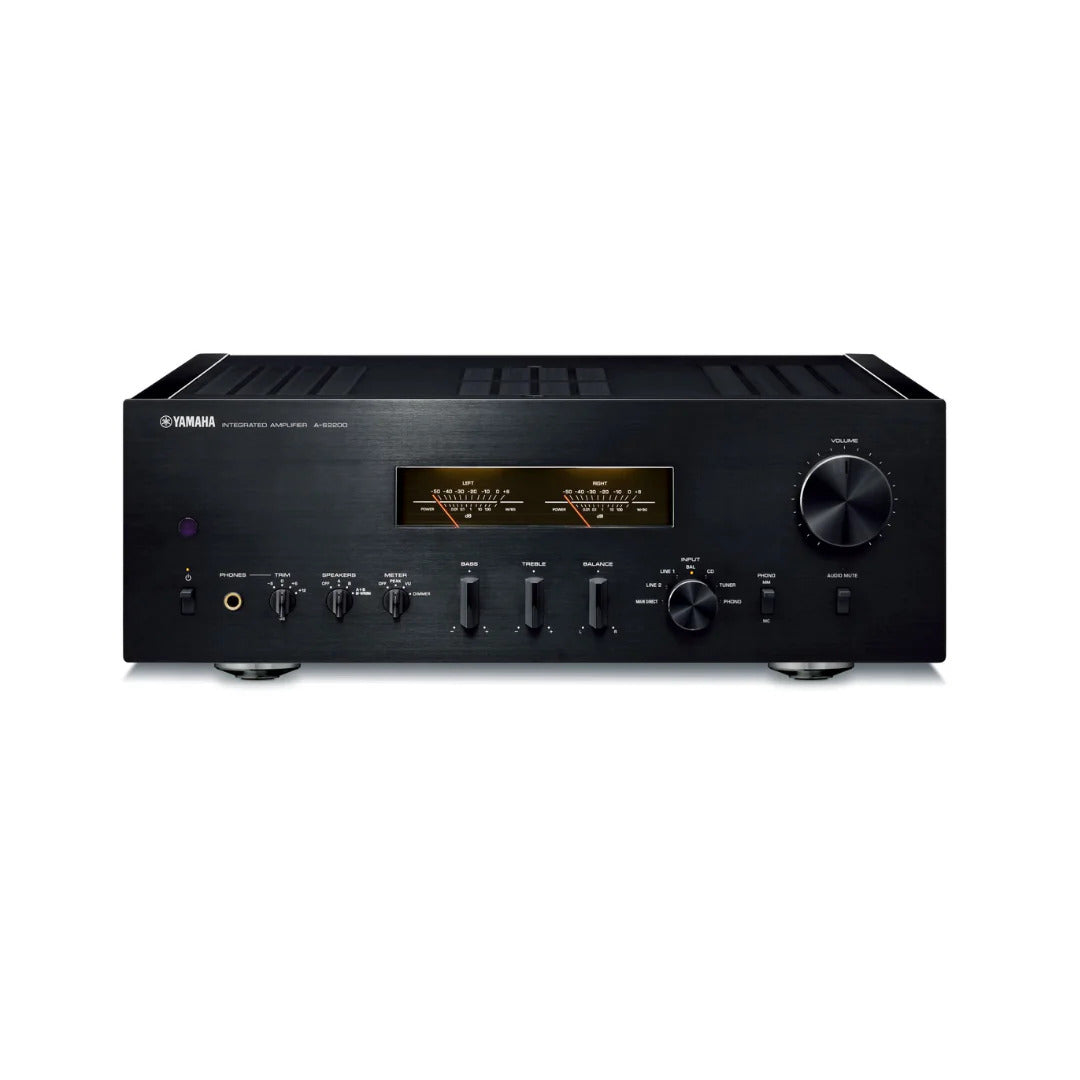

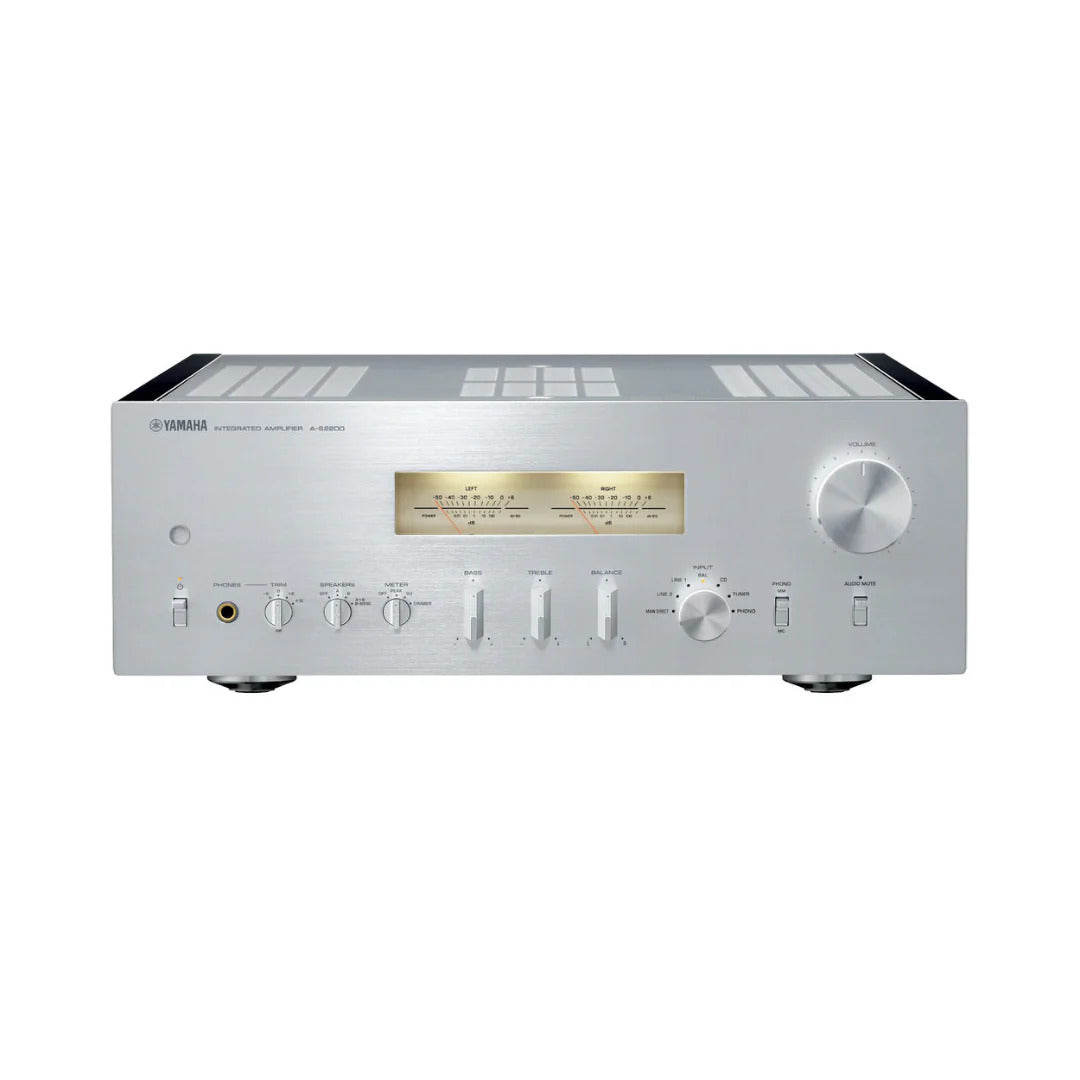

3. Elegant VU Meters
- Classic level meters provide a visual representation of the music's dynamics, adding a nostalgic yet stylish touch to your setup.
4. Precision Engineering

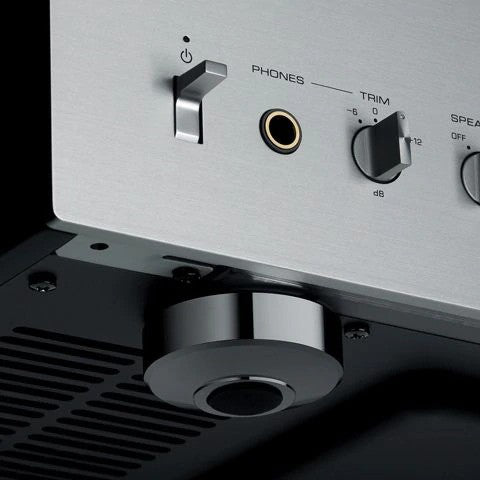

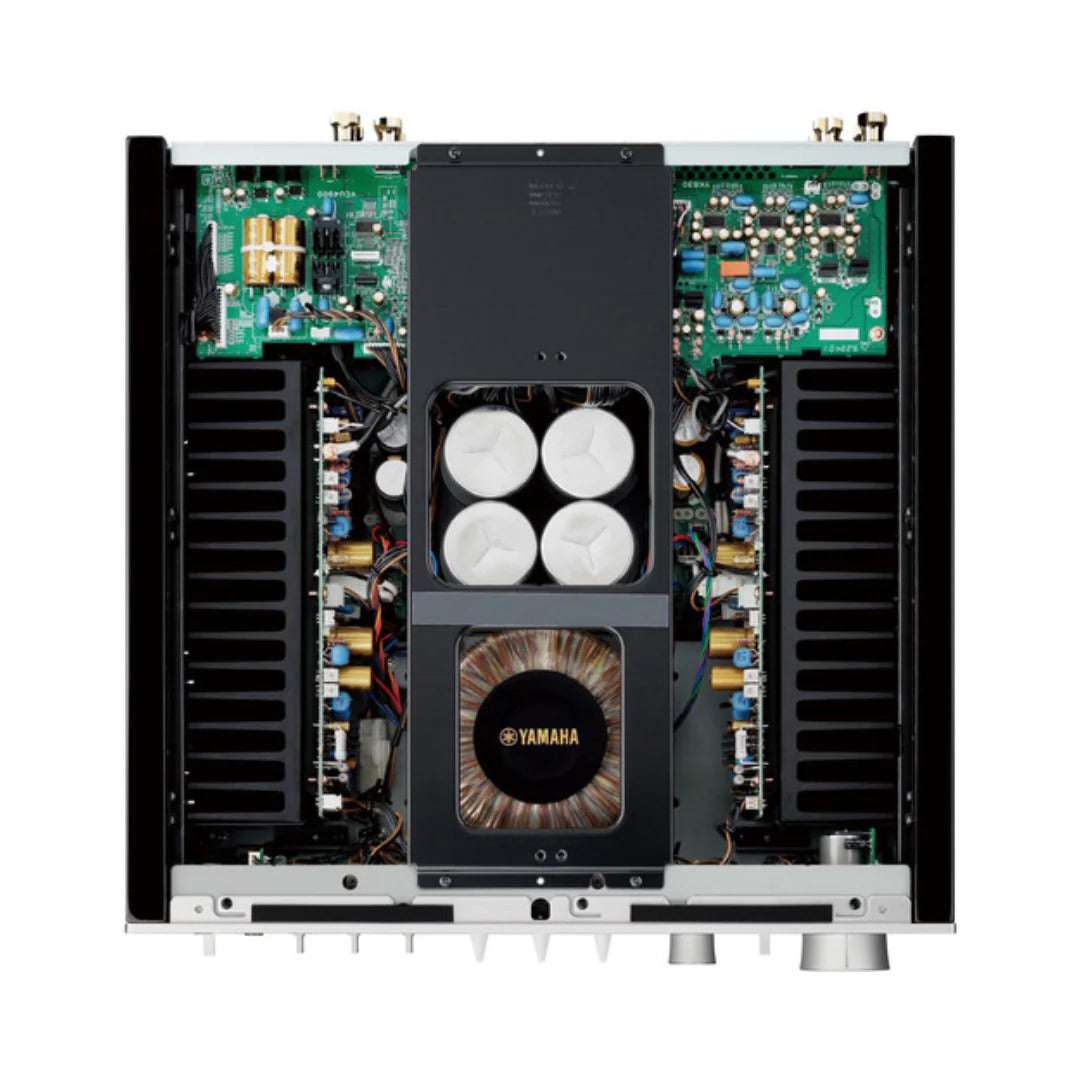

- Features a high-power toroidal transformer and a mechanical ground concept for accurate, rhythmic bass and enhanced clarity.
5. Versatile Connectivity

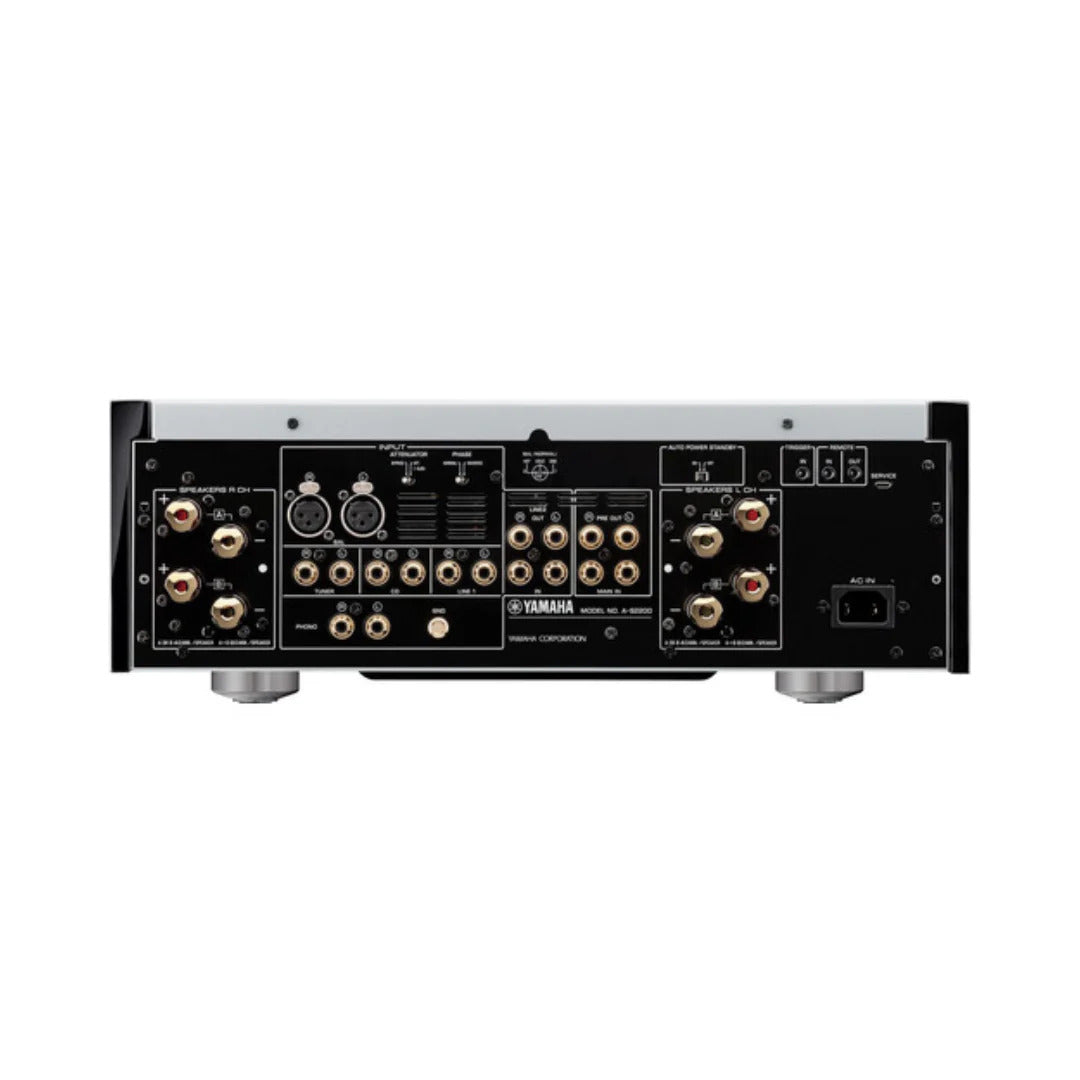

- Includes balanced XLR, RCA, and a built-in phono stage for turntables. Easily integrate with CD players, streaming devices, and TVs via HDMI ARC.
Built for Audiophiles

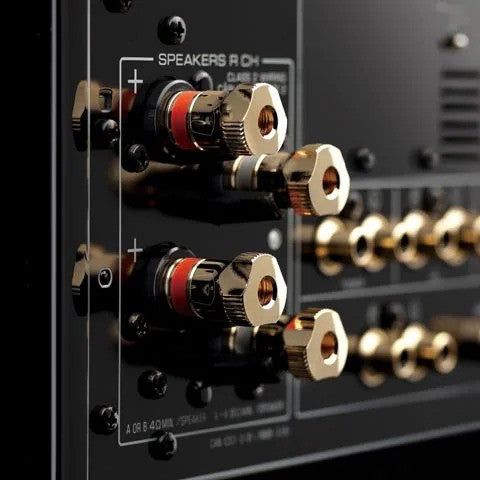

Every detail of the Yamaha A-S2200 is crafted to preserve the raw emotion and power of music. Its low impedance design, gold-plated speaker terminals, and premium materials ensure a superior audio experience for even the most discerning listeners.
Why Choose the Yamaha A-S2200?
- Timeless Design: Compact and sleek with luxurious metal finishes, this amplifier complements any high-end audio setup.
- Advanced Components: Equipped with Yamaha’s renowned engineering, including the ESS SABRE ES9018K2M Reference DAC for unmatched detail.
- Flexible Placement: Its compact size fits perfectly in any room, while its award-winning design makes it a centerpiece.
Experience Excellence with RockOnAV
At RockOnAV, we’re committed to delivering premium audio solutions. The Yamaha A-S2200 is available for fast shipping, backed by our expert support from our Irvine, CA showroom.
Shop now and bring the Yamaha A-S2200 into your home to experience music as it was meant to be heard.
Specifications
A-S2200 Specifications
| Specification | Details |
|---|---|
| Rated Output Power | [20 Hz-20 kHz, 0.07% THD] 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms) |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 105/135/190/220 W |
| Damping Factor | ≥ 250 (1 kHz, 8 ohms) |
| Frequency Response | +0 / -3 dB (5 Hz-100 kHz), + 0 / -0.3 dB (20 Hz-20 kHz) |
| RIAA Equalization Deviation | +/-0.5 dB (PHONO MM/MC) |
| Total Harmonic Distortion (20Hz to 20kHz) | PHONO MC→LINE2 OUT: 0.02 % (1.2 Vrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms) |
| Signal-to-Noise Ratio | PHONO MC: 90 dB, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB |
| Input Sensitivity | [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms |
| Transformer | 625VA (Toroidal) |
| Dimensions (W x H x D) | 17-1/8" x 6-1/8" x 18-1/4" |
| Weight | 50.0 lbs |
