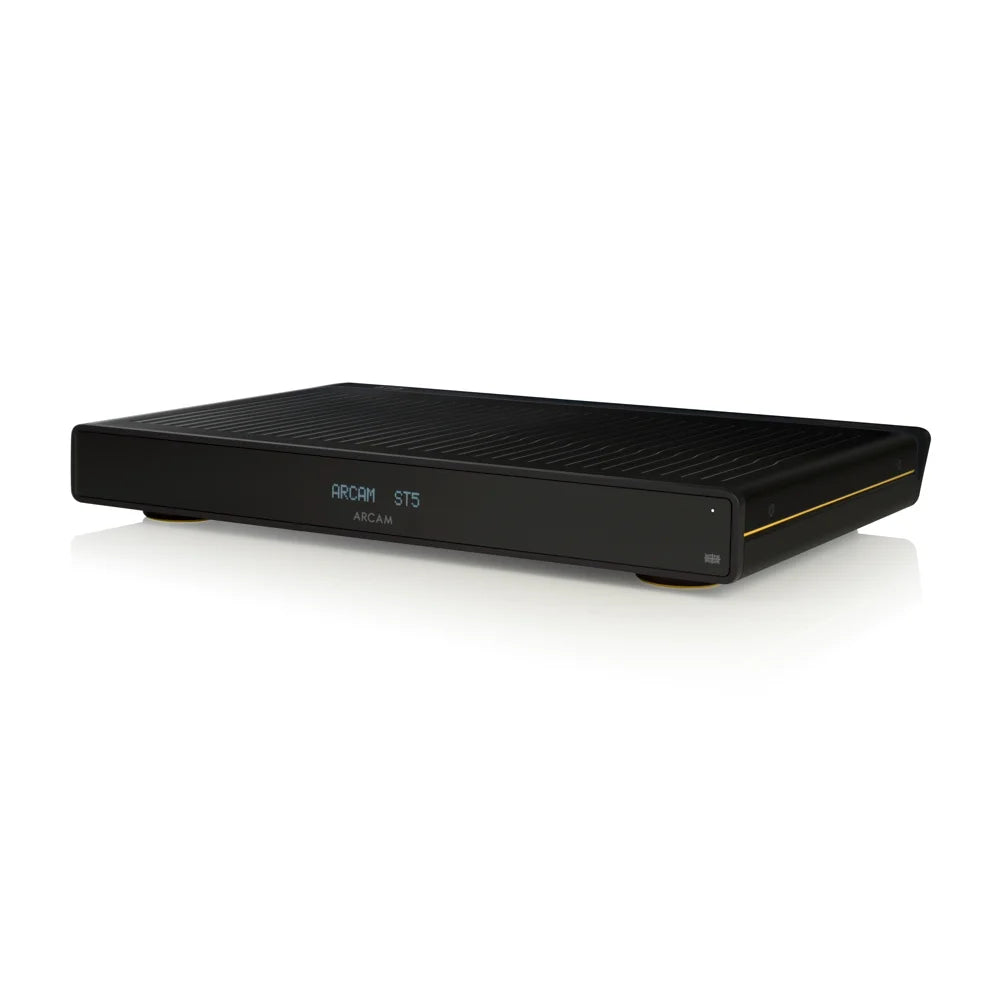

Arcam ST5
The perfect partner for your A5 or A15 amplifier.
The ARCAM ST5 is the high resolution upgrade for our Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers better sound quality due to the benefits of isolated components with individual power supplies.
High-Resolution Audio Support
We support high-resolution audio formats up to 24-bit/192kHz, ensuring high-quality sound when playing. Re-explore your music library to catch every nuance that the creator meant you to see.
Premium Digital-to-Analog Converter (DAC)
ST5 utilizes the top-quality ESS ES9018 DAC with time domain jitter reduction. This ensures a clear digital-to-analog conversion, reducing any disruptive noise for pure sound reproduction.
Perfect Match for Arcam Radia Amps
The ST5 is designed to work seamlessly with Arcam's Radia A5 and A15 immersive amplifiers. An integrated control link creates harmony between two components, allowing them to function together while enjoying both aesthetic and acoustic enjoyment.
Multiple Streaming Options
The display can show songs from several streaming platforms. The ST5 integrates with existing features such as Spotify Connect, Tidal Connect, Apple AirPlay 2, Chromecast built-in, and Roon.
Intuitive App Control
The ST5's integration with the new Arcam app allows for fast setup, control, and access to internet radio presets. Aside from that, you can stream Qobuz, Amazon Music, and Podcasts, broadening your listening options.
Wi-Fi and Ethernet Connectivity
To ensure stable and reliable music streaming, connect the ST5 to your home network by Wi-Fi or Ethernet.
Eco-responsible Packaging
The Arcam ST5's packaging is plastic-free, making it an environmentally responsible option.
Specifications
Supported Hi-Res Media | FLAC |
WAS (LPCM) | |
MQA | |
AAC | |
ALAC | |
AIFF | |
DSD (128) | |
Supported Hi-Res Bit Depth | 16, 24 |
Supported Sample Rates (kHz) | 44.1, 48, 88.2, 96, 176.4, 192 |
Supported Media | MP3 |
MP4 | |
OGG | |
WMA | |
Supported Bit Depth | 16 |
Supported Sample Rates (kHz) | 44.1, 48 |
Gapless Playback | Yes |

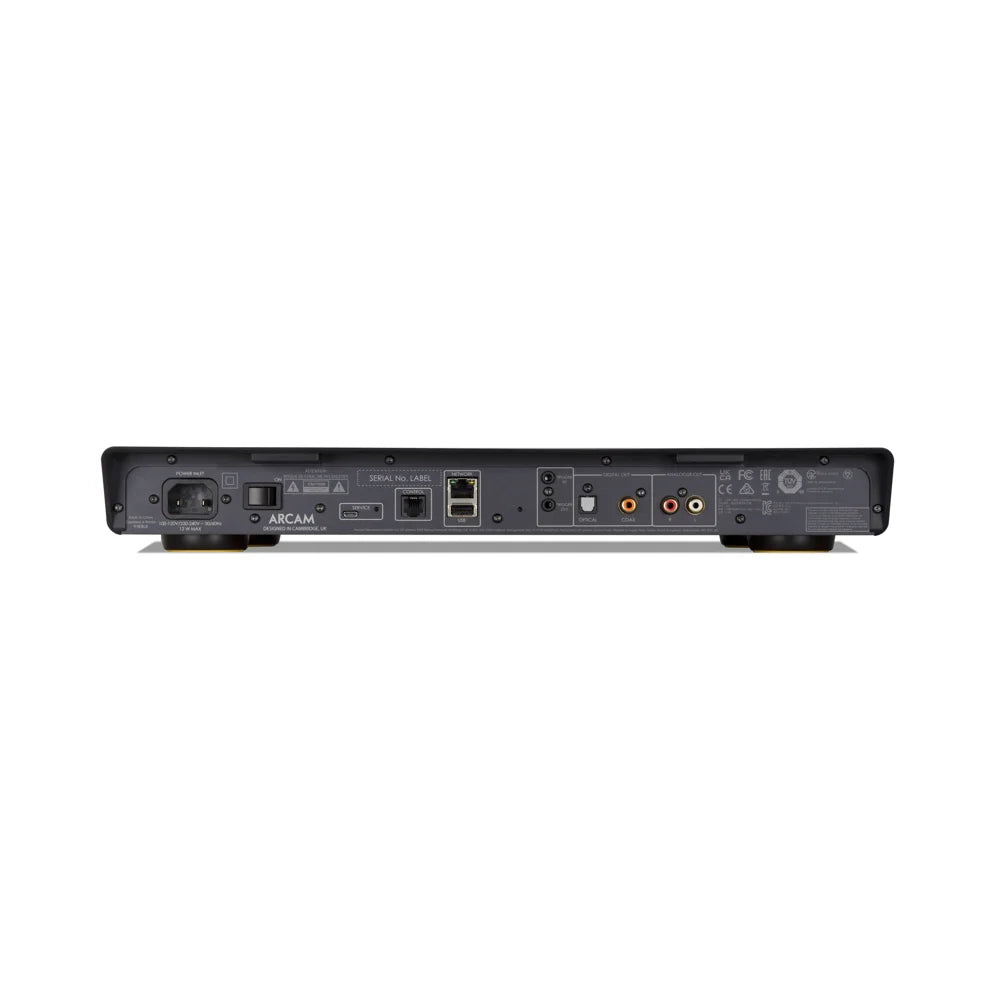

Digital Outputs | 1x Coaxial (RCA) |
1x Optical (Toslink) | |
Analog Outputs | 1x Stereo (RCA) pair |
Frequency Response (filter 1) | 20Hz—20kHz ± 0.05dB |
Mains Voltage | AC 100-240V, 50/60 Hz, 12W |
Power Consumption | 12W |
Power Consumption (Eco Standby) | <0.5W |
Dimensions W x D x H (including speaker terminals) | 17” x 13.5” x 2.2” (431 x 344 x 57mm) |
Weight (net) | 7.7lb (3.5kg) |
Weight (packed) | 12.3lb (5.6kg) |
Supplied Accessories | Power Code |
Remote control with 2 x AAA batteries | |
Control Cable | |
Quick Start Guide | |
Important Safety Instructions |
