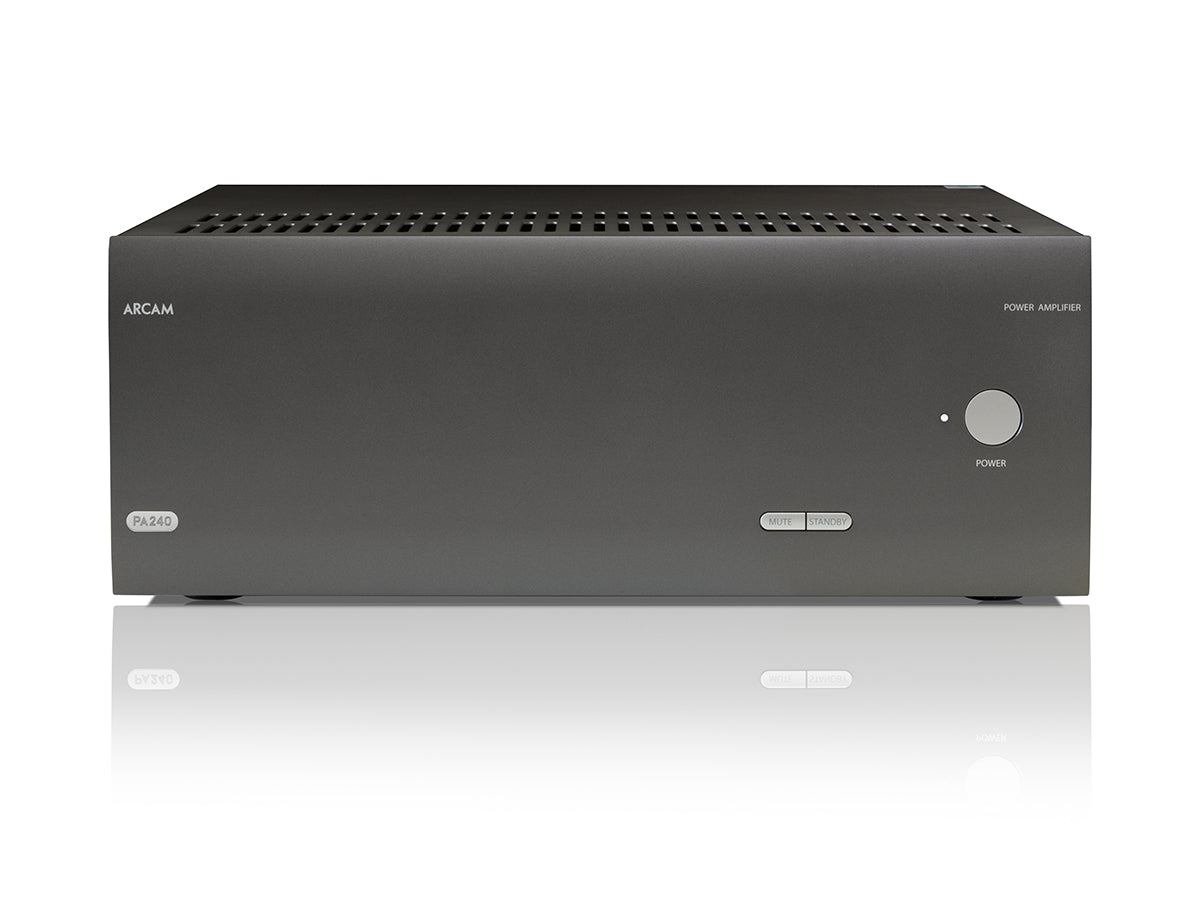

Arcam PA240 2-Channel Power Amplifier
Arcam PA240 2-Channel Power Amplifier
Experience the perfect blend of power and control with its 2 channels of efficient Class G amplification.
Exceptional Power, Immersive Sound
The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
-
2 Channel Power Amplifier
-
2 x 225W Class G amplification (8ohm)
-
1 x 790W Class G bridged mode (8ohm)
-
Class G amplification with 50W of class A operation
-
Toroidal transformer
-
Stereo, Dual Mono or Bridged operation
-
Ethernet, RS232 control
-

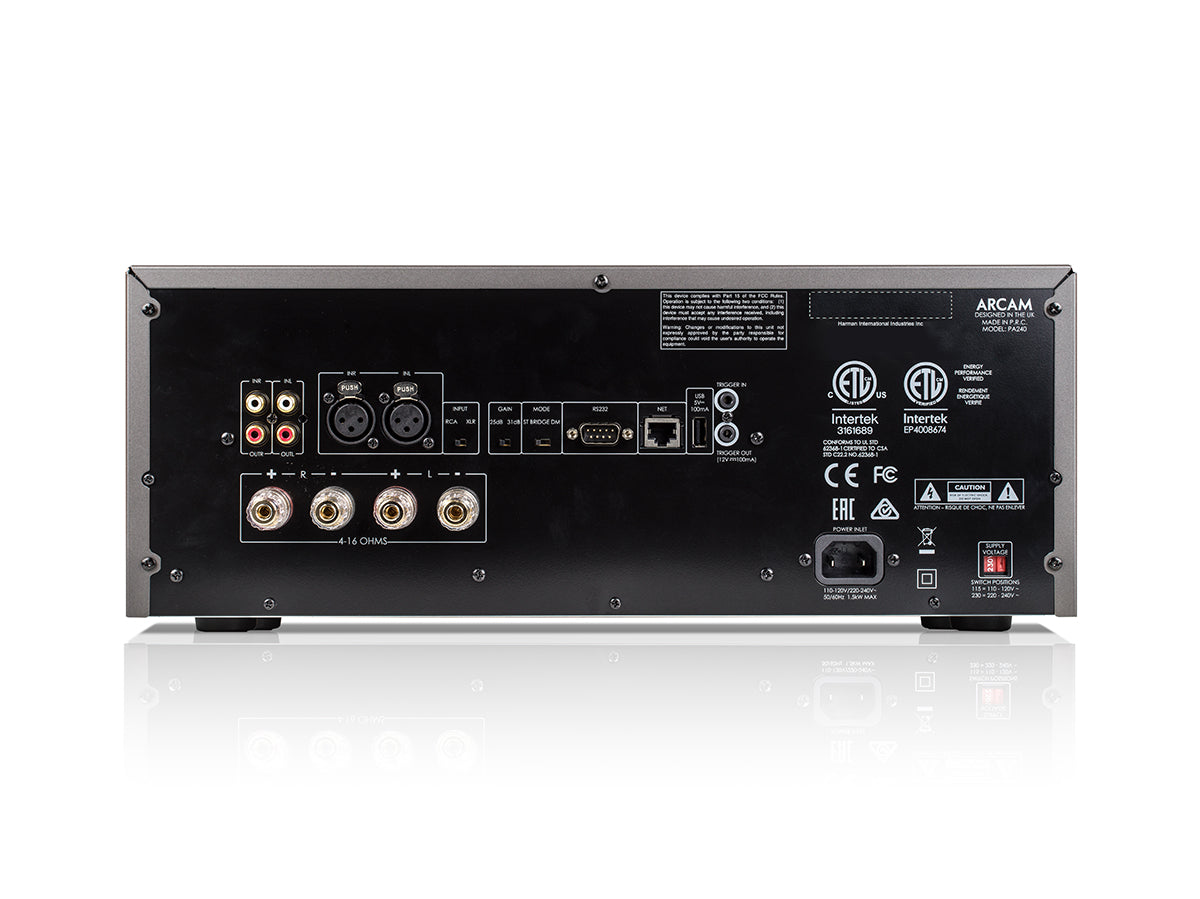

Switchable RCA or balanced XLR inputs
Specifications
Continuous Power Output at 0.2% THD per Channel
| 2 Channels Driven, 4Ω / 8Ω, 20Hz – 20kHz | 380W/225W |
| 1 Channels Driven, 8Ω Bridged Mode, 20-20kHz | 790W |
| Harmonic Distortion, 80% Power, 8Ω at 1kHz | 0.001% |
Inputs
| Input Sensitivity 200W / 8Ω | RCA Type: 1.15V RMS |
| XLR Type 2.3V RMS | |
| Signal/Noise Ratio (A-wtd) 50W / 8Ω | 110dB |
| Input Impedance | 10kΩ |
| Frequency Response | 20 - 20kHz +/-0.05dB |
General
| Mains Voltage | 110-120V or 220-240V, 50-60Hz |
| Power Consumption (Maximum) | 1.5kW |
| Power Consumption (Idle, Typical) | 90W (Thermal Dissipation Approx. 340 BTU/Hour) |
| Power Consumption (Standby) | <0.5W |
| Dimensions W x D x H (including feet) | 17” x 16.7” x 7” (433 x 425 x 177 mm) |
| Weight (net) | 39.6lb (18kg) |
| Weight (packed) | 43.4lb (19.7kg) |
Description
Description
Arcam PA240 2-Channel Power Amplifier
Experience the perfect blend of power and control with its 2 channels of efficient Class G amplification.
Exceptional Power, Immersive Sound
The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
-
2 Channel Power Amplifier
-
2 x 225W Class G amplification (8ohm)
-
1 x 790W Class G bridged mode (8ohm)
-
Class G amplification with 50W of class A operation
-
Toroidal transformer
-
Stereo, Dual Mono or Bridged operation
-
Ethernet, RS232 control
-
Switchable RCA or balanced XLR inputs
Specifications
Specifications
Continuous Power Output at 0.2% THD per Channel
| 2 Channels Driven, 4Ω / 8Ω, 20Hz – 20kHz | 380W/225W |
| 1 Channels Driven, 8Ω Bridged Mode, 20-20kHz | 790W |
| Harmonic Distortion, 80% Power, 8Ω at 1kHz | 0.001% |
Inputs
| Input Sensitivity 200W / 8Ω | RCA Type: 1.15V RMS |
| XLR Type 2.3V RMS | |
| Signal/Noise Ratio (A-wtd) 50W / 8Ω | 110dB |
| Input Impedance | 10kΩ |
| Frequency Response | 20 - 20kHz +/-0.05dB |
General
| Mains Voltage | 110-120V or 220-240V, 50-60Hz |
| Power Consumption (Maximum) | 1.5kW |
| Power Consumption (Idle, Typical) | 90W (Thermal Dissipation Approx. 340 BTU/Hour) |
| Power Consumption (Standby) | <0.5W |
| Dimensions W x D x H (including feet) | 17” x 16.7” x 7” (433 x 425 x 177 mm) |
| Weight (net) | 39.6lb (18kg) |
| Weight (packed) | 43.4lb (19.7kg) |
