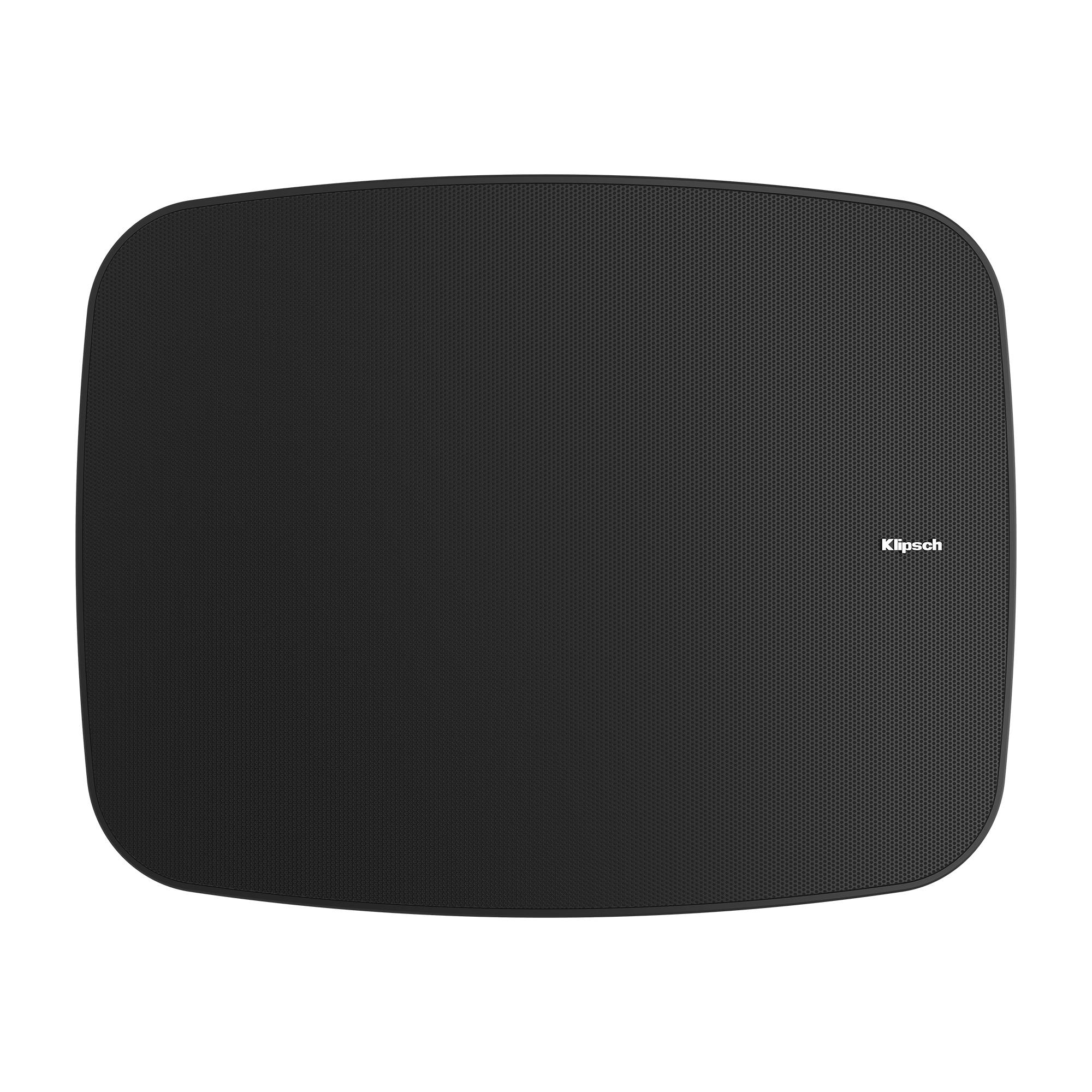

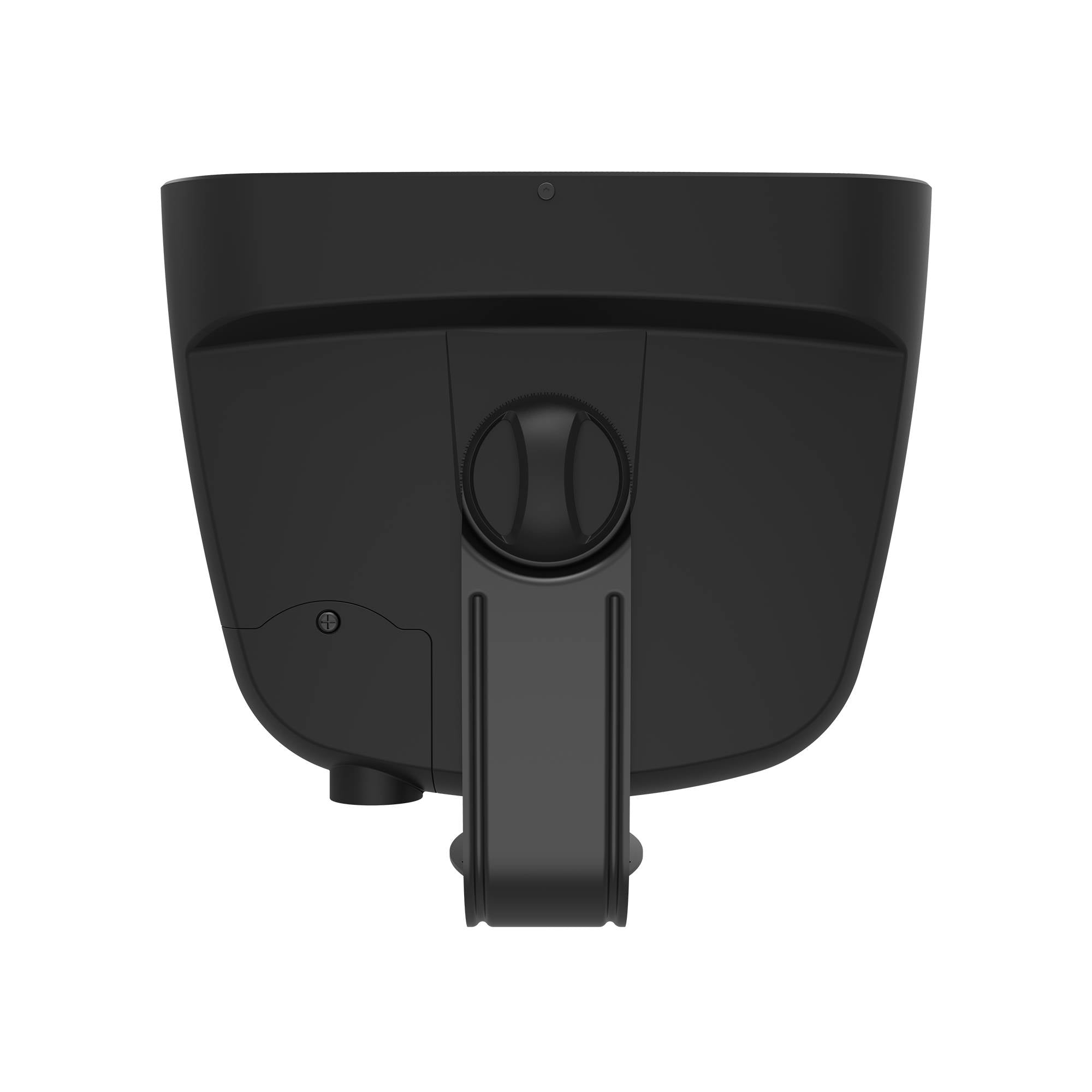

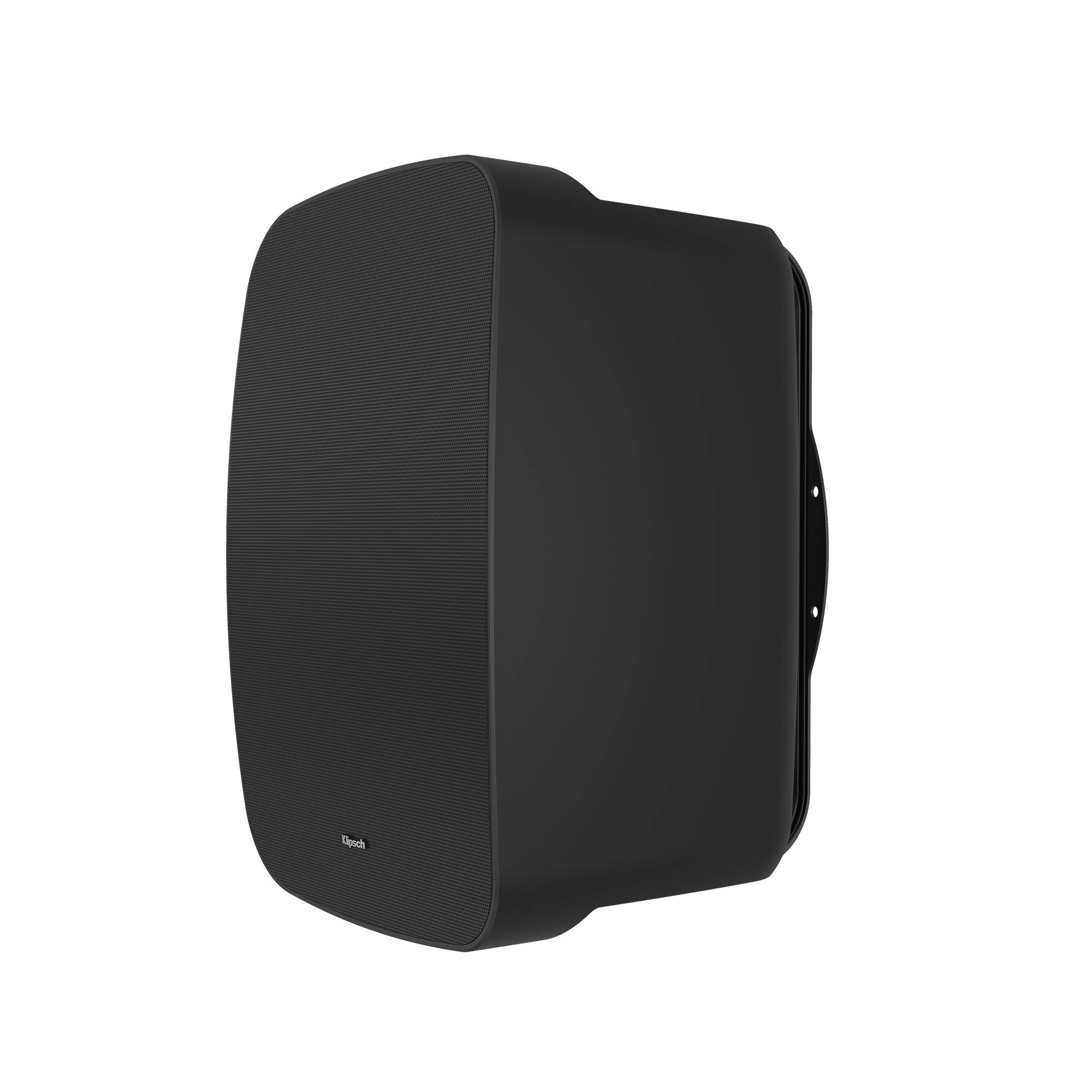

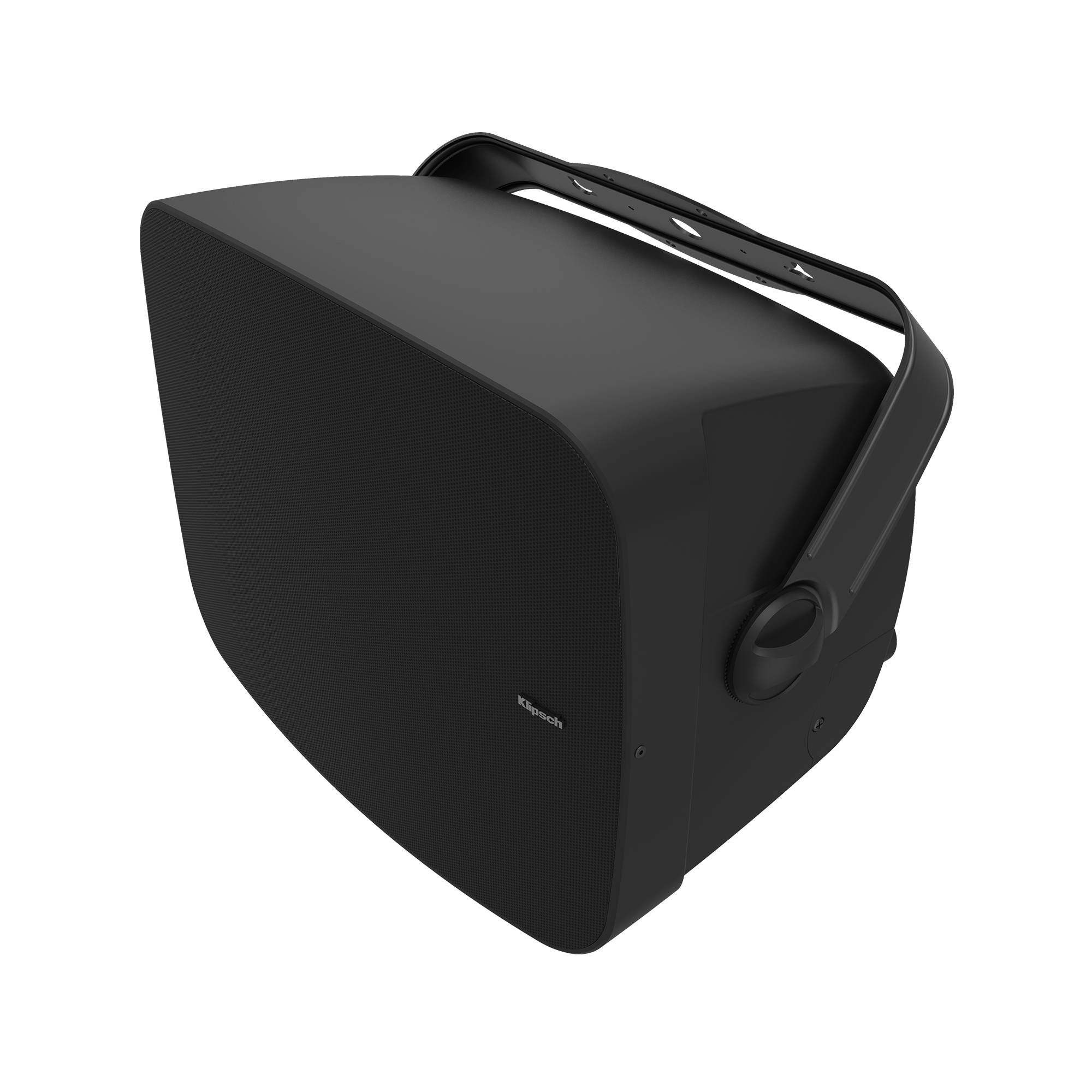

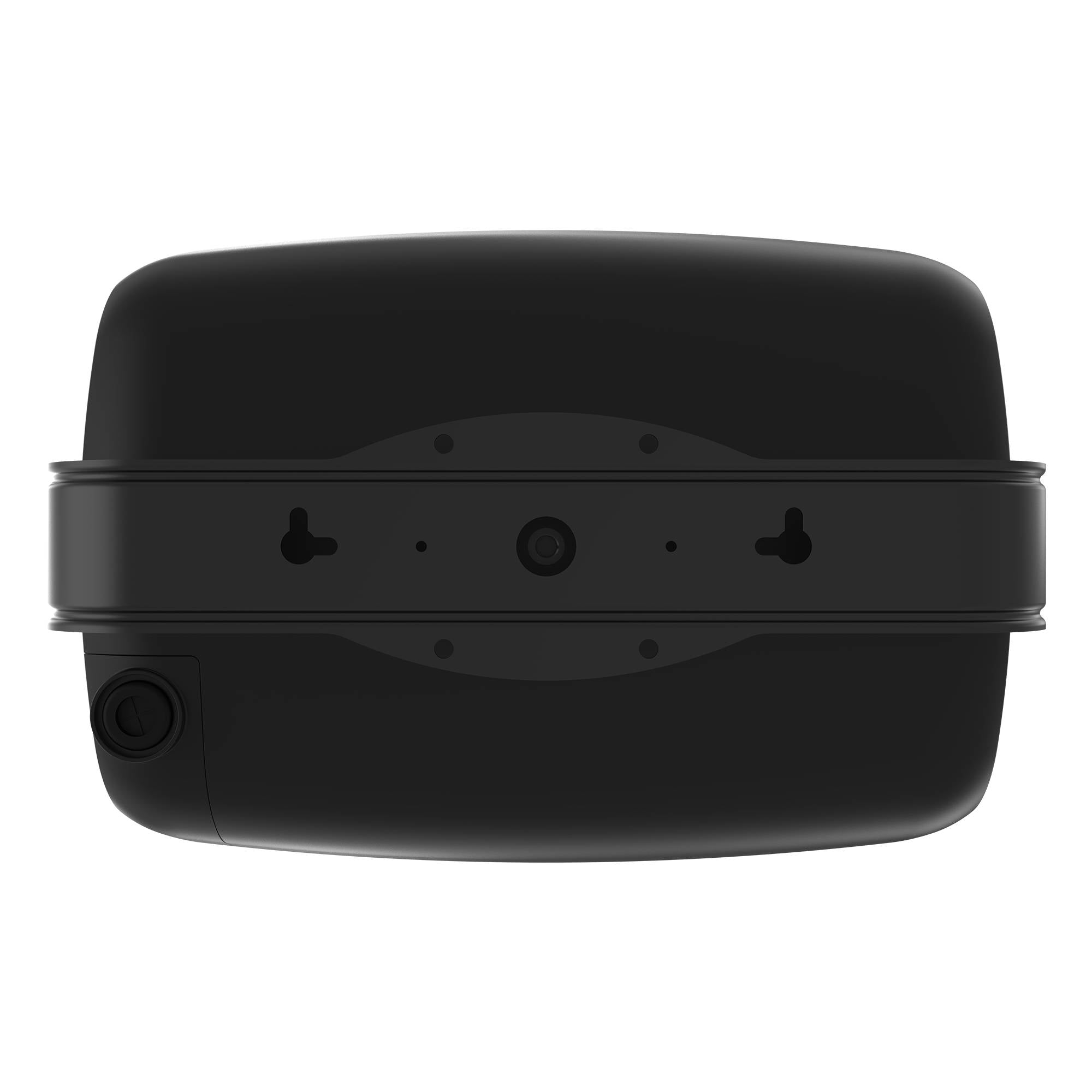

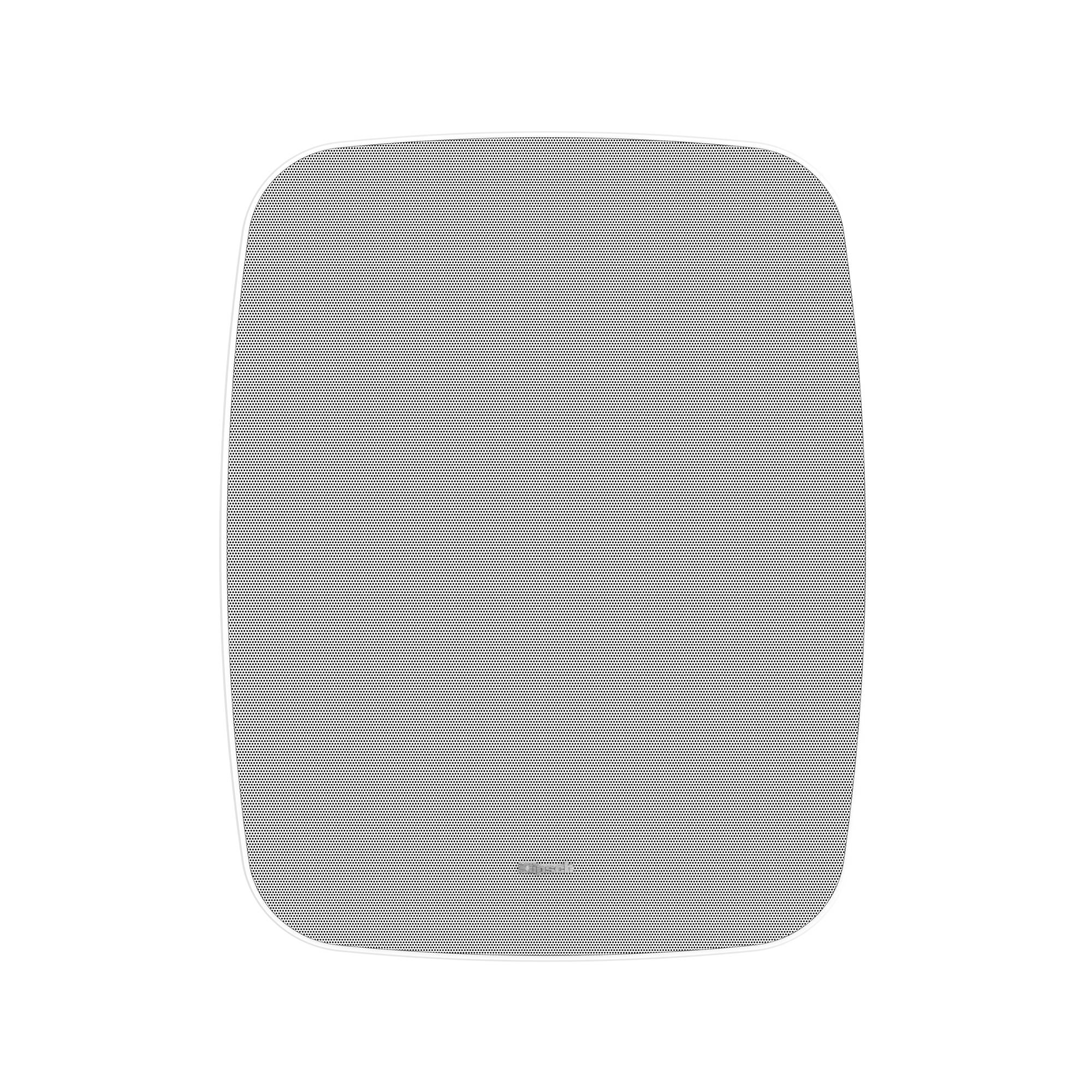

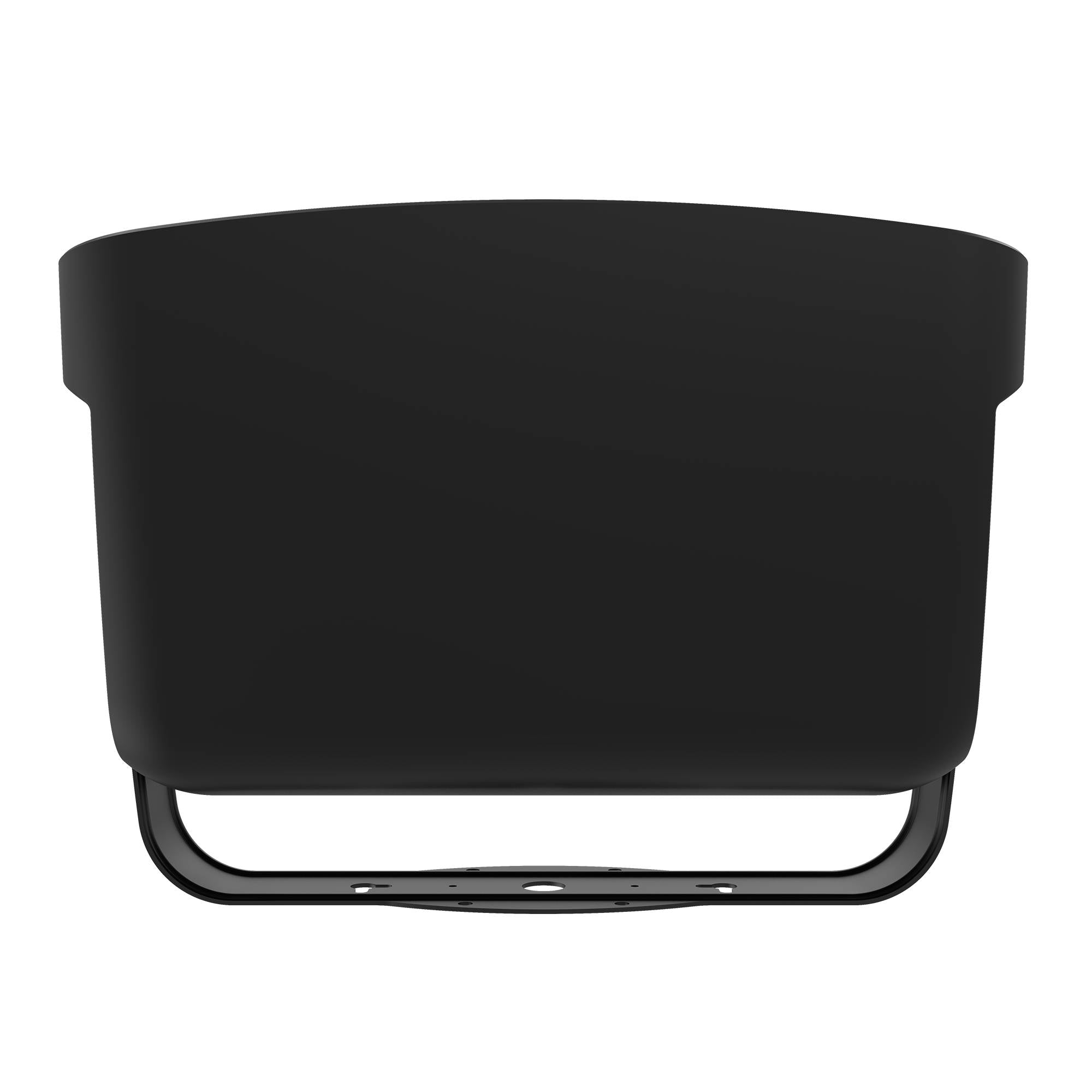

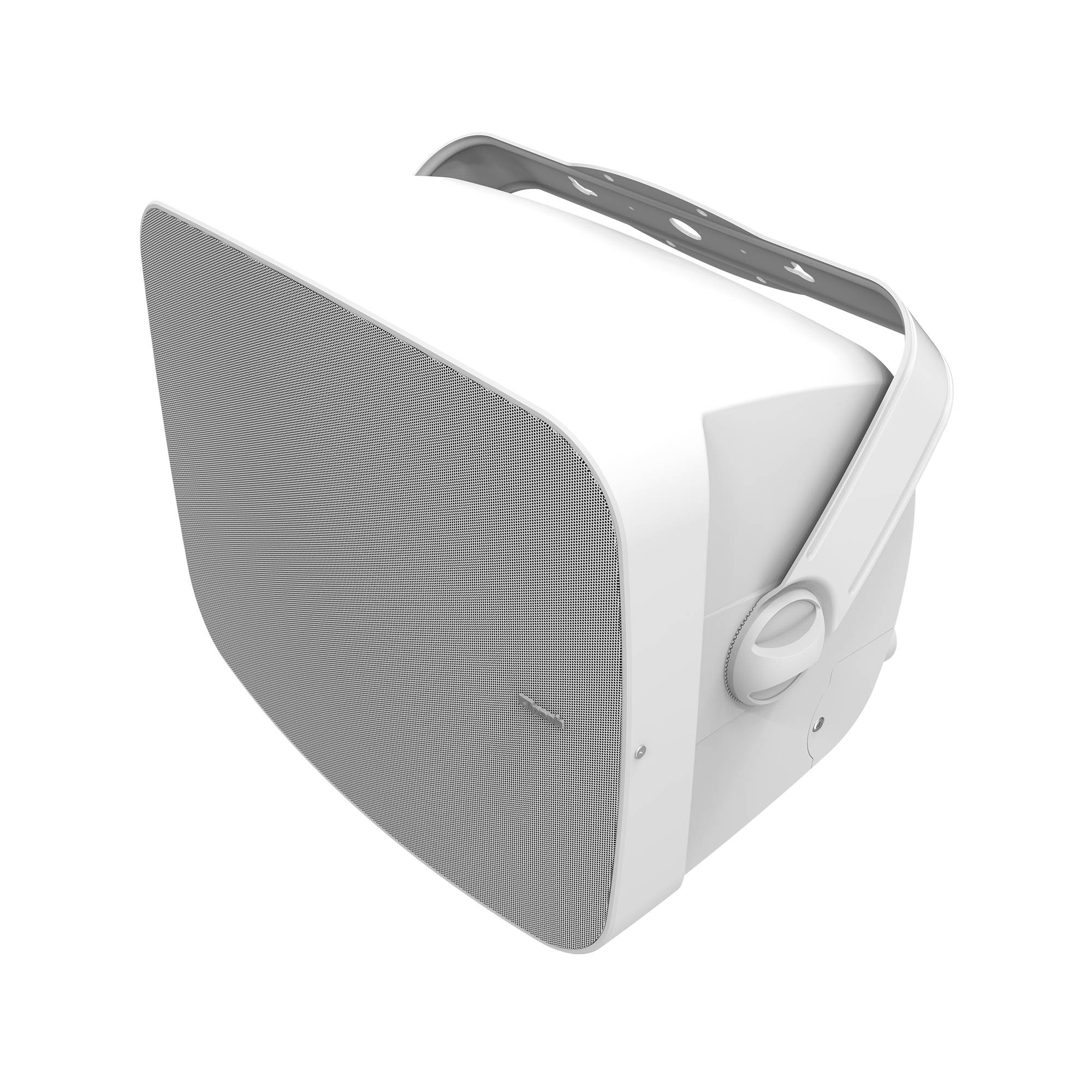

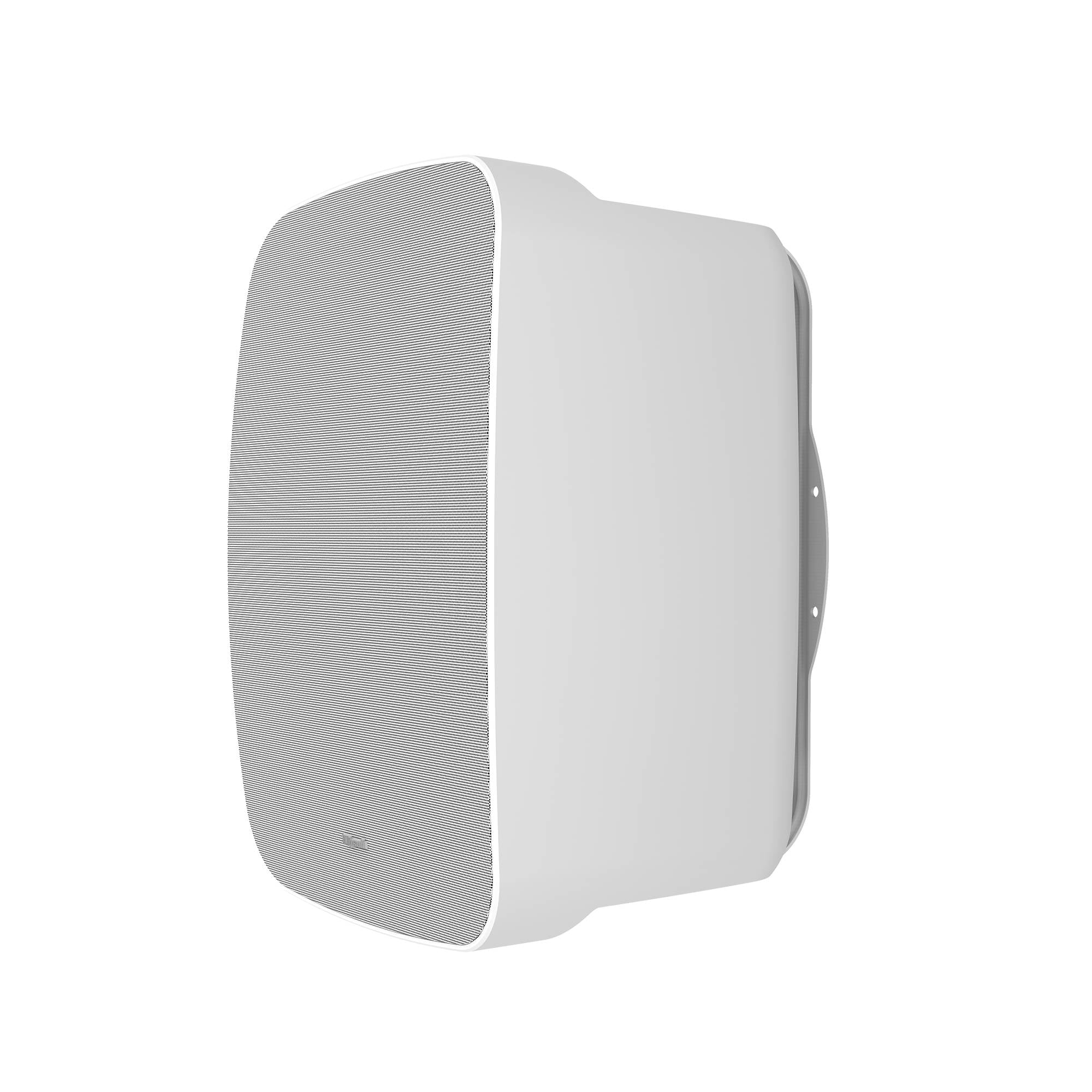

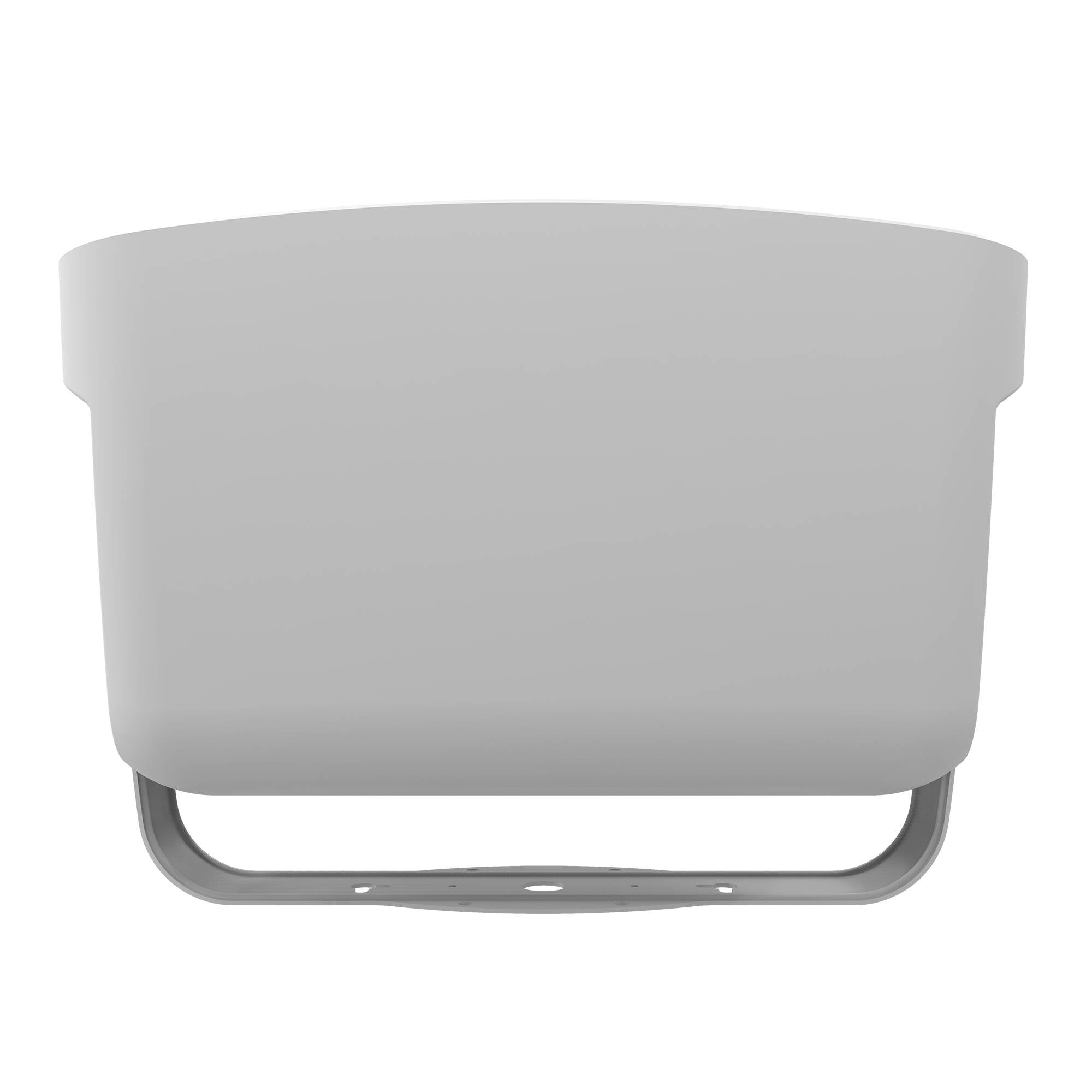

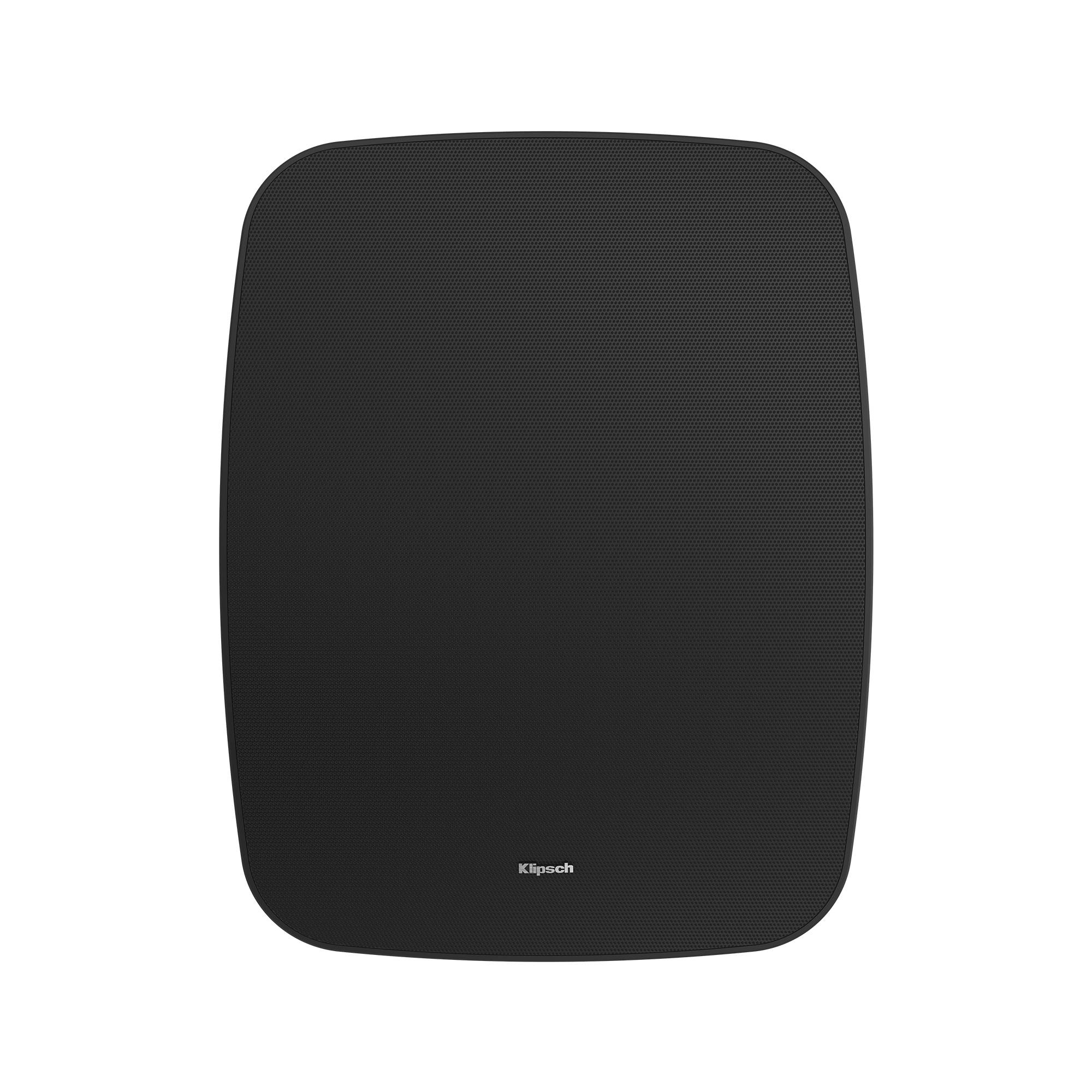

Klipsch PSM-800-T (Each)
Description
The Klipsch PSM-800-T is a professional-grade indoor/outdoor surface mount speaker engineered for commercial audio installations. Featuring an 8-inch woofer, 1-inch titanium compression driver, built-in 70V/100V multi-tap transformer, and IPX6-rated weather resistance, it delivers powerful, high-clarity sound for restaurants, hotels, retail spaces, schools, and outdoor venues.
Professional Performance for Commercial Installations
The Klipsch PSM-800-T is designed for demanding commercial audio applications where exceptional sound quality, installation flexibility, and long-term reliability are essential. Whether you're outfitting a restaurant patio, hotel, retail store, office, school, or outdoor entertainment area, the PSM-800-T delivers consistent, high-performance audio in both distributed 70V/100V systems and traditional 8-ohm installations.
Equipped with an 8-inch woofer and a 1-inch titanium compression driver with a wide-dispersion phase plug, the PSM-800-T produces detailed highs, natural vocals, and deep, impactful bass. Klipsch's patented Tractrix® Hyperfold Port™ technology further enhances bass response while reducing distortion for greater efficiency and wider sound coverage.
Its IPX6-rated weather-resistant enclosure, corrosion-resistant construction, and integrated multi-tap transformer provide outstanding durability and installation versatility. Supporting 70V, 100V, and 8-ohm bypass operation, the PSM-800-T easily adapts to a wide range of commercial audio systems.
Key Features
-
Professional two-way surface mount speaker
-
8-inch woofer
-
1-inch titanium compression driver
-
Built-in 70V/100V multi-tap transformer
-
8-ohm bypass mode
-
Tractrix® Hyperfold Port™ technology
-
IPX6-rated weather-resistant construction
-
Wide 100° sound coverage
-
100W continuous / 400W peak power handling
-
Paintable all-weather ABS enclosure
-
4-pin Phoenix (Euroblock) connector
-
Horizontal or vertical installation
-

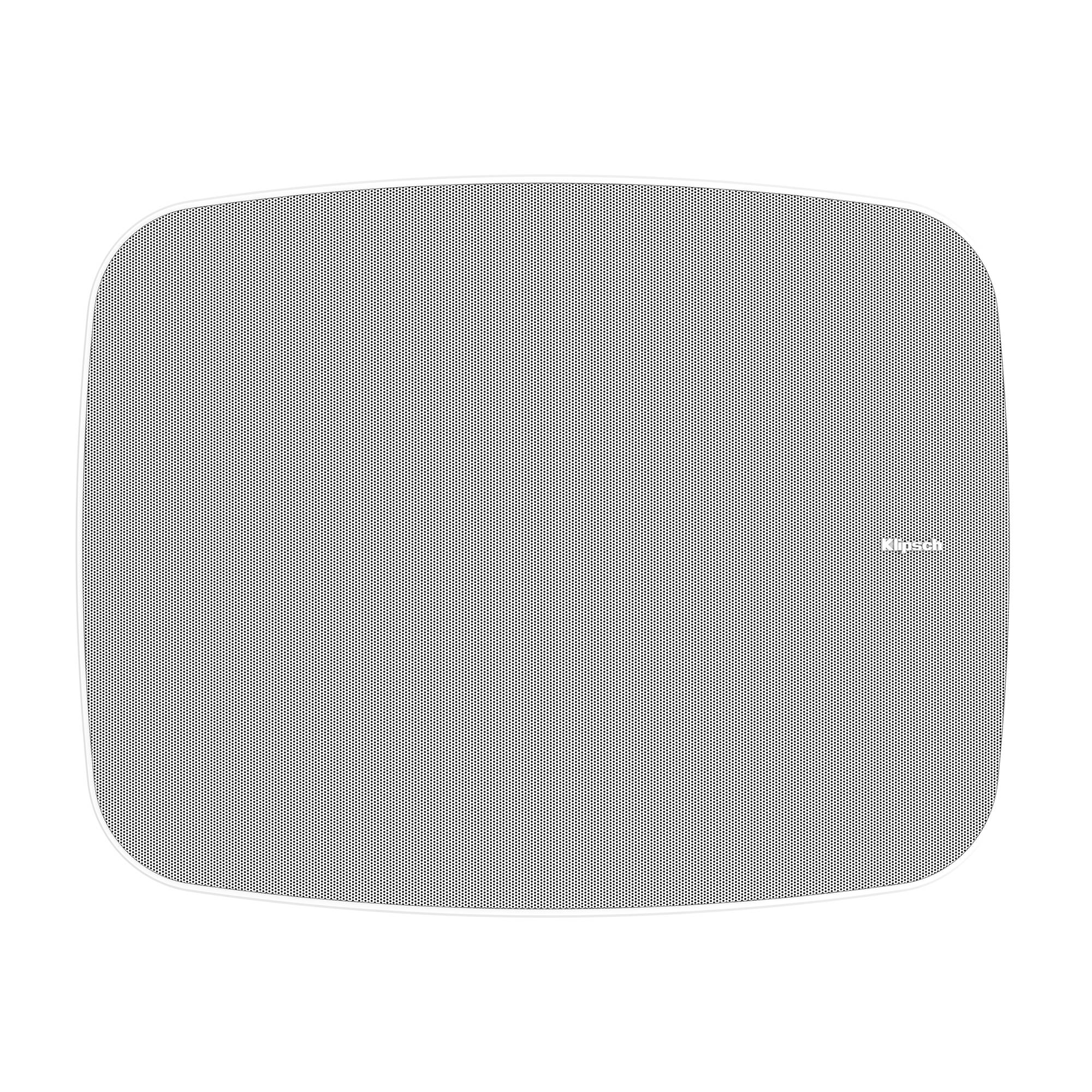

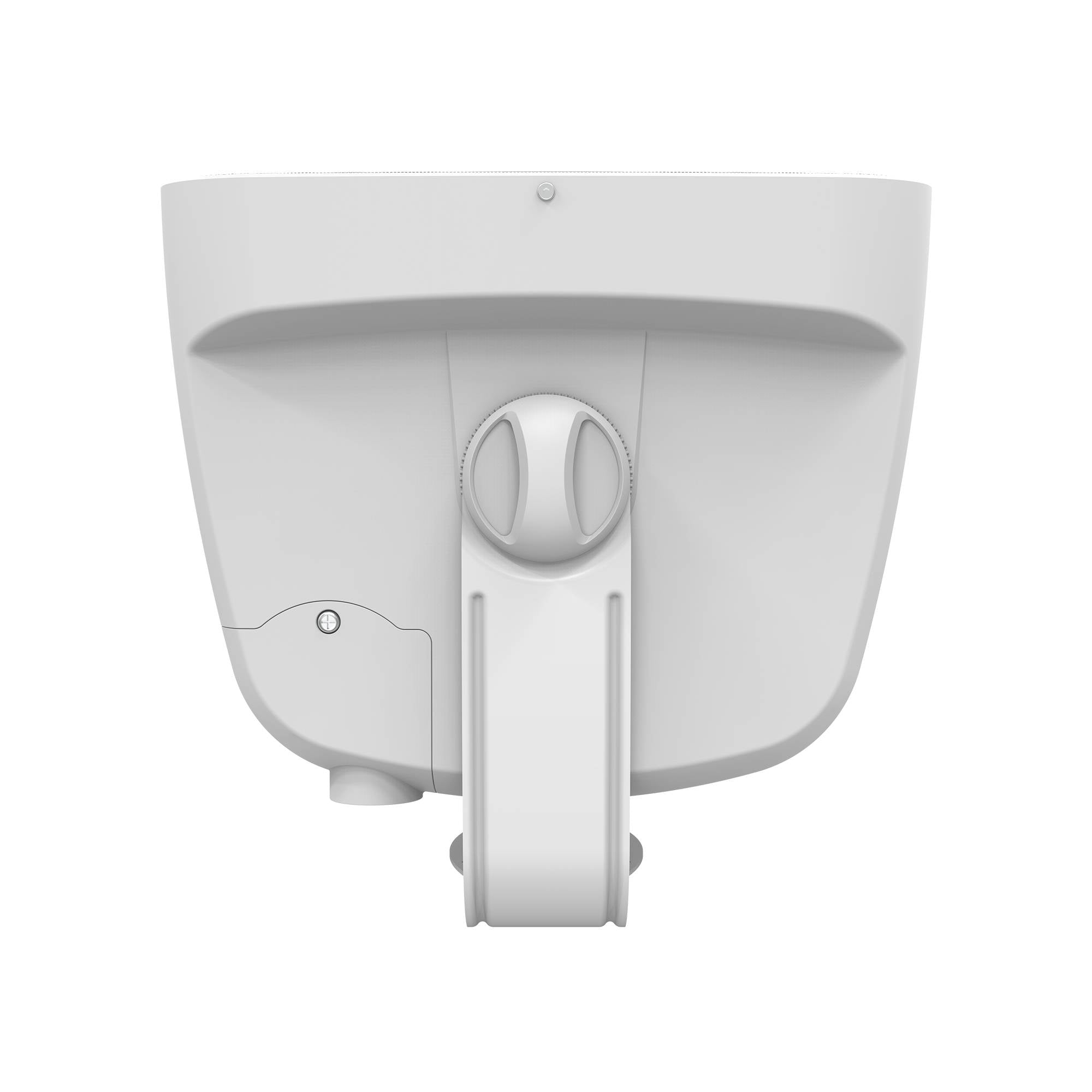

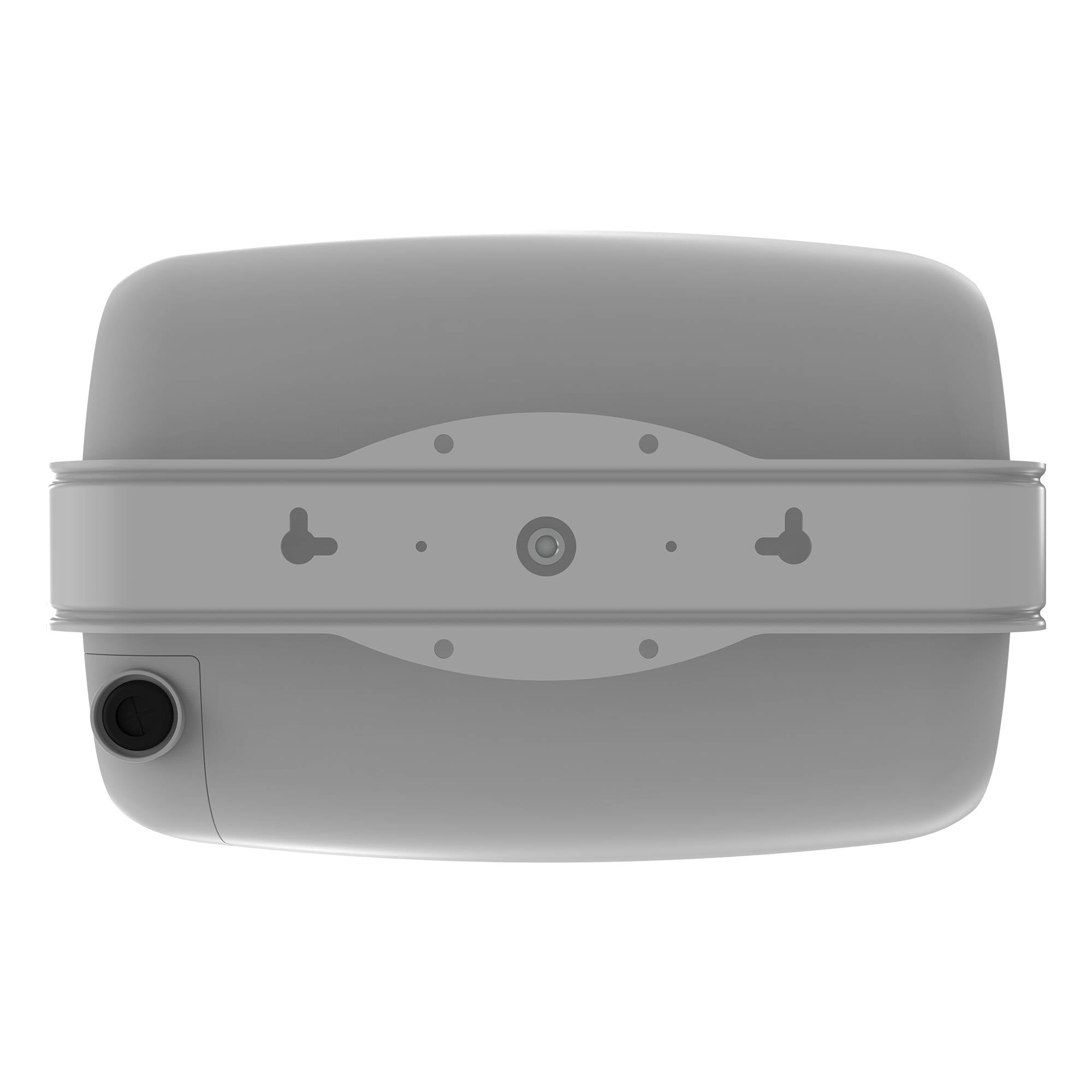

Available in Black or White
Specifications
| Frequency Response | 52Hz-20kHz +/- 4dB, 44Hz -10dB |
| Power Handling | 100 watts (21V) 50Hz-10kHz (400 watts peak) |
| Calc. Max. Cont. Output | 109dB |
| Sensitivity | 92dB |
| Coverage | 100° +/- 20°, 1kHz-20kHz |
| Directivity Index | 7dB +/- 1.5dB, 800Hz-20kHz |
| Nominal Impedance | 8 ohms, 4.2 ohms at 150Hz minimum |
| Acoustic Crossover | 2kHz |
| Transducers | 8" woofer, 1" titanium compression driver, on a K-1200M horn/tweeter bridge |
| Enclosure Material | All Weather ABS Plastic, Paintable |
| IP Rating | IPX6 |
| Enclosure Tuning | Vented via 3 folded Tractrix ports |
| Input Connectors | 4 pin euro block |
| Transformer Taps | 70V: 100W, 50W, 25W, 12.5W 100V: 100W, 50W, 25W Bypass position: 8 ohms nominal |
| Dimensions (With Bracket) | 15.5" (394mm) x 12" (305mm) x 9.31" (237mm) [11.12" (283mm)] |
| Weight | 15.75 lbs (7.15kg) |
| What's In The Box | Klipsch PSM-800-T speaker, Mounting bracket, 4-pin Phoenix (Euroblock) connector, Two 6mm machine screws, Owner's manual |
