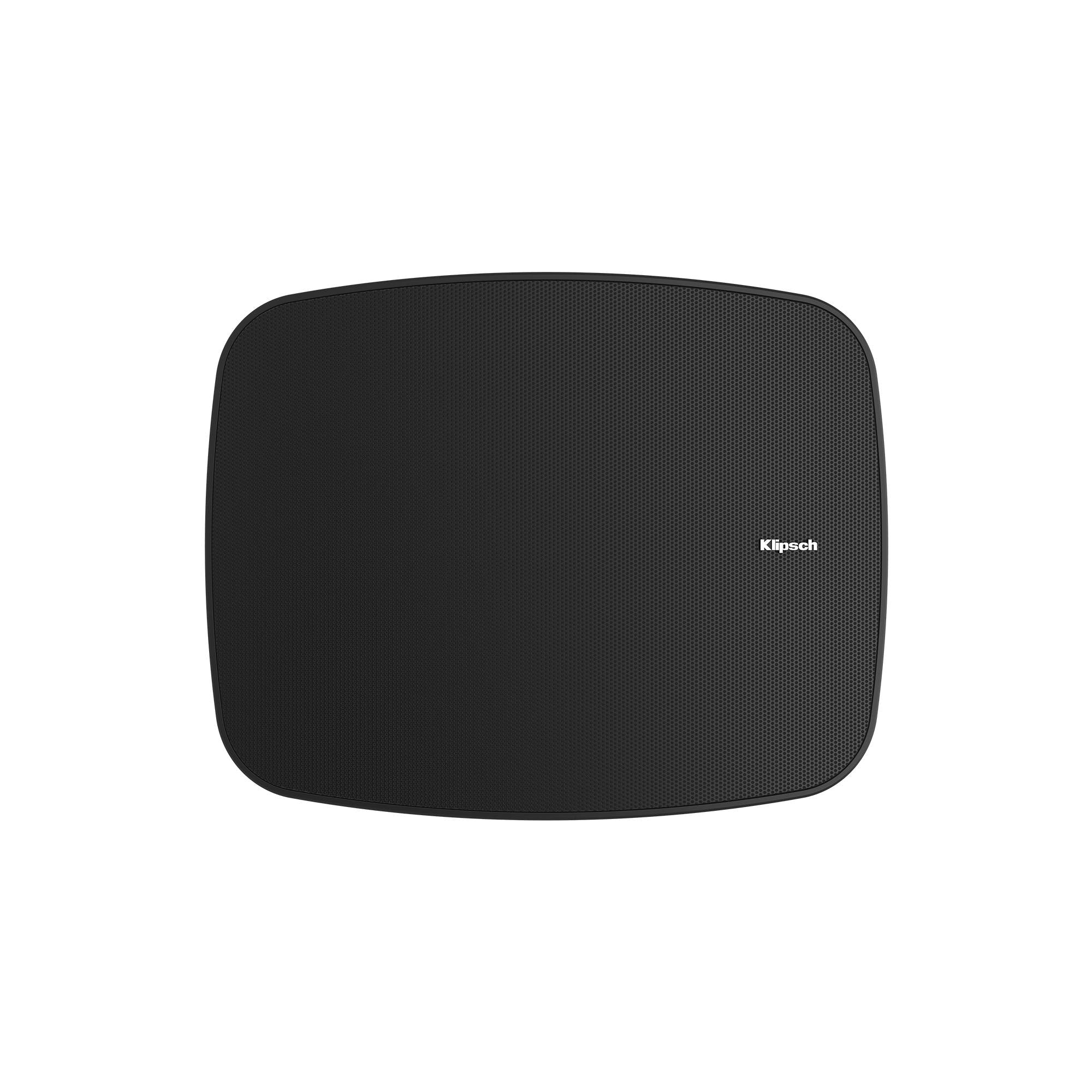

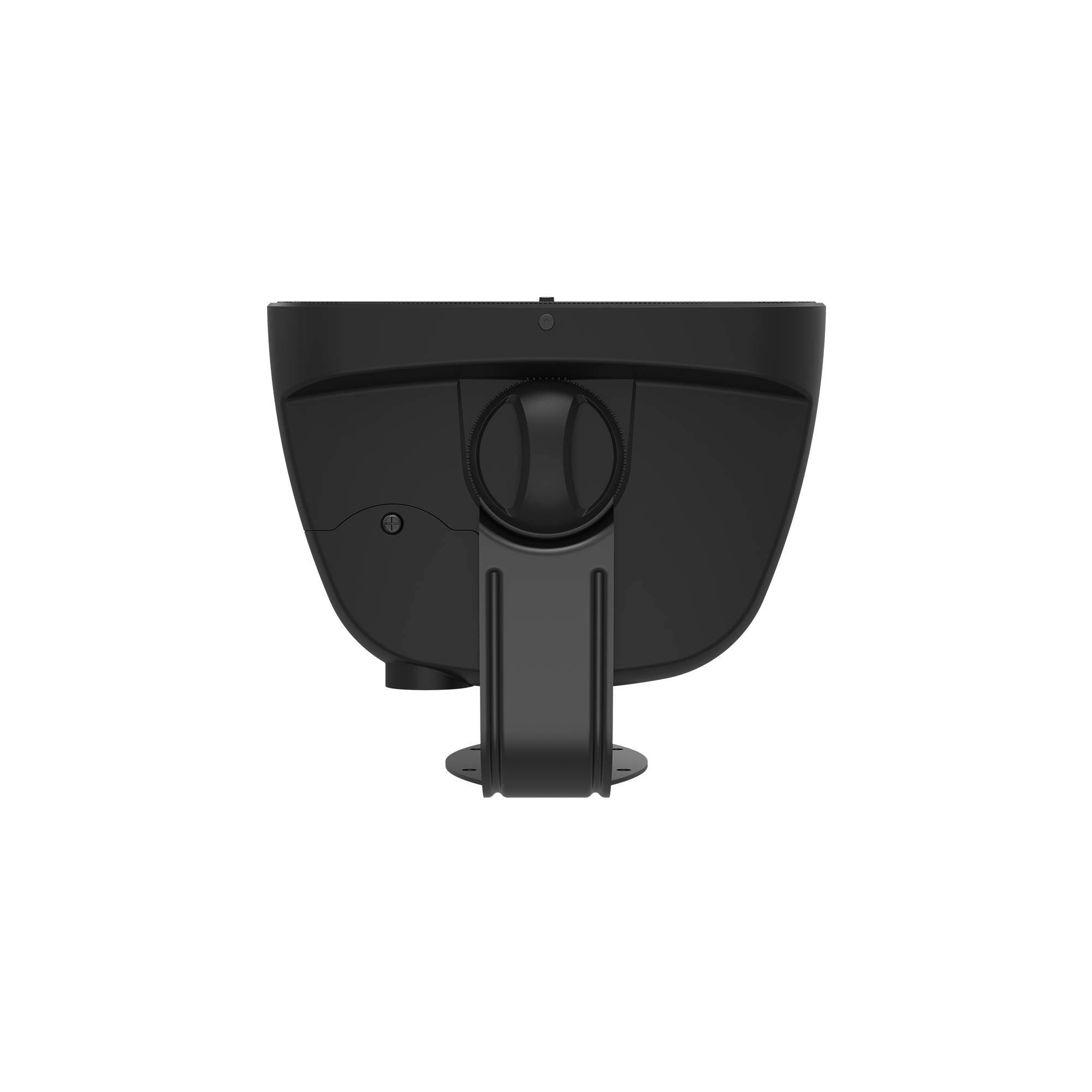

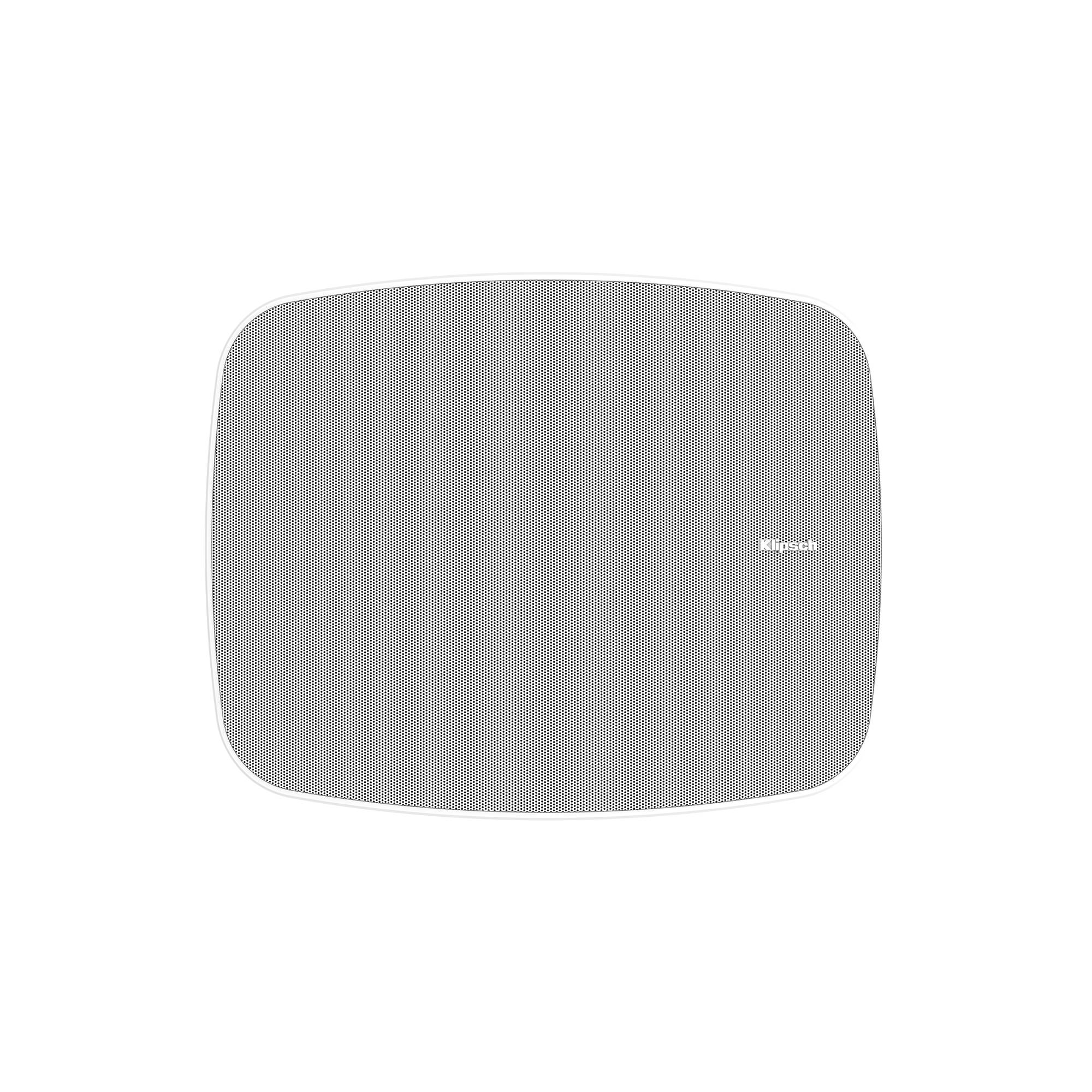

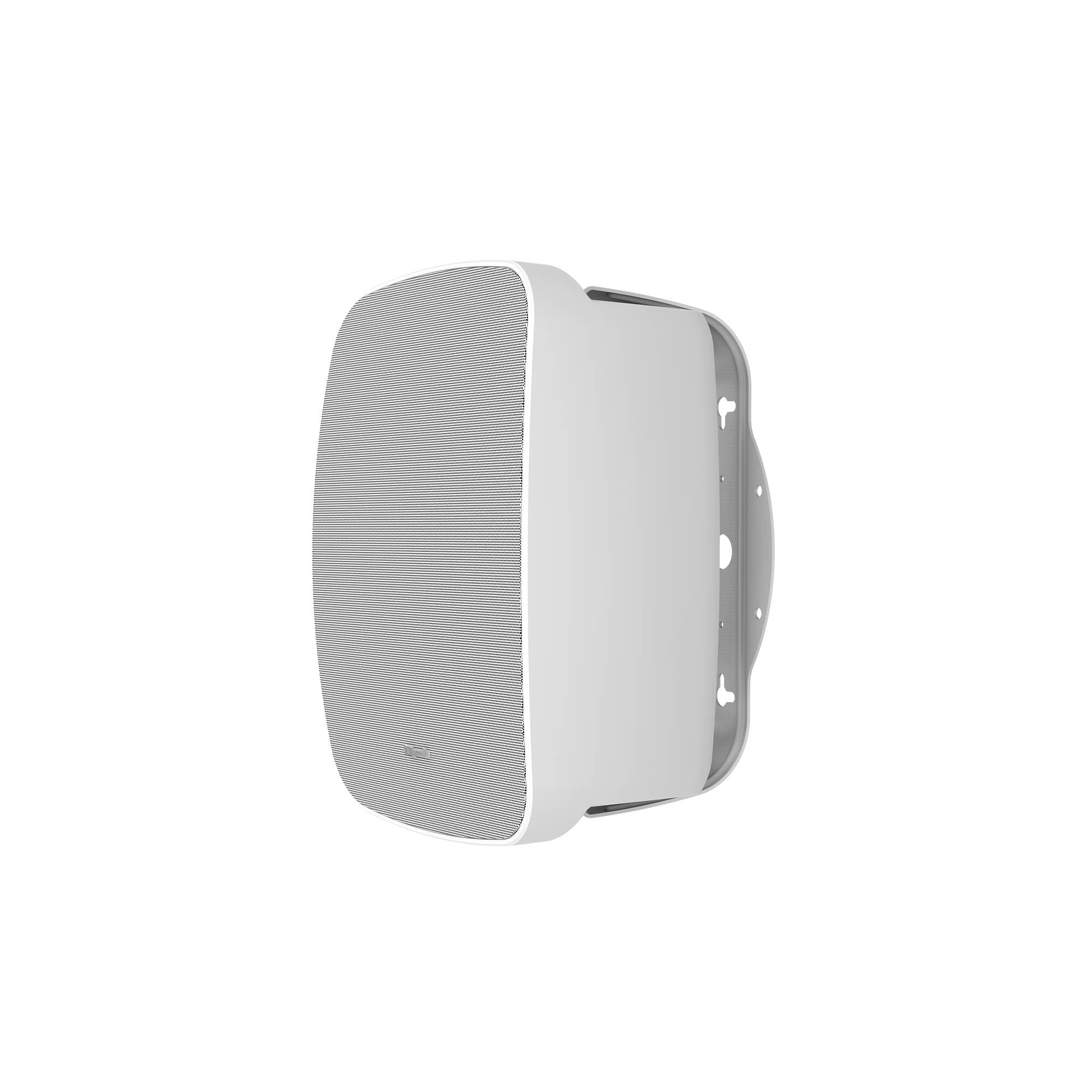

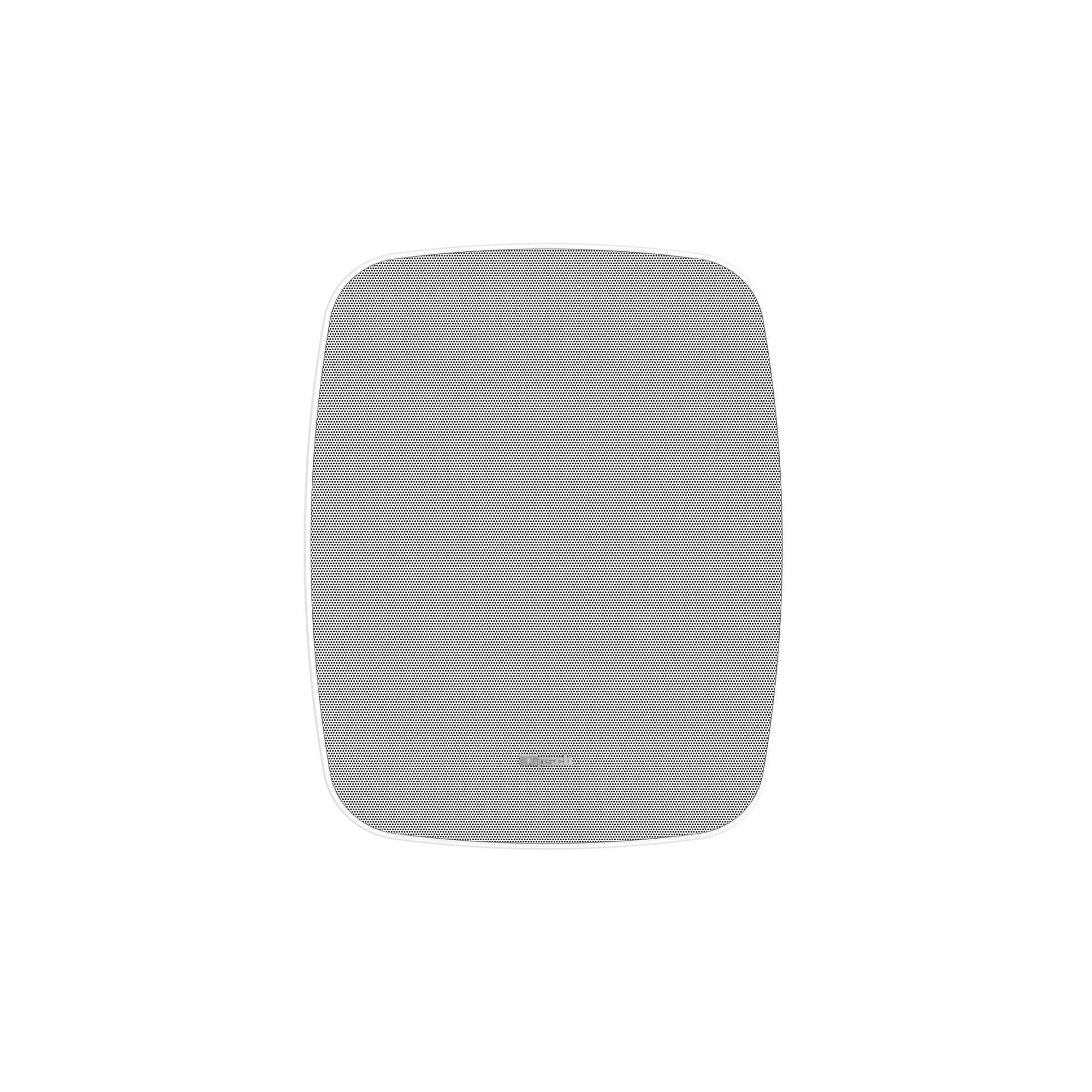

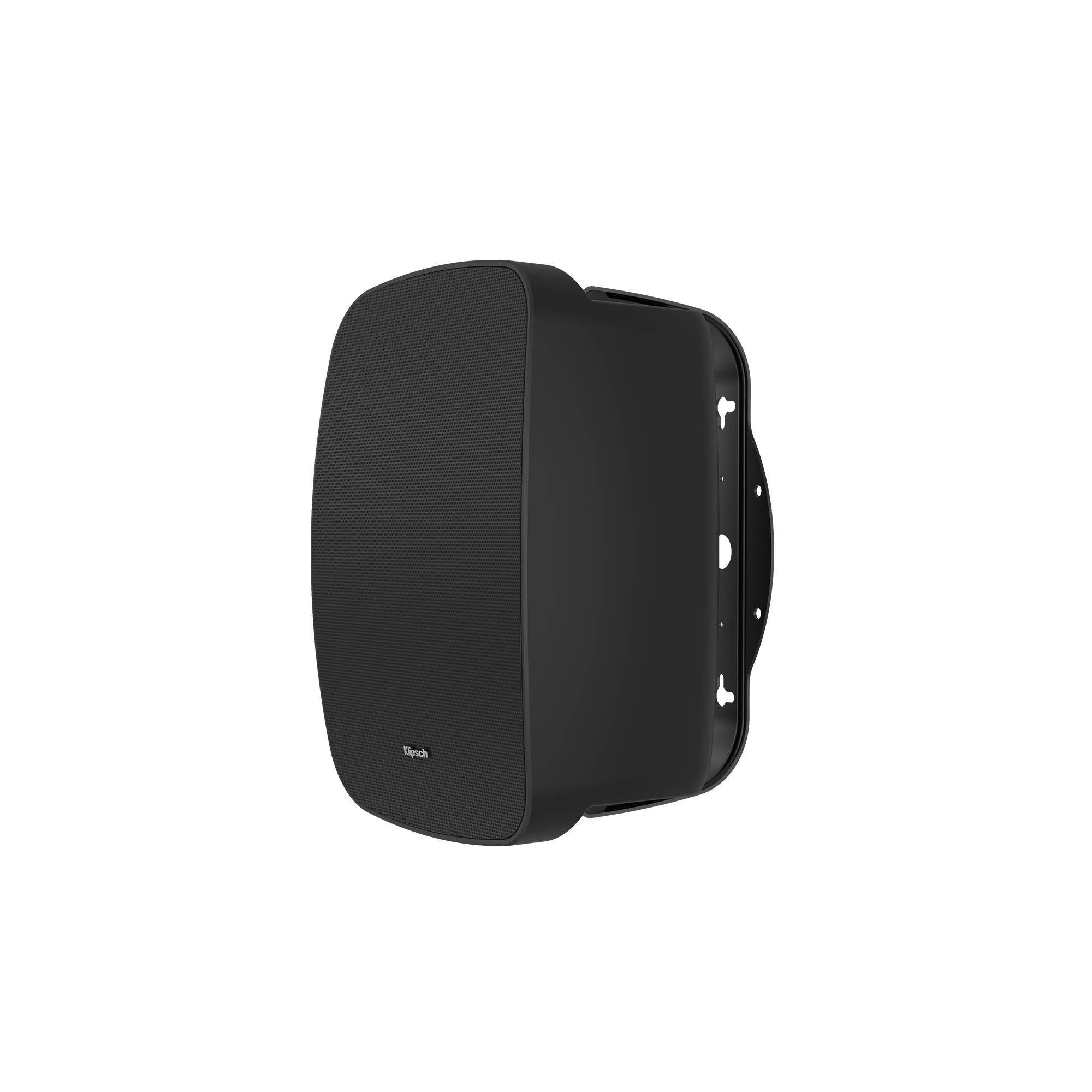

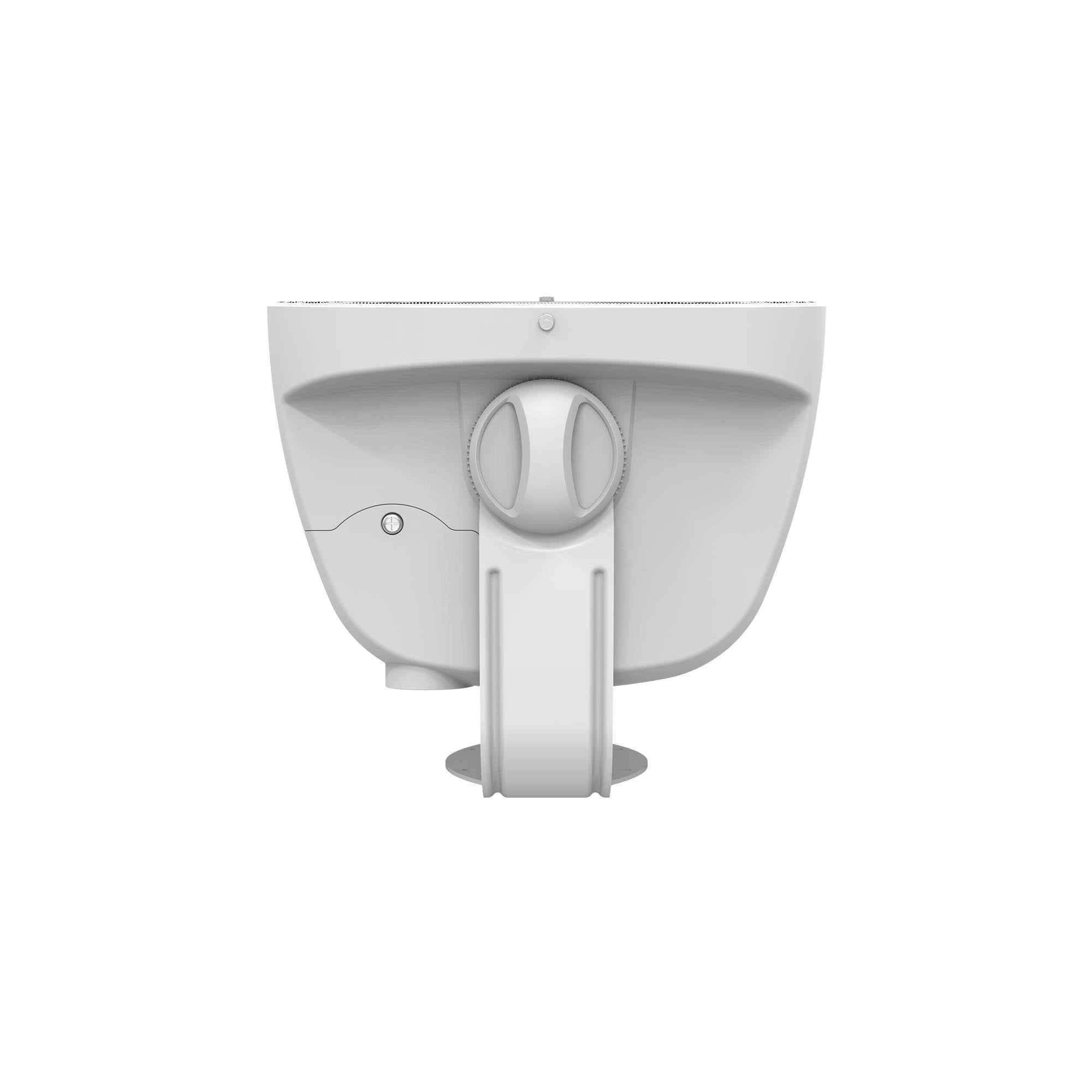

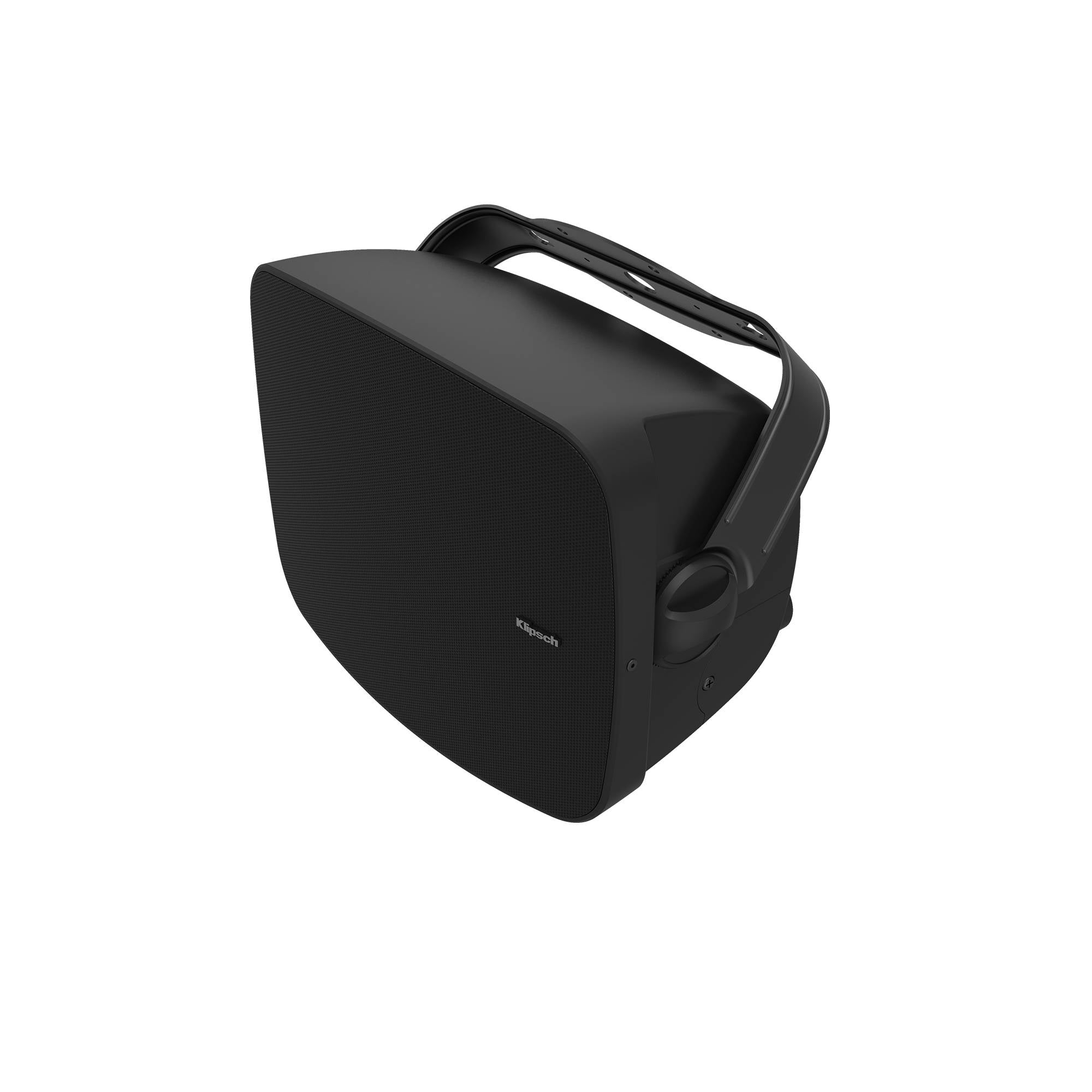

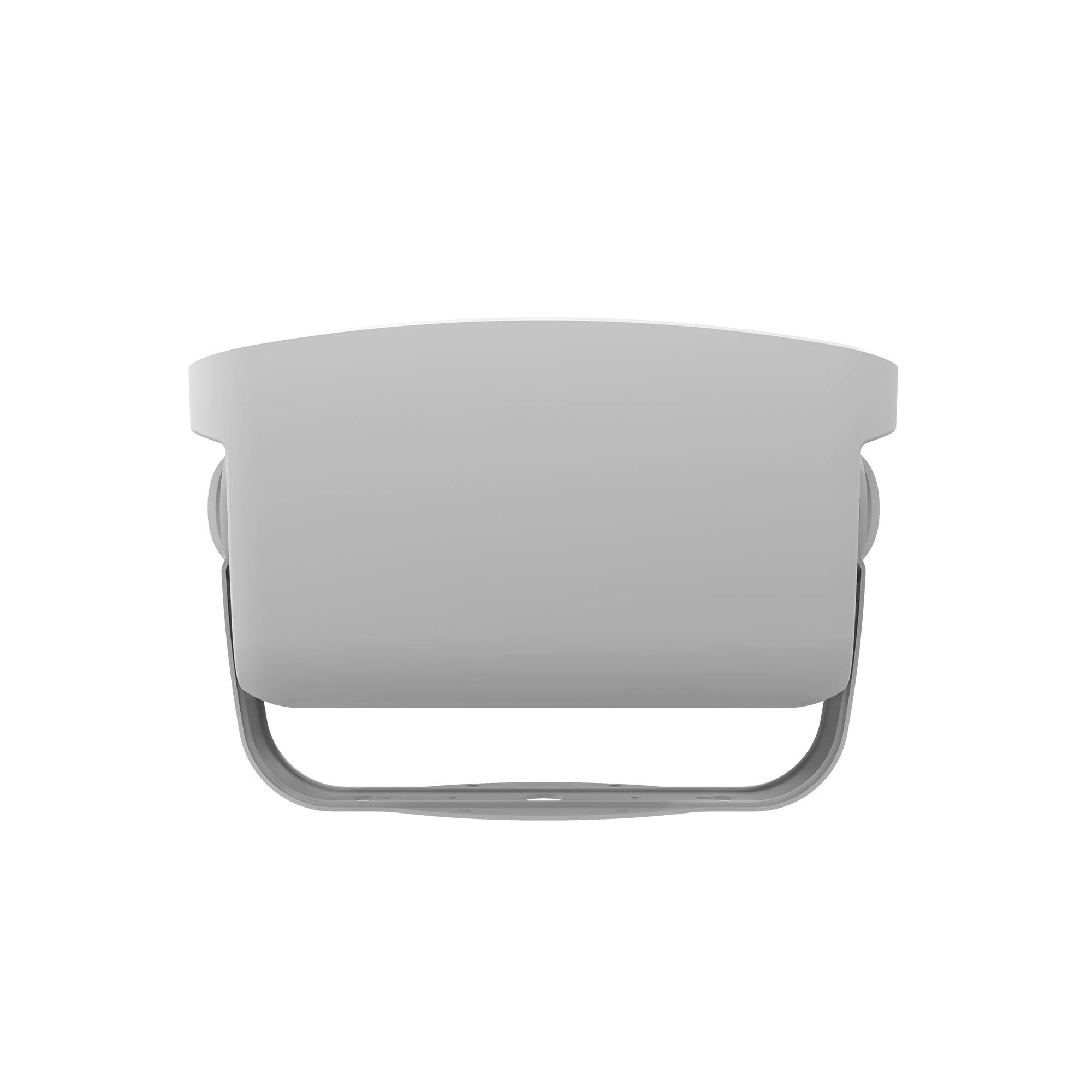

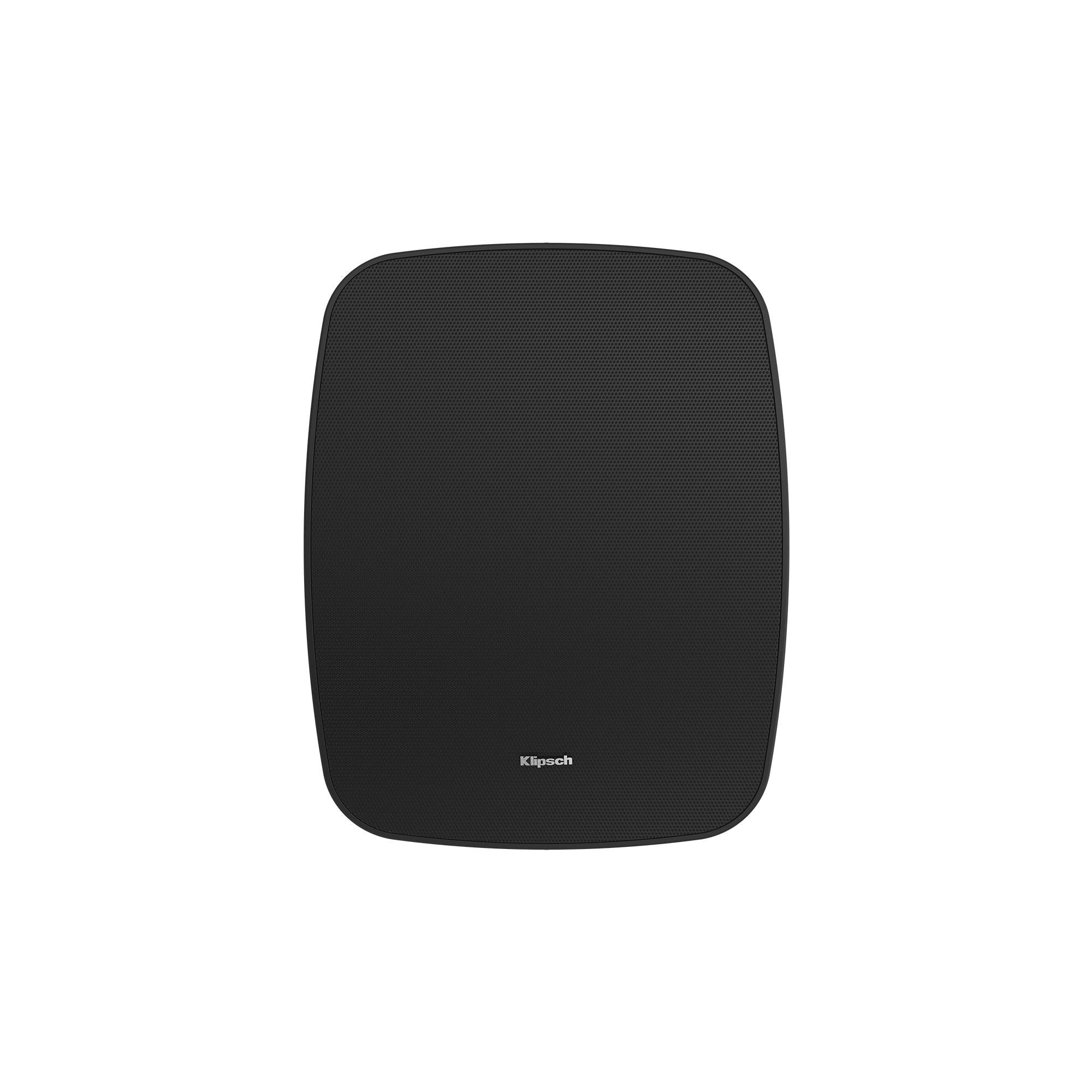

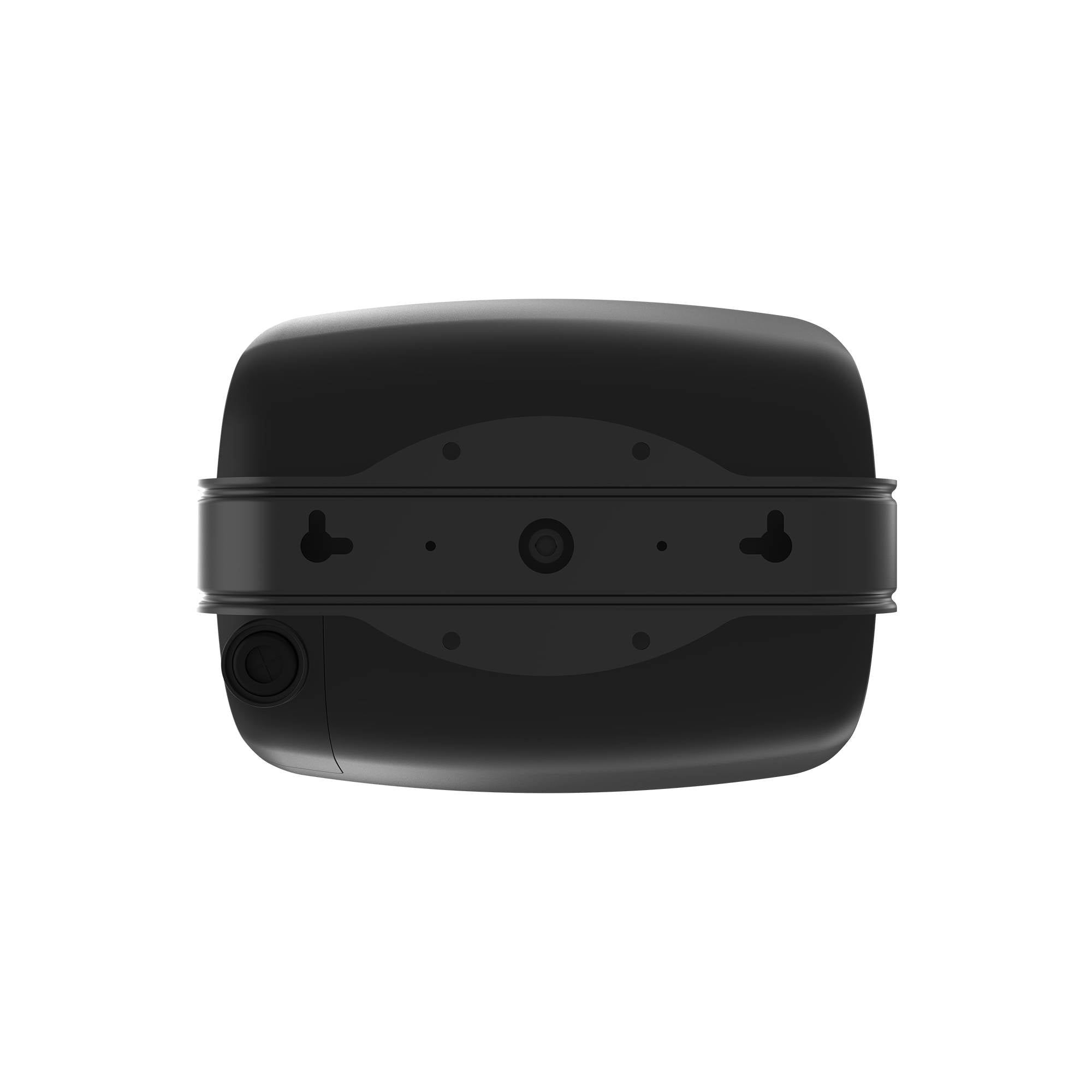

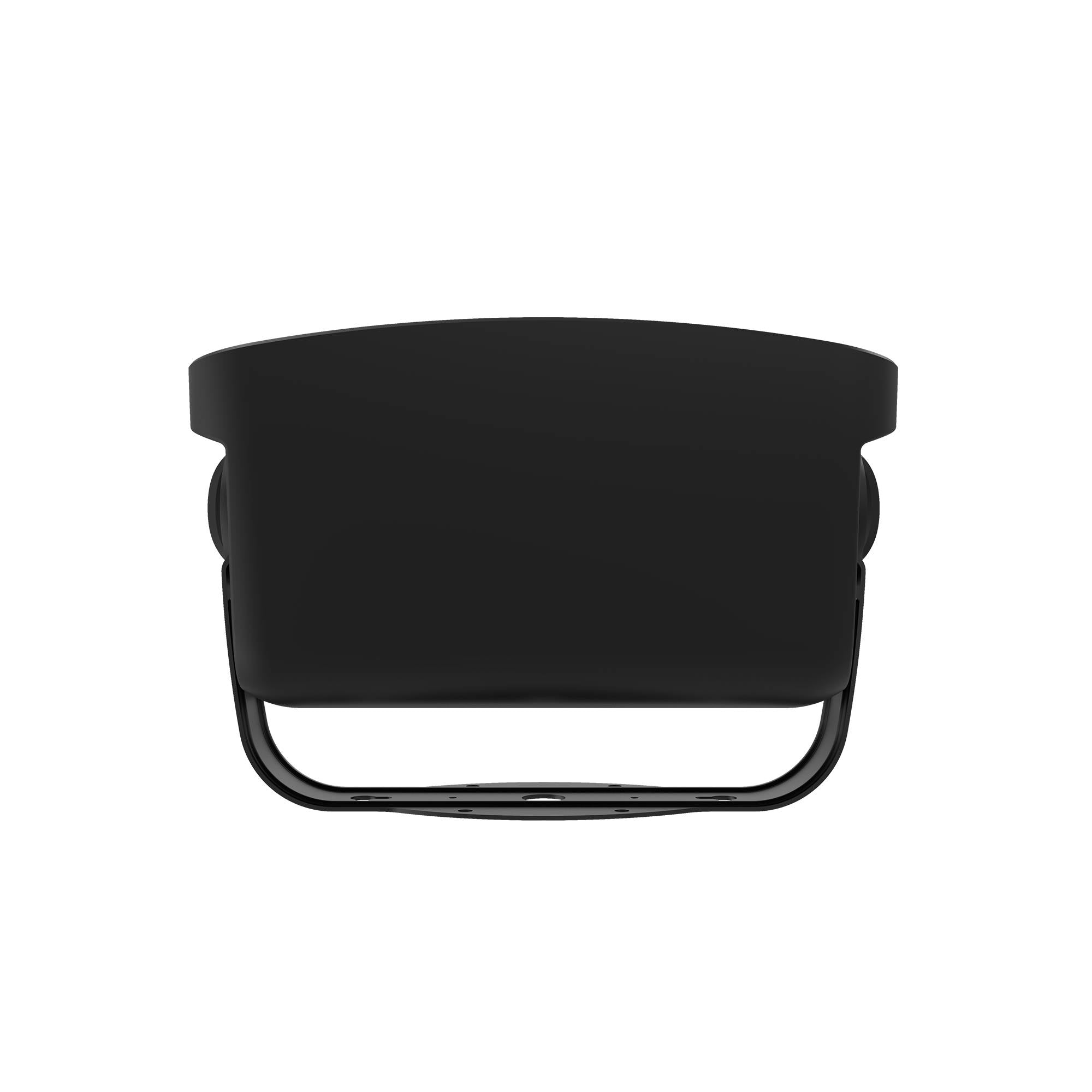

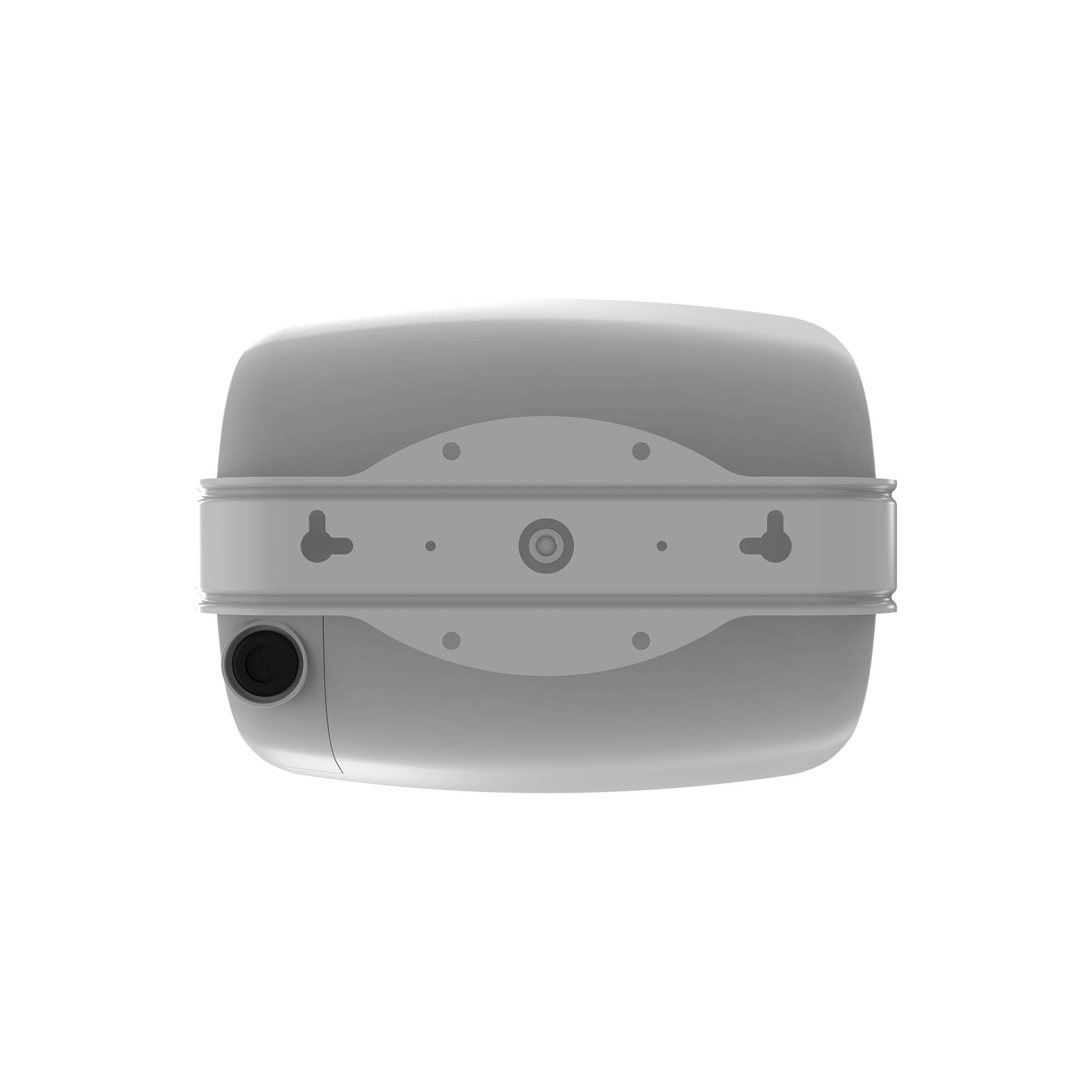

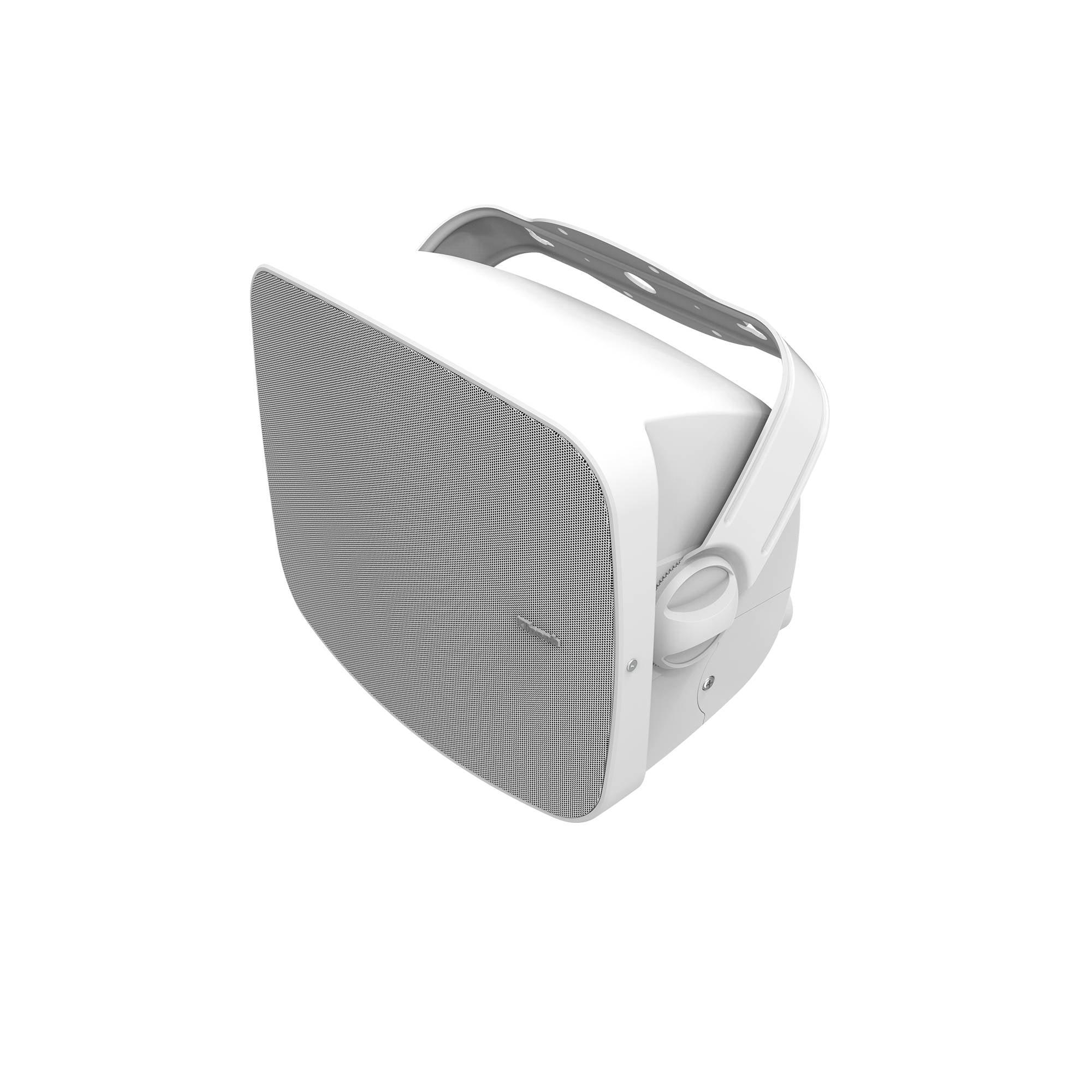

Klipsch PSM-525-T (Each)

5-1/4" Two-Way Surface Mount Speaker for Commercial Indoor & Outdoor Audio
Sale price$289.99

Color: Black

Description

The Klipsch PSM-525-T is a professional-grade indoor/outdoor surface mount speaker designed for commercial audio installations. Featuring a 5-1/4-inch woofer, 1-inch titanium compression driver, built-in 70V/100V multi-tap transformer, and IPX6-rated weather resistance, it delivers outstanding clarity and reliability for hospitality, retail, education, and outdoor commercial environments.

Professional Performance for Commercial Installations

The Klipsch PSM-525-T is engineered for commercial audio applications that demand exceptional sound quality, installation flexibility, and long-term durability. Ideal for restaurants, hotels, retail stores, offices, schools, and outdoor venues, it delivers reliable performance in both distributed 70V/100V systems and traditional 8-ohm installations.

Equipped with a 5-1/4-inch woofer and a 1-inch titanium compression driver, the PSM-525-T delivers clear vocals, detailed highs, and impressive bass. Klipsch's patented Tractrix® Hyperfold Port™ enhances low-frequency performance while reducing distortion for greater efficiency and wider sound coverage.

Its IPX6-rated weather-resistant enclosure, corrosion-resistant construction, and Phoenix (Euroblock) connector make it an excellent choice for indoor and outdoor commercial environments. The integrated transformer supports 70V, 100V, and 8-ohm bypass operation for maximum installation flexibility.

Key Features

  • Professional two-way surface mount speaker

  • 5-1/4-inch woofer

  • 1-inch titanium compression driver

  • Built-in 70V/100V multi-tap transformer

  • 8-ohm bypass mode

  • Tractrix® Hyperfold Port™ technology

  • IPX6-rated weather-resistant construction

  • Wide 100° sound coverage

  • 65W continuous / 260W peak power handling

  • Paintable all-weather ABS enclosure

  • Phoenix (Euroblock) connector

  • Horizontal or vertical installation

  • Available in Black or White

Specifications

Frequency Response 58Hz-20kHz +/- 4dB, 48Hz -10dB
Power Handling 65 watts (16.7V) 55Hz-10kHz (260 watts peak)
Calc. Max. Cont. Output 104dB
Sensitivity 89dB
Coverage 100° +/- 20°, 1kHz-20kHz
Directivity Index 7dB +/- 1.5dB, 1kHz-20kHz
Nominal Impedance 8 ohms, 4.3 ohms at 175Hz minimum
Acoustic Crossover 2kHz
Transducers 5.25" woofer, 1" titanium compression driver, on a K-1200M horn/tweeter bridge
Enclosure Material All Weather ABS Plastic, Paintable
IP Rating IPX6
Enclosure Tuning Vented via 3 folded Tractrix ports
Input Connectors 4 pin euro block
Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 7.5W, 3.8W
Bypass position: 8 ohms nominal
Dimensions (With Bracket) 12.13" (309mm) x 9.5" (242mm) x 6.5" (166mm)
[8.38" (213mm)]
Weight 7.75 lbs (3.52kg)
What's In The Box Klipsch PSM-525-T speaker, Mounting bracket, 4-pin Phoenix (Euroblock) connector, Two 6mm machine screws, Owner's manual
