Description

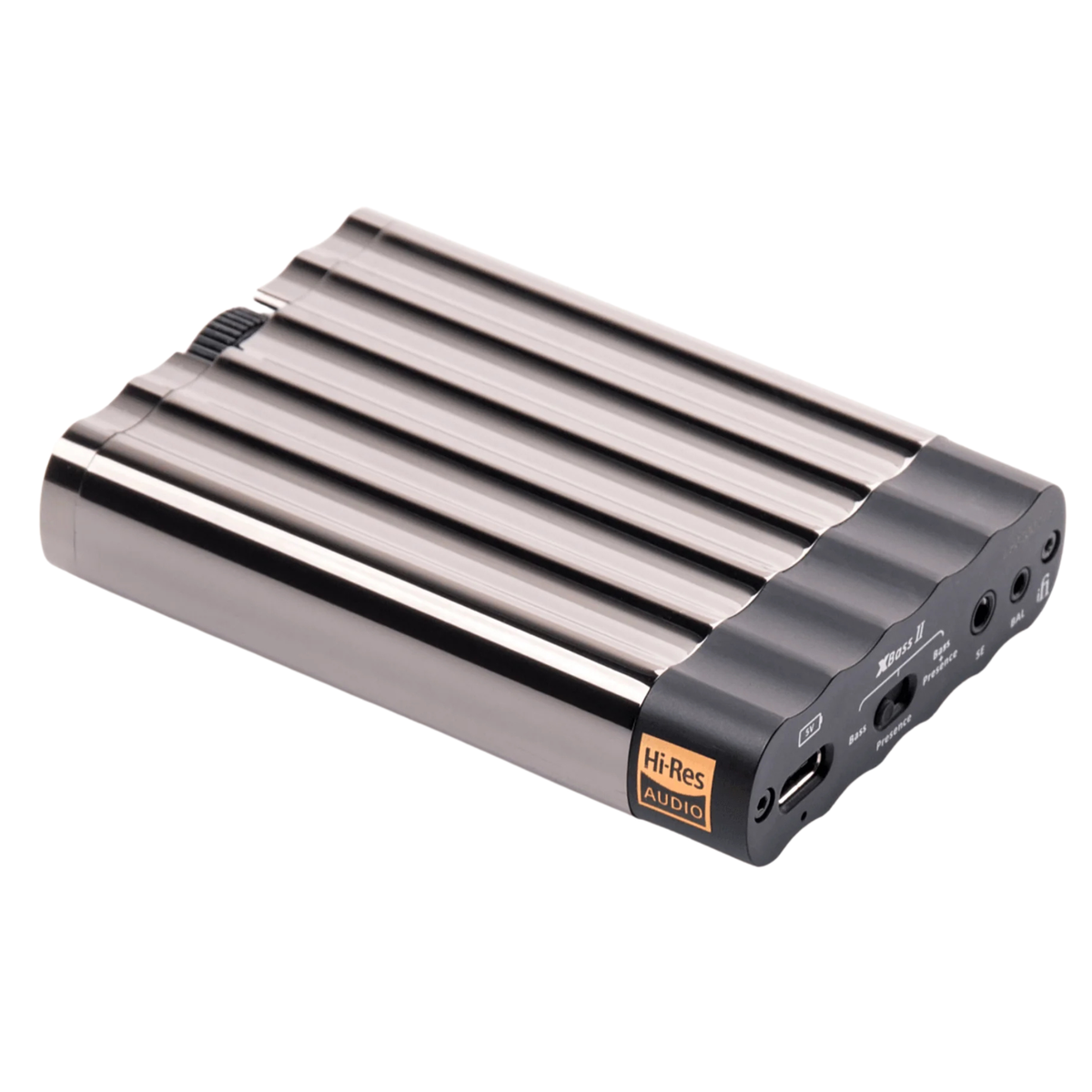

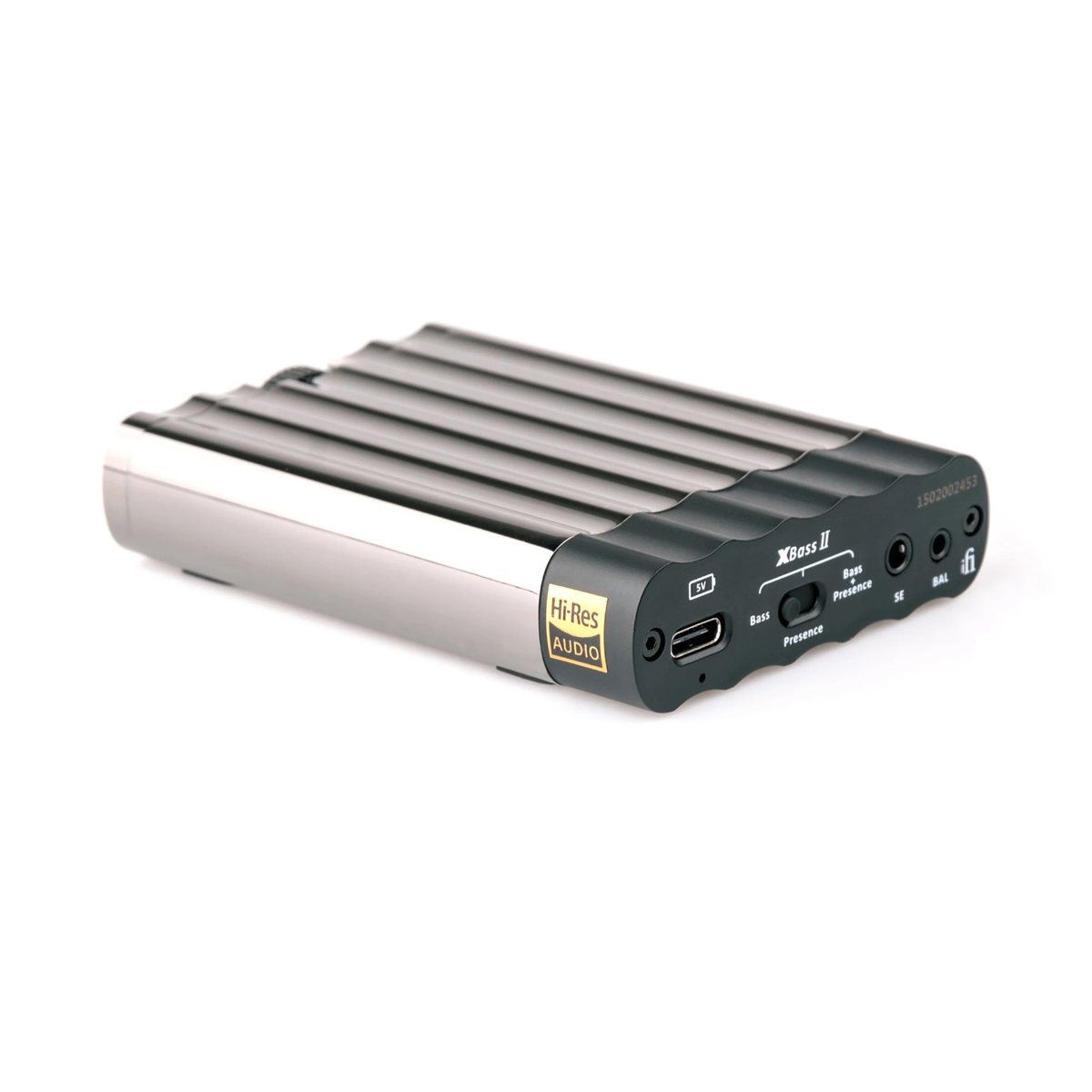

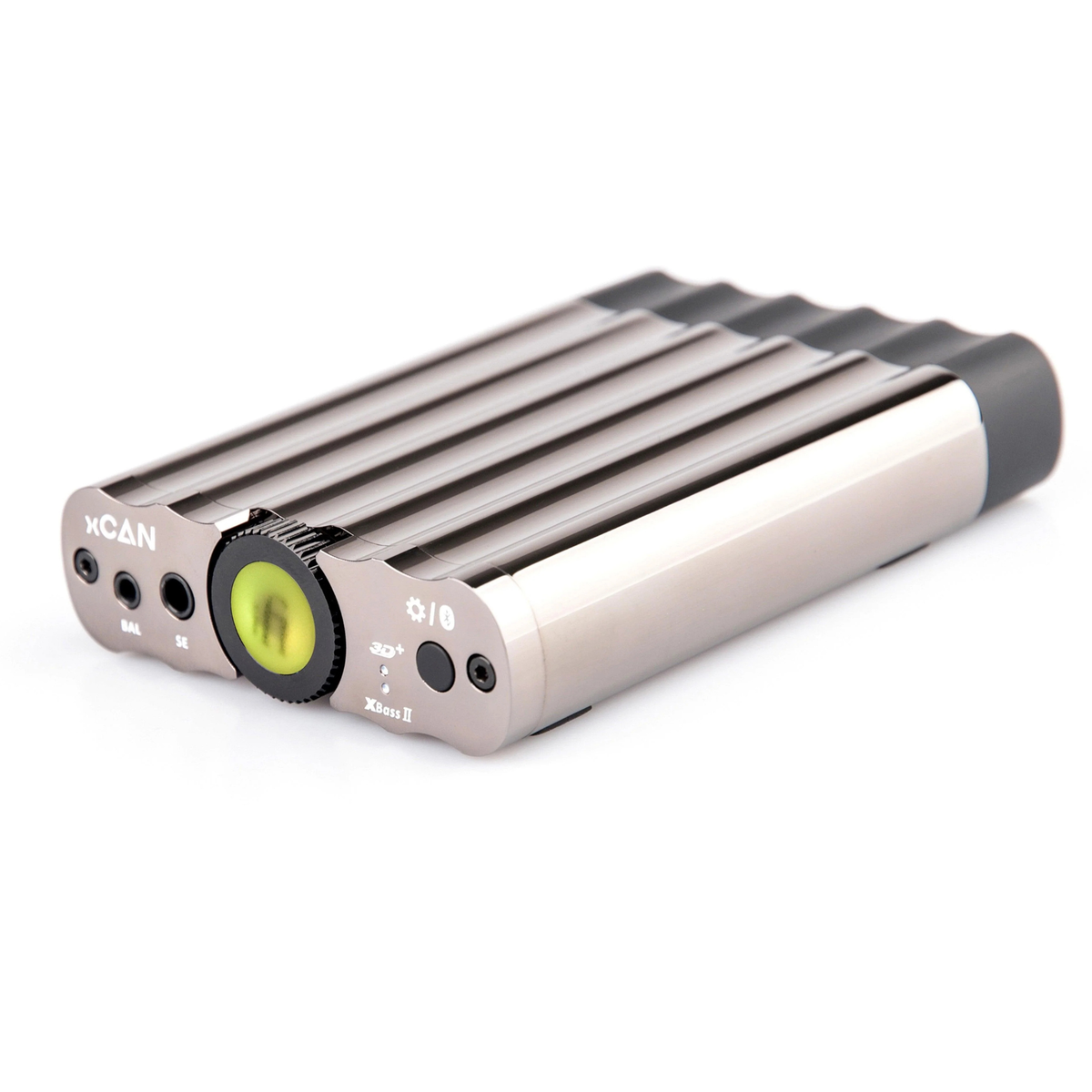

The iFi xCAN is a powerful portable headphone amplifier designed to add more drive and flexibility to smartphones, DAPs, and other audio sources. Its dual-mono amplifier delivers up to 1,000mW through the 2.5mm balanced output, providing enough power for headphones ranging from 16Ω to 600Ω.
Bluetooth provides convenient wireless playback using an ESS Sabre DAC with jitter-reduction technology, while 2.5mm balanced and 3.5mm S-Balanced analogue inputs support wired sources. XBass II and 3D+ provide analogue sound enhancement for bass response and soundstage.
A built-in 2,200mAh battery provides up to 18 hours of analogue playback or approximately 12 hours when using Bluetooth, with charging through USB-C.
Powerful Balanced Amplification
The dual-mono amplifier delivers up to 1,000mW at 32Ω through the 2.5mm balanced output, providing substantial power for portable, planar magnetic, and high-impedance headphones.
Bluetooth Playback
Bluetooth allows wireless playback from compatible smartphones, tablets, computers, and TVs. The Bluetooth signal is converted through an ESS Sabre ES9023 DAC rather than relying entirely on the Bluetooth chipset for audio conversion.
XBass II & 3D+
XBass II provides analogue bass and presence correction, while 3D+ is designed to create a more spacious, speaker-like headphone presentation. Both operate in the analogue domain rather than using DSP.
Key Features
- 1,000mW Balanced Output — Delivers up to 1,000mW at 32Ω.
- Dual-Mono Amplification — Provides powerful balanced headphone drive.
- 2.5mm Balanced — Balanced analogue input and headphone output.
- 3.5mm S-Balanced — Supports conventional headphone and analogue connections.
- Bluetooth Audio — Supports AAC, aptX, aptX LL, and SBC.
- ESS Sabre DAC — Dedicated conversion for Bluetooth audio.
- XBass II — Analogue bass and presence correction.
- 3D+ — Analogue soundstage enhancement.
- 2,200mAh Battery — Up to 18 hours wired or 12 hours Bluetooth playback.
-
USB-C Charging — Dedicated USB-C charging without drawing power from the playback device.
Connectivity & Compatibility
Inputs
- 2.5mm Balanced
- 3.5mm S-Balanced
- Bluetooth
Headphone Outputs
- 2.5mm Balanced
- 3.5mm S-Balanced
Bluetooth Codecs
- AAC
- aptX
- aptX Low Latency
- SBC
Output Power
- Balanced — 1,000mW @ 32Ω
- Balanced — 800mW @ 64Ω
- Balanced — 90mW @ 600Ω
- S-Balanced — 380mW @ 32Ω
Recommended Headphone Impedance
- 16–600Ω
Battery
- 2,200mAh
- Up to 18 hours — analogue
- Up to 12 hours — Bluetooth
- USB-C charging
Frequently Asked Questions
Is the iFi xCAN a DAC?
How much power does the xCAN provide?
What do XBass II and 3D+ do?
How long does the battery last?
Specifications
| TECHNICAL SPECIFICATIONS | |
| Dimensions | 95 (L) x 67 (W) x 19 (H) mm |
| Frequency Response | <2Hz – >200kHz (-3dB) |
| Gain | -95dB to +18dB Adjustable in 114 1dB Steps (Using Volume Control) |
| Input |
Wireless: ESS Sabre 44.1/48k 16-Bit (AAC, aptX, aptX LL and SBC) (@ 3.8V) Wired: 3.5mm (TRS or TRRS S-Balanced*) and 2.5mm (TRRS) *Only found in iFi components such as nDSD BL. Do NOT feed using normal TRRS Balanced output sources. No USB audio input. |
| Limited Warranty | 12 Months |
| Maximum Input Level |
S-Balanced: 3V RMS Balanced: 6V RMS |
| Maximum Output Power |
S-Balanced: >3.8V/45mW (@ 300 Ohm) >3.5V/380mW (@ 32 Ohm) >3.1V/600mW (@ 16 Ohm) Balanced: >7.6V/90mW (@ 600 Ohm) >7.2V/800mW (@ 64 Ohm) >5.7V/1,000mW (@ 32 Ohm) |
| Net Weight | 127g (0.28 lbs) |
| Output Impedance |
S-Balanced: <1 Ohm Balanced: <2 Ohm |
| Playback Time |
18 Hours (Analogue) or 12 Hours (Bluetooth) (Charging via USB Port) |
| Recommended HP Impedance | 16~600 Ohm |
| SNR |
S-Balanced: >121dBA (@ 3.8V) Balanced: >120dBA (@ 7.6V) |
| THD+N |
S-Balanced: <0.005% (@ 100mW/1.26V 16 Ohm) Balanced: <0.006% (@ 360mW/2.4V 16 Ohm) |
| WHAT'S INCLUDED | |
| In the Box |
1x xCAN 1x USB C-USB C & USB A-USB C Cable 1x Quick Set-Up Guide 1x Warranty Card |
| DOWNLOADS | |
| User Manual | Download PDF |
