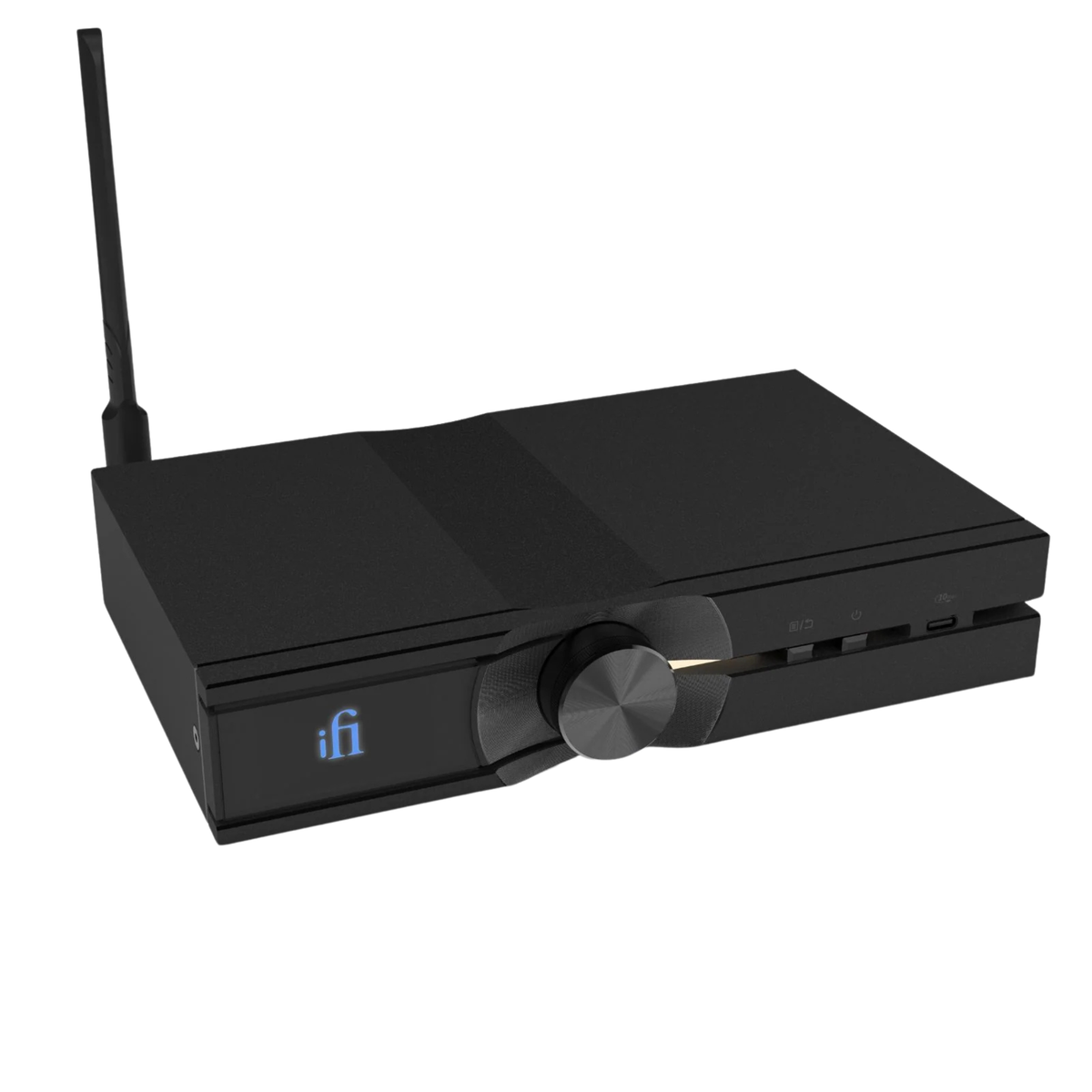

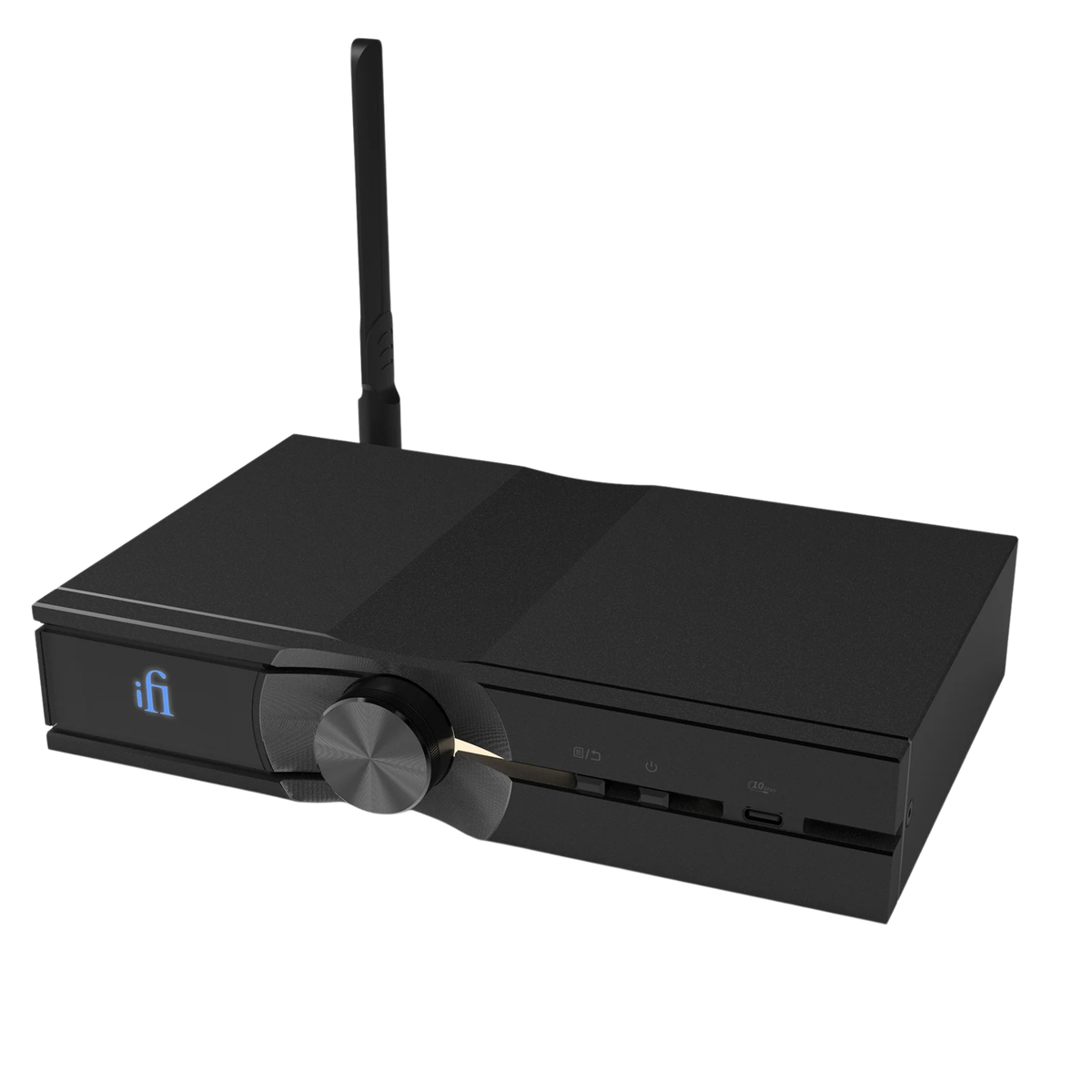

iFi NEO Stream 3
Description
The iFi NEO Stream 3 is a high-performance network streamer and DAC designed as a complete digital audio hub for modern HiFi systems. Its next-generation streaming engine supports PCM up to 768kHz and DSD512 over the network, while a customized Burr-Brown DAC stage provides high-resolution analogue conversion for direct connection to amplifiers, preamps, or active speakers.
Native support for Qobuz Connect, TIDAL Connect, Spotify Connect, Roon, AirPlay, DLNA, NAS storage, and USB drives provides flexible access to streaming services and local music libraries. The iFi Nexis app simplifies Wi-Fi setup and provides convenient control from a smartphone.
JVCKENWOOD K2 and K2HD processing is designed to restore harmonic information lost during digital production and encoding, with K2HD capable of upsampling compatible PCM audio below 192kHz. The included OptiBox provides optical galvanic isolation for wired network connections, helping prevent electrical network noise from entering the audio system.
With balanced 4.4mm and RCA analogue outputs plus USB, optical, coaxial, AES/EBU, and I2S digital outputs, the NEO Stream 3 can serve as a complete streamer/DAC or as a high-quality digital transport feeding an external DAC.
Next-Generation Streaming
The NEO Stream 3 supports PCM up to 768kHz and DSD512 over the network, with native integration for Qobuz Connect, TIDAL Connect, Spotify Connect, Roon, AirPlay, DLNA, NAS storage, and USB music libraries. Qobuz Connect enables bit-perfect playback directly from the Qobuz app on compatible systems.
K2 & K2HD Technology
Developed by JVCKENWOOD, K2 technology is designed to restore harmonic information lost during digital production and encoding. K2HD adds upsampling of compatible PCM audio below 192kHz to 192kHz/24-bit, allowing the processing to benefit both the NEO Stream 3's internal DAC and compatible external DACs connected to its digital outputs.
Customized Burr-Brown DAC
The NEO Stream 3 incorporates the DAC stage developed for the NEO iDSD 2, built around a customized Burr-Brown chipset. Its architecture processes PCM and DSD through separate pathways and provides balanced 4.4mm and single-ended RCA analogue outputs for direct integration into a HiFi system.
Optically Isolated Networking
The included OptiBox provides optical galvanic isolation for a wired network connection, electrically separating network equipment from the NEO Stream 3 to help prevent network-related electrical noise from reaching the audio system.
Key Features
- Ultra-Resolution Network Streaming — Supports PCM up to 768kHz and DSD512 over the network.
- Qobuz Connect — Enables direct, bit-perfect playback from the Qobuz app.
- TIDAL & Spotify Connect — Provides native access to popular streaming platforms.
- Roon, AirPlay & DLNA — Offers broad compatibility with modern network-audio ecosystems.
- K2 & K2HD Technology — Restores harmonic information and provides optional upsampling of compatible PCM audio.
- Customized Burr-Brown DAC — Uses separate PCM and DSD pathways for high-resolution conversion.
- OptiBox Optical Isolation — Galvanically isolates wired network connections to reduce incoming network noise.
- Conditioned Digital Outputs — USB and S/PDIF outputs incorporate iFi noise-reduction technologies.
- Extensive Digital Outputs — Provides USB, optical, coaxial, AES/EBU, and I2S connectivity for external DACs.
-
iFi Nexis App — Simplifies Wi-Fi setup, control, and access to the streaming interface.

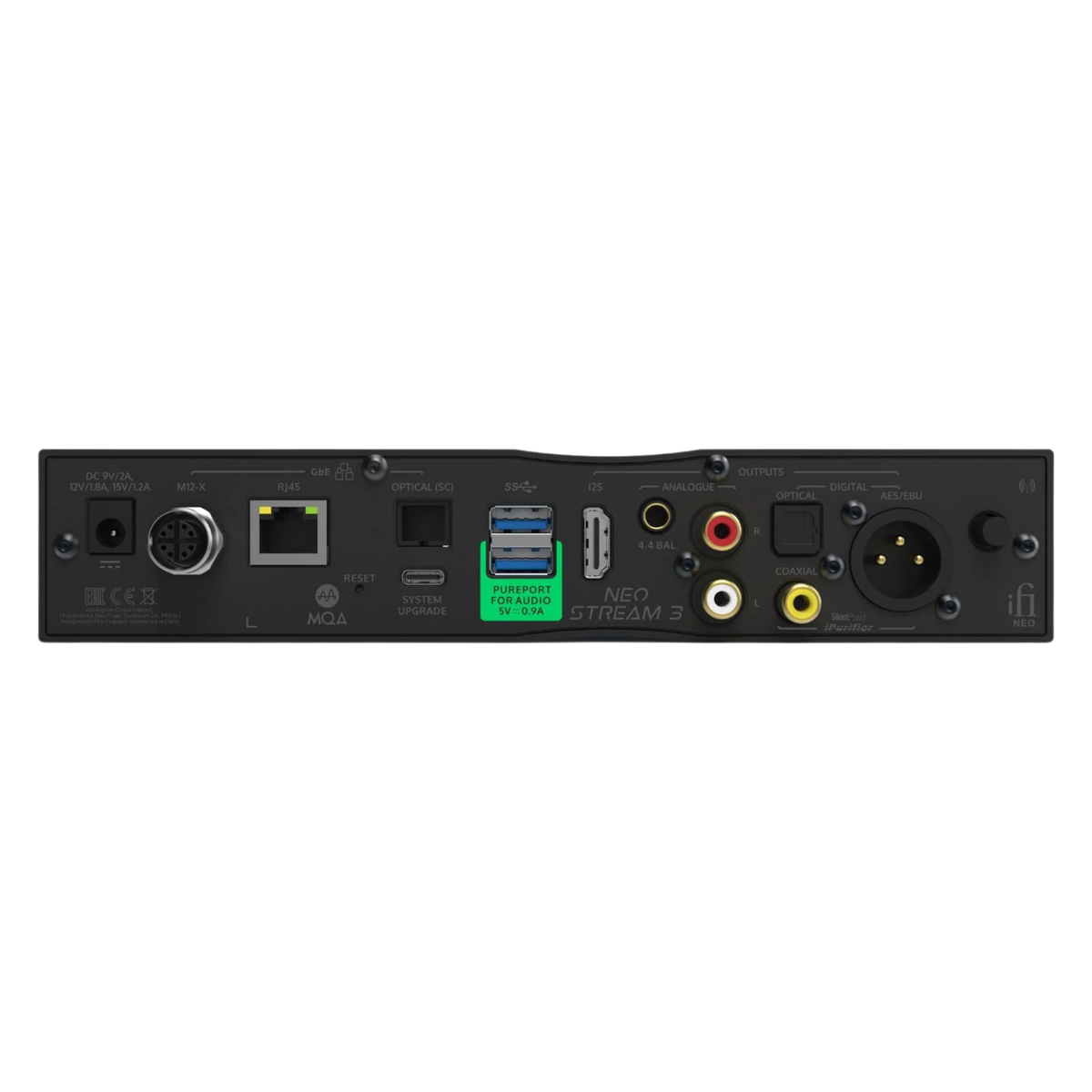

Connectivity & Compatibility
Digital Inputs
- Wi-Fi
- Ethernet RJ45
- Ethernet M12-X
- Optical Ethernet
- 2 × USB-A
- Front USB-C
Digital Outputs
- 2 × USB-A
- S/PDIF Optical
- S/PDIF Coaxial
- AES/EBU
- I2S
Analogue Outputs
- 4.4mm Balanced — 4V RMS
-
RCA Single-Ended — 2V RMS
Supported Audio
- PCM up to 768kHz
- DSD up to DSD512 / 22.6MHz
Streaming & Playback
- Qobuz Connect
- TIDAL Connect
- Spotify Connect
- Roon
- AirPlay
- DLNA
- NAS
- USB storage
Compatible Systems
- Integrated amplifiers
- Preamplifiers
- Active speakers
- External DACs
- Networked HiFi systems
Frequently Asked Questions
Is the NEO Stream 3 a streamer and DAC?
Does it support Qobuz Connect?
Does it support TIDAL and Spotify?
Can I use it with Roon?
Can I connect a NAS?
What is the maximum PCM resolution?
Can I connect it directly to active speakers?
Can I use an external DAC?
Does it have Wi-Fi and Ethernet?
What is the OptiBox?
Specifications
| TECHNICAL SPECIFICATIONS | |
| Analogue Outputs | 4.4mm Balanced, SE RCA |
| Analogue Output Voltage |
Balanced 4V RMS SE 2V RMS |
| Digital Inputs | Wi-Fi; Ethernet (RJ45, M12-X, Optical); 2x USB-A; USB-C (Front) |
| Digital Output | 2x USB-A; S/PDIF Optical; S/PDIF Coaxial; AES/EBU; I2S |
| Dimensions | 214 x 151 x 41mm (8.4 x 5.9 x 1.6") |
| Hi-Res Support | 768kHz PCM; DSD512 (22.6MHz) |
| Limited Warranty |
UK and US: 12 Months* EU: 24 Months* |
| Net Weight | 1.0 kg (2.26 lbs) |
| Output Impedance |
Balanced ≤74Ω SE ≤37Ω |
| Power Consumption | ≤0.5W Idle; 14W Max. |
| SNR | ≥106dBA @ 0dBFS |
| System Update | USB-C (Back) |
| THD+N | ≤0.0025% @ 0dBFS |
| Power Supply Requirement | DC 9V/2A; 12V/1.8A; 15V/1.2A (Centre +ve) |
| WHAT'S INCLUDED | |
| In the Box |
1x NEO Stream 3 1x OptiBox 1x USB-A to USB-C Cable 1x Ethernet Cable 1x RCA Cable 1x 5V Power Adapter 1x Aluminium Base 1x Antenna 1x iPower X Ultra Low Noise Power Supply 1x SC-SC Fibre Optic Cable 1x Quick Start Guide 1x Warranty Card |
| DOWNLOADS | |
| User Manual | Download PDF |
