Description
All-in-One Powerhouse Design
The HiFi Rose RS520 blends a high-resolution network streamer, preamp, and powerful amplifier into a single, stunning component. With 200–250 watts per channel into 8 Ω, it delivers uncompromised performance and elegance in one versatile package.
Cutting-Edge Class-AD Amplification
Utilizing GaN FET-based Class-AD topology, the RS520 achieves lightning-fast response, exceptional accuracy, and dynamic control with ultra-low distortion. This advanced design places it at the forefront of modern integrated amplifiers.
Flagship-Level DAC & Hi-Res Support
Equipped with the ESS Sabre ES9038PRO DAC, the RS520 supports PCM up to 32-bit/768 kHz, native DSD512, and full MQA decoding—matching the performance of HiFi Rose’s flagship streamers.

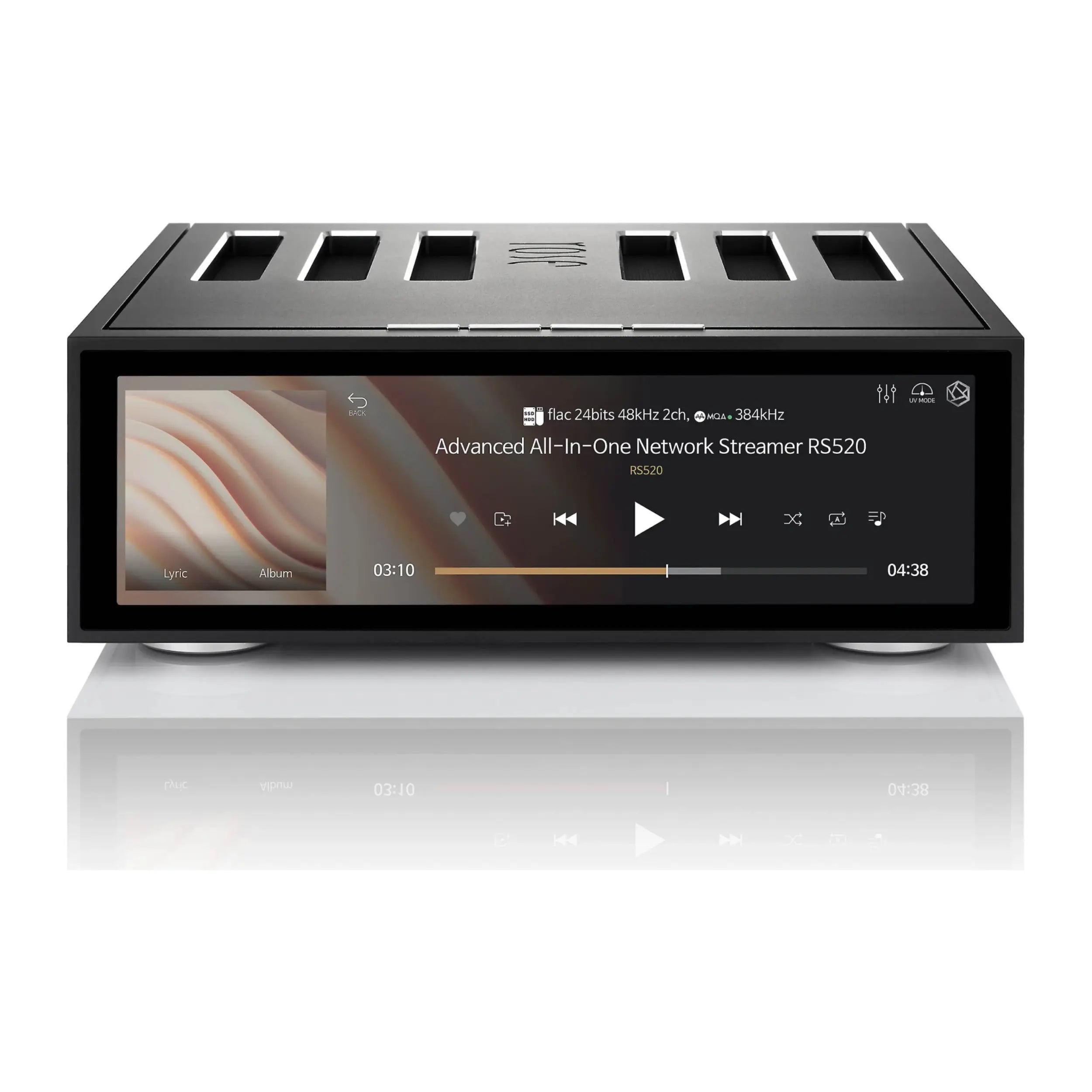

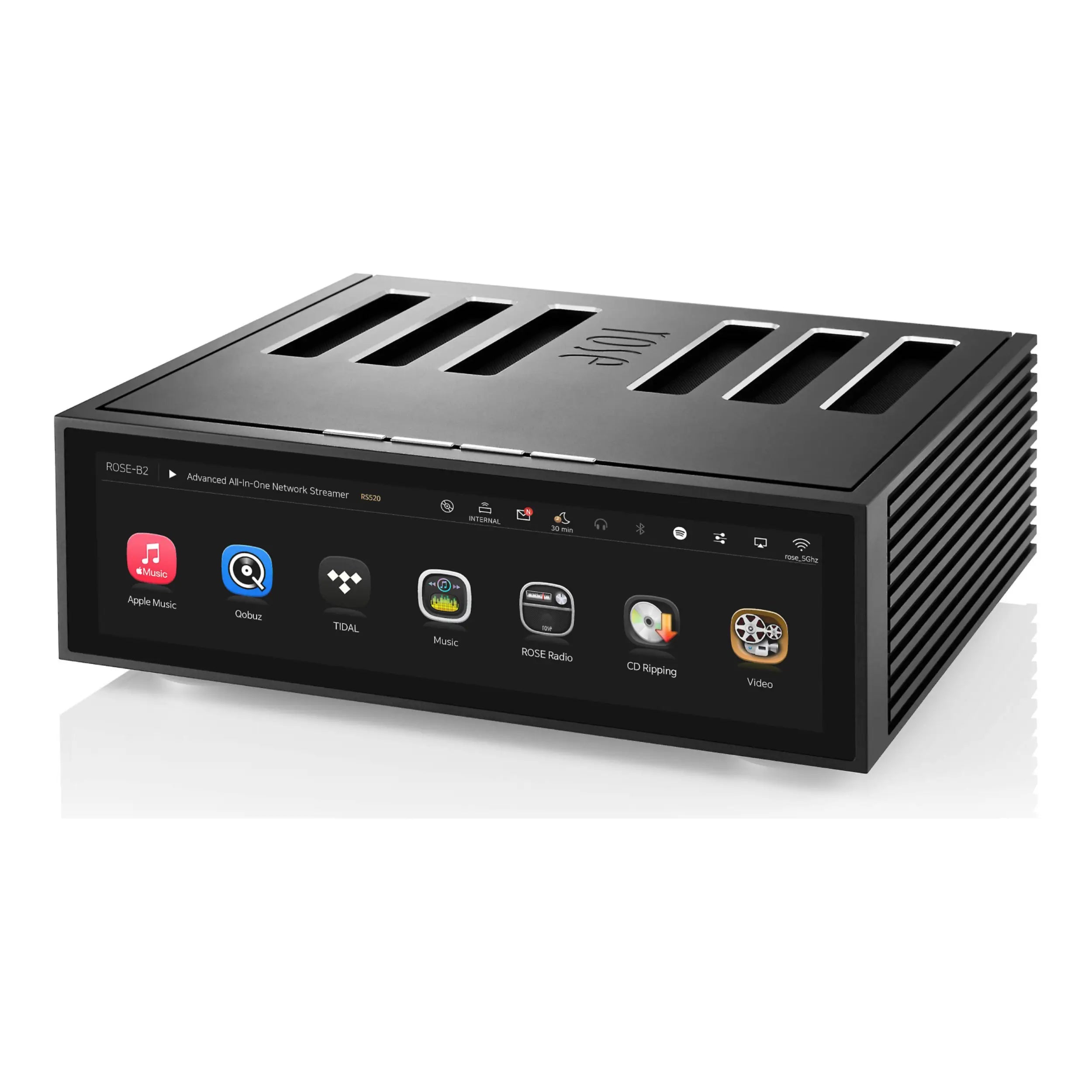

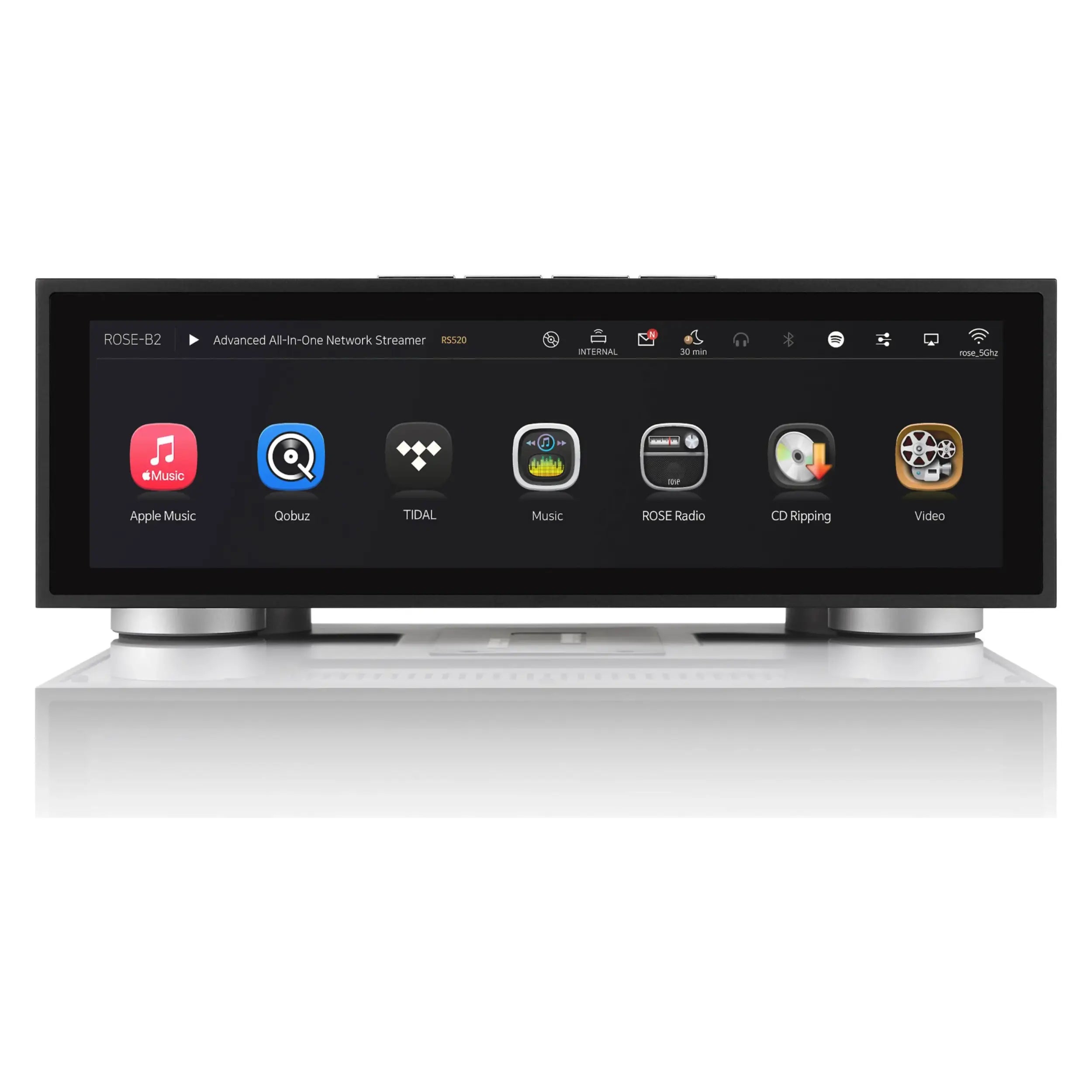

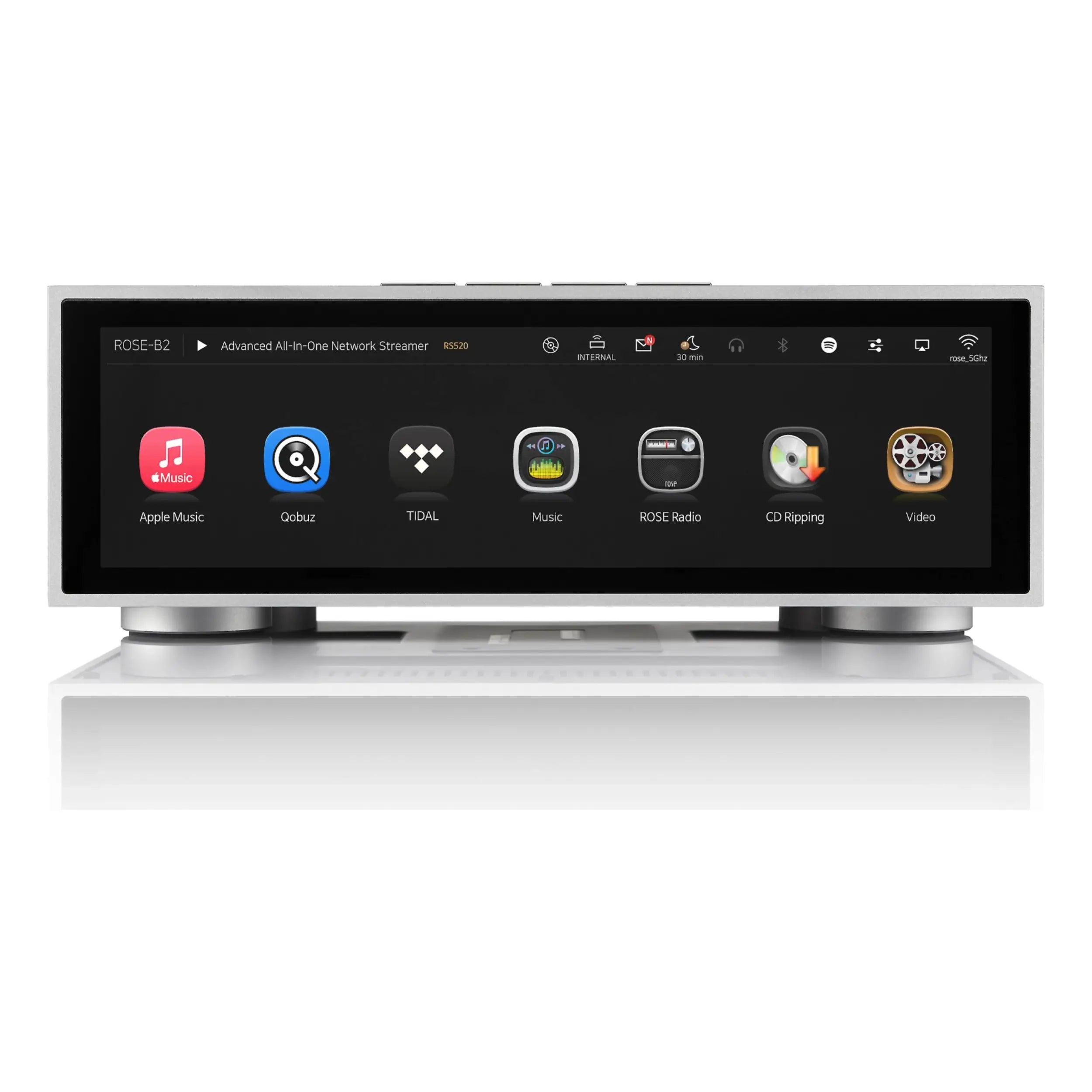

Immersive 12.6″ Touchscreen & ROSE OS
A bold 12.6″ full-color touchscreen provides effortless access to your music, complete with vivid album art, customizable VU meters, and Rose OS for seamless streaming control. The interactive display transforms playback into a fully immersive experience.
Rich Streaming & Video Capabilities
Enjoy direct access to Apple Music, Tidal, Qobuz, Spotify, YouTube, RoseTube, podcasts, and internet radio. With 4K HDMI 2.0 output and HDMI eARC input, the RS520 also integrates easily with your TV and home theater system.
Solid Build & Quiet Operation

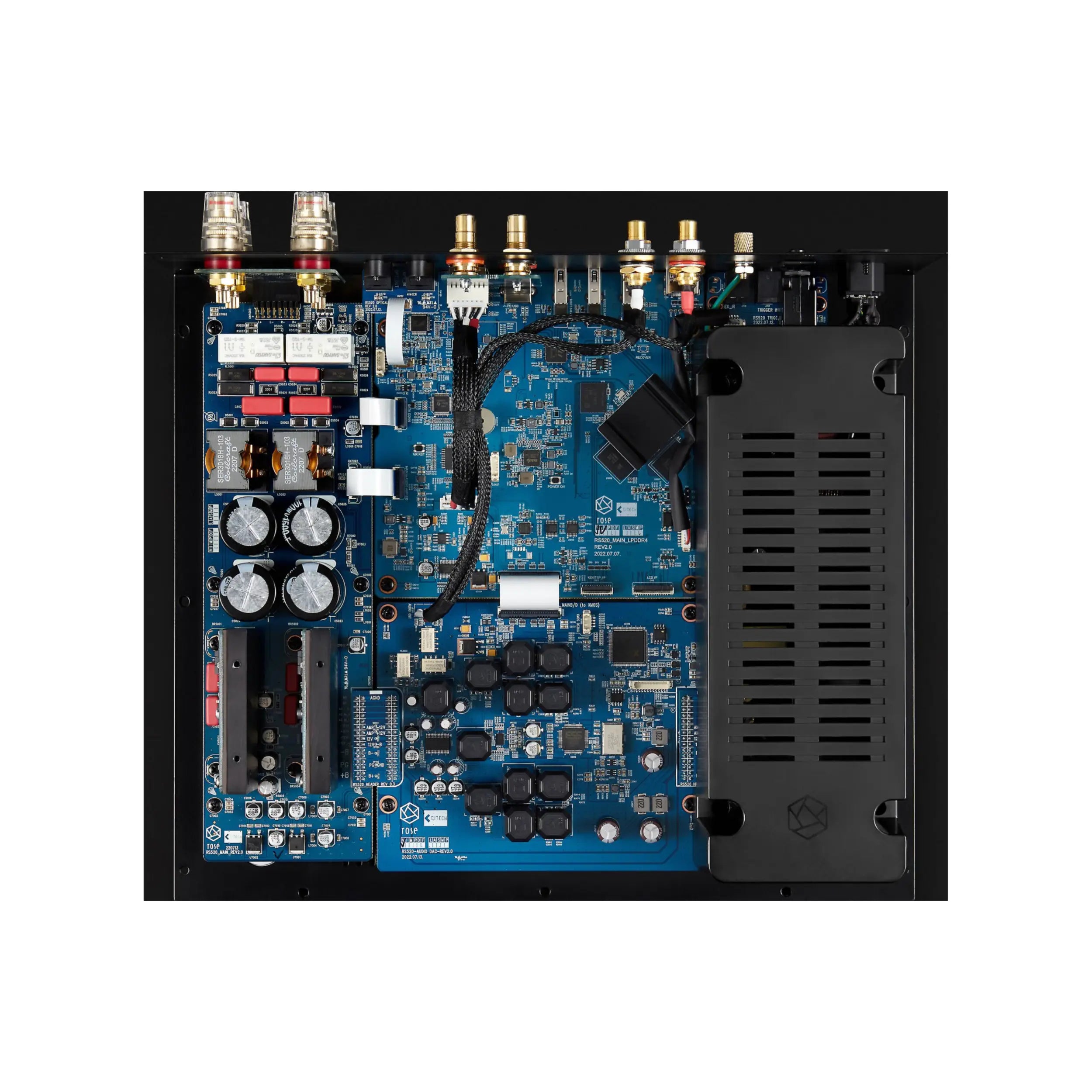

Machined from a single billet of aluminum, the RS520’s chassis ensures durability, reduced vibration, and electrical stability. Its advanced power supply design delivers efficient, cool, and near-silent performance.
Expandable Library & Connection Flexibility
Expand your library with internal SSD installation, USB storage, microSD, or NAS access. The RS520 supports CD ripping and playback with the optional RSA-780 drive. Wireless and wired connections include Bluetooth, AirPlay, Roon Ready, DLNA, and Spotify Connect for total system flexibility.
Specifications
| Operating System | Customized Android 7.1 |
|---|---|
| Design | |
| Size | 13.6" W × 12.9" D × 5" H |
| Weight | 17.8 lbs |
| Finish | Milled From Solid Aluminum |
| Display | 12.6" Wide Viewing Angle Multi-Touch Panel |
| Power | |
| FTC Power Output Rating (RMS) | 250W × 2ch (8Ω, 20Hz–20kHz, THD 0.05%) |
| Total Harmonic Distortion (THD) | 0.05% (8Ω, 1W to 250W, 1kHz) |
| Frequency Range | 10Hz–85kHz (8Ω, 1W) |
| Load Impedance | 8Ω |
| Maximum output: | 200W |
| Speaker impedance | 4~8Ω |
| Wireless | |
| Network | Ethernet: 10/100/1000 BASE-T, WiFi: 802.11ac Dualband (via USB Dongle) |
| Bluetooth | Bluetooth 4.2 (via USB Dongle) |
| Streaming | Airplay / DLNA / Roon Ready / Spotify Connect / Bluetooth |

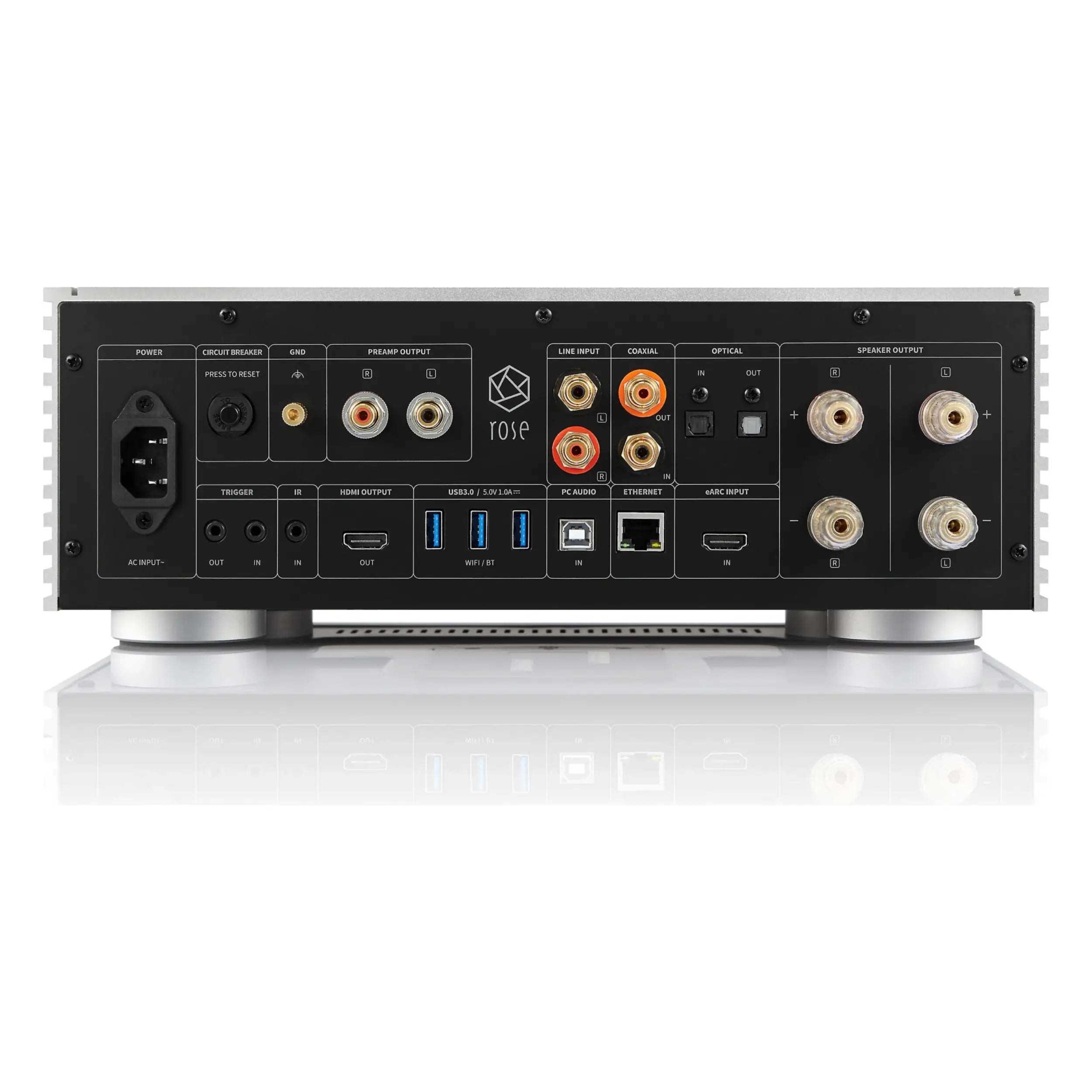

| Inputs & Outputs | |
| Audio Input | Optical × 1, Coaxial × 1, Line-In × 1, USB DAC × 1, eARC × 1 |
| Audio Output | Optical × 1, Coaxial × 1, Preamp-Out × 1 |
| Video Output | HDMI 2.0 × 1 (up to 3840 × 2160 / 60Hz) |
| Media Connection |
File System: NTFS / exFAT / FAT32 Network Protocol: SMBv1 / FTP / WebDav Storage Interface: USB 3.0 × 2, SATA × 1 |
| Supported Codec | |
| Audio |
MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC PCM: 8kHz–768kHz (8/16/24/32bit per Sample) Native DSD: DSD64 / DSD128 / DSD256 / DSD512 |
| Video |
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC H.264/AVC (Base/Main/High/High10 @ L5.1 up to 4K × 2K @ 30fps) H.265/HEVC (Main/Main10 @ L5.1 High-tier up to 4K × 2K @ 60fps) |
| Power | |
| Input Power | AC 100–240V, 50/60Hz |
| Output Power | DC 24V, 5.0A |
| Standby Power | <0.5W |
| Update | SW update via internet, manual update via USB |
| Remote Control | |
| Remote Control | BT Remote Controller |
| Remote App | ROSE Connect (Android, iOS) |
| Accessories | Power Cord × 1, Bluetooth Remote Controller × 1 (AAA Battery × 2), Manual × 1, SSD Screw × 4 |
