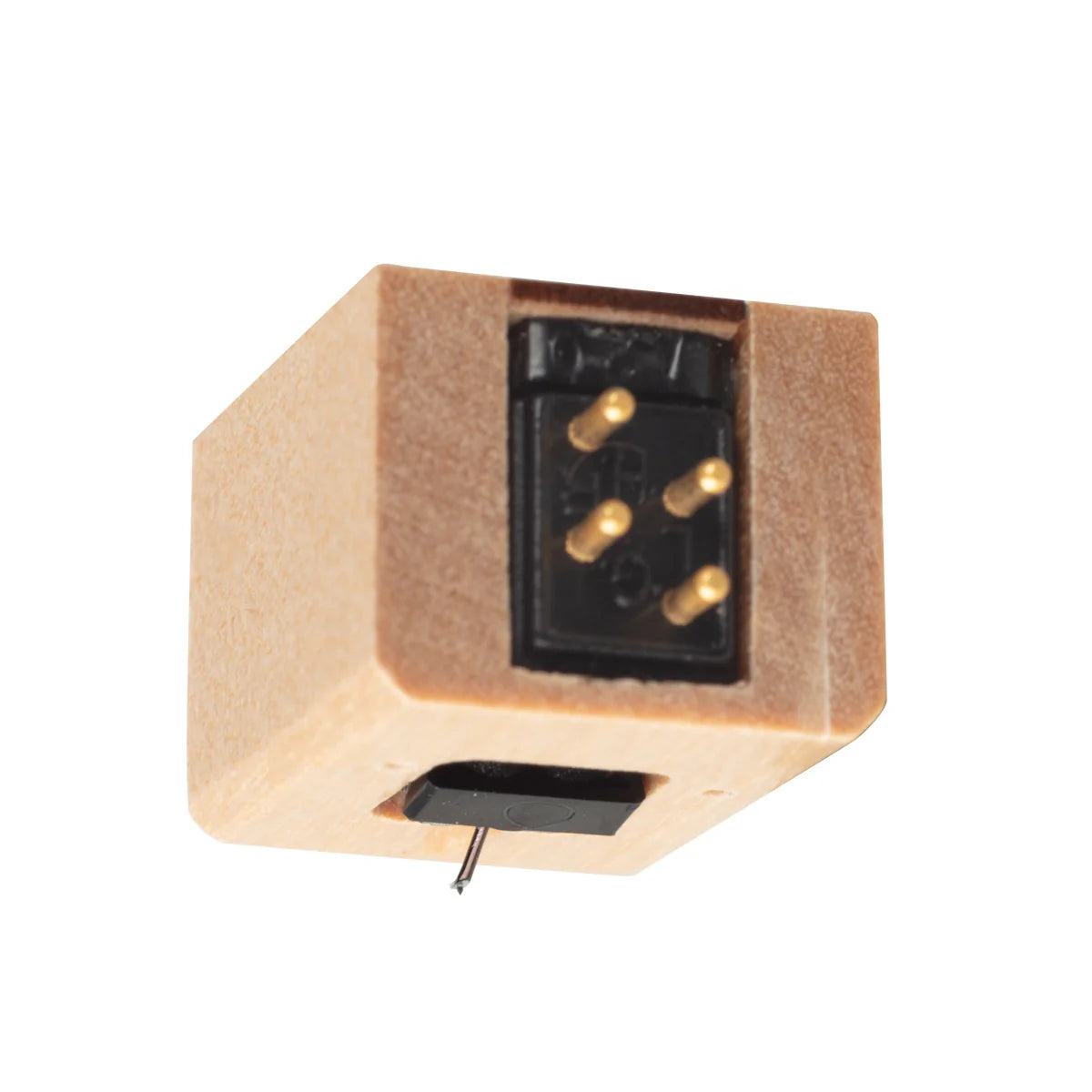

Grado Opus3 Phono Cartridge
Grado Opus3 Phono Cartridge
Introducing the Grado Opus3 Phono Cartridge, now available at RockOnAV. As a distinguished member of Grado's Timbre Series, the Opus3 is meticulously handcrafted to deliver exceptional audio fidelity, enhancing your vinyl listening experience.
Key Features:
-
Maple Wood Body: The Opus3's housing is crafted from Maple wood, known for its excellent acoustic properties. This material enhances resonance control, resulting in a vibrant and luscious sound signature.
-
Modified Four-Piece OTL Cantilever: Utilizing Grado's modified four-piece Optimized Transmission Line (OTL) cantilever technology, the Opus3 achieves a 10% reduction in tip mass over the Prestige series, enhancing tracking precision and reducing distortion.
-
Elliptical Diamond Stylus: The cartridge features Grado's specially designed elliptical diamond stylus, ensuring superior detail retrieval and accurate groove tracing.
-
Ultra-High Purity Copper Coils: Coils wound with ultra-high purity long crystal (UHPLC) oxygen-free copper wire provide excellent signal transmission, preserving the integrity of the audio signal.
The Grado Opus3 has been acclaimed for its natural and musical presentation. Reviewers have noted its ability to deliver a complete musical picture, making it a standout choice for discerning audiophiles.
Elevate your analog listening experience with the Grado Opus3 Phono Cartridge.
Specifications
| Specification | Details |
|---|---|
| Body | Maple Wood |
| Cantilever | Aluminum / Elliptical Diamond |
| Output |
High: 4.0mV @5 CMV (45) Low: 1.0mV @5 CMV (45) |
| Inductance |
High Output: 55mH Low Output: 6mH |
| Resistance |
High Output: 660 ohms Low Output: 70 ohms |
| Input Load | 10k-47k ohms |
| Cartridge Weight | 8 grams |
| Tracking Force | 1.6-1.9 grams |
| Compliance | 20μm/mN |
| Channel Separation | Average 30db - 10-30k Hz |
| Controlled Frequency Response | 10-60 kHz |
| Capacitive Load Sensitivity | Non-Sensitive |
| Builds | High Output, Low Output, Mono |
Description
Description
Grado Opus3 Phono Cartridge
Introducing the Grado Opus3 Phono Cartridge, now available at RockOnAV. As a distinguished member of Grado's Timbre Series, the Opus3 is meticulously handcrafted to deliver exceptional audio fidelity, enhancing your vinyl listening experience.
Key Features:
-
Maple Wood Body: The Opus3's housing is crafted from Maple wood, known for its excellent acoustic properties. This material enhances resonance control, resulting in a vibrant and luscious sound signature.
-
Modified Four-Piece OTL Cantilever: Utilizing Grado's modified four-piece Optimized Transmission Line (OTL) cantilever technology, the Opus3 achieves a 10% reduction in tip mass over the Prestige series, enhancing tracking precision and reducing distortion.
-
Elliptical Diamond Stylus: The cartridge features Grado's specially designed elliptical diamond stylus, ensuring superior detail retrieval and accurate groove tracing.
-
Ultra-High Purity Copper Coils: Coils wound with ultra-high purity long crystal (UHPLC) oxygen-free copper wire provide excellent signal transmission, preserving the integrity of the audio signal.
The Grado Opus3 has been acclaimed for its natural and musical presentation. Reviewers have noted its ability to deliver a complete musical picture, making it a standout choice for discerning audiophiles.
Elevate your analog listening experience with the Grado Opus3 Phono Cartridge.
Specifications
Specifications
| Specification | Details |
|---|---|
| Body | Maple Wood |
| Cantilever | Aluminum / Elliptical Diamond |
| Output |
High: 4.0mV @5 CMV (45) Low: 1.0mV @5 CMV (45) |
| Inductance |
High Output: 55mH Low Output: 6mH |
| Resistance |
High Output: 660 ohms Low Output: 70 ohms |
| Input Load | 10k-47k ohms |
| Cartridge Weight | 8 grams |
| Tracking Force | 1.6-1.9 grams |
| Compliance | 20μm/mN |
| Channel Separation | Average 30db - 10-30k Hz |
| Controlled Frequency Response | 10-60 kHz |
| Capacitive Load Sensitivity | Non-Sensitive |
| Builds | High Output, Low Output, Mono |
