Grado Master3 Phono Cartridge
Grado Master3 Phono Cartridge
Introducing the Grado Master3 Phono Cartridge, now available at RockOnAV. As a distinguished member of Grado's Timbre Series, the Master3 is meticulously handcrafted to deliver exceptional audio fidelity, enhancing your vinyl listening experience.
Key Features:
-

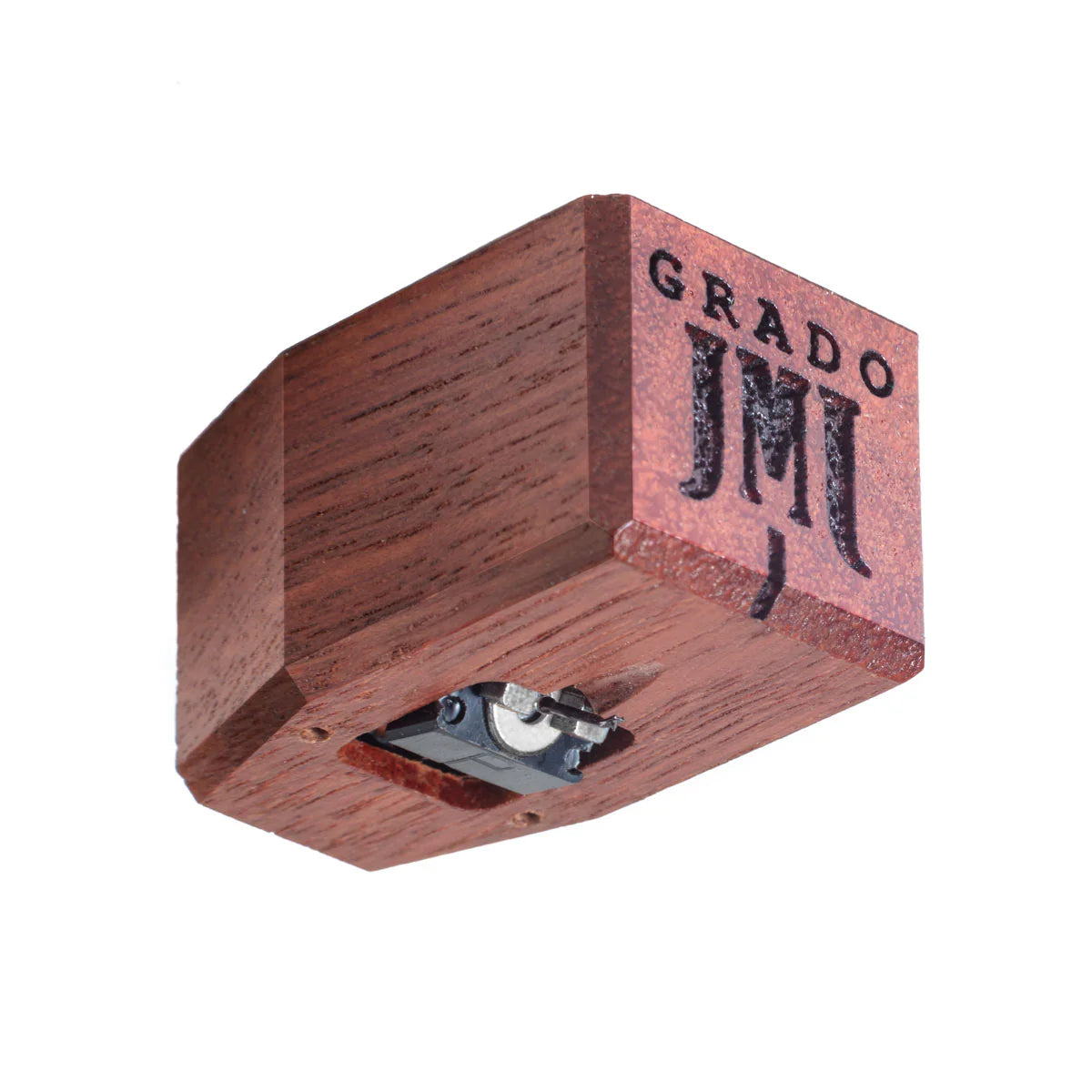

Australian Jarrah Wood Body: The Master3's housing is crafted from Australian Jarrah wood, known for its excellent acoustic properties. This material enhances resonance control, resulting in a warm and natural sound signature.
-
Five-Piece OTL Cantilever: Utilizing Grado's five-piece Optimized Transmission Line (OTL) cantilever technology, the Master3 achieves a 5% reduction in tip mass compared to the Platinum3 and Sonata3 models, enhancing tracking precision and reducing distortion.
-
Nude Elliptical Diamond Stylus: The cartridge features Grado's specially designed nude elliptical diamond stylus, ensuring superior detail retrieval and accurate groove tracing.
-
Ultra-High Purity Copper Coils: Coils wound with ultra-high purity long crystal (UHPLC) oxygen-free copper wire provide excellent signal transmission, preserving the integrity of the audio signal.
The Grado Master3 has been acclaimed for its natural and musical presentation. Reviewers have noted its ability to deliver a complete musical picture, making it a standout choice for discerning audiophiles.
Elevate your analog listening experience with the Grado Master3 Phono Cartridge.
Specifications
| Specification | Details |
|---|---|
| Body | Australian Jarrah Wood |
| Cantilever | Machined Boron / Diamond Tip |
| Output |
High: 4.0mV @5 CMV (45) Low: 1.0mV @5 CMV (45) |
| Inductance |
High Output: 55mH Low Output: 6mH |
| Resistance |
High Output: 660 ohms Low Output: 70 ohms |
| Input Load | 10k-47k ohms |
| Cartridge Weight | 10 grams |
| Tracking Force | 1.6-1.9 grams |
| Compliance | 20μm/mN |
| Channel Separation | Average 30db - 10-30k Hz |
| Controlled Frequency Response | 10-60 KHz |
| Capacitive Load Sensitivity | Non-Sensitive |
| Builds | High Output, Low Output, Mono |
Description
Description
Grado Master3 Phono Cartridge
Introducing the Grado Master3 Phono Cartridge, now available at RockOnAV. As a distinguished member of Grado's Timbre Series, the Master3 is meticulously handcrafted to deliver exceptional audio fidelity, enhancing your vinyl listening experience.
Key Features:
-
Australian Jarrah Wood Body: The Master3's housing is crafted from Australian Jarrah wood, known for its excellent acoustic properties. This material enhances resonance control, resulting in a warm and natural sound signature.
-
Five-Piece OTL Cantilever: Utilizing Grado's five-piece Optimized Transmission Line (OTL) cantilever technology, the Master3 achieves a 5% reduction in tip mass compared to the Platinum3 and Sonata3 models, enhancing tracking precision and reducing distortion.
-
Nude Elliptical Diamond Stylus: The cartridge features Grado's specially designed nude elliptical diamond stylus, ensuring superior detail retrieval and accurate groove tracing.
-
Ultra-High Purity Copper Coils: Coils wound with ultra-high purity long crystal (UHPLC) oxygen-free copper wire provide excellent signal transmission, preserving the integrity of the audio signal.
The Grado Master3 has been acclaimed for its natural and musical presentation. Reviewers have noted its ability to deliver a complete musical picture, making it a standout choice for discerning audiophiles.
Elevate your analog listening experience with the Grado Master3 Phono Cartridge.
Specifications
Specifications
| Specification | Details |
|---|---|
| Body | Australian Jarrah Wood |
| Cantilever | Machined Boron / Diamond Tip |
| Output |
High: 4.0mV @5 CMV (45) Low: 1.0mV @5 CMV (45) |
| Inductance |
High Output: 55mH Low Output: 6mH |
| Resistance |
High Output: 660 ohms Low Output: 70 ohms |
| Input Load | 10k-47k ohms |
| Cartridge Weight | 10 grams |
| Tracking Force | 1.6-1.9 grams |
| Compliance | 20μm/mN |
| Channel Separation | Average 30db - 10-30k Hz |
| Controlled Frequency Response | 10-60 KHz |
| Capacitive Load Sensitivity | Non-Sensitive |
| Builds | High Output, Low Output, Mono |
