EverSolo DAC-Z8 DAC & Headphone Amplifier

EverSolo DAC-Z8 DAC & Headphone Amplifier
Experience unparalleled audio quality with the DAC-Z8.
Immerse yourself in an outstanding audio experience with the EverSolo DAC-Z8 Digital to Analog Converter, a cutting-edge MQA Full Decoder. The DAC-Z8 is known for its exceptional sound quality and features an integrated third-generation XMOS 316 audio processor as well as ESS's renowned ES9038 Pro DAC chips. Its innovative approach to handling multiple codecs, such as DSD512 and PCM 768kHz@32bit, as well as its MQA full decoding capability, set it apart from competitors. The device is safely housed within an eye-catching aviation aluminum alloy chassis that complements any tech-savvy setting, with a high-performance preamp and powerful headphone driving force. This little but powerful device promises to improve your audio experience with innovative technology, producing crystal clear sound whether through high-end headphones or HiFi speaker systems. The EverSolo DAC-Z8 allows you to experience the colorful subtleties of your favorite music.
ES9038Pro DAC
The DAC-Z8's digital-to-analog conversion stage is powered by a high-performance ESS ES9038Pro chip. This assures little distortion and noise, resulting in a really believable high-fidelity music experience. Furthermore, the DAC-Z8's audio circuitry has been carefully adjusted to maximize its performance.
XMOS XU316: USB Interface
The DAC-Z8's USB input is paired with an XMOS XU316 interface, which can handle audio data rapidly and efficiently to provide excellent signal transfer. This chip also supports high-resolution streams such as PCM 32bit 768kHz, DSD512 Native, and MQA files.
MQA
The EverSolo DAC-Z8 decodes MQA (Master Quality Authenticated) files via its USB, Toslink optical, and coaxial inputs. This format allows you to experience sound quality that is as near to the original studio recording as possible.
High-Precision Clocks
The DAC-Z8 has two highly precise clocks at 45.1584MHz and 49.152MHz. These enable high-quality decoding with very low jitter, resulting in detailed and exact sound.
Optimized I/V Circuit
The DAC-Z8's I/V circuit consists of 8 OPA1612 OPAs. It uses multi-channel signal shunting compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V converter stage, resulting in a two-channel parallel output. In addition to the high-precision resistors, this circuitry helps with the lossless amplification of the XLR, RCA, and headphone outputs, which improves channel separation, dynamic range, and sound integrity.
Amplifier Circuit with Balanced Preamp Output
The DAC-Z8's analog audio circuitry is completely balanced. A balanced differential amplifier circuit processes the XLR, RCA, and headphone outputs, resulting in lower noise and increased channel separation. The high-fidelity preamplifier circuitry ensures accurate and efficient volume control.
Bluetooth 5.0
In addition to complete connectivity, the DAC-Z8 includes a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, such as from a smartphone or tablet, while also supporting high-resolution transmission codecs aptX HD and LDAC for high-quality wireless restitution.
Digital DSP Filters
The EverSolo DAC-Z8 has no fewer than 7 PCM filters and 4 DSD filters. These enable you to customize the device's sound reproduction based on your audio setup and listening preferences.
Headphone Amplifier
The DAC-Z8's headphone amplifier provides ample power for headphones with impedances ranging from 16 to 300Ω. This model also includes a two-step gain control to handle both demanding headphones and more delicate earphones.
Control App
The DAC-Z8 may be managed using the EverSolo Control App, which is free and available for Android and iOS. The latter provides access to the majority of the characteristics available on the device.
Specifications
Model | EVERSOLO DAC-Z8 |
Display Screen | 3-inch LCD Screen |
Chassis | Aviation aluminum alloy |
DAC | ES 9038Pro |
Audio Processor | XMOS XU316 |
OPA Chip | OPA1612*10 |
Power Supply | Low noise switching power supply |
Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol |
USB-B DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit and MQA |
USB-C DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA |
Optical Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |
Coaxial Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |

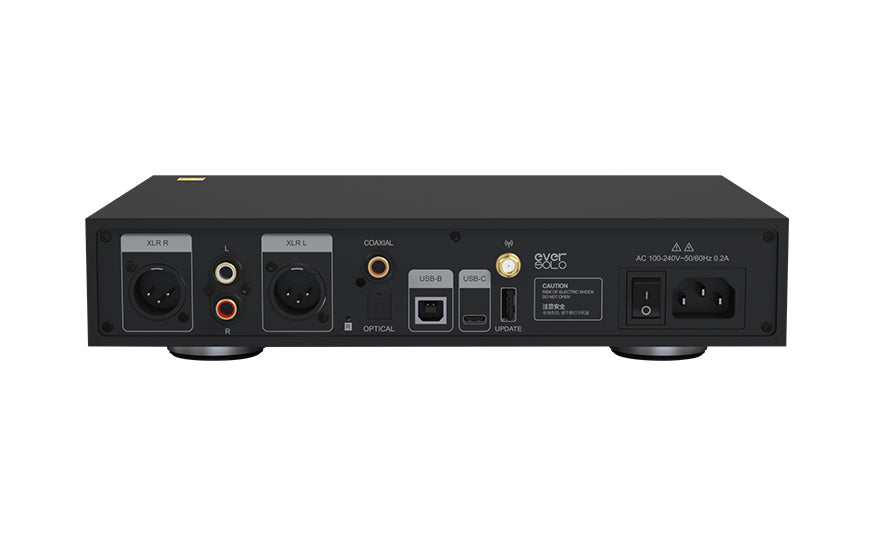

Analog Audio Output | Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended |
USB Port | USB2.0*1(only for firmware upgrade) |
Control Methods | Remote control, mobile APP control and knob control |
Headphone Impedance | 16-300Ω (low gain mode:16-32Ω/high gain mode: 32-300Ω) |
XLR Audio Characteristics | Output level(Vrms): 4.1Vrms@0dBFS THD+N@A-wt: 0.000062%@1kHz(-124dB@1kHz) THD+N@No-wt:0.000069%@1kHz(-123dB@1kHz) Noise@No-wt: <1.2uVrms SNR @No-wt: 133dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -130dB@1kHz DNR @No-wt: 133dB@1kHz |
RCA Audio Characteristics | Output level (Vrms): 2.3Vrms@0dBFS THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz) THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz) Noise @No-wt: <1.5uVrms SNR @No-wt: 126dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -123dB@1kHz DNR@No-wt: 126dB@1kHz |
Headphone (low gain mode) | Output level(Vrms): 1.2Vrms@0dBFS Maximum undistorted power: 45 mW@32Ω THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz) Noise @No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 119dB@1kHz |
Headphone (high gain mode) | Output level(Vrms): 2.8Vrms@0dBFS Maximum undistorted power: 26 mW@300Ω THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz) Noise@No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response): 20Hz-20kHz(±0.1dB) DNR @No-wt: 124dB@1kHz |
Power Input | AC 110~240V 50/60Hz |
Rated Power | 9W |
Dimensions | 270mm(W) * 187mm(D)* 50mm(H) |
Packing List | Remote control*1, power cable*1, USB cable*1, product manual*1 |
Description
Description
EverSolo DAC-Z8 DAC & Headphone Amplifier
Experience unparalleled audio quality with the DAC-Z8.
Immerse yourself in an outstanding audio experience with the EverSolo DAC-Z8 Digital to Analog Converter, a cutting-edge MQA Full Decoder. The DAC-Z8 is known for its exceptional sound quality and features an integrated third-generation XMOS 316 audio processor as well as ESS's renowned ES9038 Pro DAC chips. Its innovative approach to handling multiple codecs, such as DSD512 and PCM 768kHz@32bit, as well as its MQA full decoding capability, set it apart from competitors. The device is safely housed within an eye-catching aviation aluminum alloy chassis that complements any tech-savvy setting, with a high-performance preamp and powerful headphone driving force. This little but powerful device promises to improve your audio experience with innovative technology, producing crystal clear sound whether through high-end headphones or HiFi speaker systems. The EverSolo DAC-Z8 allows you to experience the colorful subtleties of your favorite music.
ES9038Pro DAC
The DAC-Z8's digital-to-analog conversion stage is powered by a high-performance ESS ES9038Pro chip. This assures little distortion and noise, resulting in a really believable high-fidelity music experience. Furthermore, the DAC-Z8's audio circuitry has been carefully adjusted to maximize its performance.
XMOS XU316: USB Interface
The DAC-Z8's USB input is paired with an XMOS XU316 interface, which can handle audio data rapidly and efficiently to provide excellent signal transfer. This chip also supports high-resolution streams such as PCM 32bit 768kHz, DSD512 Native, and MQA files.
MQA
The EverSolo DAC-Z8 decodes MQA (Master Quality Authenticated) files via its USB, Toslink optical, and coaxial inputs. This format allows you to experience sound quality that is as near to the original studio recording as possible.
High-Precision Clocks
The DAC-Z8 has two highly precise clocks at 45.1584MHz and 49.152MHz. These enable high-quality decoding with very low jitter, resulting in detailed and exact sound.
Optimized I/V Circuit
The DAC-Z8's I/V circuit consists of 8 OPA1612 OPAs. It uses multi-channel signal shunting compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V converter stage, resulting in a two-channel parallel output. In addition to the high-precision resistors, this circuitry helps with the lossless amplification of the XLR, RCA, and headphone outputs, which improves channel separation, dynamic range, and sound integrity.
Amplifier Circuit with Balanced Preamp Output
The DAC-Z8's analog audio circuitry is completely balanced. A balanced differential amplifier circuit processes the XLR, RCA, and headphone outputs, resulting in lower noise and increased channel separation. The high-fidelity preamplifier circuitry ensures accurate and efficient volume control.
Bluetooth 5.0
In addition to complete connectivity, the DAC-Z8 includes a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, such as from a smartphone or tablet, while also supporting high-resolution transmission codecs aptX HD and LDAC for high-quality wireless restitution.
Digital DSP Filters
The EverSolo DAC-Z8 has no fewer than 7 PCM filters and 4 DSD filters. These enable you to customize the device's sound reproduction based on your audio setup and listening preferences.
Headphone Amplifier
The DAC-Z8's headphone amplifier provides ample power for headphones with impedances ranging from 16 to 300Ω. This model also includes a two-step gain control to handle both demanding headphones and more delicate earphones.
Control App
The DAC-Z8 may be managed using the EverSolo Control App, which is free and available for Android and iOS. The latter provides access to the majority of the characteristics available on the device.
Specifications
Specifications
Model | EVERSOLO DAC-Z8 |
Display Screen | 3-inch LCD Screen |
Chassis | Aviation aluminum alloy |
DAC | ES 9038Pro |
Audio Processor | XMOS XU316 |
OPA Chip | OPA1612*10 |
Power Supply | Low noise switching power supply |
Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol |
USB-B DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit and MQA |
USB-C DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA |
Optical Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |
Coaxial Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |
Analog Audio Output | Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended |
USB Port | USB2.0*1(only for firmware upgrade) |
Control Methods | Remote control, mobile APP control and knob control |
Headphone Impedance | 16-300Ω (low gain mode:16-32Ω/high gain mode: 32-300Ω) |
XLR Audio Characteristics | Output level(Vrms): 4.1Vrms@0dBFS THD+N@A-wt: 0.000062%@1kHz(-124dB@1kHz) THD+N@No-wt:0.000069%@1kHz(-123dB@1kHz) Noise@No-wt: <1.2uVrms SNR @No-wt: 133dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -130dB@1kHz DNR @No-wt: 133dB@1kHz |
RCA Audio Characteristics | Output level (Vrms): 2.3Vrms@0dBFS THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz) THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz) Noise @No-wt: <1.5uVrms SNR @No-wt: 126dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -123dB@1kHz DNR@No-wt: 126dB@1kHz |
Headphone (low gain mode) | Output level(Vrms): 1.2Vrms@0dBFS Maximum undistorted power: 45 mW@32Ω THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz) Noise @No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 119dB@1kHz |
Headphone (high gain mode) | Output level(Vrms): 2.8Vrms@0dBFS Maximum undistorted power: 26 mW@300Ω THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz) Noise@No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response): 20Hz-20kHz(±0.1dB) DNR @No-wt: 124dB@1kHz |
Power Input | AC 110~240V 50/60Hz |
Rated Power | 9W |
Dimensions | 270mm(W) * 187mm(D)* 50mm(H) |
Packing List | Remote control*1, power cable*1, USB cable*1, product manual*1 |
