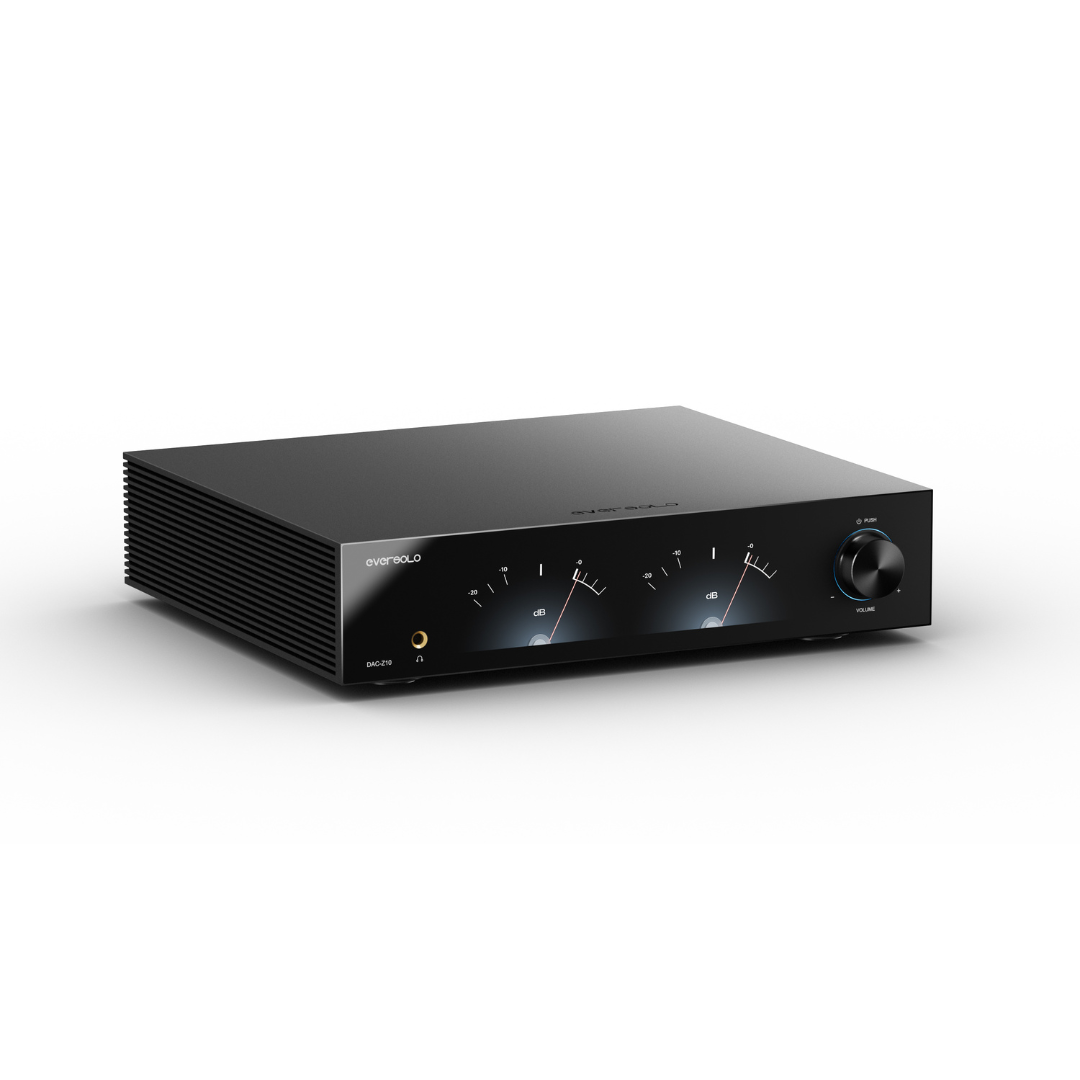

EverSolo DAC-Z10

Silence Meets Absolute Detail

Isolation • Balance • Architectural Detail

Engineered for uncompromised clarity, this new-generation DAC separates every stage of the signal path to protect the integrity of the music. Digital and analog domains operate in complete isolation, powered by dedicated supply architecture and governed by advanced clock control. What reaches your ears is resolution, purity, and effortless balance.

Fully Isolated Architecture

Three independent linear power supplies — left channel, right channel, and system — create an exceptionally low noise floor of 42μV, ensuring each circuit path performs at its full potential without interference.

Dual-Mono Decoding Excellence

A fully balanced layout uses dual AK4191 + AK4499 DAC modules for left and right channels. Enhanced with AKM Velvet Sound™ technology, the system offers high-precision decoding, rich tonality, and native support for DSD512 and PCM 768kHz/32-bit.

Precision R2R Volume Control

A discrete R2R resistor array preserves signal purity at all volume levels, maintaining linearity and accuracy from soft passages to full dynamic peaks.

Balanced Analog Preamplifier

A high-quality fully balanced stage supports XLR and RCA inputs with up to +10dB gain, delivering ultra-low noise, superior dynamic range, and clean, articulate output.

Clock Architecture Redefined

An OCXO temperature-controlled oscillator combined with PLL correction guarantees highly accurate clock reconstruction. Support for 10MHz / 25MHz external clocks (50Ω / 75Ω) takes precision even further.

FPGA Optimization

An internal FPGA reshapes IIS data and refines timing, optimizing digital signals before they reach the DAC stage.

High-Speed USB Processing

A multi-core USB audio processor ensures stable, lossless transfer of DSD512 Native and PCM 768kHz/32-bit content. Optical and coax inputs support PCM 192kHz/24-bit and DSD64 DoP.

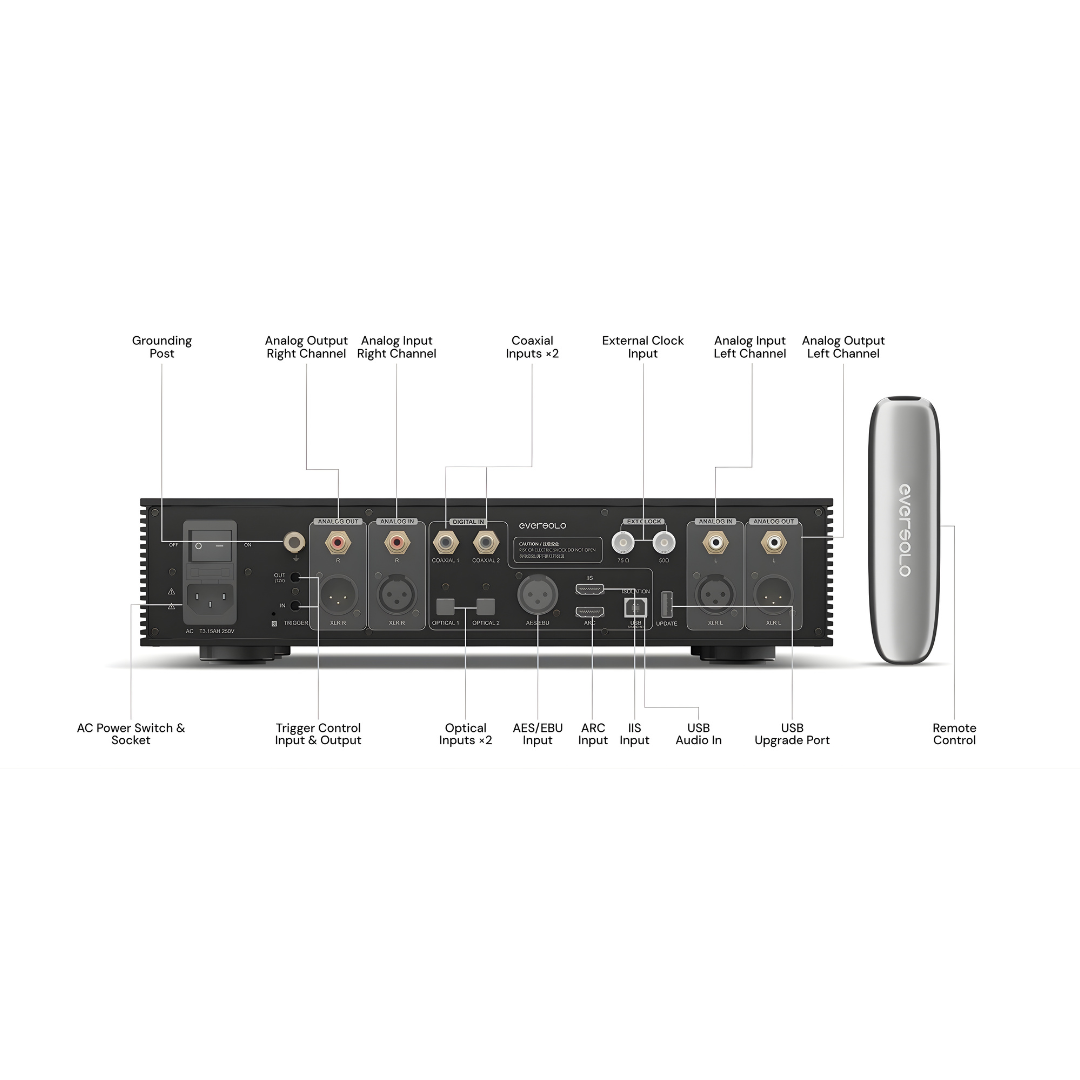

Grounding and Noise Control

A dedicated grounding post channels interference away from the signal path, enhancing purity and microdetail.

Intelligent Headphone Output

A powerful 6.35mm headphone amplifier features automatic impedance detection and three gain levels for optimal control across a wide range of headphones:

• 1 W (16Ω)
• 1 W (32Ω)
• 0.16 W (300Ω)

Wireless High-Fidelity

With a Qualcomm QCC5125 Bluetooth module, high-resolution wireless streaming delivers impressive clarity and stability.

Advanced Control

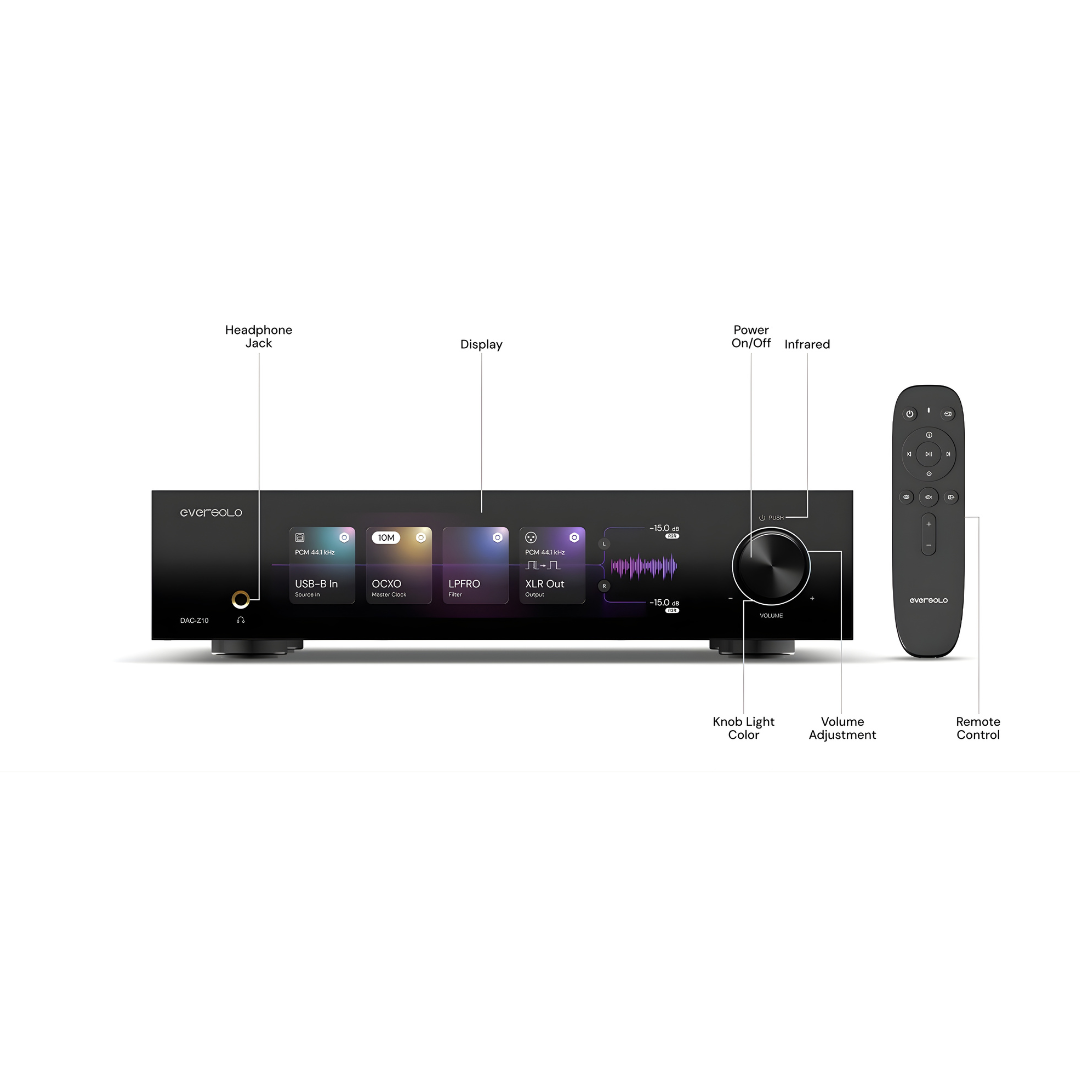

A responsive touchscreen and companion mobile app provide intuitive control for system navigation, filter selection, and sound adjustments.

Personalized Sound

Adjust up to 15dB of left/right balance gain and choose from six DAC filter profiles to match your listening taste and musical style.

Features

• Three fully isolated linear power supplies for left, right, and system domains
• Dual AK4191 + AK4499 DAC modules in a true balanced dual-mono design
• Native decoding for DSD512 and PCM 768kHz/32-bit
• Discrete R2R analog volume control for superior precision
• Fully balanced preamplifier with XLR/RCA inputs and +10dB gain
• OCXO clock with PLL technology for ultra-accurate timing
• External clock input support: 10MHz / 25MHz, 50Ω / 75Ω
• FPGA-optimized IIS signal shaping and clock refinement
• High-speed multi-core USB processor for stable HD playback
• Grounding post for superior noise management
• Dedicated 6.35mm headphone amplifier with automatic impedance detection
• Three gain settings for headphone output (High / Medium / Low)
• Bluetooth module powered by Qualcomm QCC5125
• Touchscreen interface with full mobile app control
• Six selectable DAC filter modes
• Up to 15dB left/right channel balance adjustment

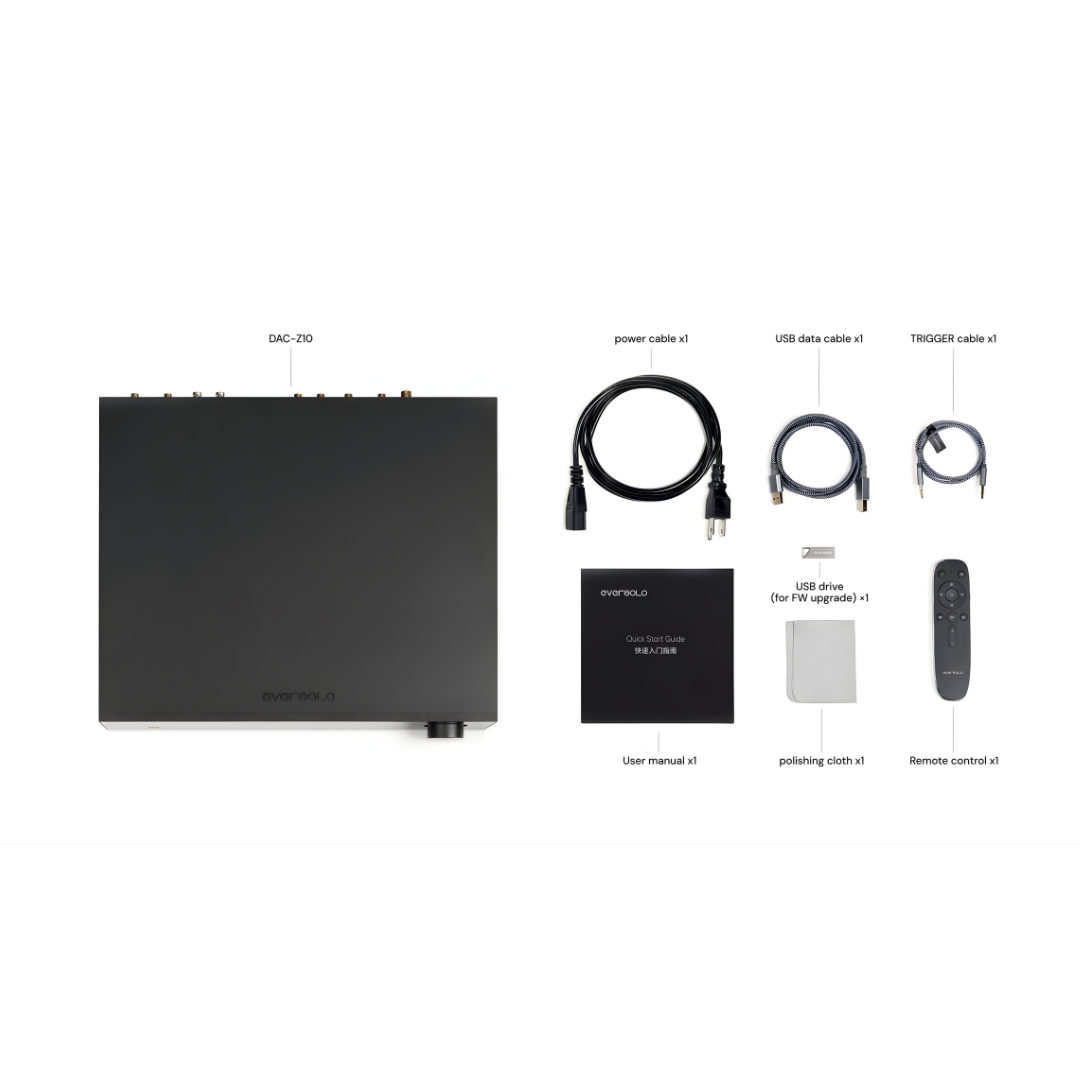

In the Box

• EverSolo DAC-Z10 Desktop DAC

• Remote control

• Power cable

• USB data cable

• TRIGGER cable

• Polishing cloth

• User manual
