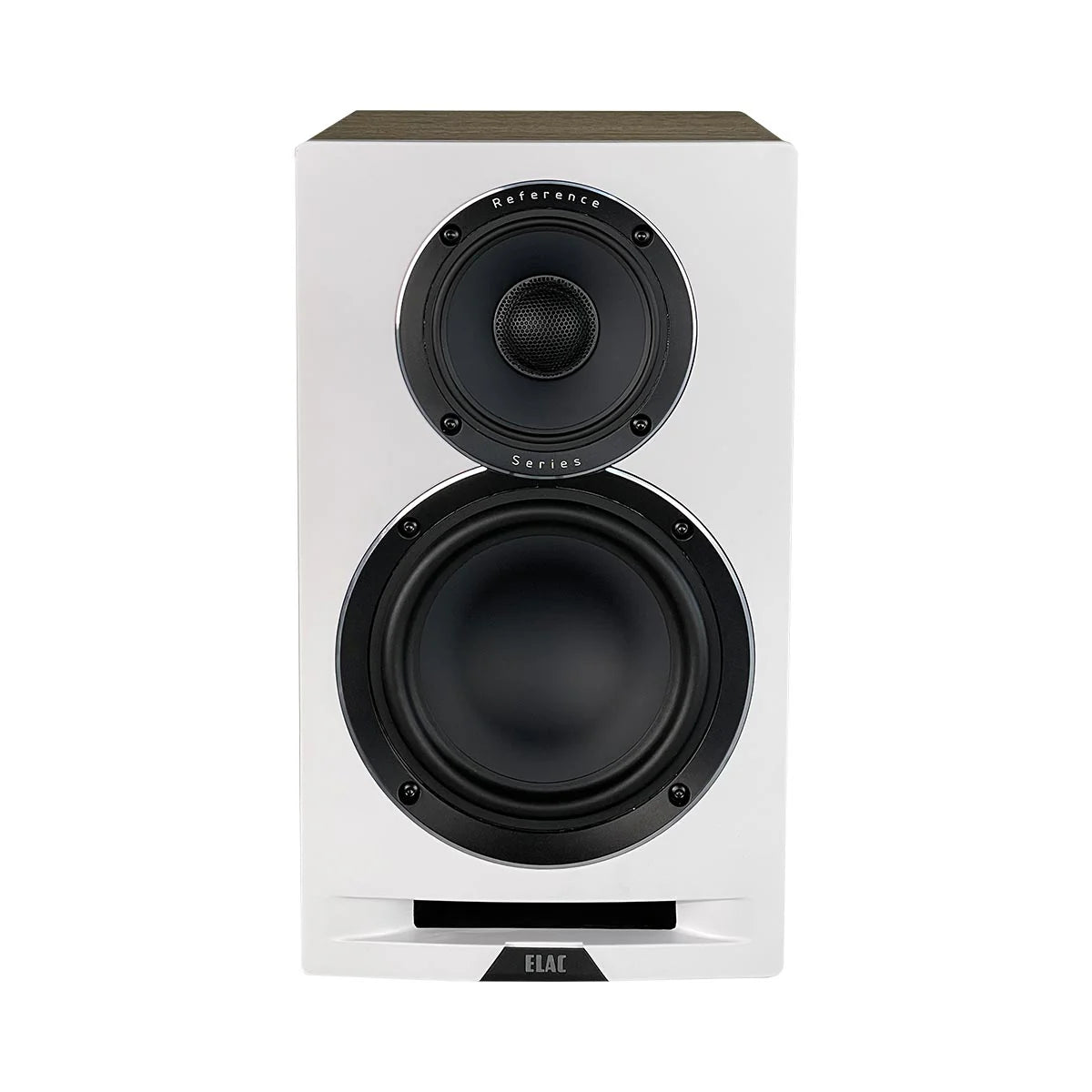

ELAC Uni-Fi Reference UBR62 Bookshelf Speakers (pair)

ELAC Uni-Fi Reference UBR62 Bookshelf Speakers (pair)
The ELAC Uni-Fi Reference UBR62 Bookshelf Speakers exemplify advanced acoustic engineering combined with elegant design, delivering an immersive and precise audio experience for discerning listeners.
- High-performance 3-way bookshelf speakers.
- Improved 6.5″ aluminum cone woofers with single piece cast chassis.
- 4″ aluminum midrange driver w/ improved low-end response.
- Dynamic dual flared vents optimized for lower noise and higher bass.
- Full perimeter bracing handles greater power with reduced cabinet vibration and audio coloration.
- Built from high grade components.

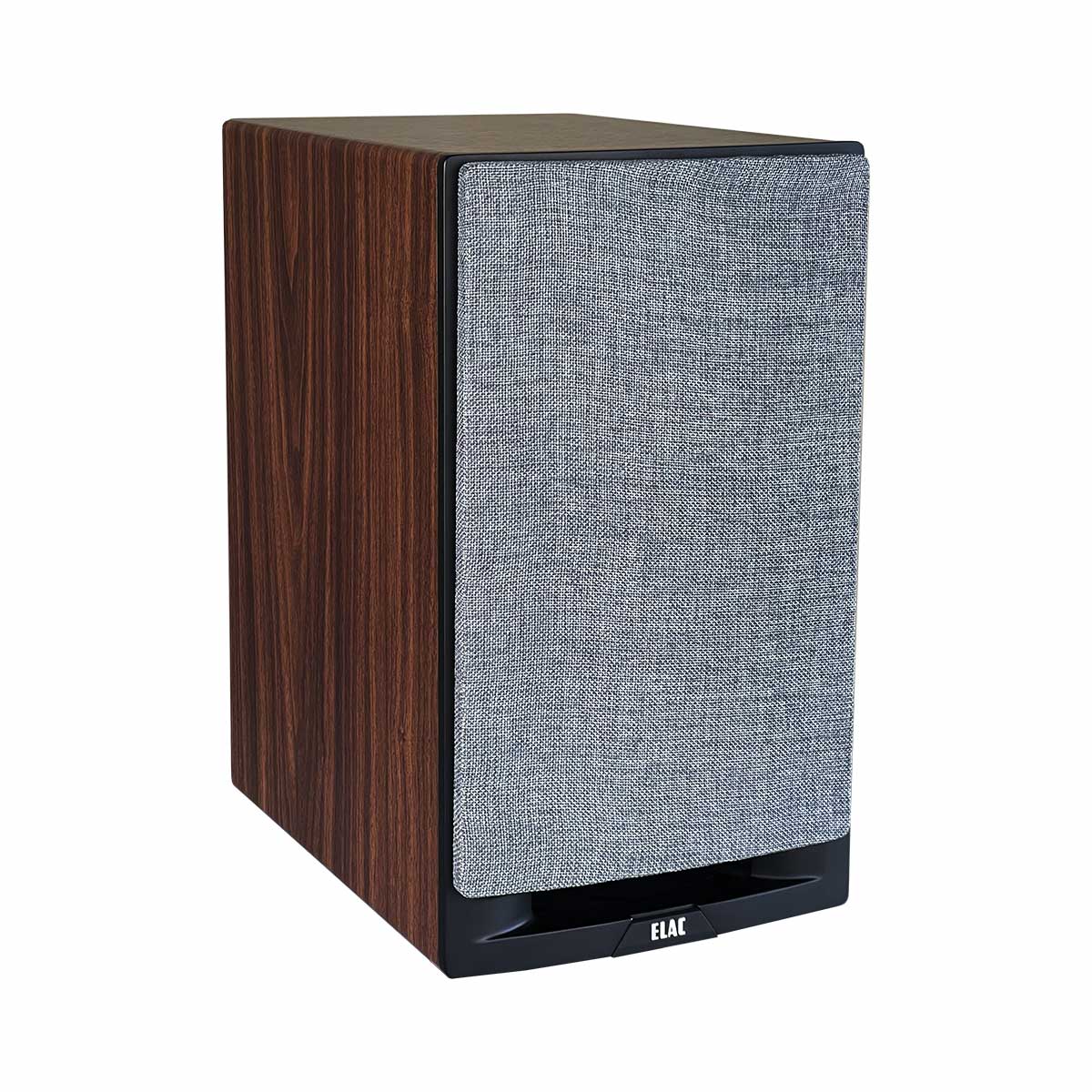

- Robust MDF cabinets in satin black finish w/ walnut sides.
- Comes as a pair.

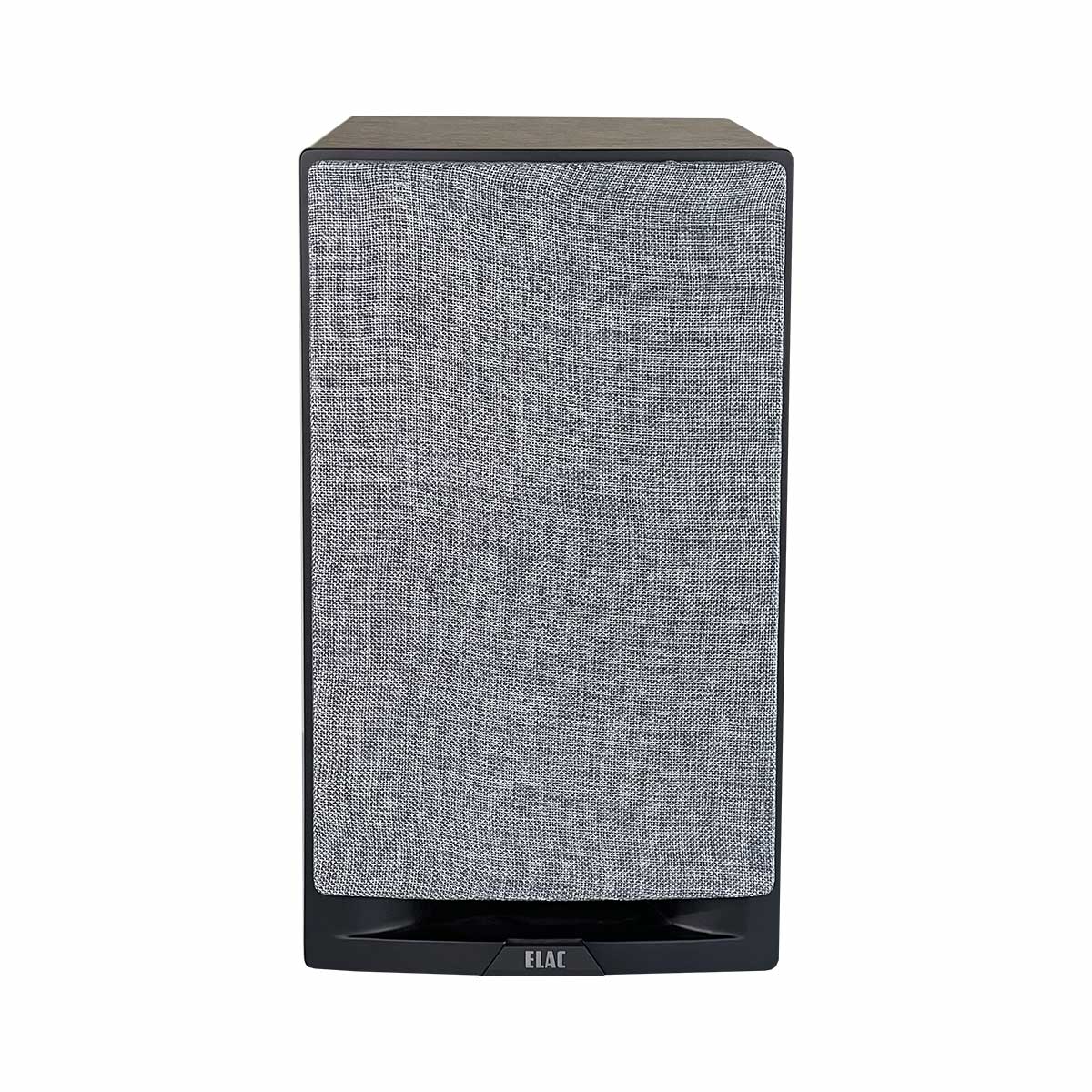

- Removable fabric grilles included.
The Ultimate Bookshelf Speaker
The new Uni-Fi Reference Series establishes a level of performance and cosmetics not associated at this price point. Designed to blend with traditional or contemporary styles.

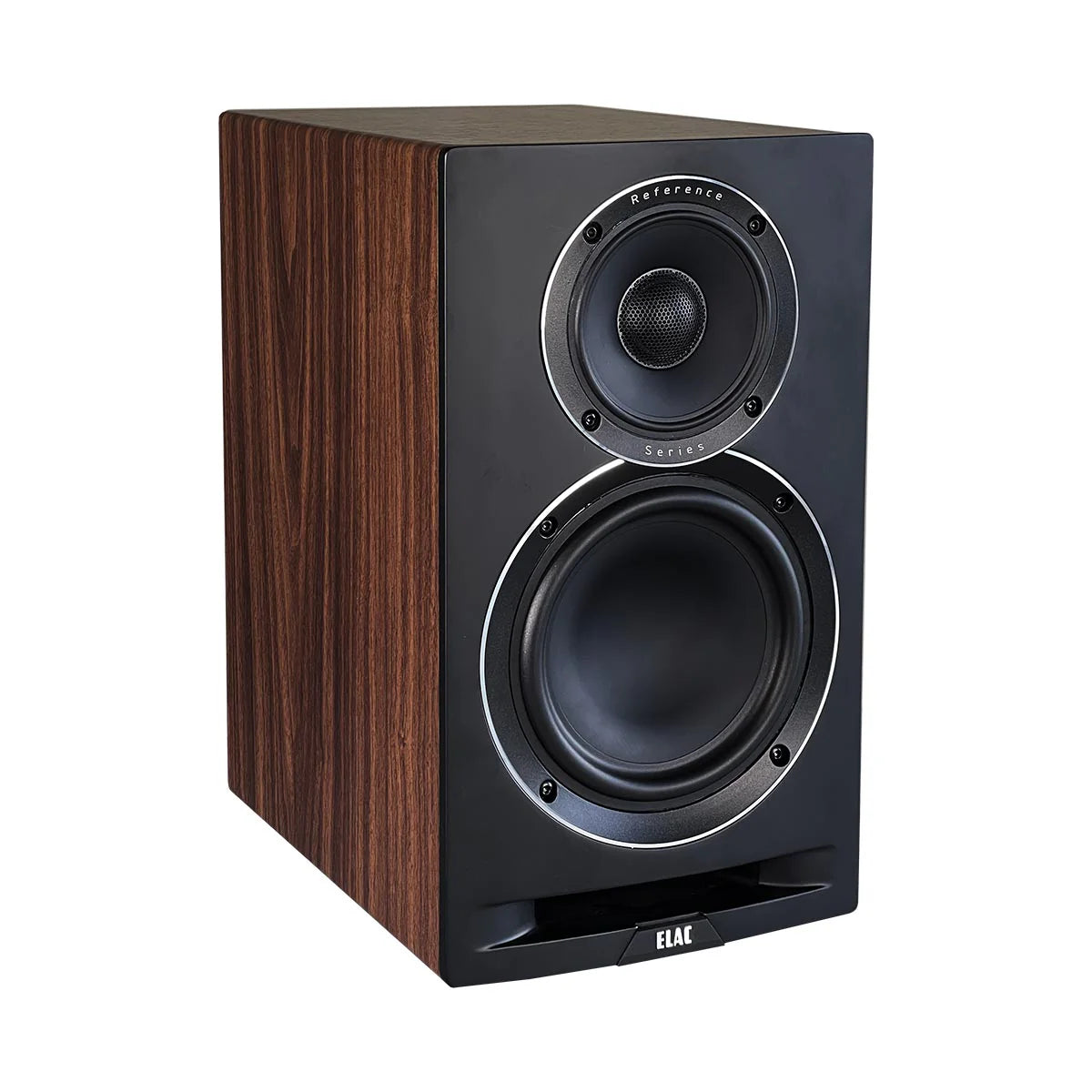

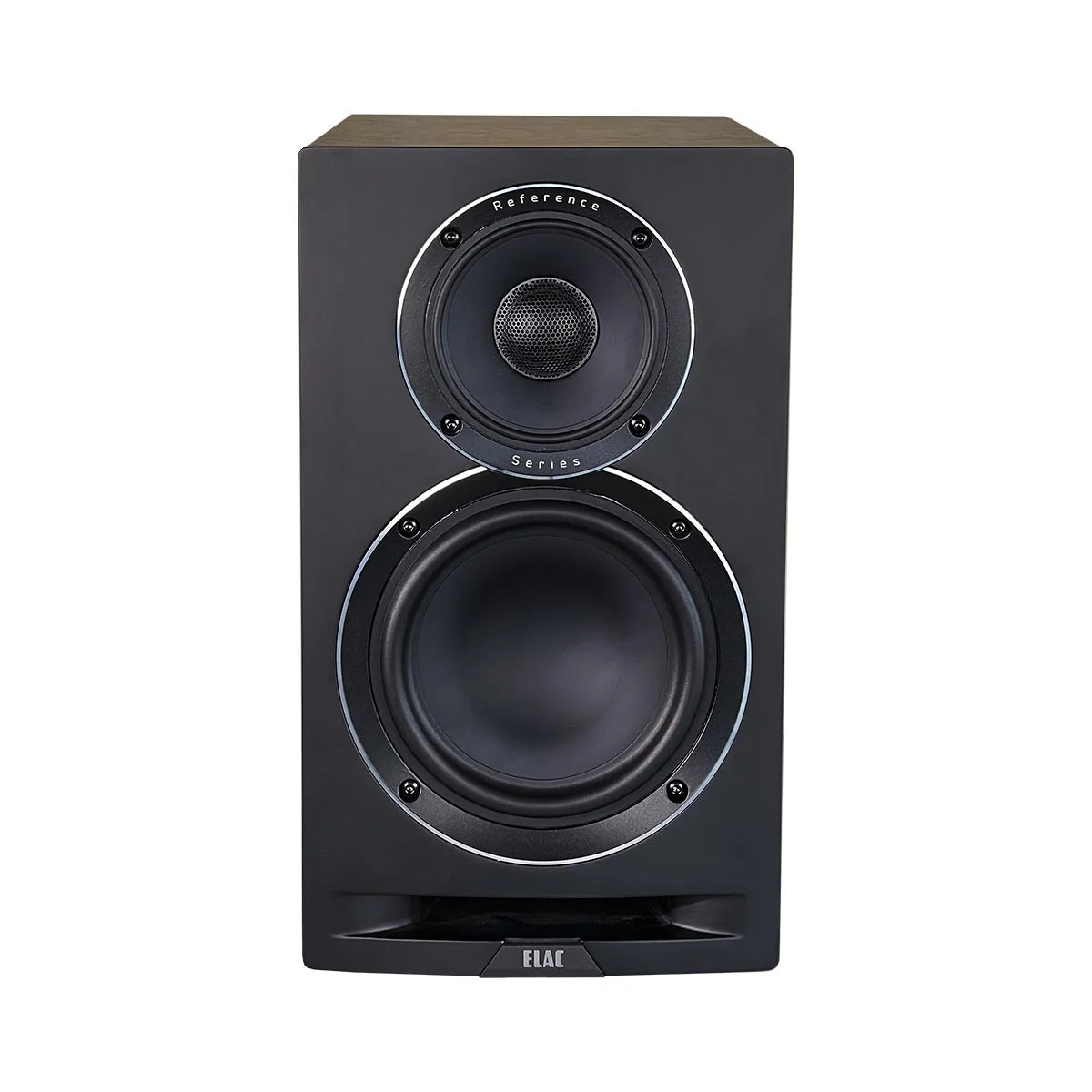

New Concentric Driver with Cast Chassis
A wide-surround tweeter enhances it’s low and high frequency extension allowing for improved blending with the midrange. An entirely new midrange driver with large diameter voicecoil, vented rear spider and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone resulting in better clarity.
Newly developed 6.5” Aluminum Woofer with Cast Chassis
Drastically improving low-end reproduction, this newly developed bass driver features a single piece compound curvature aluminum cone with a large rear vented magnet delivering improved linearity and better low frequency response of any previous Uni-Fi bookshelf speaker.
Full Perimeter Bracing
Reducing the speaker cabinets influence on audio quality the Uni-Fi reference line implements full perimeter bracing significantly reducing cabinet vibration and cabinet coloration.
Dual Flared Slot Vents
The newly developed slot vents utilized both internal and external flares allowing for lower noise and high bass output for improved low frequency dynamics.
Specifications
SPEAKER TYPE | 3-Way Bass Reflex |
---|---|
FREQUENCY RESPONSE | 41Hz-35000Hz |
NOMINAL IMPEDANCE | 6 Ω |
SENSITIVITY | 85db |
CROSSOVER FREQUENCY | 260 / 1800Hz |
MAXIMUM POWER INPUT | 140 Watts |
TWEETER | 1” Soft Dome |
MIDRANGE | 4” Aluminum |
WOOFER | 6-1/2” Aluminum |
CABINET | CARB2 Rated MDF |

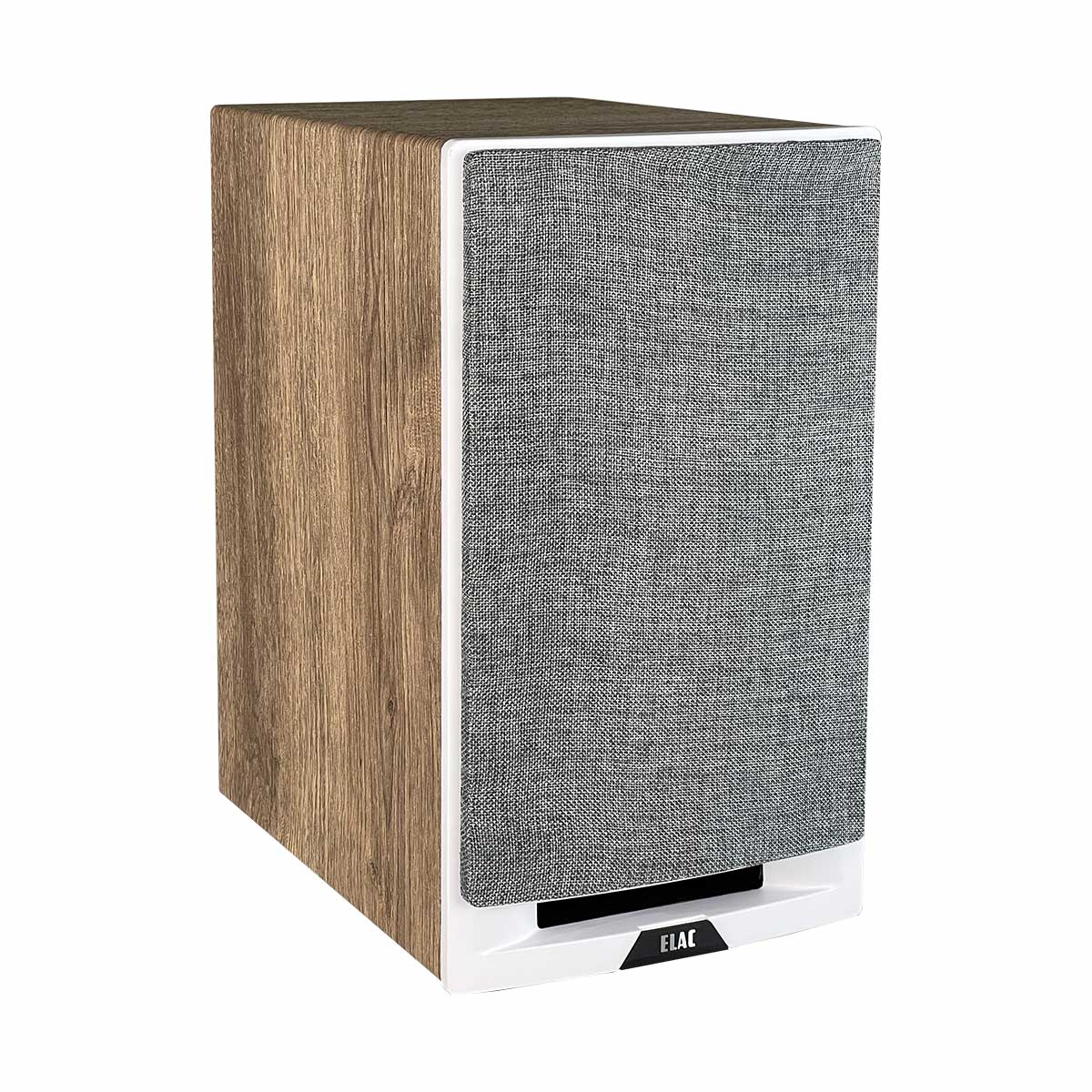

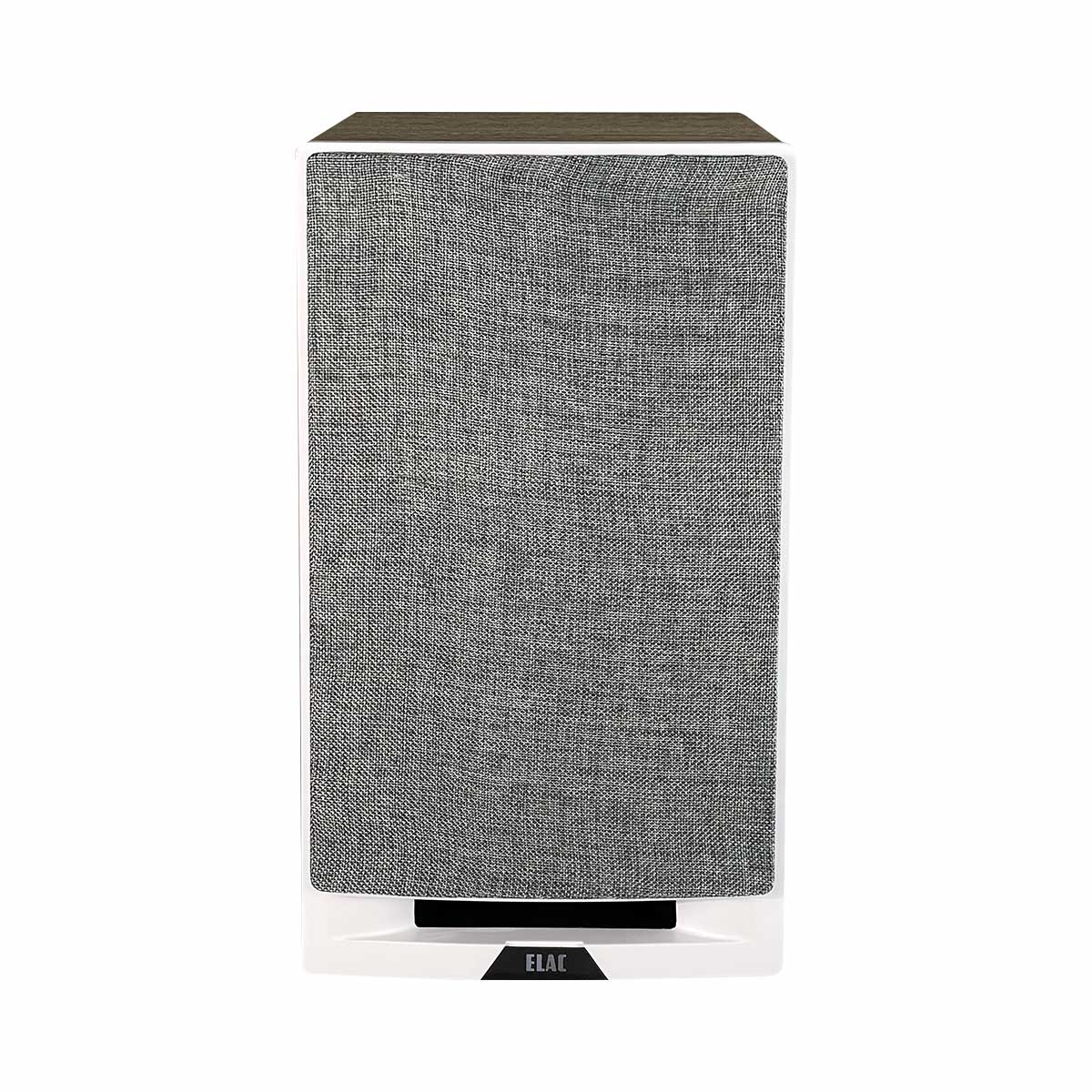

CABINET FINISH | Satin White with Oak Sides or Satin Black with Walnut Sides |
PORT | Dual Flared Slot |

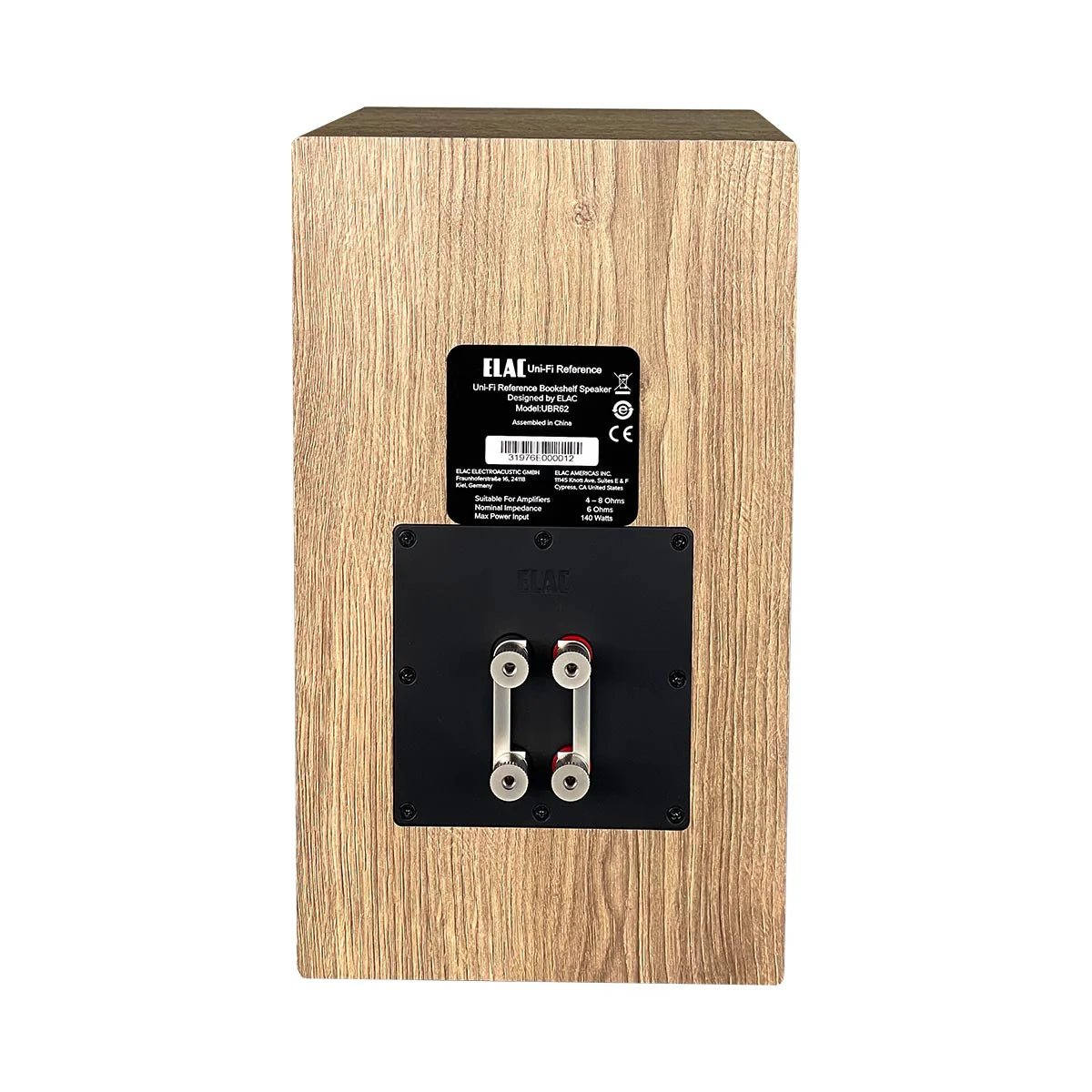

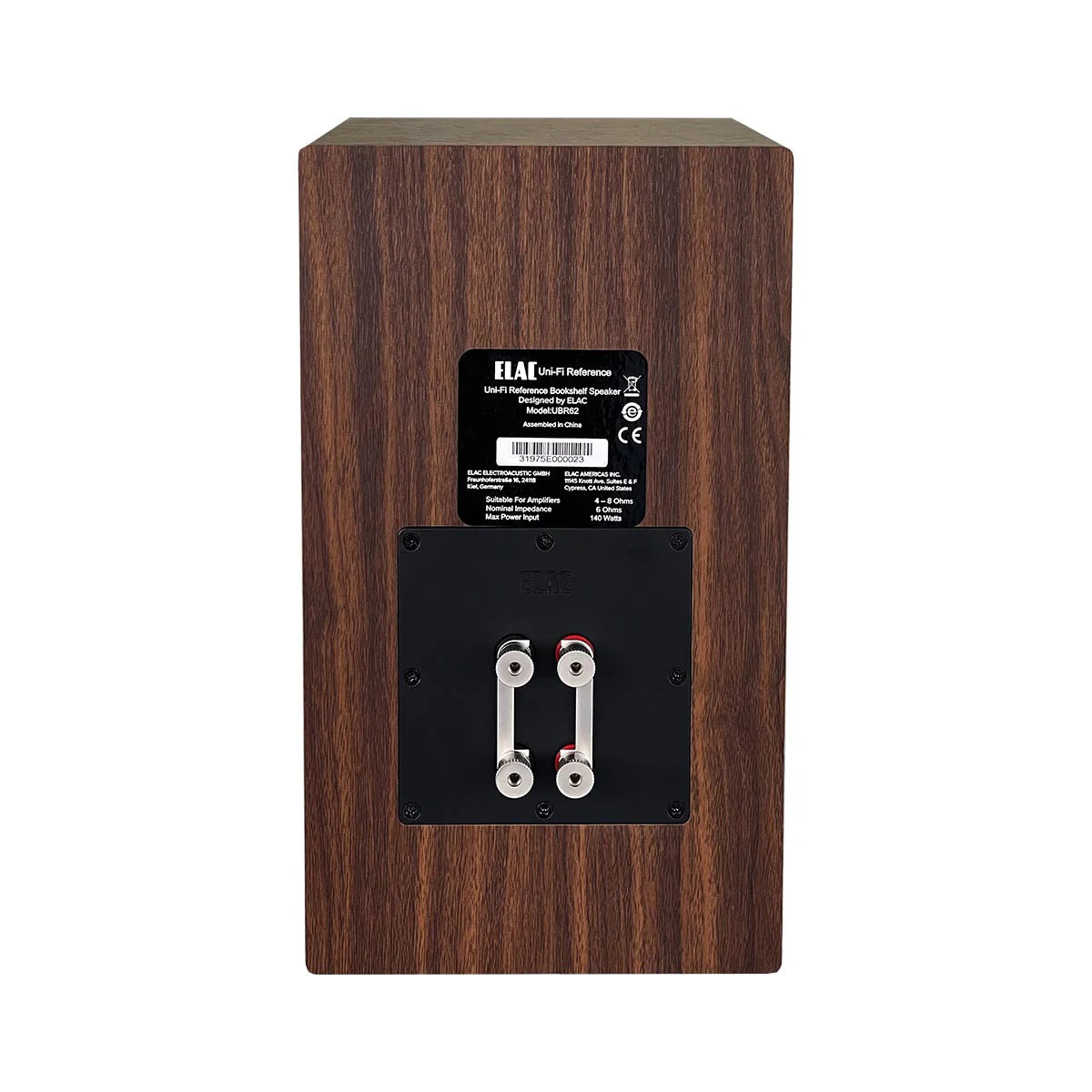

BINDING POSTS | Bi-Wire 5-Way |
DIMENSIONS (WxHxD) | 8.19” x 14.13” x 13.15” |
NET WEIGHT | 23.54 Ibs Each |
Description
Description
ELAC Uni-Fi Reference UBR62 Bookshelf Speakers (pair)
The ELAC Uni-Fi Reference UBR62 Bookshelf Speakers exemplify advanced acoustic engineering combined with elegant design, delivering an immersive and precise audio experience for discerning listeners.
- High-performance 3-way bookshelf speakers.
- Improved 6.5″ aluminum cone woofers with single piece cast chassis.
- 4″ aluminum midrange driver w/ improved low-end response.
- Dynamic dual flared vents optimized for lower noise and higher bass.
- Full perimeter bracing handles greater power with reduced cabinet vibration and audio coloration.
- Built from high grade components.
- Robust MDF cabinets in satin black finish w/ walnut sides.
- Comes as a pair.
- Removable fabric grilles included.
The Ultimate Bookshelf Speaker
The new Uni-Fi Reference Series establishes a level of performance and cosmetics not associated at this price point. Designed to blend with traditional or contemporary styles.
New Concentric Driver with Cast Chassis
A wide-surround tweeter enhances it’s low and high frequency extension allowing for improved blending with the midrange. An entirely new midrange driver with large diameter voicecoil, vented rear spider and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone resulting in better clarity.
Newly developed 6.5” Aluminum Woofer with Cast Chassis
Drastically improving low-end reproduction, this newly developed bass driver features a single piece compound curvature aluminum cone with a large rear vented magnet delivering improved linearity and better low frequency response of any previous Uni-Fi bookshelf speaker.
Full Perimeter Bracing
Reducing the speaker cabinets influence on audio quality the Uni-Fi reference line implements full perimeter bracing significantly reducing cabinet vibration and cabinet coloration.
Dual Flared Slot Vents
The newly developed slot vents utilized both internal and external flares allowing for lower noise and high bass output for improved low frequency dynamics.
Specifications
Specifications
SPEAKER TYPE | 3-Way Bass Reflex |
---|---|
FREQUENCY RESPONSE | 41Hz-35000Hz |
NOMINAL IMPEDANCE | 6 Ω |
SENSITIVITY | 85db |
CROSSOVER FREQUENCY | 260 / 1800Hz |
MAXIMUM POWER INPUT | 140 Watts |
TWEETER | 1” Soft Dome |
MIDRANGE | 4” Aluminum |
WOOFER | 6-1/2” Aluminum |
CABINET | CARB2 Rated MDF |
CABINET FINISH | Satin White with Oak Sides or Satin Black with Walnut Sides |
PORT | Dual Flared Slot |
BINDING POSTS | Bi-Wire 5-Way |
DIMENSIONS (WxHxD) | 8.19” x 14.13” x 13.15” |
NET WEIGHT | 23.54 Ibs Each |
