EverSolo DMP- A6 MASTER EDITION - Network Streamer and DAC
EverSolo DMP- A6 MASTER EDITION - Network Streamer and DAC
The pinnacle of audio streaming and DAC technology.
Eversolo introduces the DMP-A6 MASTER EDITION, a powerful yet intuitive and attractive streamer.
It will allow you to easily stream your music while enjoying superb sound quality, all managed by a high-resolution LCD screen and an intuitive interface, or through a specialized mobile application.
Two ES9038 Q2M DAC chips
The audio decoding of the DMP-A6 Master Edition is handled by two ESS ES9038 Q2M DAC chips, a high-performance type well known among audiophiles. It also supports high-resolution audio streams such as PCM 32bit 768kHz and DSD512, as well as MQA decoding.

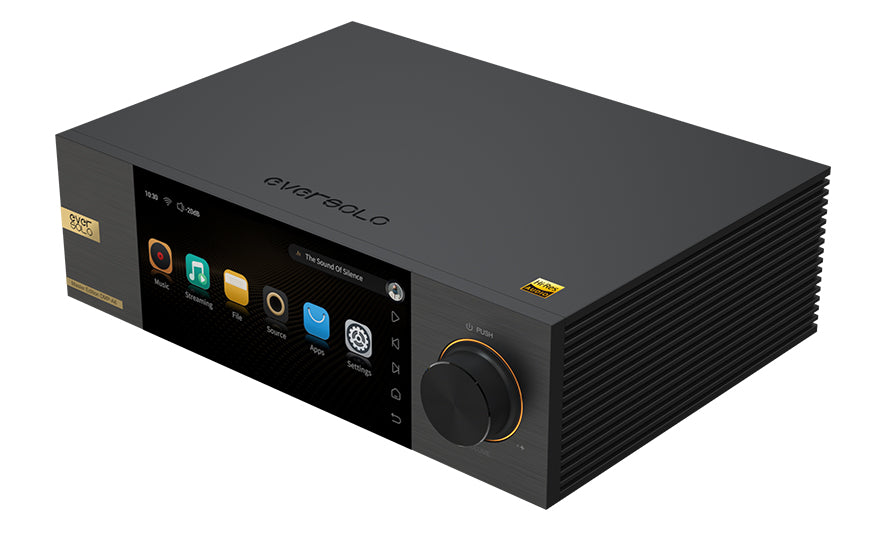

LCD Touch Screen
The DMP-A6 Master Edition's high-definition 6" LCD touch screen is precisely integrated into the aluminum body, making it both practical and ergonomic to operate. The user experience is designed to be as intuitive as feasible. This elegant interface allows you to access all of the player's choices and information.
High-Speed SSD Support
The DMP-A6 Master Edition has an inbuilt memory of 4GB DDR and 32GB eMMC, allowing it to run a variety of applications. A slot for a 2TB M.2 NVME 2280 SSD is included for installation without removing the cover, allowing you to store your music locally and retrieve it instantly. Furthermore, using an SSD rather than a hard disk allows for lower device temperatures and vibrations.
Low Noise Switching Power Supply Module
The DMP-A6 includes a custom ULNPS (Ultra Low-noise Power Supply) module with multiple fine tolerance capacitors to reduce interference. Furthermore, the filter circuit is specifically developed for AC current input and decreases high frequency noise from 100KHz to 5MHz, resulting in uninterrupted power, smoother background noise, and clearer musical nuances.
Multichannel DSD HDMI DOH Chip
The DMP-A6 Master Edition, which has DOH processing chips for HDMI, can accurately transcribe a DSD master sound stream.
XMOS 316 & Dual Clock
The DMP-A6 Master Edition has a third-generation XMOS 316 USB interface, which ensures that the USB audio stream is properly received and decoded. This supports audio streams up to PCM 32bit/768kHz, DSD up to DSD512, and MQA. They support DSD 64 (DoP) and PCM 192 24Bit on optical interfaces (coaxial and toslink). The DMP-A6's circuitry also includes two high-precision ACCUSILICON FEMTOSECOND clock oscillators, which efficiently remove jitter and provide accurate and transparent audio reproduction.
MQA Decoder
The DMP-A6 Master Edition includes a MQA (Master Quality Authenticated) decoder, letting you to play this sort of file with sound quality as near to possible to the original studio recording. Additionally, MQA streams are light enough to be broadcast.
Bluetooth 5.0
The DMP-A6's Bluetooth 5.0 reception employs a Qualcomm QCC5125 chip. This device supports the SBC, AAC, aptX, aptX LL, aptX HD, and LDAC high-definition transmission codecs, allowing you to experience high-quality sound reproduction over Bluetooth.
A Balanced Pre-amp Circuit
The DMP-A6 Master Edition features balanced analog circuitry from the DAC chip to the stereo XLR and RCA outputs. This reduces noise, and channel separation improves signal quality.
Compatible with most Music Streaming Services
It integrates several music services, including Tidal, Qobuz, HighRes Audio, and Amazon Music. It's also compatible with third-party apps like Apple Music, Spotify, Deezer, Napster, and KKbox.
Little Extras That Make A Difference: Filters, VU Meters, and an Aluminum Chassis
The DMP-A6 Master Edition DAC settings include 7 filters based on your music listening preferences. Custom VU meters are also available for the on-screen display, which is housed in a durable, modern-looking aluminum chassis.
Smart Control App
The Eversolo Controller mobile app, which is free, allows you to control the DMP-A6 Master Edition from your smartphone or tablet. This will allow you to easily access your music while also providing a remote interface for usage from your sofa.
Specifications
| Model | EVERSOLO DMP-A6 |
| Display | 6" LCD touchscreen |
| Internal Memory | 4GDDR4 +32GeMMC |
| DAC | ES 9038Q2M*2 |
| Audio Processor | XMOS XU316 |
| Op-amp Chip | OPA1612 |
| Power Supply | Low noise, high quality switching power supplies |
| SSD | M.2 NVME 3.0 2280 protocol, up to 4TB |
| USB-A Port | USB3.0*2 |
| Ethernet | RJ-45(10/100/1000Mbps) |
| WiFi | WiFi 2.4G+5G dual band |
| Playback and DAC Decoding | Support up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Music Service | Tidal, Qobuz, Highresaudio, Deezer, Paradise, Radio,WebDAV, UPnP |
| Streaming | Air Play, DLNA, Tidal Connect, Qobuz Connect etc. |
| Bluetooth Audio Input | Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC |
| USB-C Audio Input | USB Audio Compatibility - Windows (7, 10), Mac, Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Optical/Coaxial Audio Input | Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA |
| Optical/Coaxial Audio Output | Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA |
| HDMI Audio Output | DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1) |
| Control Method | Mobile App，Touch screen control |
| XLR Output Audio Characteristics | Output level: 5.2V |
| Frequency response: 20Hz~20KHz(±0. 15dB) | |
| Dynamic range: > 128dB | |
| SNR: >128dB | |
| THD+N: <0.00009%(-120dB) @A-wt | |
| Crosstalk: >-125dB |
|
| RCA Output Audio Characteristics | Output level: 2.6V |
| Frequency response: 20Hz~20KHz (±0. 2dB) | |
| Dynamic range: > 124dB | |
| SNR: >124dB | |
| THD+N: <0.00011%(-119dB)@A-WT |
|
| Crosstalk: >-124dB | |
| PSU | AC 110~240V 50/60Hz |
| Rated Power | 13W |
| Dimensions (LWH) | 7.36” x 10.62” x 3.54” (187 x 270 x 90mm) |
| Packing List | Power cable*1 |
| USB cable*1 | |
| Screwdriver*1 | |
| User manual* |
Description
Description
EverSolo DMP- A6 MASTER EDITION - Network Streamer and DAC
The pinnacle of audio streaming and DAC technology.
Eversolo introduces the DMP-A6 MASTER EDITION, a powerful yet intuitive and attractive streamer.
It will allow you to easily stream your music while enjoying superb sound quality, all managed by a high-resolution LCD screen and an intuitive interface, or through a specialized mobile application.
Two ES9038 Q2M DAC chips
The audio decoding of the DMP-A6 Master Edition is handled by two ESS ES9038 Q2M DAC chips, a high-performance type well known among audiophiles. It also supports high-resolution audio streams such as PCM 32bit 768kHz and DSD512, as well as MQA decoding.
LCD Touch Screen
The DMP-A6 Master Edition's high-definition 6" LCD touch screen is precisely integrated into the aluminum body, making it both practical and ergonomic to operate. The user experience is designed to be as intuitive as feasible. This elegant interface allows you to access all of the player's choices and information.
High-Speed SSD Support
The DMP-A6 Master Edition has an inbuilt memory of 4GB DDR and 32GB eMMC, allowing it to run a variety of applications. A slot for a 2TB M.2 NVME 2280 SSD is included for installation without removing the cover, allowing you to store your music locally and retrieve it instantly. Furthermore, using an SSD rather than a hard disk allows for lower device temperatures and vibrations.
Low Noise Switching Power Supply Module
The DMP-A6 includes a custom ULNPS (Ultra Low-noise Power Supply) module with multiple fine tolerance capacitors to reduce interference. Furthermore, the filter circuit is specifically developed for AC current input and decreases high frequency noise from 100KHz to 5MHz, resulting in uninterrupted power, smoother background noise, and clearer musical nuances.
Multichannel DSD HDMI DOH Chip
The DMP-A6 Master Edition, which has DOH processing chips for HDMI, can accurately transcribe a DSD master sound stream.
XMOS 316 & Dual Clock
The DMP-A6 Master Edition has a third-generation XMOS 316 USB interface, which ensures that the USB audio stream is properly received and decoded. This supports audio streams up to PCM 32bit/768kHz, DSD up to DSD512, and MQA. They support DSD 64 (DoP) and PCM 192 24Bit on optical interfaces (coaxial and toslink). The DMP-A6's circuitry also includes two high-precision ACCUSILICON FEMTOSECOND clock oscillators, which efficiently remove jitter and provide accurate and transparent audio reproduction.
MQA Decoder
The DMP-A6 Master Edition includes a MQA (Master Quality Authenticated) decoder, letting you to play this sort of file with sound quality as near to possible to the original studio recording. Additionally, MQA streams are light enough to be broadcast.
Bluetooth 5.0
The DMP-A6's Bluetooth 5.0 reception employs a Qualcomm QCC5125 chip. This device supports the SBC, AAC, aptX, aptX LL, aptX HD, and LDAC high-definition transmission codecs, allowing you to experience high-quality sound reproduction over Bluetooth.
A Balanced Pre-amp Circuit
The DMP-A6 Master Edition features balanced analog circuitry from the DAC chip to the stereo XLR and RCA outputs. This reduces noise, and channel separation improves signal quality.
Compatible with most Music Streaming Services
It integrates several music services, including Tidal, Qobuz, HighRes Audio, and Amazon Music. It's also compatible with third-party apps like Apple Music, Spotify, Deezer, Napster, and KKbox.
Little Extras That Make A Difference: Filters, VU Meters, and an Aluminum Chassis
The DMP-A6 Master Edition DAC settings include 7 filters based on your music listening preferences. Custom VU meters are also available for the on-screen display, which is housed in a durable, modern-looking aluminum chassis.
Smart Control App
The Eversolo Controller mobile app, which is free, allows you to control the DMP-A6 Master Edition from your smartphone or tablet. This will allow you to easily access your music while also providing a remote interface for usage from your sofa.
Specifications
Specifications
| Model | EVERSOLO DMP-A6 |
| Display | 6" LCD touchscreen |
| Internal Memory | 4GDDR4 +32GeMMC |
| DAC | ES 9038Q2M*2 |
| Audio Processor | XMOS XU316 |
| Op-amp Chip | OPA1612 |
| Power Supply | Low noise, high quality switching power supplies |
| SSD | M.2 NVME 3.0 2280 protocol, up to 4TB |
| USB-A Port | USB3.0*2 |
| Ethernet | RJ-45(10/100/1000Mbps) |
| WiFi | WiFi 2.4G+5G dual band |
| Playback and DAC Decoding | Support up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Music Service | Tidal, Qobuz, Highresaudio, Deezer, Paradise, Radio,WebDAV, UPnP |
| Streaming | Air Play, DLNA, Tidal Connect, Qobuz Connect etc. |
| Bluetooth Audio Input | Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC |
| USB-C Audio Input | USB Audio Compatibility - Windows (7, 10), Mac, Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Optical/Coaxial Audio Input | Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA |
| Optical/Coaxial Audio Output | Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA |
| HDMI Audio Output | DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1) |
| Control Method | Mobile App，Touch screen control |
| XLR Output Audio Characteristics | Output level: 5.2V |
| Frequency response: 20Hz~20KHz(±0. 15dB) | |
| Dynamic range: > 128dB | |
| SNR: >128dB | |
| THD+N: <0.00009%(-120dB) @A-wt | |
| Crosstalk: >-125dB |
|
| RCA Output Audio Characteristics | Output level: 2.6V |
| Frequency response: 20Hz~20KHz (±0. 2dB) | |
| Dynamic range: > 124dB | |
| SNR: >124dB | |
| THD+N: <0.00011%(-119dB)@A-WT |
|
| Crosstalk: >-124dB | |
| PSU | AC 110~240V 50/60Hz |
| Rated Power | 13W |
| Dimensions (LWH) | 7.36” x 10.62” x 3.54” (187 x 270 x 90mm) |
| Packing List | Power cable*1 |
| USB cable*1 | |
| Screwdriver*1 | |
| User manual* |
