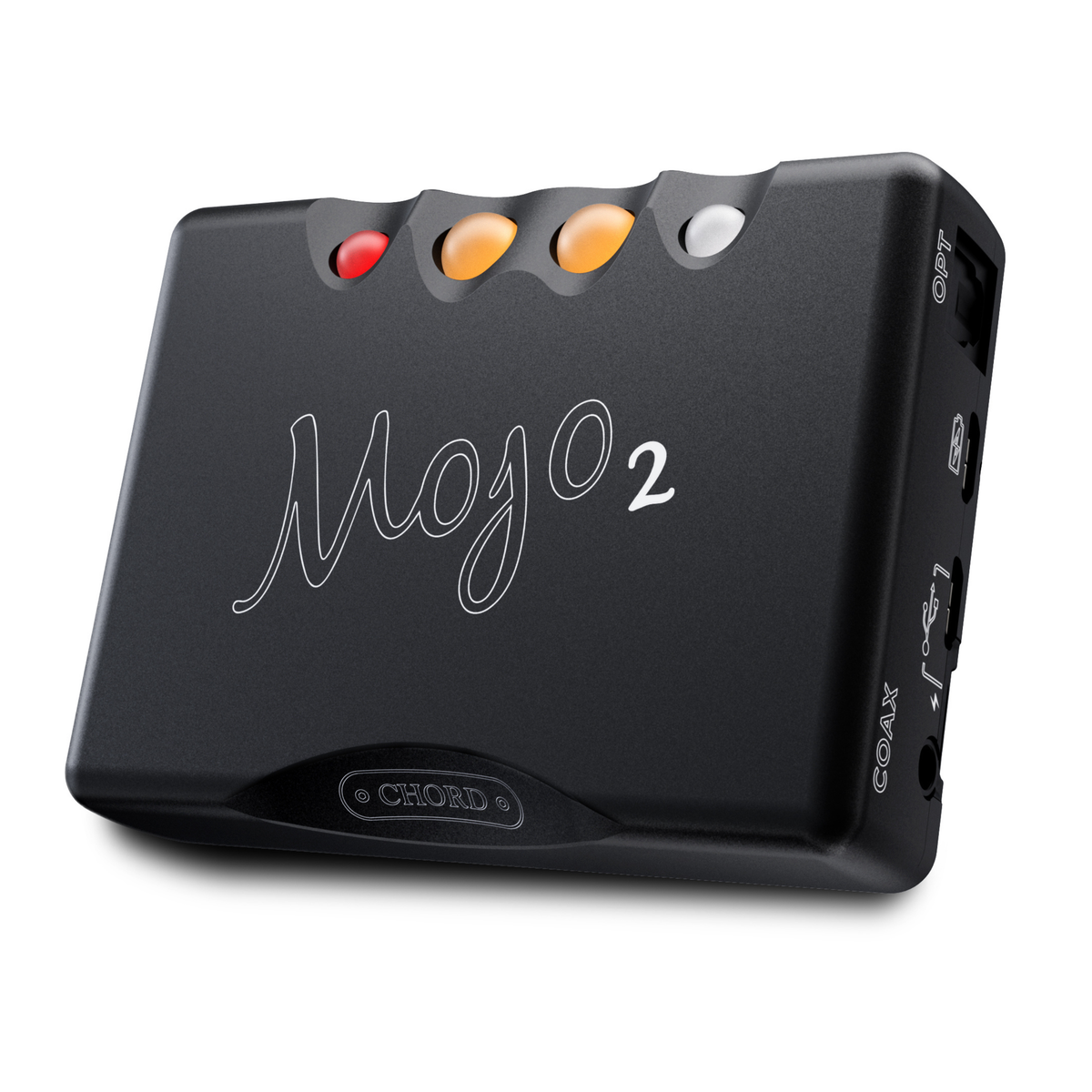

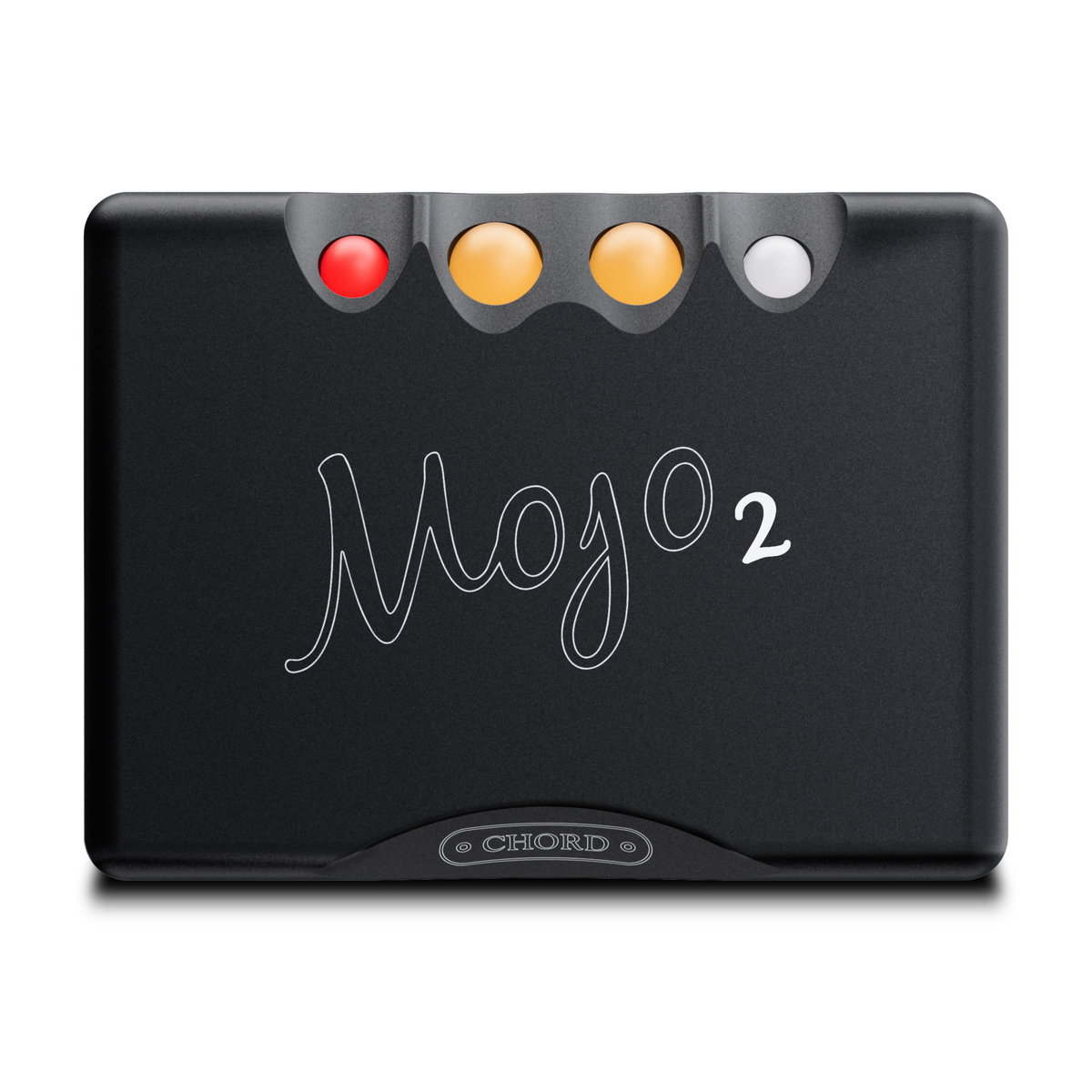

Chord Electronics Mojo 2 Portable DAC
Chord Electronics Mojo 2 Portable DAC
Chord Electronics Mojo 2 Portable DAC
Chord Electronics Mojo 2 Portable DAC
Chord Electronics Mojo 2 Portable DAC
Chord Electronics

Chord Electronics Mojo 2 Portable DAC

Headphone Amplifier with 4.4mm Output
Sale price$650

Description

The Chord Electronics Mojo 2 is a compact, battery-powered DAC and headphone amplifier designed to deliver high-performance digital audio at home or on the move. Now updated with a 4.4 mm headphone output, Mojo 2 combines Chord's proprietary FPGA-based digital conversion, powerful headphone amplification, advanced UHD DSP, and flexible digital connectivity in a pocket-sized aluminum chassis.

Supporting high-resolution audio up to 768 kHz PCM and DSD256, Mojo 2 connects easily to smartphones, tablets, computers, digital audio players, and other compatible digital sources.

Advanced FPGA DAC Technology

At the heart of Mojo 2 is Chord's powerful custom-coded FPGA processor, rather than a conventional off-the-shelf DAC chipset. Its improved WTA filtering uses 40 DSP cores to deliver greater transparency, lower noise, and highly accurate digital reconstruction.

Mojo 2 also features Chord's UHD DSP, an advanced digital tone-control system that allows listeners to adjust tonal balance to better suit different headphones, recordings, and personal preferences. Adjustable crossfeed provides additional control over the headphone listening experience.

4.4mm Headphone Connectivity

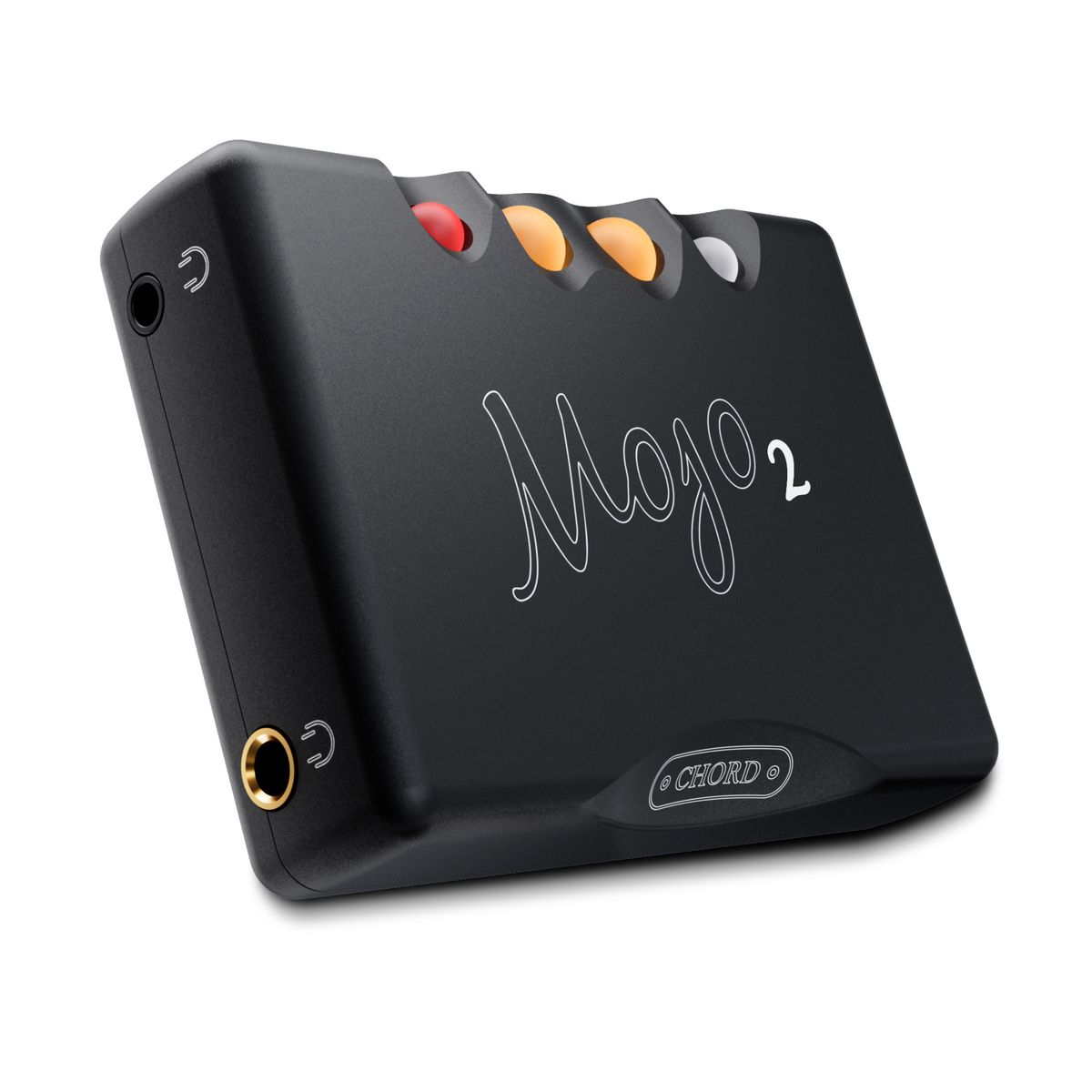

The updated Mojo 2 features both 3.5 mm and 4.4 mm headphone outputs, providing direct compatibility with a wider range of modern audiophile headphones and cables without requiring a separate 4.4 mm adapter.

Despite its compact size, Mojo 2 delivers substantial headphone-driving capability, with 600 mW into 30Ω and 90 mW into 300Ω, while supporting headphones with impedances up to 800Ω.

Flexible Digital Connectivity

Mojo 2 provides five digital inputs, including USB-C, Micro-USB, optical, coaxial, and dual-data coaxial connectivity. The updated USB-C connection supports both high-speed data and switchable charging, while a dedicated Micro-USB charging input provides additional flexibility.

For wireless playback, Mojo 2 can be paired with the optional Chord Electronics Poly, adding Wi-Fi, Bluetooth, AirPlay, Roon Ready functionality, and MicroSD music playback.

Key Features

  • Portable FPGA DAC & headphone amplifier

  • Updated 4.4 mm and 3.5 mm headphone outputs

  • PCM playback up to 768 kHz

  • DSD support up to DSD256 via DoP

  • Lossless UHD DSP tone control

  • Advanced WTA digital filtering

  • USB-C digital connectivity and charging

  • Supports headphones up to 800Ω

  • Compatible with Poly for wireless streaming

Frequently Asked Questions

Does the new Chord Mojo 2 have a 4.4mm headphone output?
Yes. The updated Mojo 2 includes a 4.4 mm headphone output, allowing compatible headphones and cables to connect directly without a 4.4 mm adapter.
Does Mojo 2 still have a 3.5mm headphone output?
Yes. The current model has one 3.5 mm output and one 4.4 mm output. The original Mojo 2 configuration used two 3.5 mm outputs.
What audio resolutions does Mojo 2 support?
Mojo 2 supports PCM audio up to 768 kHz and DSD up to DSD256 via DoP.
What headphones can Mojo 2 drive?
Mojo 2 supports headphones with impedances up to 800Ω and delivers up to 600 mW into 30Ω and 90 mW into 300Ω.
What is UHD DSP?
Chord's UHD DSP is an advanced digital tone-control system that allows adjustment of the tonal balance for different headphones, recordings, and listening preferences.
Can Mojo 2 be used wirelessly?
Mojo 2 does not include wireless streaming by itself. Adding the optional Chord Poly provides wireless streaming functionality, including Wi-Fi, Bluetooth, AirPlay, and Roon Ready support.
Can Mojo 2 be used as a desktop DAC?
Yes. Mojo 2 can serve as both a portable and desktop DAC/headphone amplifier, with USB, optical, and coaxial digital connectivity.

Specifications

TECHNICAL SPECIFICATIONS
Product Type Portable DAC / Headphone Amplifier
PCM Support Up to 768 kHz
DSD Support Up to DSD256 via DoP
Digital Inputs USB-C Data / Switchable Charging
Micro-USB
Coaxial
Dual-Data Coaxial
Optical
Separate Micro-USB Charging Connection
Headphone Outputs 1 × 3.5 mm
1 × 4.4 mm
Output Power 600 mW into 30Ω (4.2 V RMS)
90 mW into 300Ω (5.2 V RMS)
Output Impedance 0.06Ω
Dynamic Range 125 dB A-Weighted
Signal-to-Noise Ratio 123 dB A-Weighted
Distortion + Noise 0.0003% at 2.5 V / 300Ω
Stereo Separation 118 dB at 1 kHz / 300Ω / 2.5 V
Frequency Response 7 Hz–20 kHz ±3 dB
Dimensions 83 × 62 × 22.9 mm
Weight 185 g
