Chord Electronics 2yu Digital Interface

Network Bridge & Digital Interface for 2go

$1,500

Color: Black

Quantity:

Description

The Chord Electronics 2yu is a high-performance digital interface designed to connect directly with Chord 2go, transforming the combination into a versatile network bridge for use with compatible DACs, DAC-equipped audio components, and the Chord Hugo M Scaler.

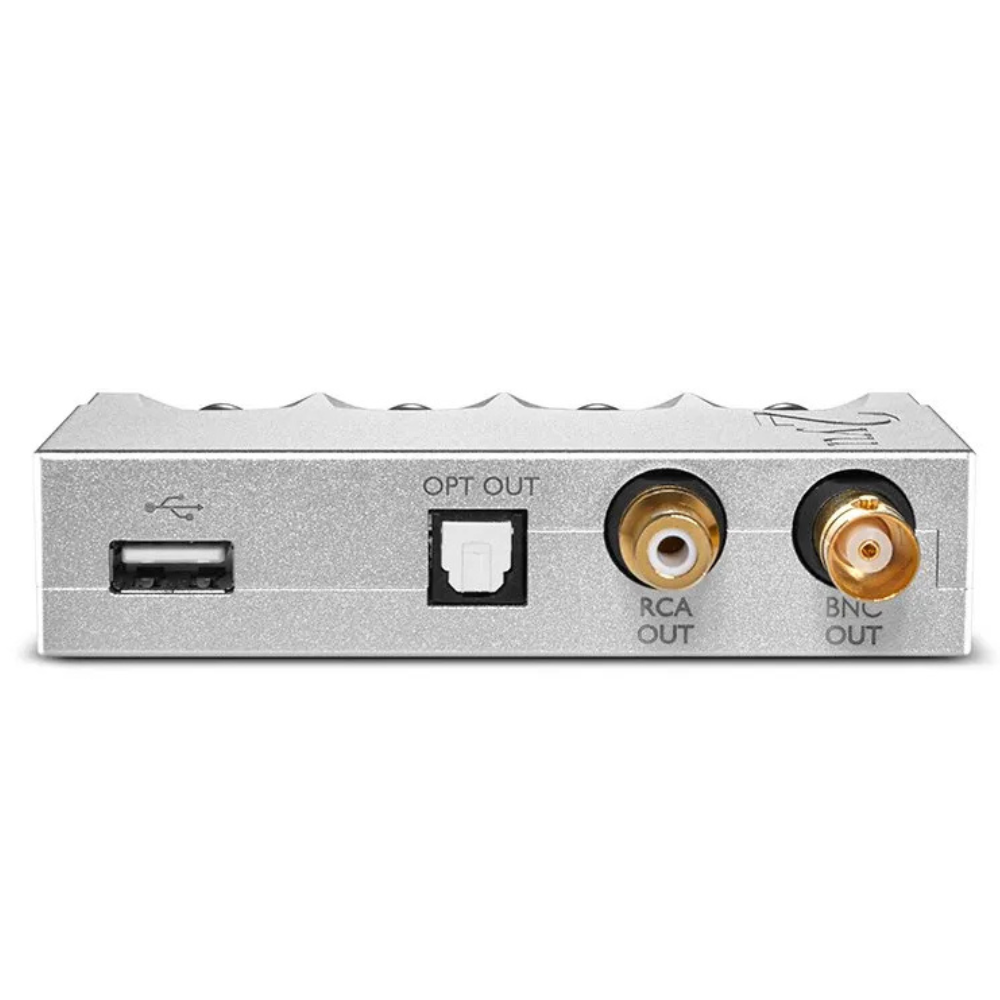

By adding USB Type-A, BNC coaxial, RCA coaxial, and optical digital outputs to 2go, 2yu brings 2go's streaming and music-server capabilities to a wider range of high-end audio systems.

High-Performance Digital Interface

At the heart of 2yu is a powerful 2,000 MIPS processor, integrated sample-rate converter, and low-jitter audio phase-locked loop designed for precise digital signal handling.

Multiple digital outputs provide flexible system integration. USB supports PCM up to 768 kHz and DSD256, BNC and RCA coaxial outputs support PCM up to 384 kHz, and optical supports PCM up to 192 kHz. Automatic downsampling is provided when the selected output cannot support the incoming sample rate.

Built for 2go

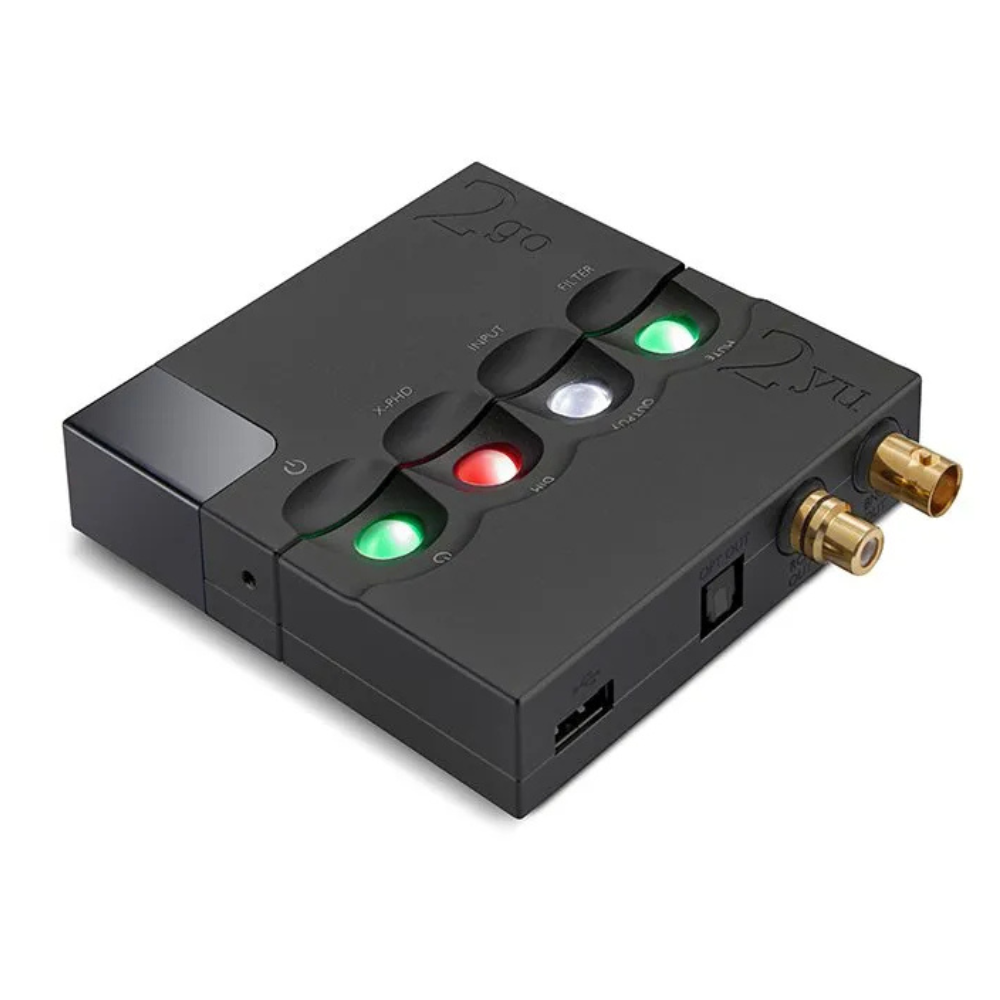

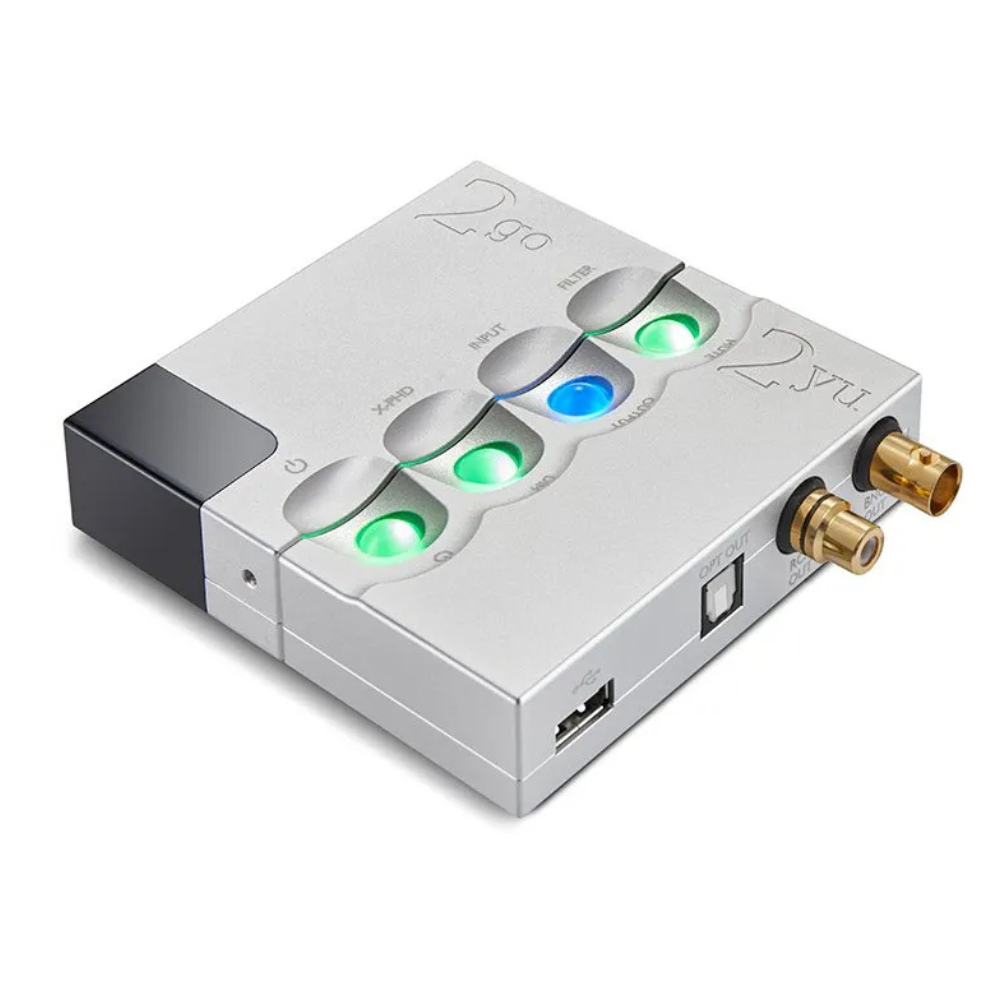

2yu connects directly to Chord 2go, creating a compact network bridge capable of delivering streamed and locally stored digital music to a compatible DAC or digital audio system.

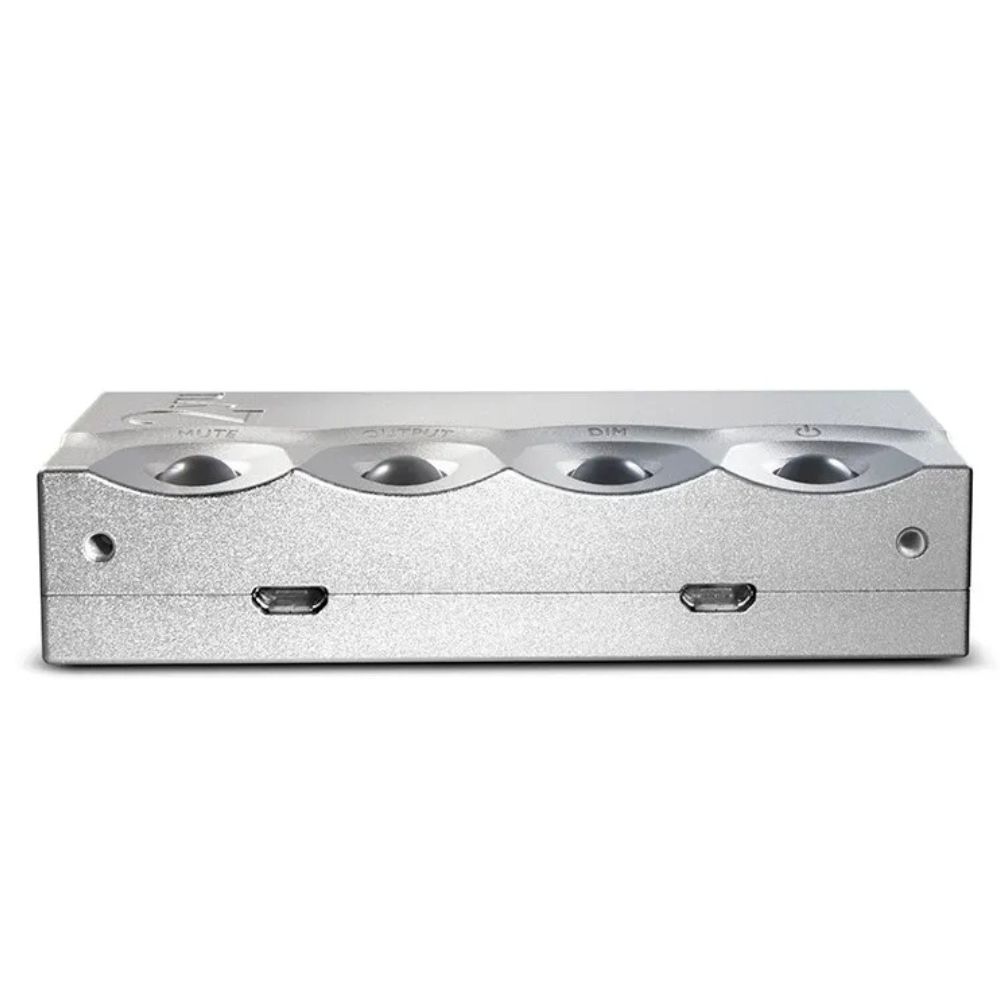

The 2go/2yu combination is also ideal for discreet home and multi-room installations, including Roon-based systems connected over Ethernet. Its compact CNC-machined aluminum chassis and Chord's distinctive polychromatic spherical controls provide convenient access to output selection, power, mute, and display brightness.

Key Features

Transforms 2go into a network bridge
2,000 MIPS processing capability
Integrated sample-rate conversion
Low-jitter audio phase-lock loop
USB-A digital output up to 768 kHz / DSD256
BNC and RCA coaxial digital outputs
Optical TOSLINK digital output
Automatic downsampling when required
Compact aircraft-grade aluminum

Frequently Asked Questions

What does Chord Electronics 2yu do?

2yu is a digital interface designed for Chord 2go. Together, 2go and 2yu create a network bridge that can send streamed or locally stored digital music to a compatible DAC or digital audio component.

Can Chord 2yu be used without 2go?

No. 2yu requires Chord 2go to inherit streaming/music transport capabilities or function as an audio interface.

What digital outputs does Chord 2yu provide?

2yu provides USB Type-A, BNC coaxial, RCA coaxial, and optical TOSLINK outputs, allowing the 2go/2yu combination to connect with a wide range of compatible DACs and digital audio systems.

What is the maximum resolution supported by 2yu?

Through USB, 2yu supports PCM up to 768 kHz and DSD256. BNC and RCA coaxial support PCM up to 384 kHz, while optical supports PCM up to 192 kHz.

Can 2yu be used with Chord Qutest, Hugo TT 2 or DAVE?

Yes. Chord identifies Qutest, Hugo TT 2, and DAVE among the products designed for use with 2yu when it is paired with 2go.

Does 2yu automatically handle unsupported sample rates?

Yes. Its integrated sample-rate converter automatically downsamples audio when the selected digital output cannot support the incoming sample rate.

Specifications

TECHNICAL SPECIFICATIONS
Compatibility	Requires Chord Electronics 2go
Processing Power	2,000 MIPS
Sample Rate Converter	Integrated with Automatic Downsampling
Power Supply	Micro USB via 2go, 5 V / 1 A Minimum
Digital Outputs	USB Type-A — 44.1 kHz–768 kHz / DSD256 BNC Coaxial — 44.1 kHz–384 kHz / DSD64 RCA Coaxial — 44.1 kHz–384 kHz / DSD64 Optical TOSLINK — 44.1 kHz–192 kHz / DSD64
Combined Dimensions with 2go	115 × 100 × 22 mm
Combined Weight with 2go	361 g
WHAT'S INCLUDED
Included Accessories	2yu User Manual Safety Instructions Drawstring Bag 5 V / 2 A Micro USB Power Supply USB Type-A to Type-B Cable BNC-to-BNC Cable
