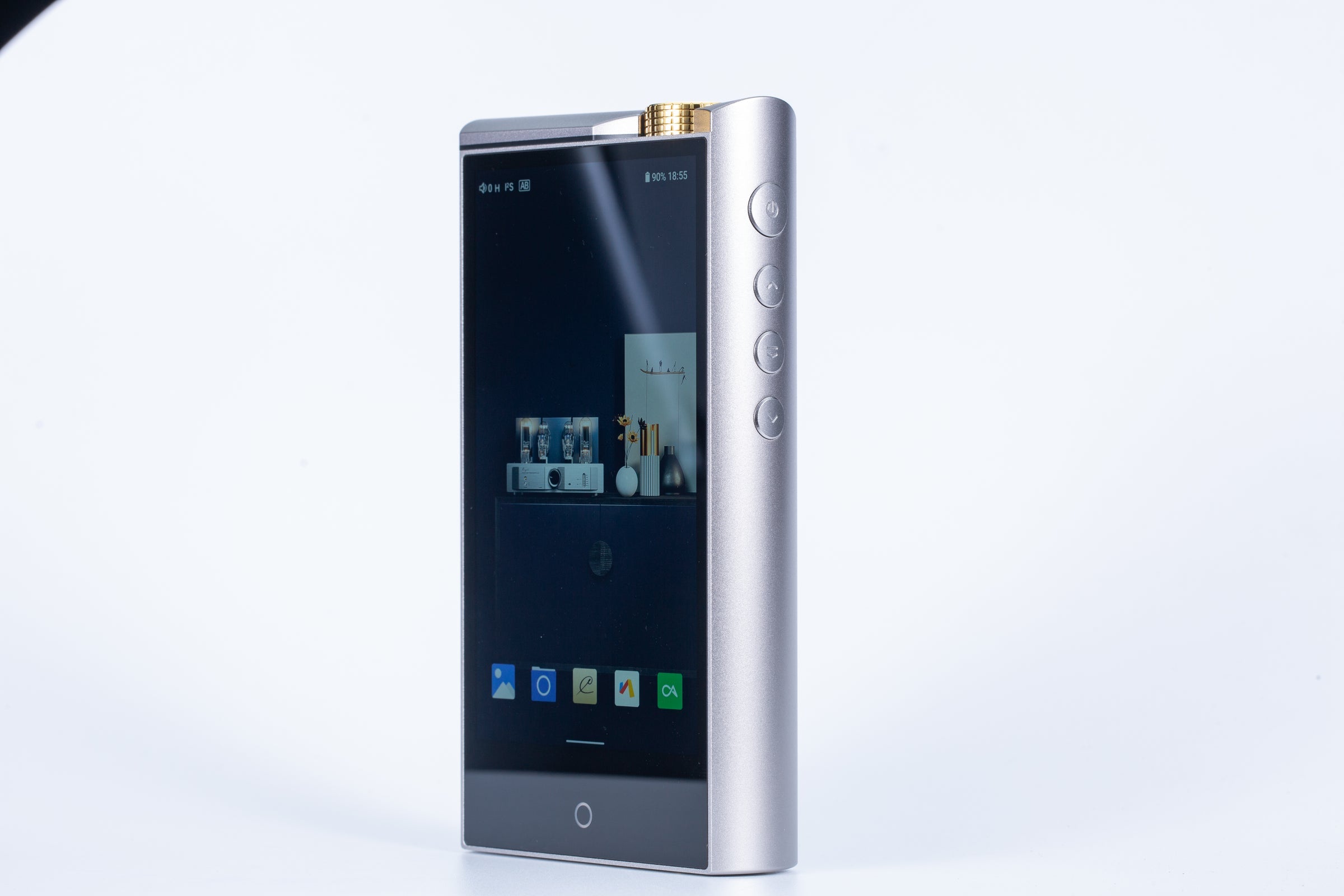

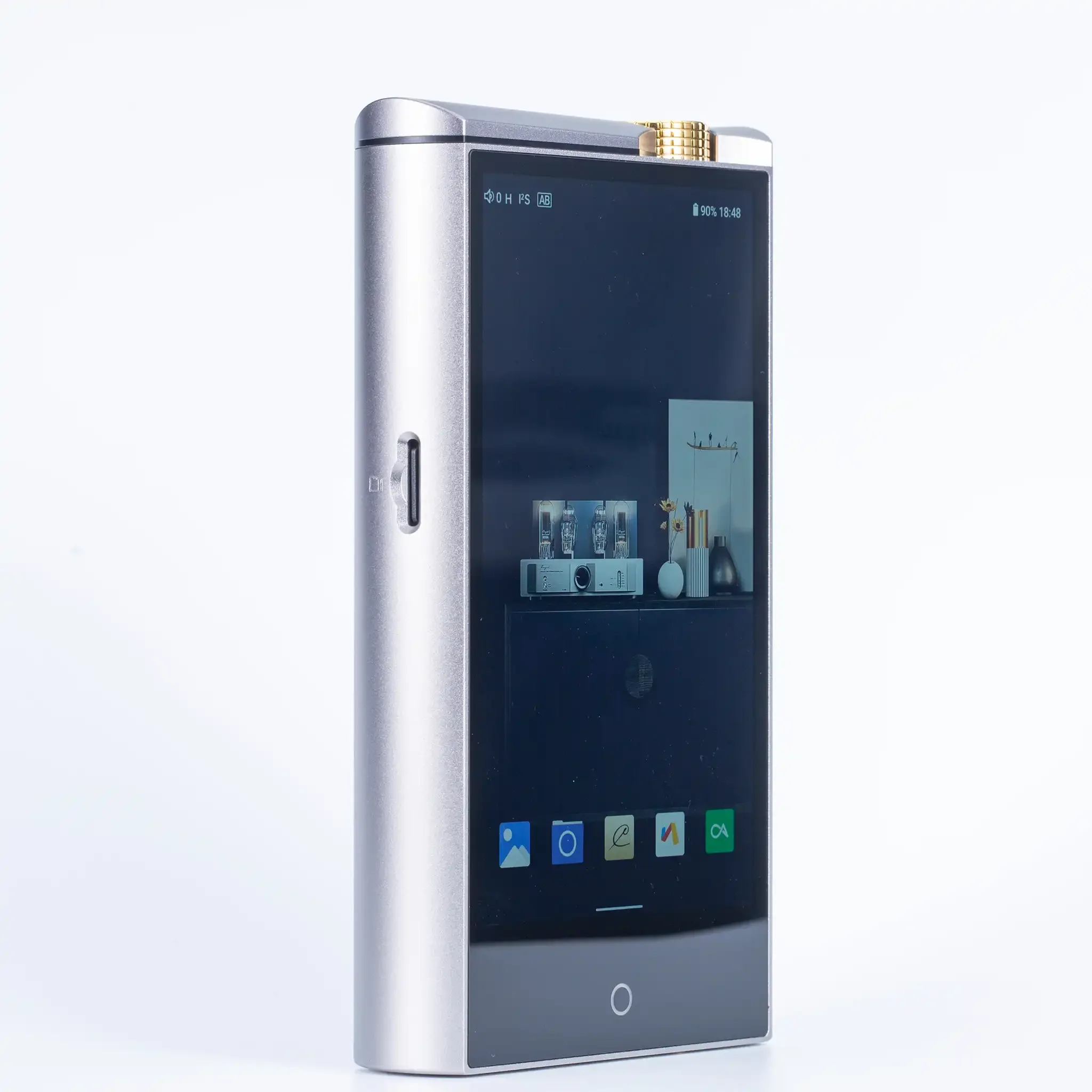

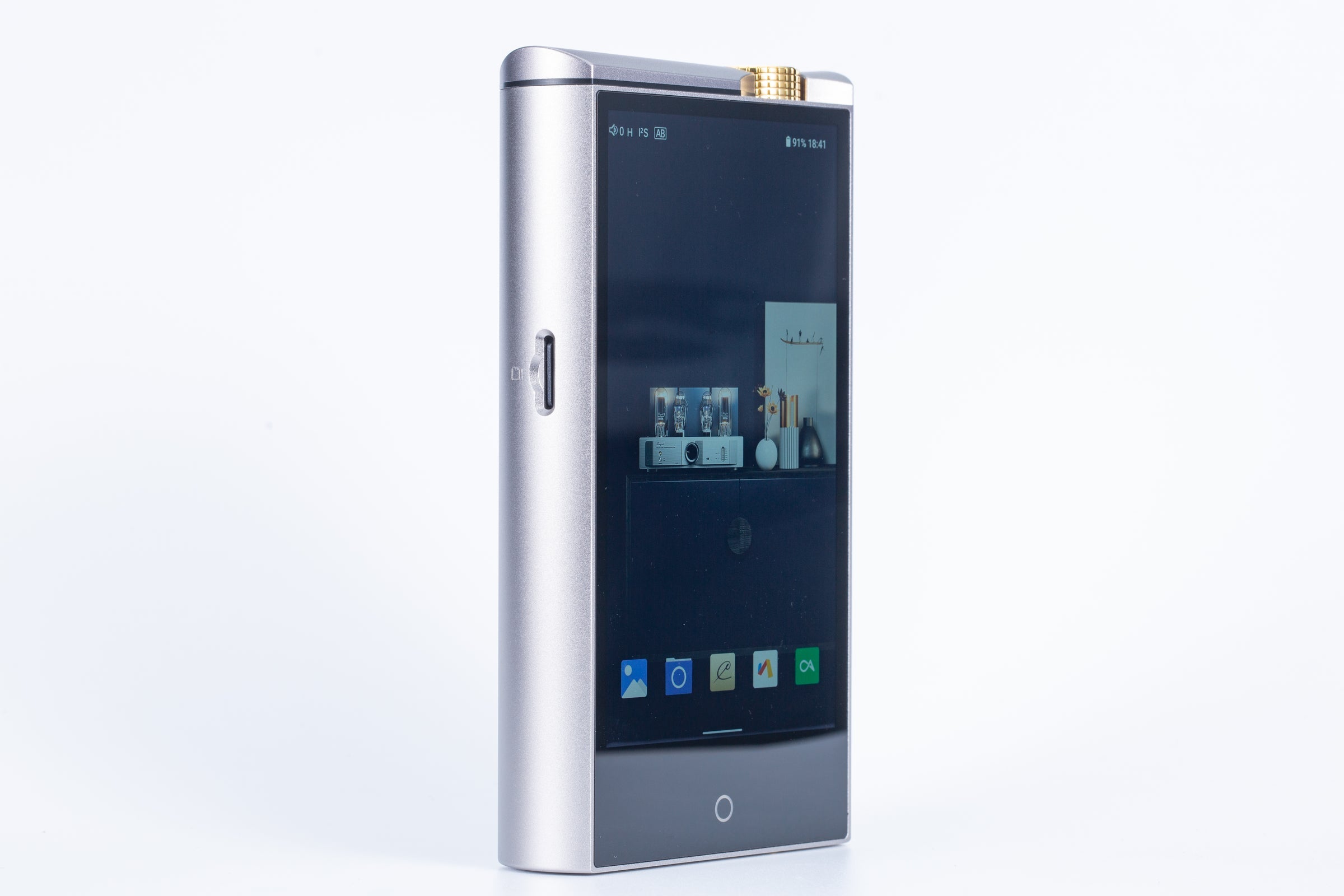

Cayin N7+

The Cayin N7+ builds on the groundbreaking architecture of its predecessor, delivering improved output power, refined power management, and upgraded internal components for an even more immersive portable listening experience.

Designed for serious audiophiles, the N7+ features a fully discrete, fully balanced circuit architecture, ensuring exceptional clarity, dynamic expression, and remarkable musical detail. Its advanced headphone amplification stage supports selectable Class A and Class AB modes, allowing listeners to tailor sound performance to match their headphones and personal preferences.With increased output power, optimized battery efficiency, and a refined hardware platform, the N7+ brings studio-grade sound quality into a beautifully crafted portable music player.

Power Boost for Demanding Headphones

The upgraded amplifier architecture delivers noticeably higher power output, providing excellent compatibility with both sensitive IEMs and high-impedance headphones.

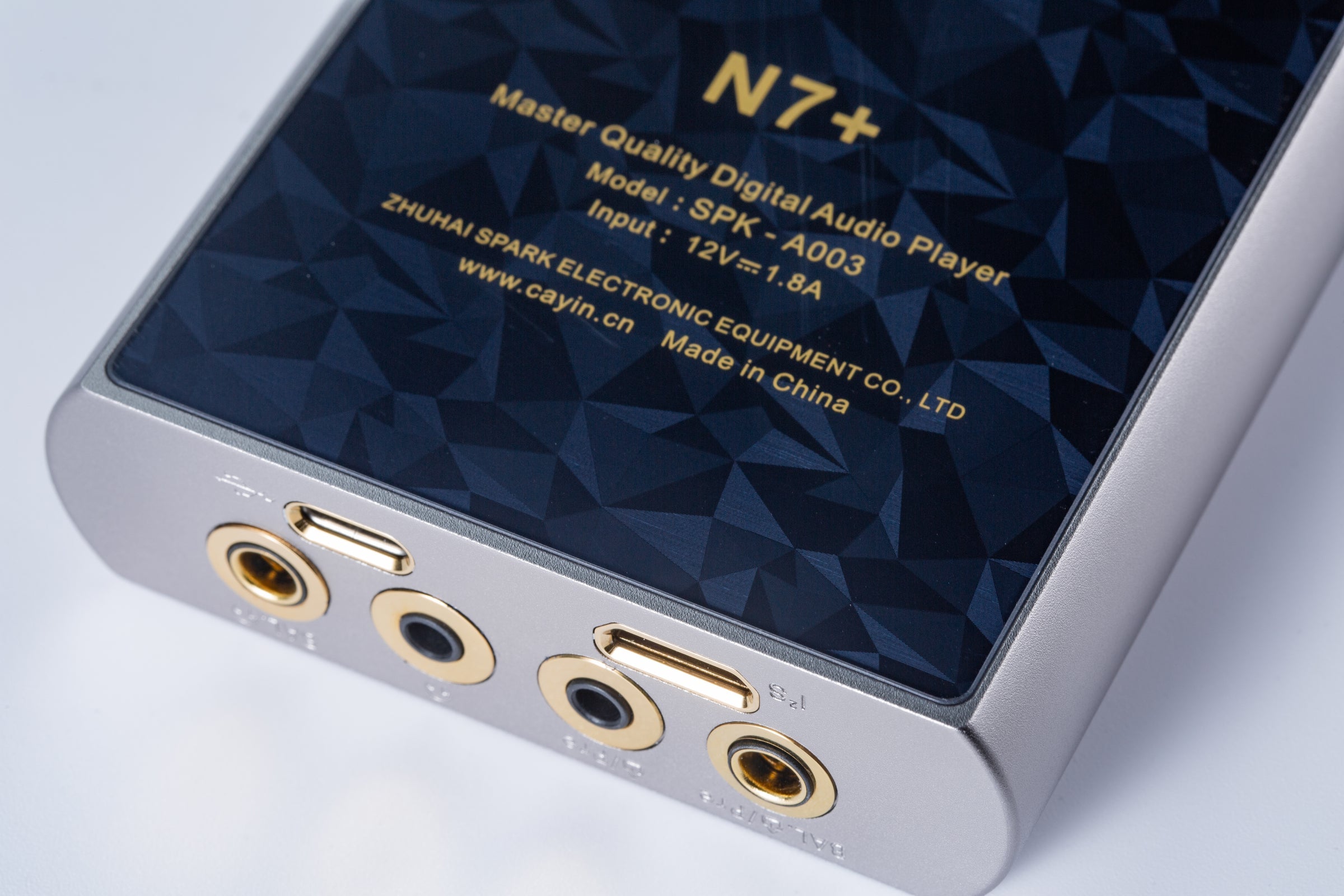

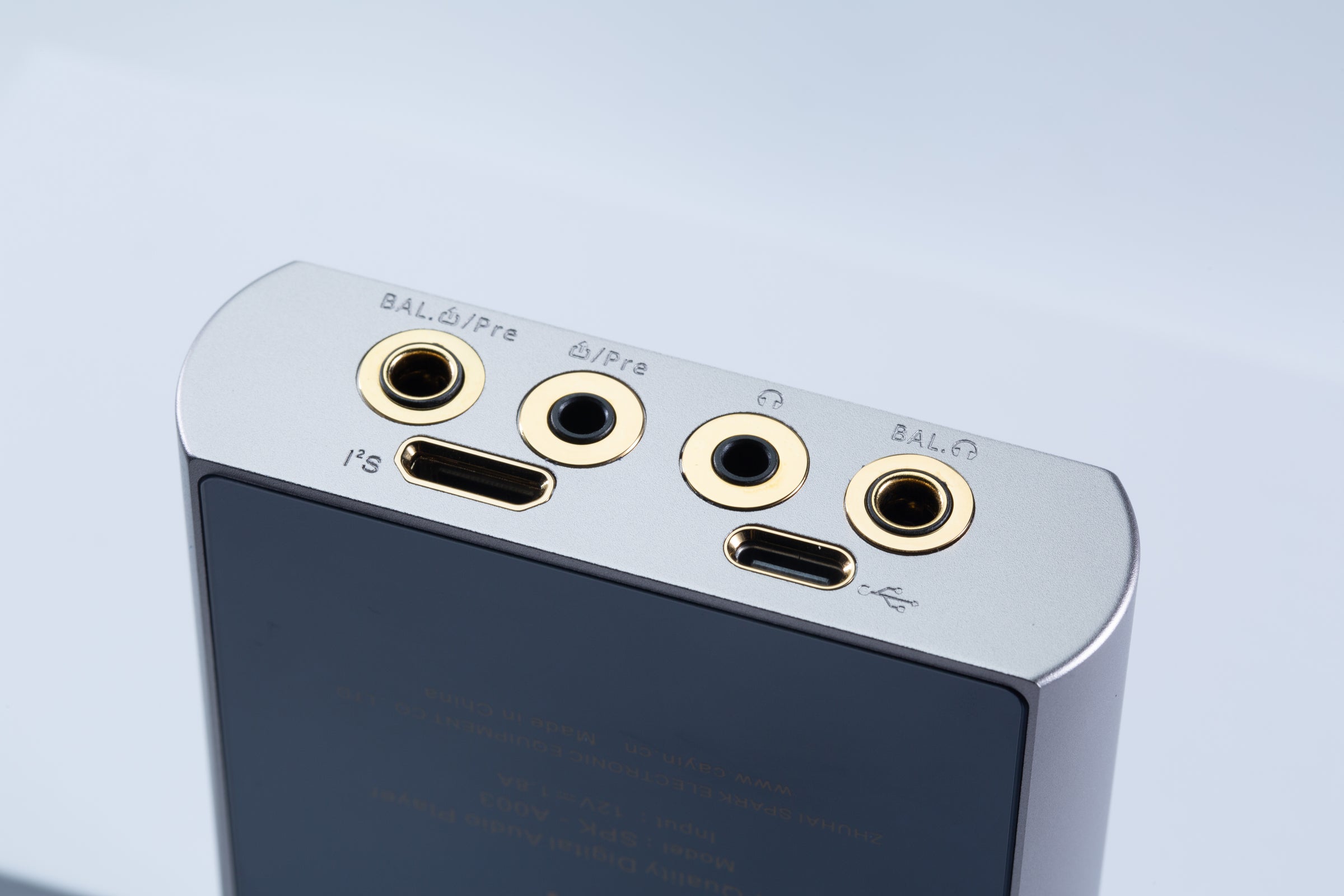

• 330mW output from the 3.5mm single-ended connection

• 690mW output from the 4.4mm balanced connection

This increase in output power improves dynamic control, expands soundstage presentation, and ensures stable performance across a wide variety of headphones.

To further enhance amplifier stability, Cayin upgraded the power transistors to PHPT610030NPK models, improving transient current handling and delivering more responsive audio reproduction.

Fully Discrete 1-Bit DAC Architecture

At the core of the N7+ lies a remarkable fully discrete resistor-based DAC design.

The DAC circuit utilizes 128 high-precision resistors arranged across four channels, forming a fully differential balanced structure that reflects Cayin’s commitment to pure analog signal conversion. This unique 1-bit architecture allows the N7+ to deliver exceptional tonal accuracy, natural timbre, and outstanding musical realism.

Unlike conventional integrated DAC chips, this discrete approach ensures greater control over the signal path and enables a truly audiophile-grade listening experience.

Class A and Class AB Amplification Modes

The N7+ offers selectable amplifier operating modes to match different listening styles.

Class A Mode
Delivers warm, rich tonal characteristics with smooth harmonic textures and exceptional musicality.

Class AB Mode
Provides greater efficiency with tighter bass control and improved overall dynamics.

These options allow listeners to fine-tune the amplifier’s sonic character depending on headphones, genres, or personal listening preferences.

Independent Power Supply Design

To preserve signal integrity, the N7+ uses completely independent power supplies for digital and analog circuits.

Within the digital section, high-level and low-level logic circuits also operate separately. This design minimizes interference from system clocks and processing components, ensuring a cleaner signal path and improved audio purity.

The result is greater transparency, lower noise, and more precise sound reproduction.

Fast and Smooth Android System

The N7+ runs on a powerful hardware platform designed for smooth operation and reliable streaming.

Performance Highlights

• Qualcomm Snapdragon 665 octa-core processor

• 4GB RAM for smooth multitasking

• 64GB internal storage

• Up to 1TB microSD expansion

• Android 12 operating system

With DTA (Direct Transport Audio) support, the system maintains lossless audio output across Android apps, preserving sound quality during streaming playback.

Dual-band 2.4GHz and 5GHz Wi-Fi ensures stable and fast wireless connectivity for music streaming and downloads.

MQA Support for Studio-Quality Music

The Cayin N7+ supports MQA (Master Quality Authenticated) technology, enabling playback of studio-quality recordings through compatible streaming services and music files.

With full 16x MQA decoding, the player can unfold MQA content to deliver the highest-quality master recordings exactly as intended by the original studio production.

Long-Lasting Battery Performance

The optimized internal power system provides excellent battery life for portable listening.

• Up to 13 hours of playback

• Efficient power consumption in Class AB mode

• PD2.0 fast charging support

This allows listeners to enjoy extended music sessions without constantly worrying about recharging.

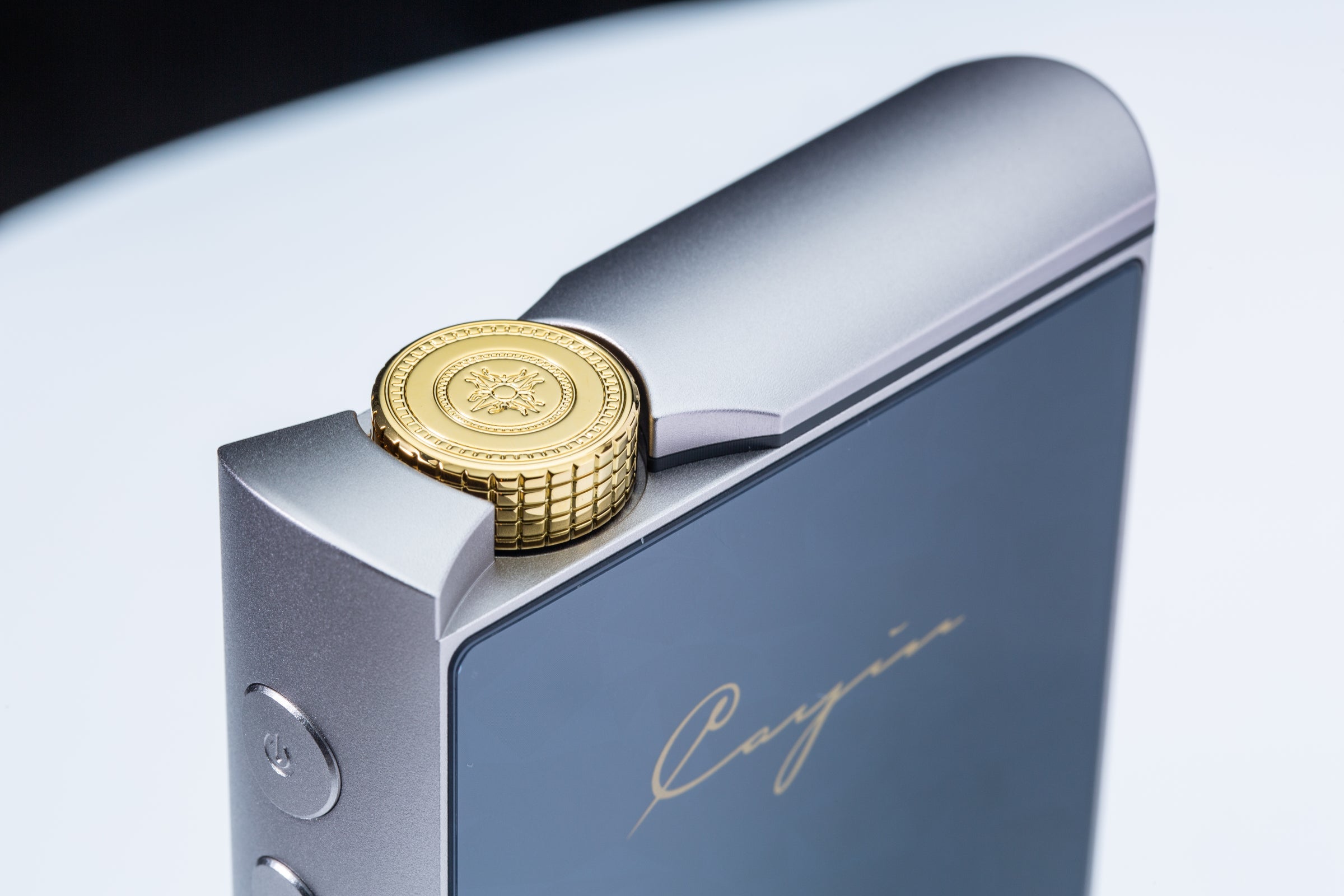

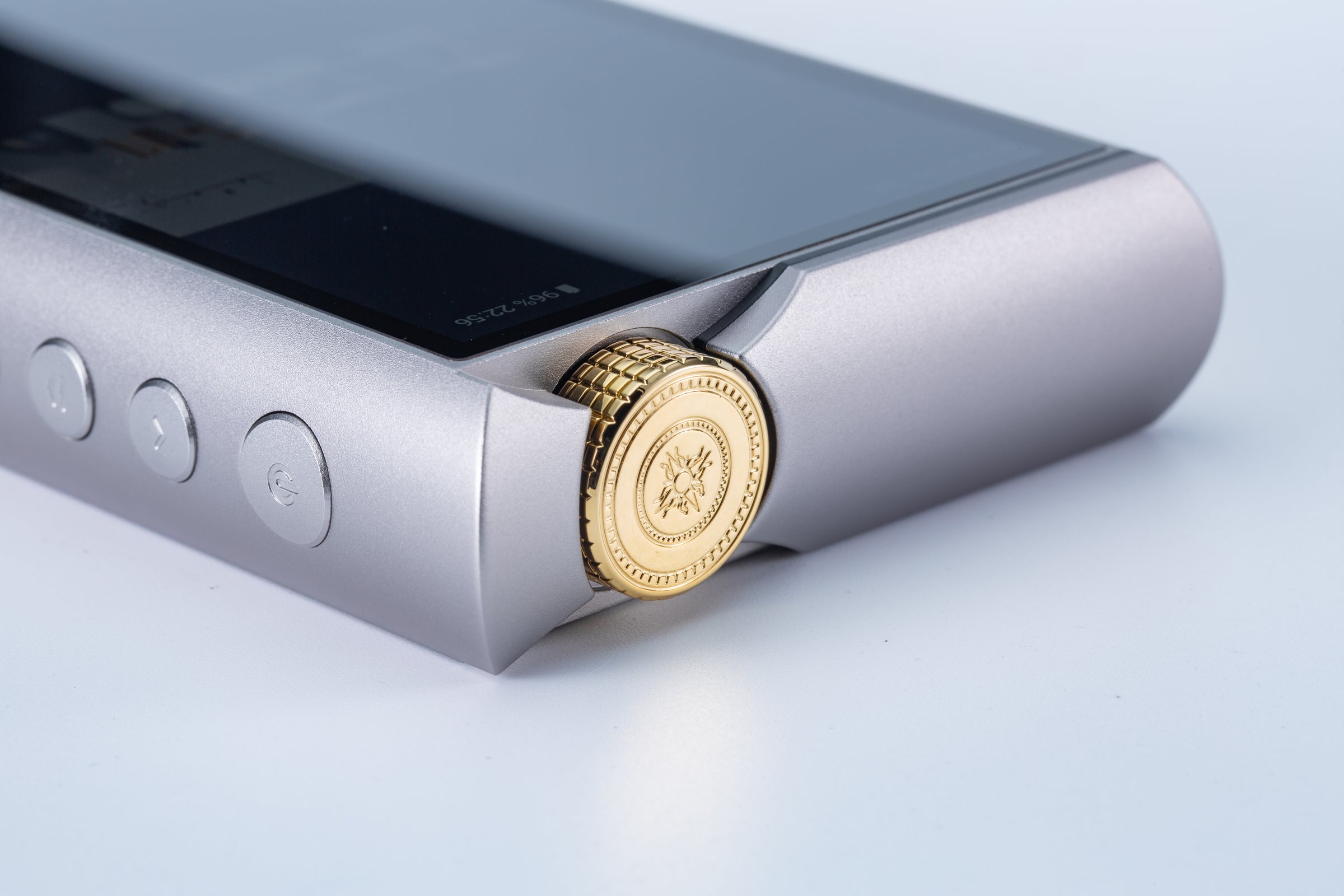

Premium Design and Build Quality

The N7+ features a refined industrial design crafted from aircraft-grade aluminum-magnesium alloy using precision CNC machining.

The titanium-colored finish provides a sophisticated metallic appearance while maintaining a lightweight yet durable construction. Every detail reflects Cayin’s commitment to premium craftsmanship and long-lasting reliability.
