NAD C 558 Turntable
NAD C 558 Turntable

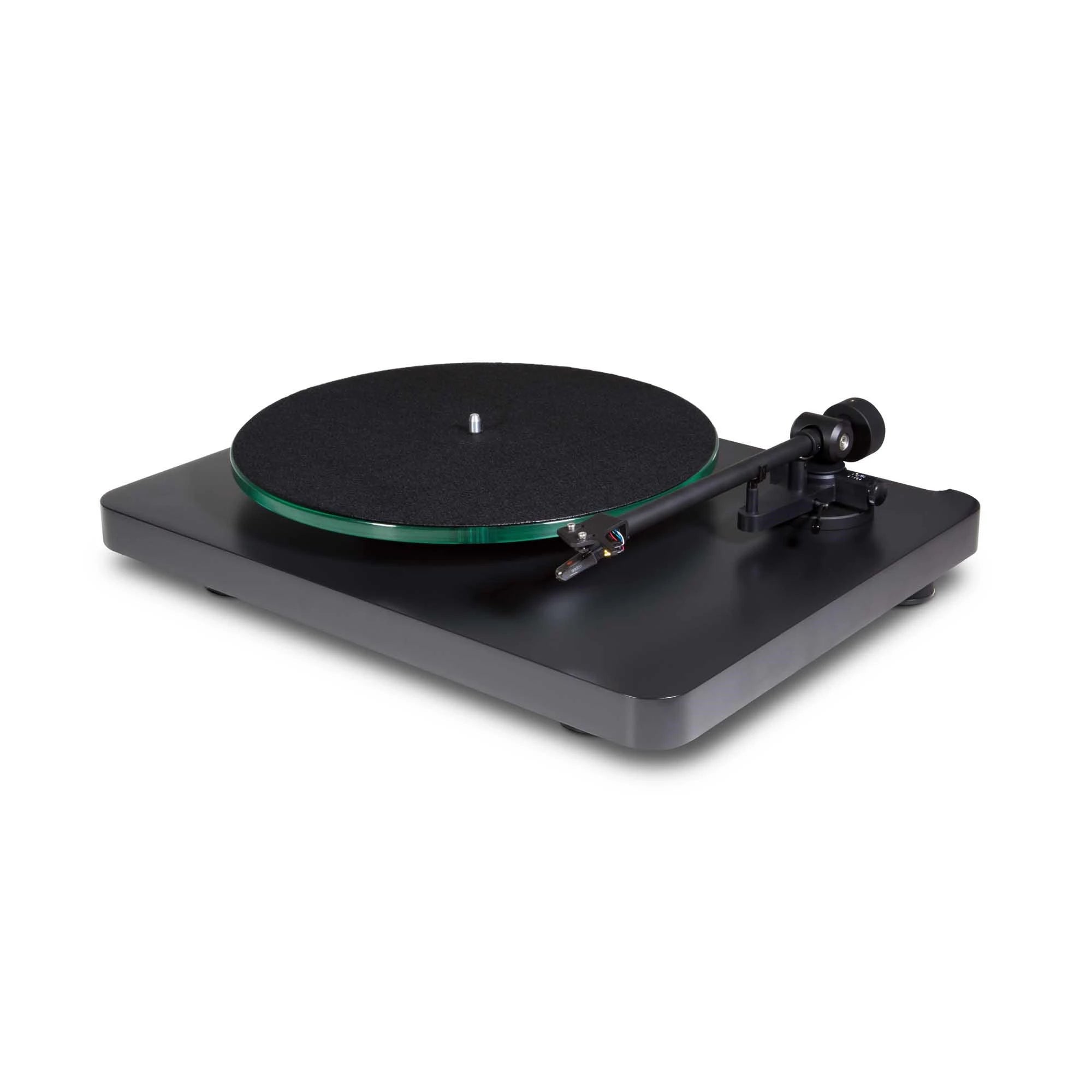

Throughout our rich 45-year history, NAD Electronics has been offering high performance turntables at unbelievably stellar prices. A component that critical listeners can applaud for its musical quality, and one that almost anybody can afford, the NAD C 558 is a full-featured, belt-driven model targeted for record enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C 558 features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complemented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C 558 delivers an outstanding listening experience unlike any other.
Sophisticated Technology
When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.

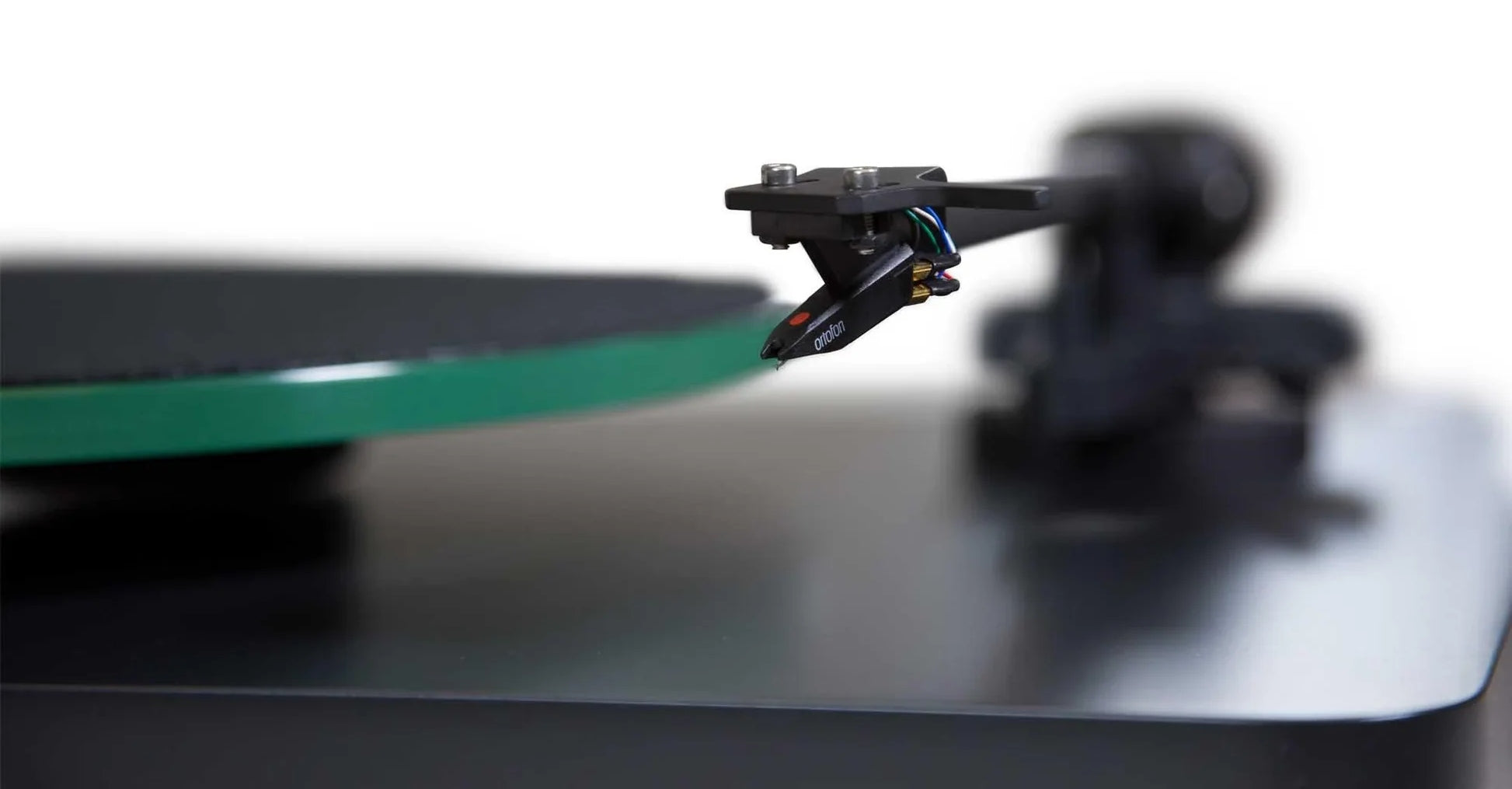

The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilize the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.
The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.
Quality Parts and Materials

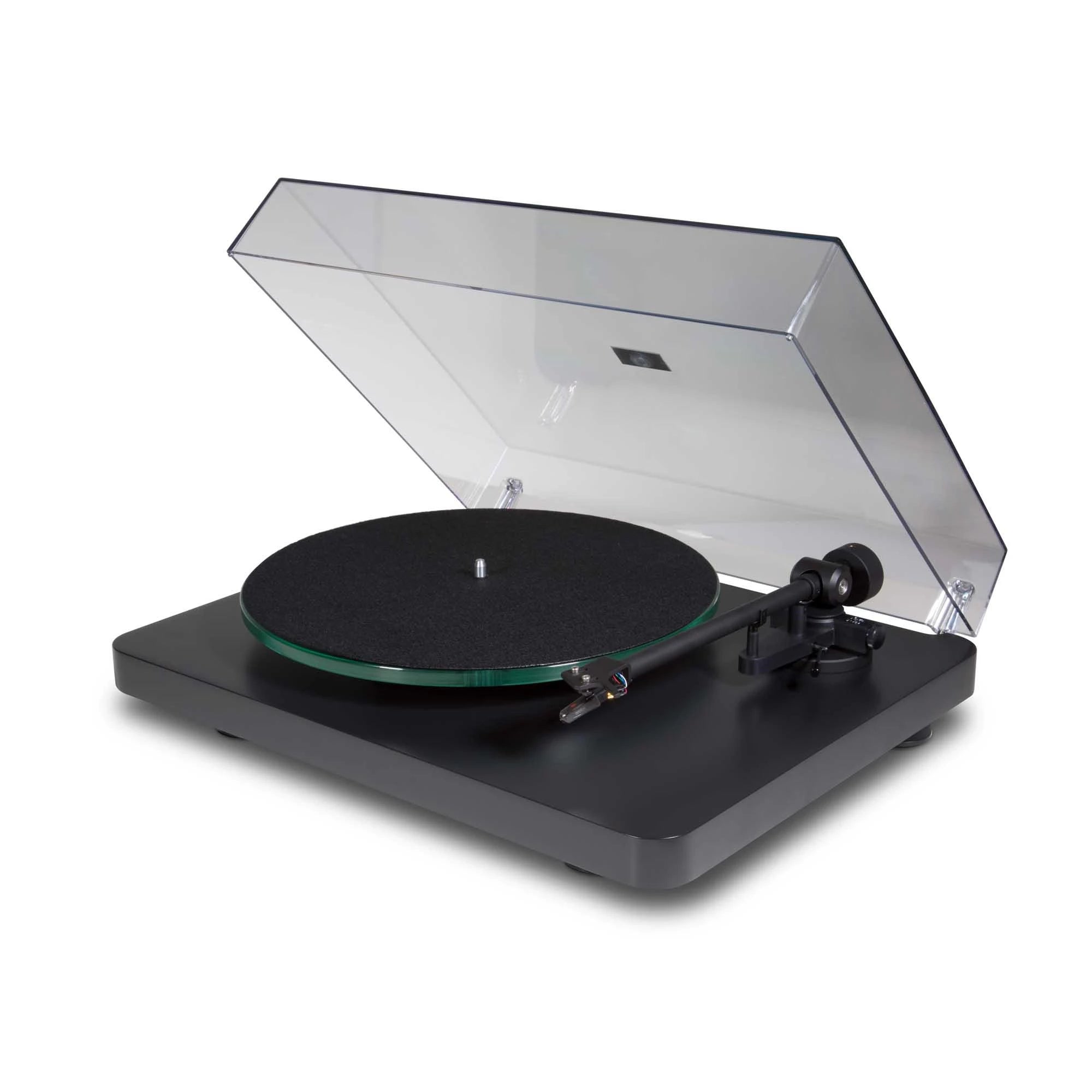

The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dust cover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.
An Experience Like No Other
Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.
Product Features
- Belt Driven Turntable 33/45
- 10mm Glass Plater with Felt Pad
- Precision AC Motor
- Isolated AC Power Supply with Universal Voltage
- 9” Tonearm with Fixed Head Shell
- Ortofon OM10 Cartridge Preinsatalled
- Vertical Tracking Angle and Azimuth Adjustment
- Rigid MDF Plinth with Rubber Isolation Feet
- Low Resonance Dustcover

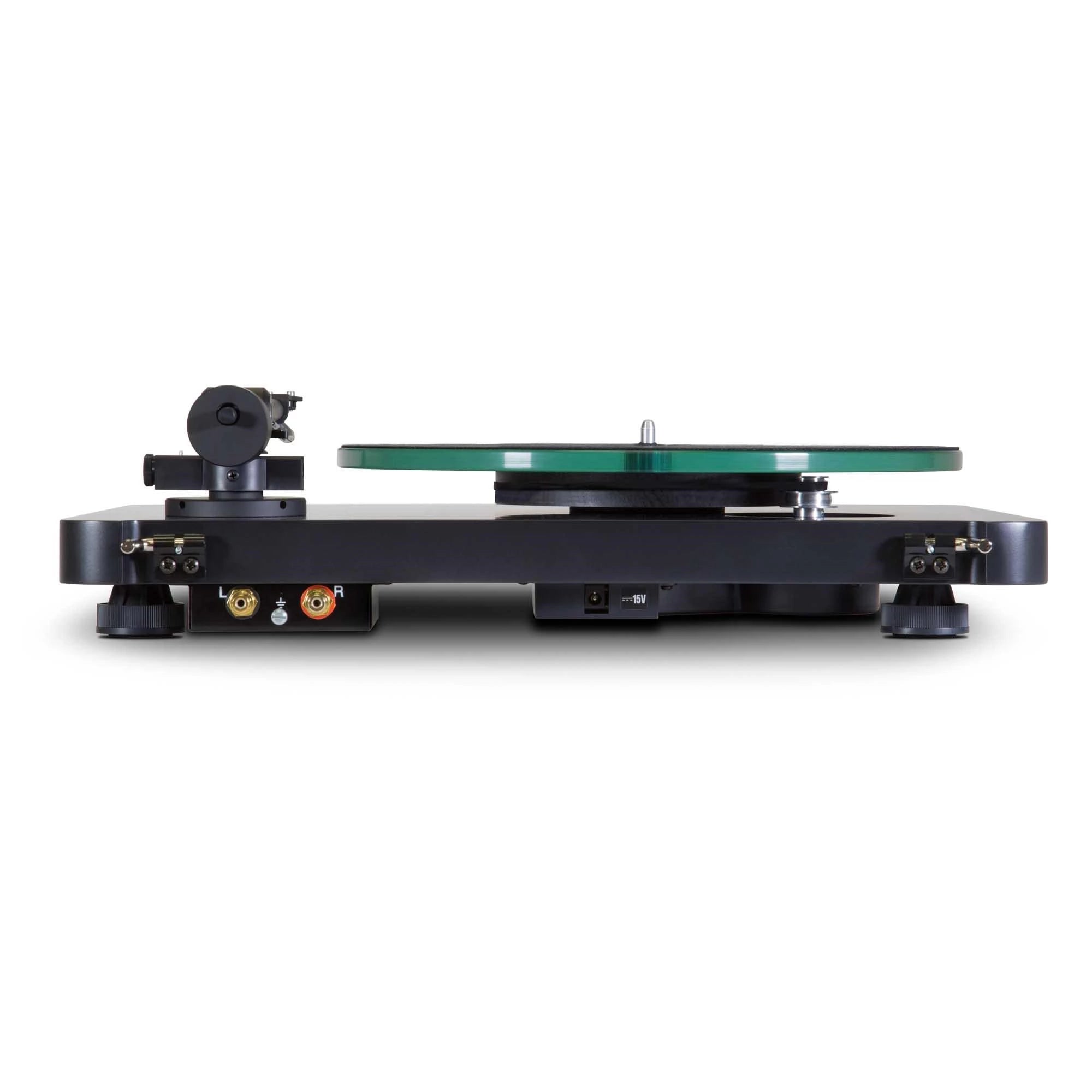

- Detachable High Quality RCA Cable with separate Ground
Specifications
GENERAL SPECIFICATIONS
Nominal speed | 33/45 rpm, manual speed change (78 rpm possible with special pulley) |
Speed variance | 33rpm: ± < 0.50%, 45rpm: ± < 0.45% |
Wow and flutter | 33rpm: ± < 0.15%, 45rpm: ± < 0.15% |
Signal to noise | S/N Ratio (mechanical noise): - 40 dB S/N Ratio (electrical noise): -68 dB |
Downforce range | 0 - 30 mN 0 - 3.0 grams |
Supplied counterweight system | Counterweight (black) for cartridges 5 - 12 gg |
Effective tonearm mass | 9.5 g |
Effective tonearm length | 230 mm |
Overhang | 18 mm |
Power consumption | 5 W max/ 0.3W standby |
Voltage | Universal switch mode power supply |
Voltage | 15 V DC/0,8 A, 100-240 V AC, 47 - 63Hz |
DIMENSIONS AND WEIGHT
Dimensions | 17 1/8 x 13 3/8 x 4 59/64” (435 x 340 x 125mm) |
Net Weight | 5,5 kg (turntable) - 1,74 kg (platter) |
Shipping Weight | 8 kg |
Ortofon OM 10 cartridge technical data
Frequency range | 20-22.000Hz |
Channel separation | 22dB/1kHz |
Output voltage | 4mV |
Recommended load impedance | 47kohms/amplifier connection – MM-input |
Compliance/stylus type | 20µm/mN – elliptical |
Recommended tracking force | 15mN |
Weight | 5g |
Description
Description
NAD C 558 Turntable
Throughout our rich 45-year history, NAD Electronics has been offering high performance turntables at unbelievably stellar prices. A component that critical listeners can applaud for its musical quality, and one that almost anybody can afford, the NAD C 558 is a full-featured, belt-driven model targeted for record enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C 558 features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complemented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C 558 delivers an outstanding listening experience unlike any other.
Sophisticated Technology
When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.
The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilize the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.
The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.
Quality Parts and Materials
The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dust cover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.
An Experience Like No Other
Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.
Product Features
- Belt Driven Turntable 33/45
- 10mm Glass Plater with Felt Pad
- Precision AC Motor
- Isolated AC Power Supply with Universal Voltage
- 9” Tonearm with Fixed Head Shell
- Ortofon OM10 Cartridge Preinsatalled
- Vertical Tracking Angle and Azimuth Adjustment
- Rigid MDF Plinth with Rubber Isolation Feet
- Low Resonance Dustcover
- Detachable High Quality RCA Cable with separate Ground
Specifications
Specifications
GENERAL SPECIFICATIONS
Nominal speed | 33/45 rpm, manual speed change (78 rpm possible with special pulley) |
Speed variance | 33rpm: ± < 0.50%, 45rpm: ± < 0.45% |
Wow and flutter | 33rpm: ± < 0.15%, 45rpm: ± < 0.15% |
Signal to noise | S/N Ratio (mechanical noise): - 40 dB S/N Ratio (electrical noise): -68 dB |
Downforce range | 0 - 30 mN 0 - 3.0 grams |
Supplied counterweight system | Counterweight (black) for cartridges 5 - 12 gg |
Effective tonearm mass | 9.5 g |
Effective tonearm length | 230 mm |
Overhang | 18 mm |
Power consumption | 5 W max/ 0.3W standby |
Voltage | Universal switch mode power supply |
Voltage | 15 V DC/0,8 A, 100-240 V AC, 47 - 63Hz |
DIMENSIONS AND WEIGHT
Dimensions | 17 1/8 x 13 3/8 x 4 59/64” (435 x 340 x 125mm) |
Net Weight | 5,5 kg (turntable) - 1,74 kg (platter) |
Shipping Weight | 8 kg |
Ortofon OM 10 cartridge technical data
Frequency range | 20-22.000Hz |
Channel separation | 22dB/1kHz |
Output voltage | 4mV |
Recommended load impedance | 47kohms/amplifier connection – MM-input |
Compliance/stylus type | 20µm/mN – elliptical |
Recommended tracking force | 15mN |
Weight | 5g |
