Description
3-way wall speaker
Discreetly positioned both horizontally and vertically, this LCR (left, center, right) loudspeaker offers a pure Home Cinema experience, just as it ideally complements a classic floorstanding or bookshelf speaker system. Among its strengths: exclusive Focal technologies for hi-fi sound, discreet, easy installation, and an adjustable turntable that targets the listening point.
TOTAL ADAPTABILITY

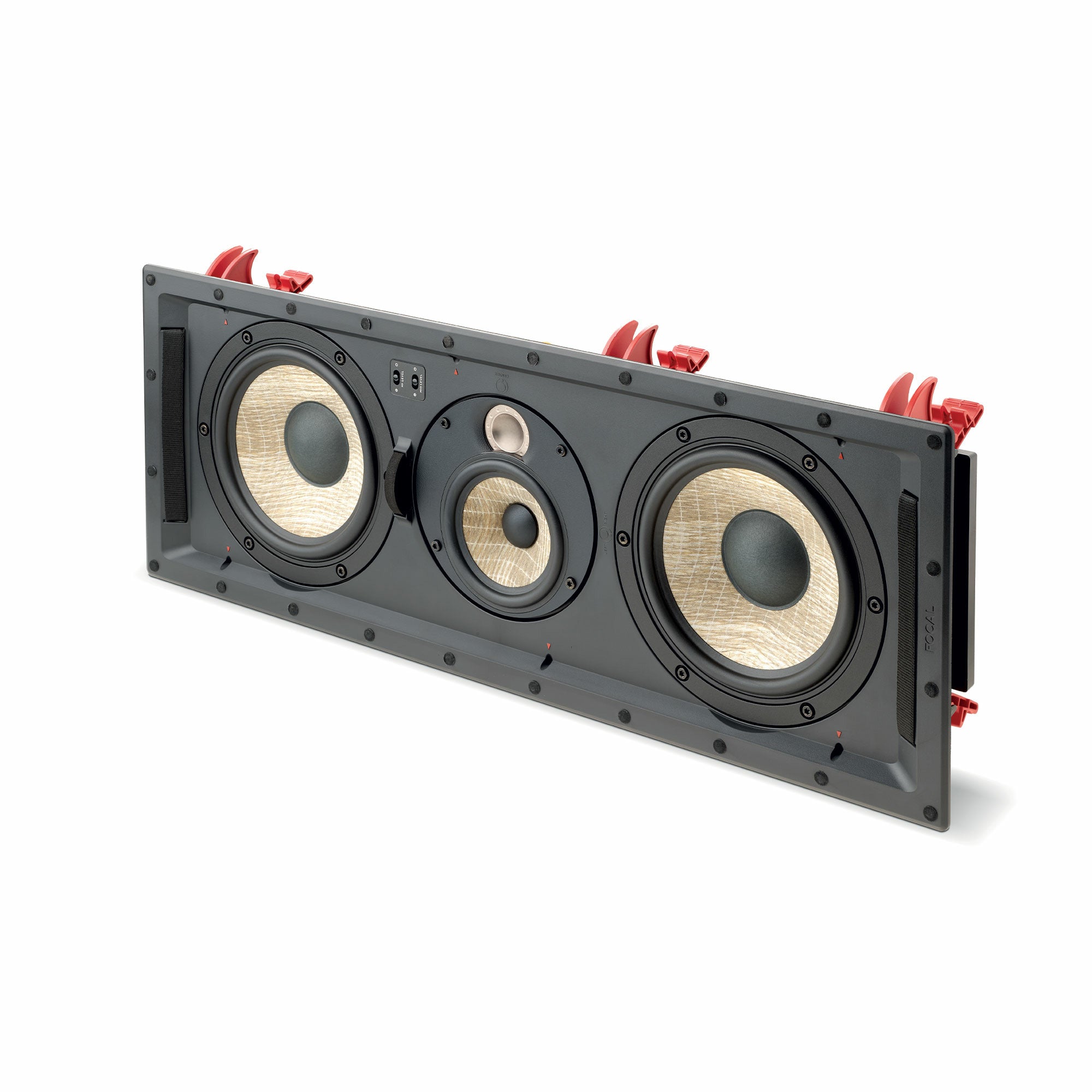

The mid-range/high frequency driver can be rotated through 90° for horizontal positioning in centre speaker mode, or vertical positioning for left and right use. Tweeter and mid-range levels are adjustable to suit room acoustics. It can be used around a screen, with stereo speakers, as a center speaker or in Atmos® on the ceiling.
FLAX TECHNOLOGY
The 10 cm bass/mid-range loudspeaker inherits the Flax membrane made from French linen. Contributing to the reproduction of a very natural, uncolored sound, this Focal technology guarantees excellent intelligibility of film voices and dialogues.
PRACTICAL AND DISCREET

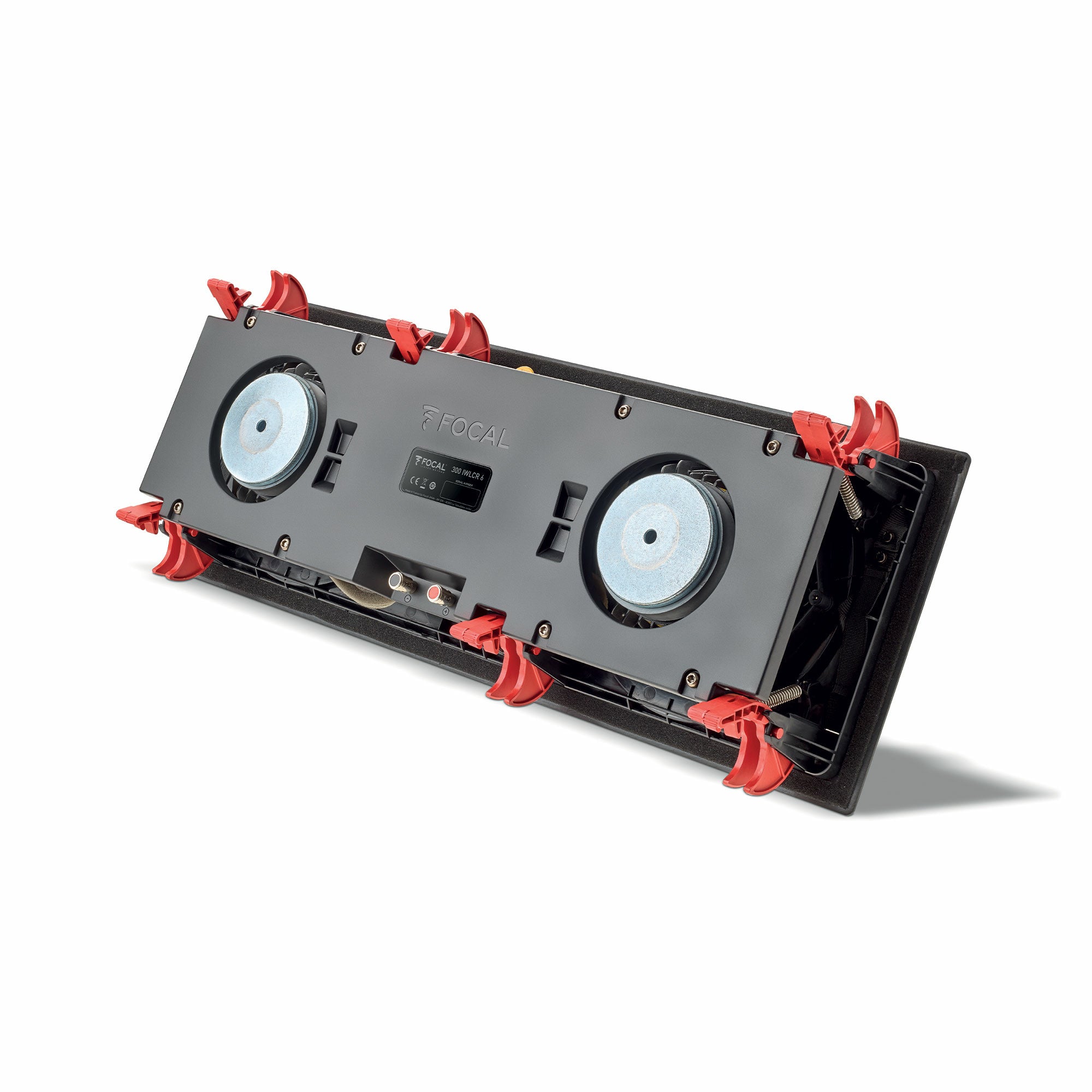

Thanks to the EQI (Easy Quick Install) mounting system, no tools or screws are required, making installation quick and easy! Rectangular, the grilles are magnetized and designed to be ready-to-paint, for perfect integration into any interior.
Key Point
• 3-way in-wall loudspeaker
• Easy and quick to install without tools
• LCR loudspeaker (left, centre and right) for uncompromising Home Cinema installations
• Adjustable mid-treble plate
• Speaker drivers designed and made in France by Focal
• Deep frequency response in the low end and high power handling
• Very balanced mid-range for improved intelligibility for Home Cinema set-ups

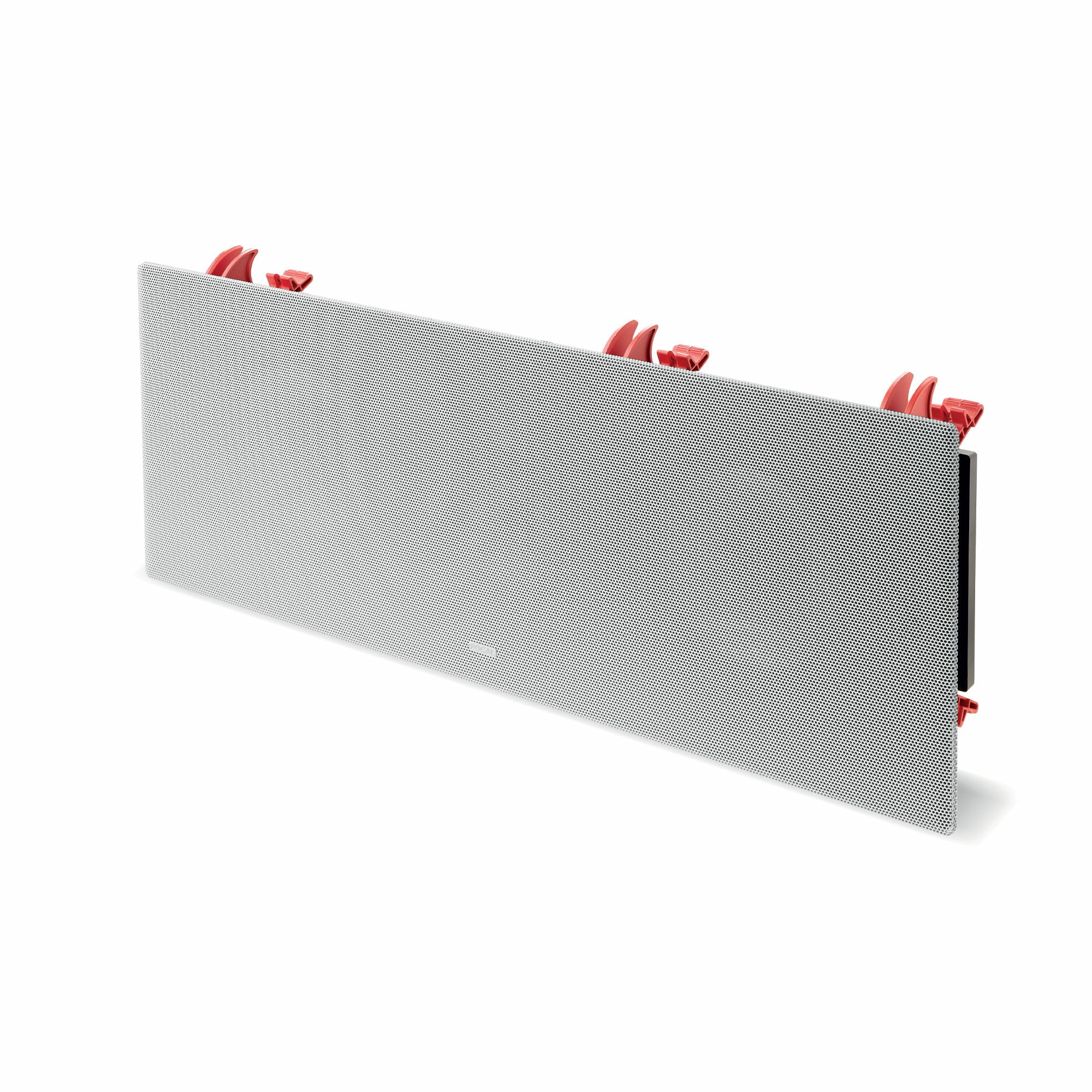

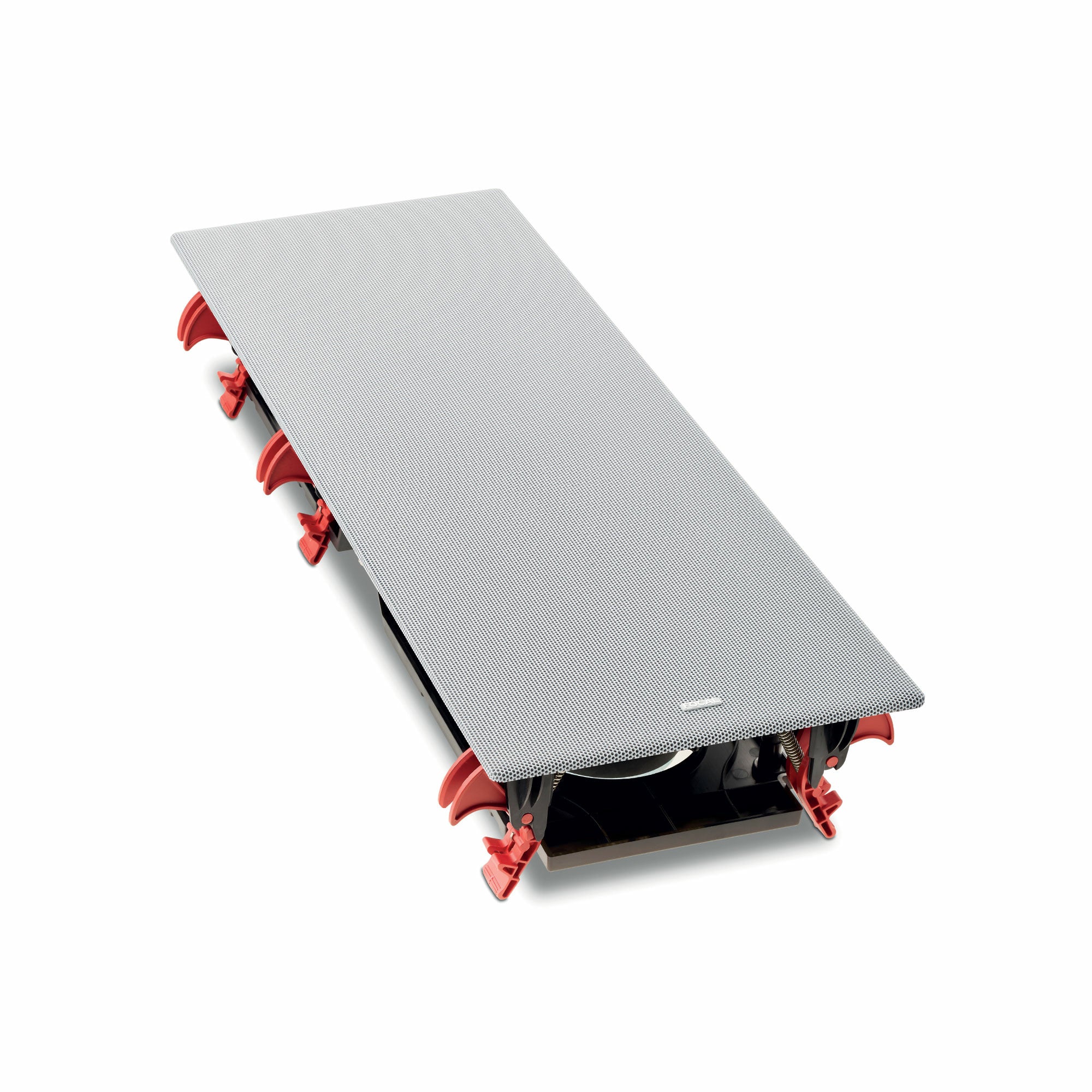

• Supplied with a magnetic grille and ready to paint to ensure perfect integration
Specifications
Technical Specifications
| Type | 3-way In-wall |
|---|---|
| Drivers |
2 x 61/2" (16.5cm) woofers 4" (10cm) Flax midrange 1" (25mm) Al/Mg inverted dome tweeter |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency response (+/-3dB) | 40Hz - 28kHz |
| Low frequency point (-6dB) | 33Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 2.9 Ω |
| Recommended amplifier power | 50 - 150W |
| External dimensions (HxWxD) | 235/8" x 811/16" x 37/8" (600 x 220 x 98mm) |
| Cut-Out diameter (HxL) | 223/8" x 71/2" (568 x 191mm) |
| Depth from wall | 311/16" (93mm) |
| Net weight (with front grille) | 12.4lbs (5.65kg) |
| Packing dimensions (WxDxH) | 271/16" x 121/8" x 71/4" (688 x 308 x 184mm) |
| Total weight (with packaging) | 17.4lbs (7.9kg) |
