Focal 1000 IWSUB Utopia In-Wall Subwoofer (Each)
Focal 1000 IWSUB Utopia In-Wall Subwoofer (Each)
In-wall passive closed subwoofer
For sensational bass in a home theater system, 1000 IWSUB Utopia is the ideal subwoofer. Benefiting from the best of Focal's innovations, this product of excellence features an exclusive architecture that allows it to be integrated into walls both horizontally and vertically. It has been designed to fit perfectly with the 1000 IWLCR Utopia loudspeaker for the ultimate installation.
SENSATIONAL BASS

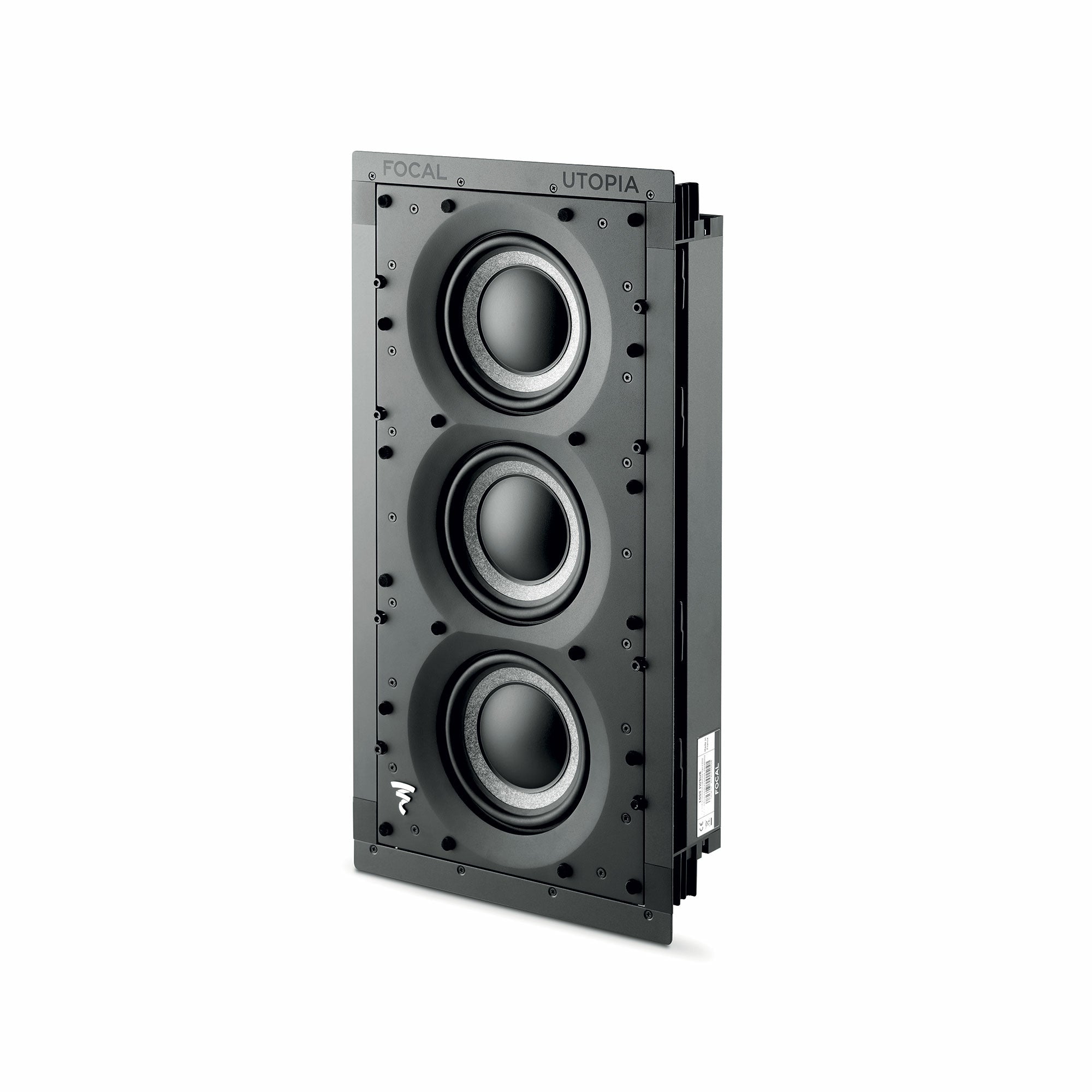

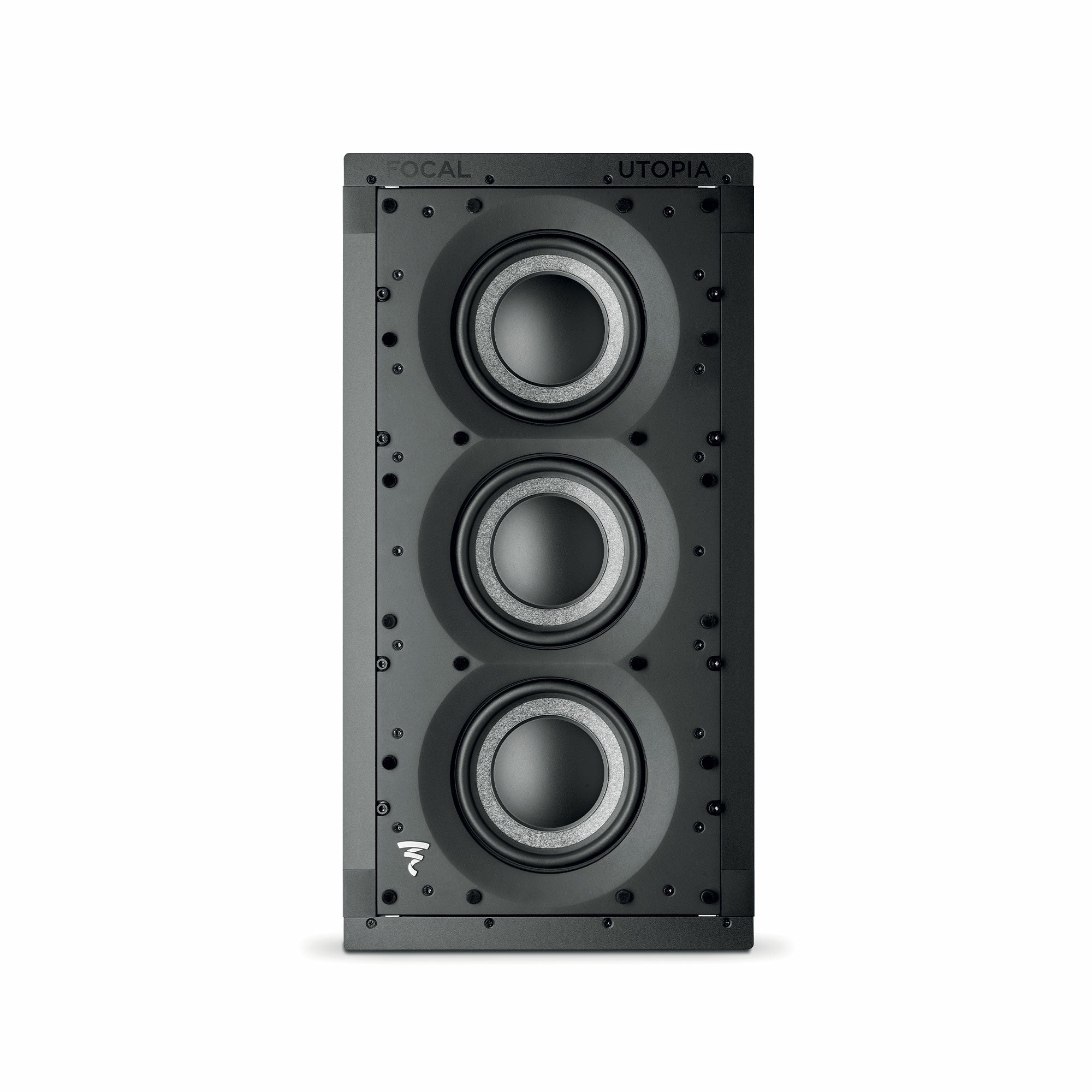

Incorporating the very best of Focal technologies from Utopia excellence, the three 16.5 cm bass drivers offer unrivalled power handling, for both stereo and home theater listening.
THE PERFECT MATCH
This subwoofer has been designed to fit perfectly with the 1000 IWLCR Utopia loudspeaker, and with as many other 1000 IWSUB Utopias as desired. Connections between each product are established using the Speakon cables supplied: the limits of assembly are those of your imagination!
PERSONALIZATION
With the option of choosing the impedance of each loudspeaker according to the number of associated products, 1000 IWSUB Utopia allows uncompromising audio installation (up to 16 IWSUB Utopia), discreetly and without modifying your room thanks to ready-to-paint magnetic grilles.
A NETWORK OF SPECIALIZED OFFICIAL DEALERS
Focal deploys CI EXPERT to guide you in choosing the stereo and Home Cinema installation of your dreams, including the excellent products of the 1000 Series line.
Key Point
• In-wall closed-back loudspeaker designed for Bass frequencies
• Speaker drivers developed and manufactured in France by Focal
• Assembly possible with 1000 IWLCR UTOPIA and 1000 IWSUB UTOPIA

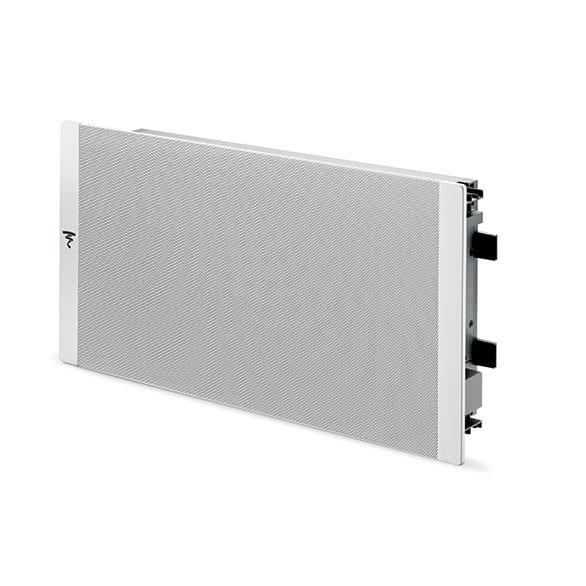

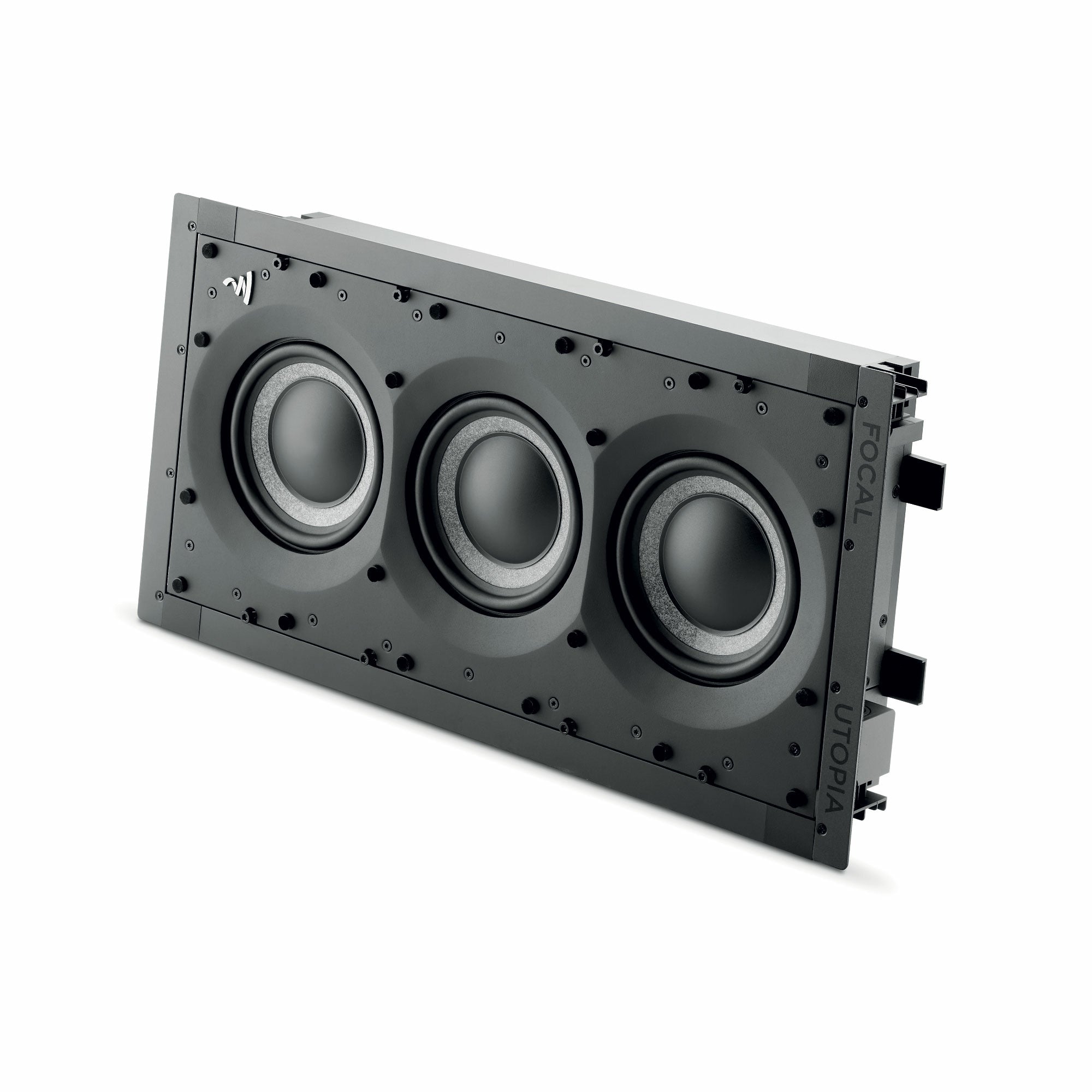

• Horizontal or vertical positioning possible

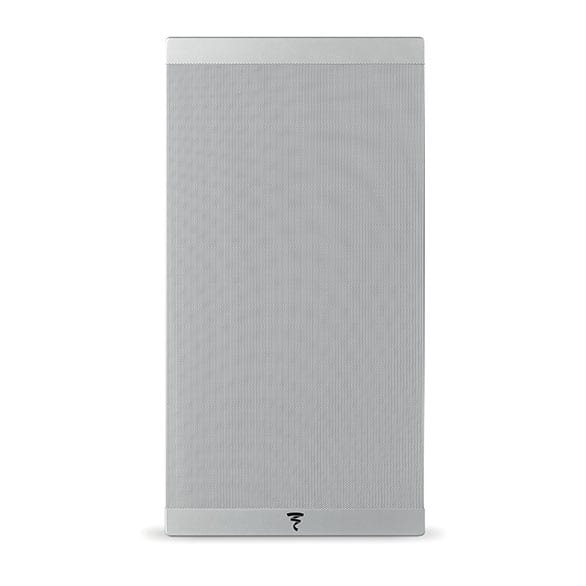

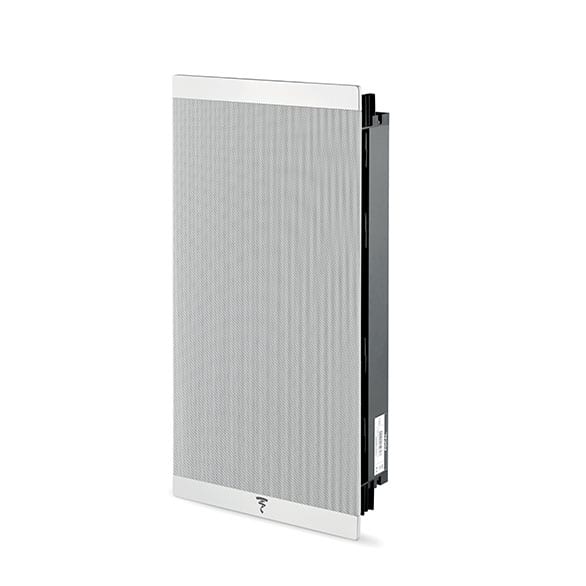

• Delivered with a magnetically attached, ready to paint grille for seamless integration
• Optional assembly kit (for partition during construction)
• Professional cable Speakon included 6.5'' (2m)
• On-wall compatible: optional on-wall frame
Specifications
Technical specifications
IWSUB UTOPIA (8 Ώ) | IWSUB UTOPIA (72 Ώ) | |
---|---|---|
Type of speaker | Closed-back in-wall | Closed-back in-wall |
Speaker drivers | 3 x 6½” (16.5cm) Bass with ‘W’ cone | |
Sensitivity (2.83V/3 feet - 1m) | 83dB | 74dB |
Bandwidth (+/-3dB) | 40Hz – 2.5kHz | |
Low-frequency cut-off (-6dB) | 32Hz | |
Nominal impedance | 10 Ώ (selection 8 Ώ) | 90 Ώ (selection 72 Ώ) |
Minimal impedance | 8.6 Ώ | 76 Ώ |
Recommended amp power | 100 - 750W (8 Ώ) 200 - 1500W (4 Ώ) | 300 - 4000W (8 Ώ) 300 - 4000W (4 Ώ) |
Ext. size (H x L x D) | 233/8 x 12 x 4" (593 x 305 x 101mm) | |
Mounting dimensions (H x L) | 221/4 x 107/8" (564 x 276mm) | |
Mounting depth | 37/8" (99mm) | |
Net weight (with grille) | 21.16lbs (9.6kg) | |
Box size (length x depth x height) | 151/2 x 291/2 x 81/2" (395 x 750 x 215mm) | |
Total weight (with packaging) | 27lbs (12.25kg) |
Description
Description
Focal 1000 IWSUB Utopia In-Wall Subwoofer (Each)
In-wall passive closed subwoofer
For sensational bass in a home theater system, 1000 IWSUB Utopia is the ideal subwoofer. Benefiting from the best of Focal's innovations, this product of excellence features an exclusive architecture that allows it to be integrated into walls both horizontally and vertically. It has been designed to fit perfectly with the 1000 IWLCR Utopia loudspeaker for the ultimate installation.
SENSATIONAL BASS
Incorporating the very best of Focal technologies from Utopia excellence, the three 16.5 cm bass drivers offer unrivalled power handling, for both stereo and home theater listening.
THE PERFECT MATCH
This subwoofer has been designed to fit perfectly with the 1000 IWLCR Utopia loudspeaker, and with as many other 1000 IWSUB Utopias as desired. Connections between each product are established using the Speakon cables supplied: the limits of assembly are those of your imagination!
PERSONALIZATION
With the option of choosing the impedance of each loudspeaker according to the number of associated products, 1000 IWSUB Utopia allows uncompromising audio installation (up to 16 IWSUB Utopia), discreetly and without modifying your room thanks to ready-to-paint magnetic grilles.
A NETWORK OF SPECIALIZED OFFICIAL DEALERS
Focal deploys CI EXPERT to guide you in choosing the stereo and Home Cinema installation of your dreams, including the excellent products of the 1000 Series line.
Key Point
• In-wall closed-back loudspeaker designed for Bass frequencies
• Speaker drivers developed and manufactured in France by Focal
• Assembly possible with 1000 IWLCR UTOPIA and 1000 IWSUB UTOPIA
• Horizontal or vertical positioning possible
• Delivered with a magnetically attached, ready to paint grille for seamless integration
• Optional assembly kit (for partition during construction)
• Professional cable Speakon included 6.5'' (2m)
• On-wall compatible: optional on-wall frame
Specifications
Specifications
Technical specifications
IWSUB UTOPIA (8 Ώ) | IWSUB UTOPIA (72 Ώ) | |
---|---|---|
Type of speaker | Closed-back in-wall | Closed-back in-wall |
Speaker drivers | 3 x 6½” (16.5cm) Bass with ‘W’ cone | |
Sensitivity (2.83V/3 feet - 1m) | 83dB | 74dB |
Bandwidth (+/-3dB) | 40Hz – 2.5kHz | |
Low-frequency cut-off (-6dB) | 32Hz | |
Nominal impedance | 10 Ώ (selection 8 Ώ) | 90 Ώ (selection 72 Ώ) |
Minimal impedance | 8.6 Ώ | 76 Ώ |
Recommended amp power | 100 - 750W (8 Ώ) 200 - 1500W (4 Ώ) | 300 - 4000W (8 Ώ) 300 - 4000W (4 Ώ) |
Ext. size (H x L x D) | 233/8 x 12 x 4" (593 x 305 x 101mm) | |
Mounting dimensions (H x L) | 221/4 x 107/8" (564 x 276mm) | |
Mounting depth | 37/8" (99mm) | |
Net weight (with grille) | 21.16lbs (9.6kg) | |
Box size (length x depth x height) | 151/2 x 291/2 x 81/2" (395 x 750 x 215mm) | |
Total weight (with packaging) | 27lbs (12.25kg) |
