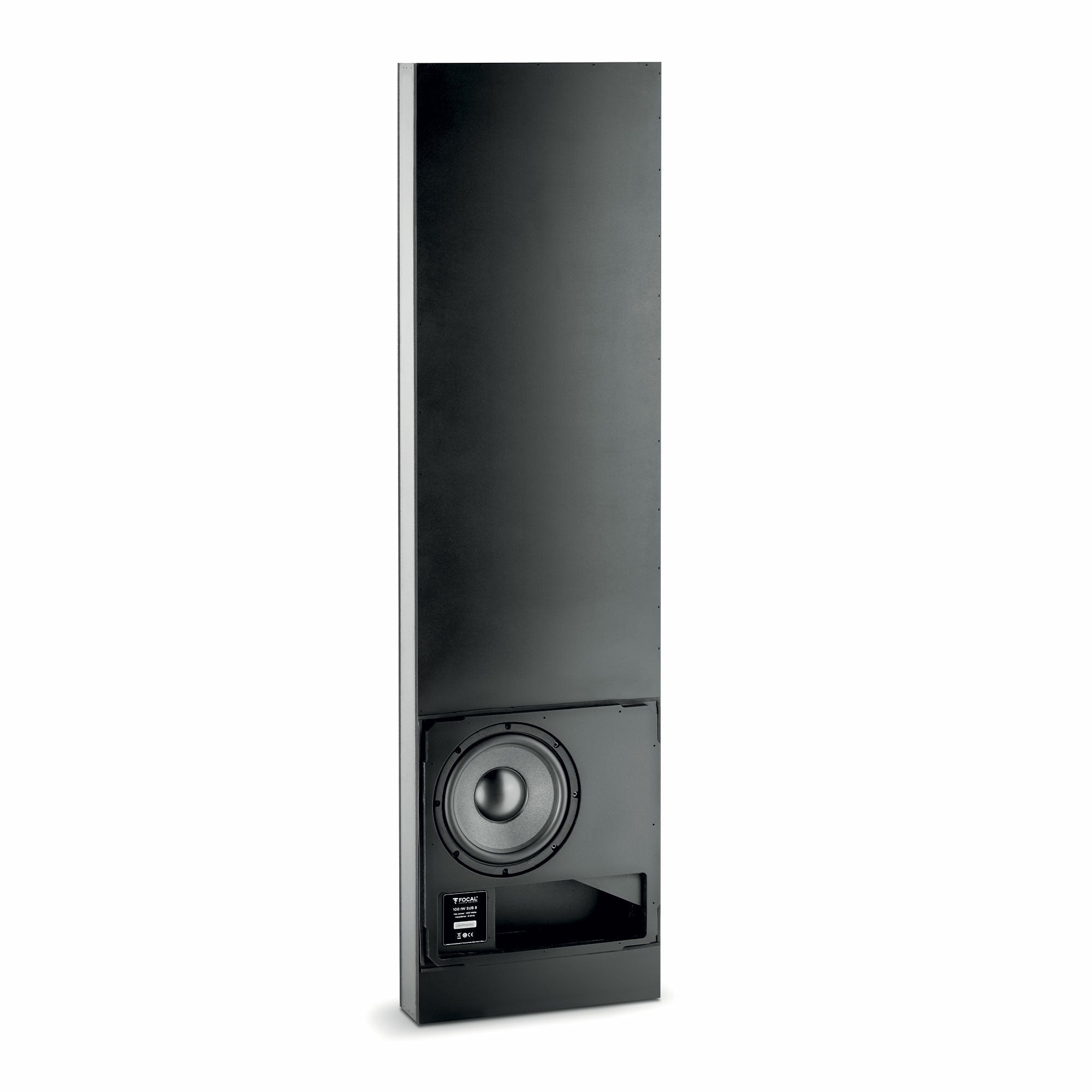

Focal 100 IWSUB8 Passive In-Wall Subwoofer
High-power passive bass-reflex subwoofer
Complete your 100 Series audio-video installation with 100 IWSUB8. This subwoofer with 30 Hz low cut-off incorporates a 21 cm Polyglass driver and a front port with a contoured internal structure to guarantee noise-free operation. This subwoofer promises deep, impacting bass that won't leave you indifferent.
HIGH POWER
This passive bass-reflex subwoofer can be pre-installed in walls and partitions, in compliance with the 16" OC mounting standard (with 40 cm spacing between studs).
DISCREET AND POWERFUL

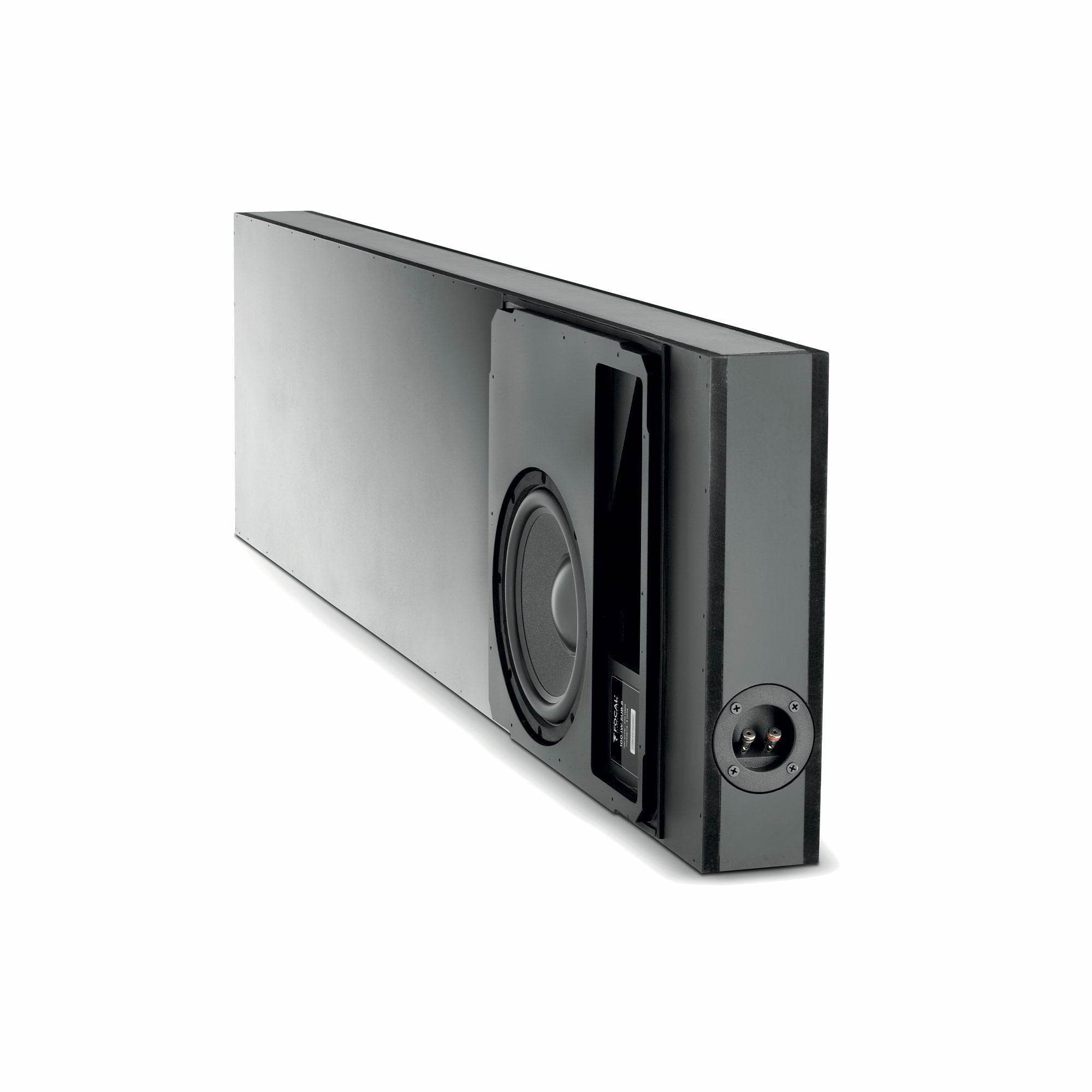

With its shallow mounting depth (86 mm), remarkable bass reproduction and paintable magnetic grille, the subwoofer is as effective as it is discreet.
COMPLEMENTARITY

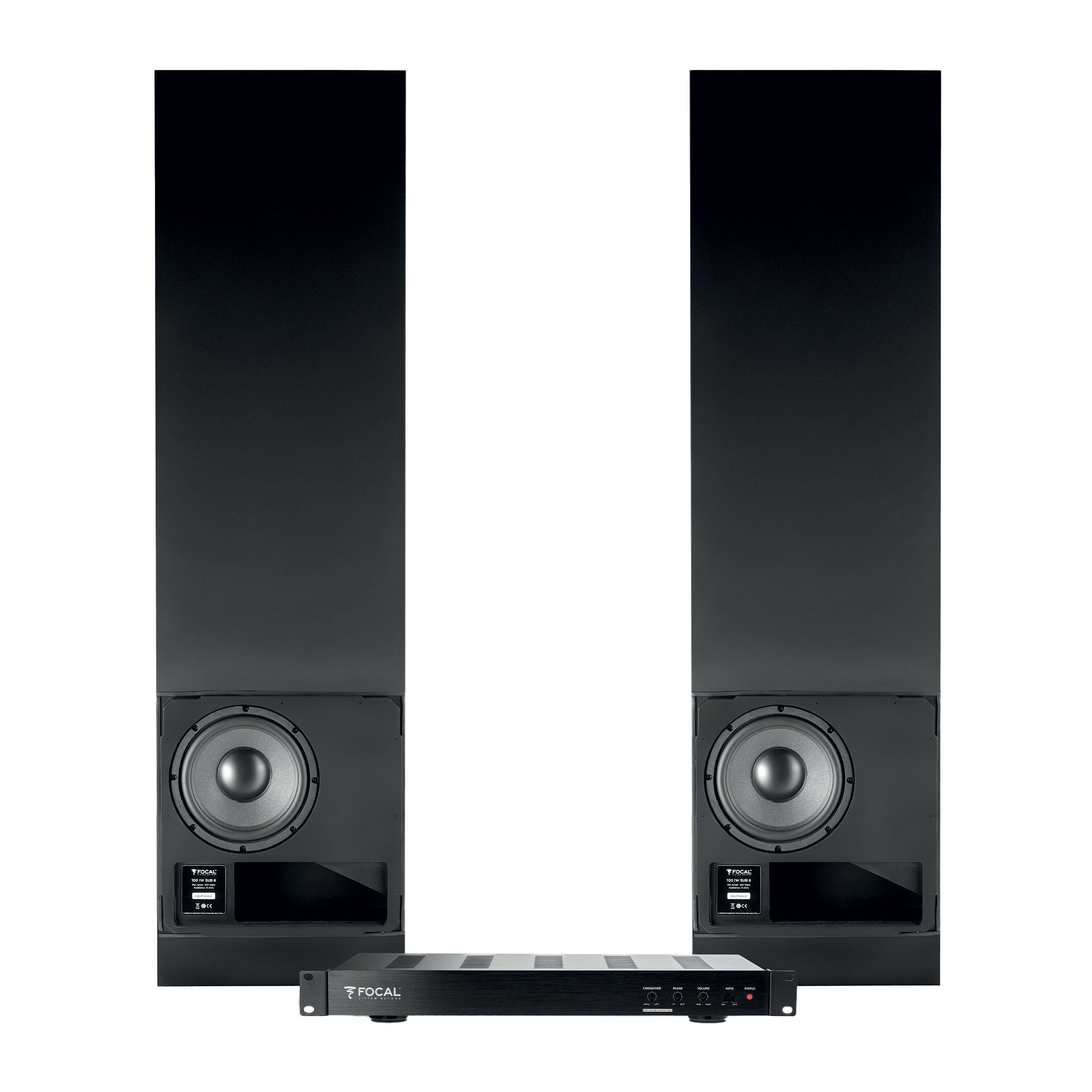

Focal has developed an amplifier specially adapted to the 100 IWSUB8 and easy to install: the 100 IWSUB8 Amplifier. It's the perfect way to create a unique sound environment in your home.
Key Points
• Bass-reflex subwoofer with 30Hz low-cut frequency.
• Low depth fitting 16" OC studs in-wall installation.
• Nominal impedance of 8 ohms, able to be connected by pairs with 100 IWSUB8 Amplifier
Specifications
Technical Specifications
| Type | Passive subwoofer |
|---|---|
| Speakers | 8" (21cm) Polyglass Woofer |
| Sensitivity (2.83V/1m) | 89 dB |
| Bandwith (+/-3dB) | 34-140Hz |
| Cut-off frequency (-6dB) | 30Hz |
| Nominal impedance | 8Ώ |
| Recommended amp power | Max 200W / 4Ώ |
| Dimensions (WxDxH) | 137/8 x 37/8 x 513/16" (352 x 98 x 1,300mm) |
| Cut-out dimensions (WxH) | 137/8 x 513/16" (352 x 1,300mm) |
| Depth from wall | 33/8" (86mm) |
| Net weight | 32.3lbs (14.6kg) |
