Description

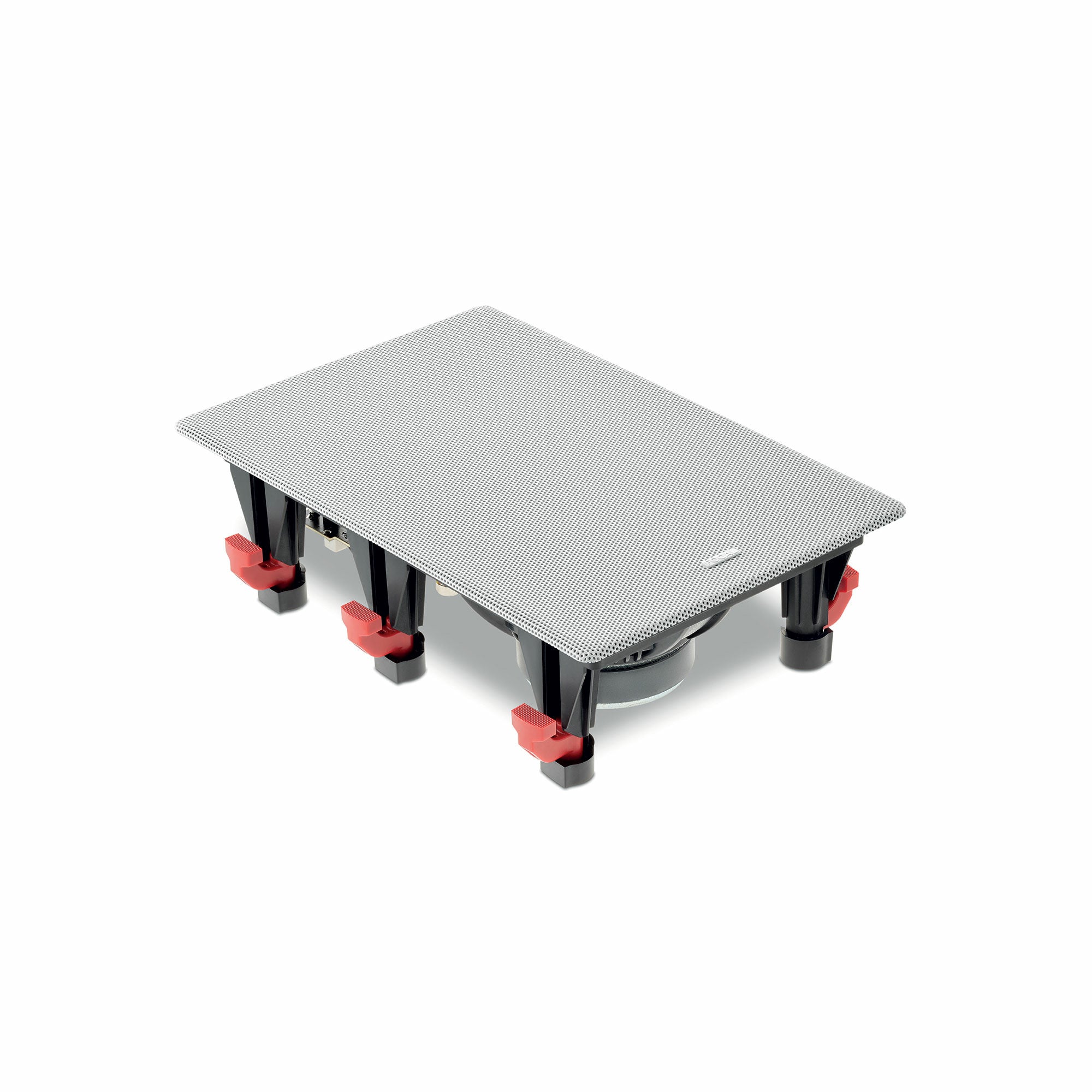

2-way in-wall speaker
The IW6 stands out for its impressive sound reproduction in relation to its compactness. This integrated loudspeaker is ideally suited to small to medium-sized spaces, whether for sound diffusion in a hallway or living room, stereo listening in a bedroom or kitchen, or home theater.
PRECISE ACOUSTICS

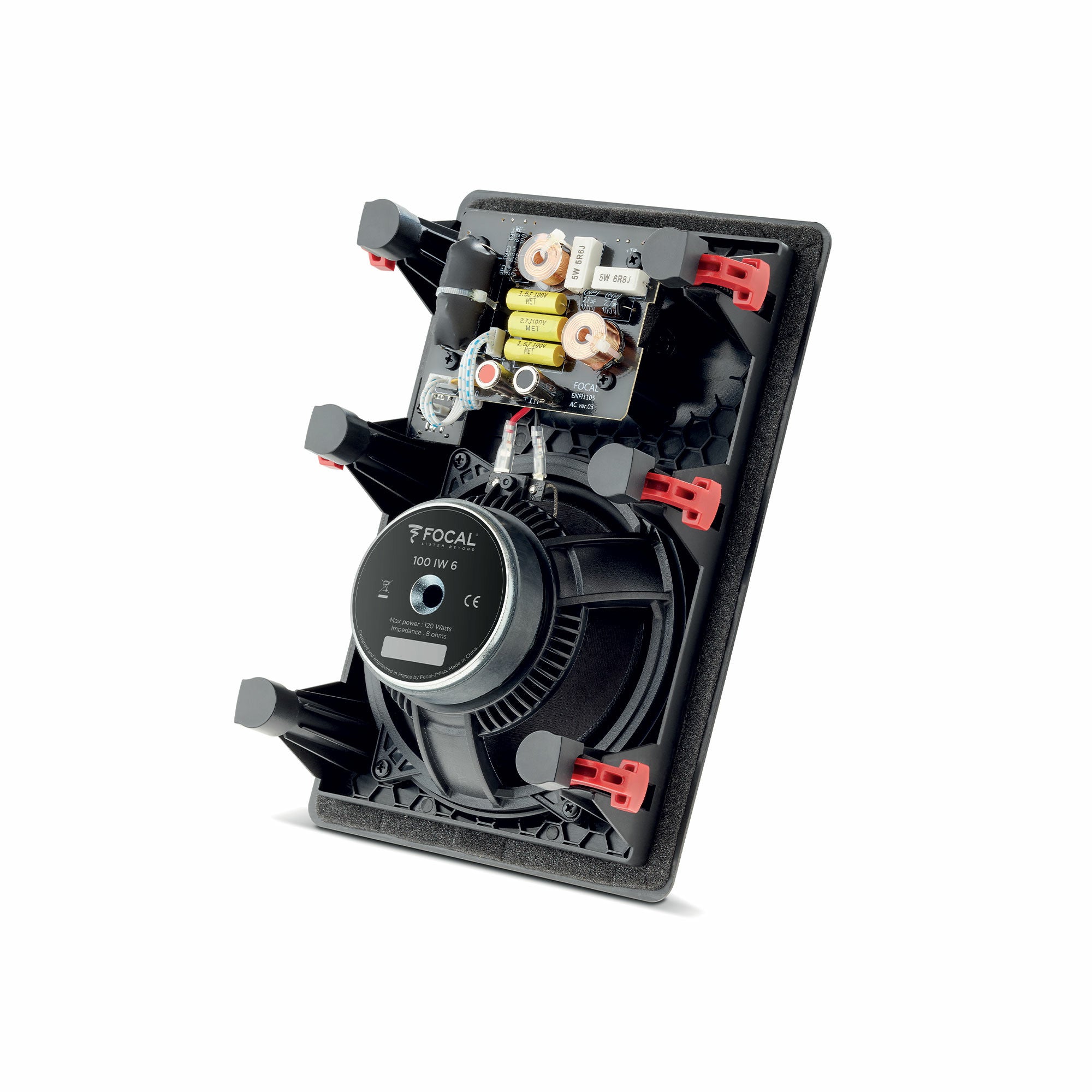

The IW6 features an adjustable aluminum inverted dome tweeter and a 16.5 cm Polyglass cone loudspeaker. For even better acoustics, adapted to the listening room, correctors equalize the treble and midrange registers.
COMPACT INSTALLATION
Thanks to its shallow depth (-10 cm), the loudspeaker fits discreetly into walls and is compatible with a wide range of configurations. Its magnetic grille adds a final touch of design and refinement to your installation.
HI-FI OR HOME CINEMA
With an extended frequency response from 60 Hz to 23 kHz, the IW6 is an easy-to-power loudspeaker. Combined with any hi-fi or Home Cinema amplifier, it reveals its performance, synonymous with sound immersion.
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille
Specifications
Technical Specifications
| Type | In-wall 2-way |
|---|---|
| Drivers |
61/2" (16.5cm) Polyglass Midbass 1" (25mm) AI inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 7.2Ω |
| Recommended amplifier power | 25-120W |
| External dimensions (Ø/Depth) | 113/4"x711/16"x35/8" (298x195x92mm) |
| Cut-Out diameter | 103/4"x611/16" (273x170mm) |
| Depth from wall | 37/16" (88mm) |
| Net weight (with front grille) | 4.1lbs (1.85kg) |
| Packing dimensions (WxDxH) | 131/2"x97/16"x415/16" (343x240x126mm) |
| Total weight (with packaging) | 4.98lbs (2.25kg) |
