Focal 100 ICW8 In-Wall / In-Ceiling 2-Way Coaxial Speaker
Focal 100 ICW8 In-Wall / In-Ceiling 2-Way Coaxial Speaker
2-way coaxial speaker
The elder statesman of the 100 Series ICW loudspeakers (wall and ceiling integration), 100 ICW8 features a 21 cm driver. It combines sound performance, compactness and ease of installation for hi-fi listening in the home. Versatile, it ensures perfect sound diffusion in a variety of spaces (hallway, living room, bedroom, kitchen...), making it ideal for both stereo and home cinema installations.
OPTIMIZED ACOUSTICS
An inverted dome tweeter, adjustable for perfect adaptation to your room, combines with a 21 cm Polyglass diaphragm loudspeaker and a special crossover for defined sound and extended sound coverage. You can adjust the treble level (-3 dB, 0 dB, +3 dB) to match the acoustics of your room.
MOISTURE RESISTANCE
Thanks to the tropicalization of the Polyglass membrane, 100 Series in-wall and in-ceiling loudspeakers are perfectly suited to use in damp environments, such as bathrooms.
ADAPTATION AND DISCRETION

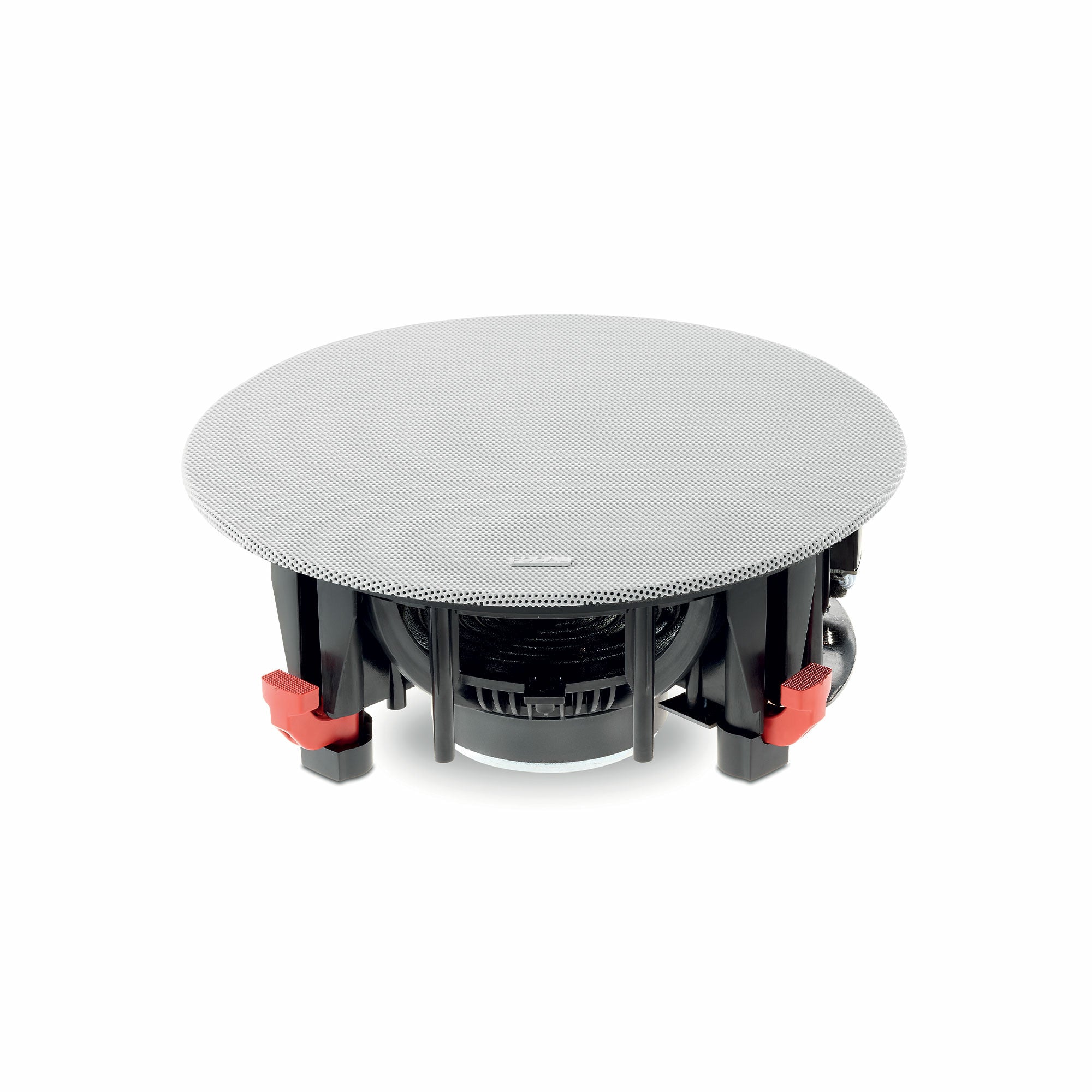

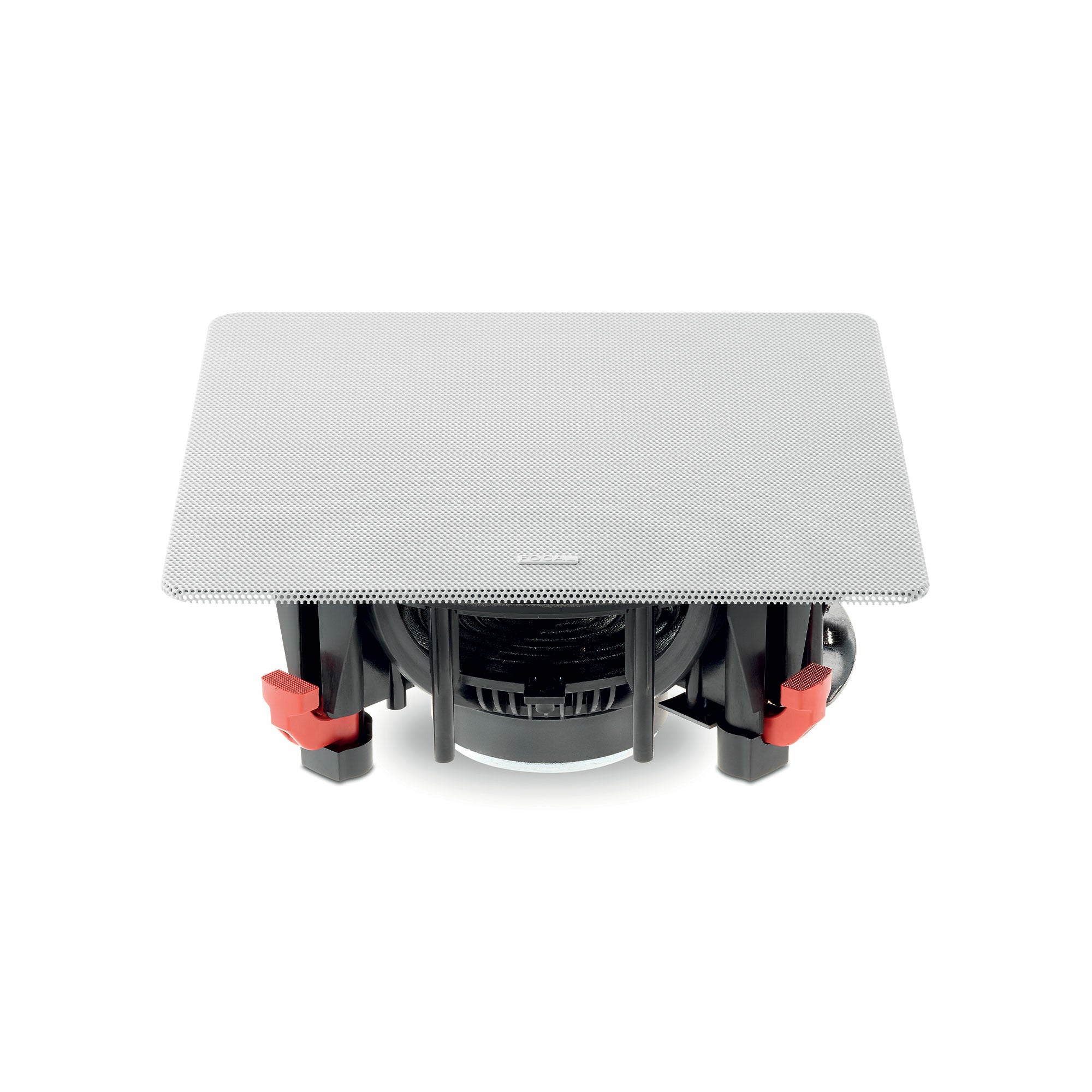

With its shallow mounting depth, the loudspeaker is quick and easy to install in walls or ceilings. Ready-to-paint magnetic grilles, circular or square, ensure discreet, aesthetic integration into your environment.
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille
Specifications
Technical Specifications
| Type | In-wall/In-celling 2-way coaxial |
|---|---|
| Drivers |
8" (21cm) Polyglass Midbass 1" (25mm) AI inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (+/-3dB) | 53Hz-23kHz |
| Low frequency point (-6dB) | 40Hz |
| Nominal impedance | 8Ώ |
| Minimal impedance | 6.9Ώ |
| Recommended amplifier power | 25-150W |
| External dimensions (Ø/Depth) | 93/4"x43/8" (248x111mm) |
| Cut-Out diameter | 813/16" (224mm) |
| Depth from wall | 43/16" (107mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 123/16"x123/16"x71/4" (310x310x185mm) |
| Total weight (with packaging) | 4.73lbs (2.60kg) |
Description
Description
Focal 100 ICW8 In-Wall / In-Ceiling 2-Way Coaxial Speaker
2-way coaxial speaker
The elder statesman of the 100 Series ICW loudspeakers (wall and ceiling integration), 100 ICW8 features a 21 cm driver. It combines sound performance, compactness and ease of installation for hi-fi listening in the home. Versatile, it ensures perfect sound diffusion in a variety of spaces (hallway, living room, bedroom, kitchen...), making it ideal for both stereo and home cinema installations.
OPTIMIZED ACOUSTICS
An inverted dome tweeter, adjustable for perfect adaptation to your room, combines with a 21 cm Polyglass diaphragm loudspeaker and a special crossover for defined sound and extended sound coverage. You can adjust the treble level (-3 dB, 0 dB, +3 dB) to match the acoustics of your room.
MOISTURE RESISTANCE
Thanks to the tropicalization of the Polyglass membrane, 100 Series in-wall and in-ceiling loudspeakers are perfectly suited to use in damp environments, such as bathrooms.
ADAPTATION AND DISCRETION
With its shallow mounting depth, the loudspeaker is quick and easy to install in walls or ceilings. Ready-to-paint magnetic grilles, circular or square, ensure discreet, aesthetic integration into your environment.
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille
Specifications
Specifications
Technical Specifications
| Type | In-wall/In-celling 2-way coaxial |
|---|---|
| Drivers |
8" (21cm) Polyglass Midbass 1" (25mm) AI inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (+/-3dB) | 53Hz-23kHz |
| Low frequency point (-6dB) | 40Hz |
| Nominal impedance | 8Ώ |
| Minimal impedance | 6.9Ώ |
| Recommended amplifier power | 25-150W |
| External dimensions (Ø/Depth) | 93/4"x43/8" (248x111mm) |
| Cut-Out diameter | 813/16" (224mm) |
| Depth from wall | 43/16" (107mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 123/16"x123/16"x71/4" (310x310x185mm) |
| Total weight (with packaging) | 4.73lbs (2.60kg) |
